2005 GMC CANYON Owner's Manual

If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint.
Secure the child in the child restraint when and as the
instructions say.
1. Your vehicle has a right front passenger’s frontal
airbag. SeeAirbag Off Switch on page 1-71.If
your child restraint is forward-facing, always move
the seat as far back as it will go before securing
it in this seat. SeeManual Seats on page 1-3
orPower Seats on page 1-4.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-59

5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-60

If you were using a rear-facing child restraint, turn on
the right front passenger’s frontal airbag when you
remove the rear-facing child restraint from the vehicle
unless the person who will be sitting there is a member
of a passenger airbag risk group. SeeAirbag Off
Switch on page 1-71.
{CAUTION:
If the right front passenger’s frontal airbag is
turned off for a person who is not in a risk
group identied by the national government,
that person will not have the extra protection
of an airbag. In a crash, the airbag would not
be able to inate and help protect the person
sitting there. Do not turn off the right front
passenger’s frontal airbag unless the person
sitting there is in a risk group. SeeAirbag Off
Switch on page 1-71for more on this,
including important safety information.
Airbag System
Your vehicle has airbags — a frontal airbag for the
driver and a frontal airbag for the right front passenger.
Your vehicle may also have a roof-mounted side
impact airbag for the driver and the passenger directly
behind the driver and a roof-mounted side impact airbag
for the right front passenger and the person seated
directly behind that passenger.
Airbags are designed to help reduce the risk of injury
from the force of an inating airbag. But these airbags
must inate very quickly to do their job and comply with
federal regulations.
1-61

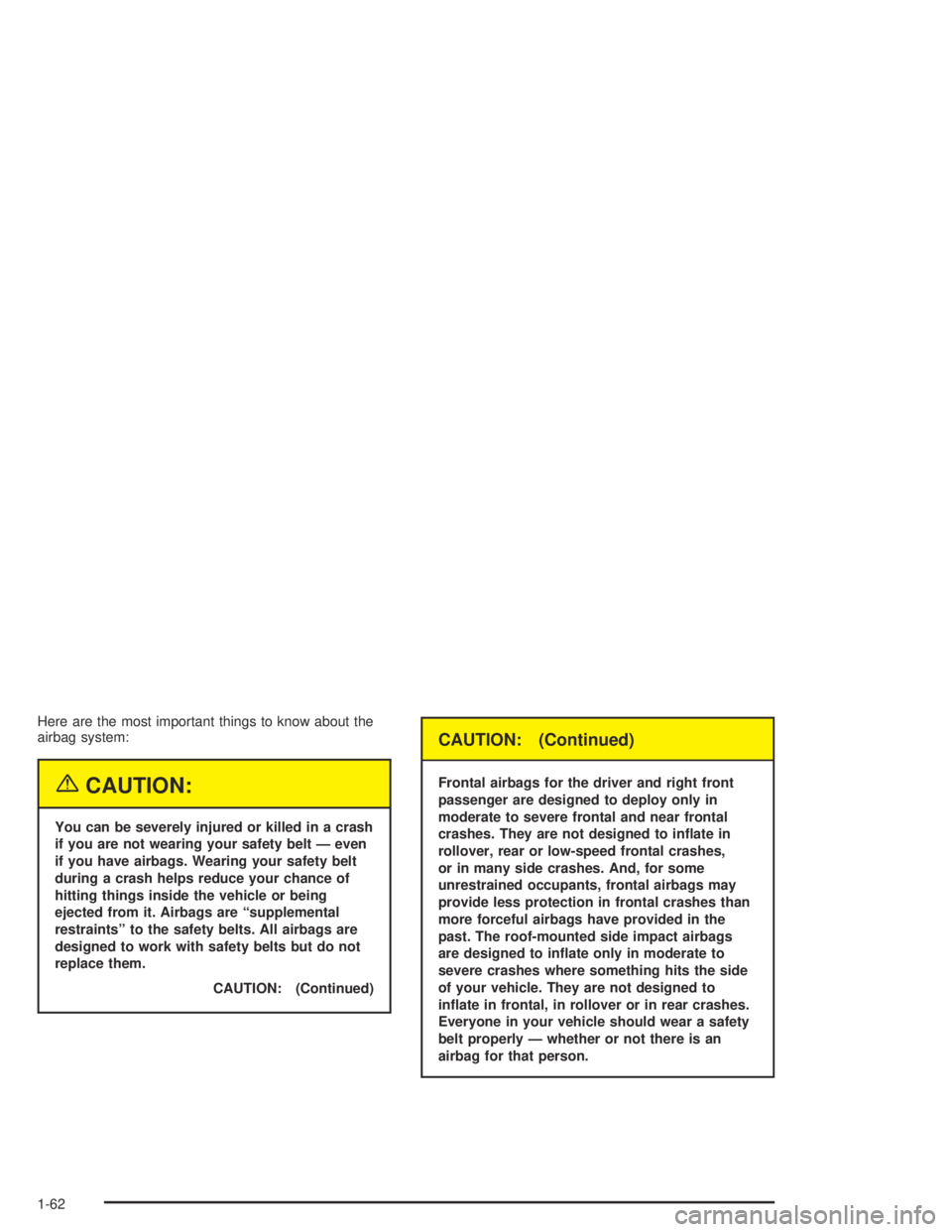

Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts but do not
replace them.
CAUTION: (Continued)
CAUTION: (Continued)
Frontal airbags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They are not designed to inate in
rollover, rear or low-speed frontal crashes,
or in many side crashes. And, for some
unrestrained occupants, frontal airbags may
provide less protection in frontal crashes than
more forceful airbags have provided in the
past. The roof-mounted side impact airbags
are designed to inate only in moderate to
severe crashes where something hits the side
of your vehicle. They are not designed to
inate in frontal, in rollover or in rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
1-62

{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward,
it could seriously injure you. Safety belts help
keep you in position for airbag ination before
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-32orInfants and
Young Children on page 1-34.
1-63

There is an airbag
readiness light on the
instrument panel which
shows the airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-25
for more information.Where Are the Airbags?
The driver’s airbag is in the middle of the steering wheel.
1-64

The right front passenger’s airbag is in the instrument
panel on the passenger’s side.If your vehicle has a roof-mounted side impact airbag
for the driver and the person seated directly behind the
driver, it is located in the ceiling above the side windows.
1-65

If your vehicle has a roof-mounted side impact airbag
for the right front passenger and the person seated
directly behind that passenger, it is located in the ceiling
above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. If your vehicle has side
impact airbags, never secure anything to the
roof of your vehicle by routing the rope or
tiedown through any door or window opening.
If you do, the path of an inating side impact
airbag will be blocked. The path of an inating
airbag must be kept clear.
1-66
