2005 FORD SUPER DUTY Diesel Supplement Manual

Date:
Odometer reading:
R.O.#Dealer’s Stamp:

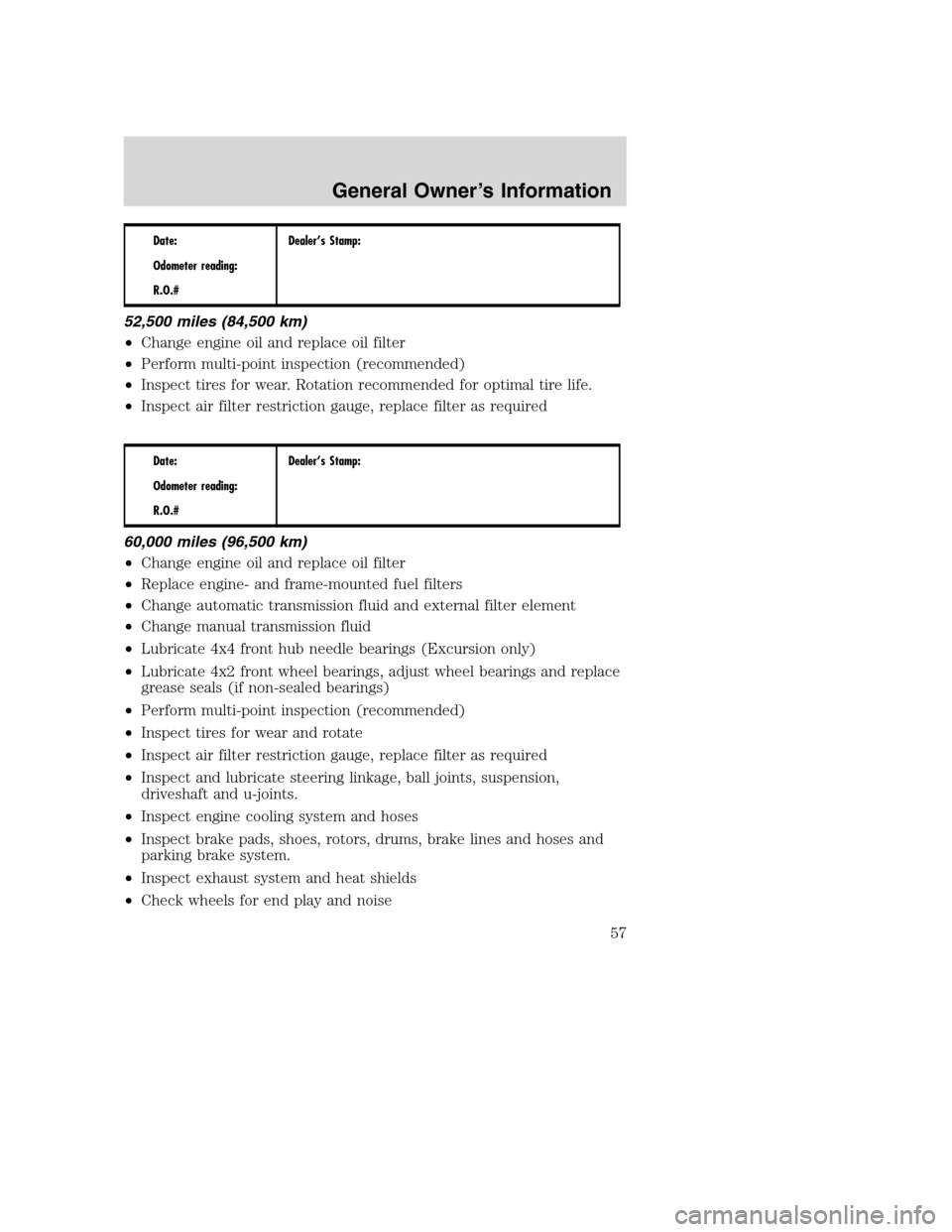

52,500 miles (84,500 km)
•Change engine oil and replace oil filter
•Perform multi-point inspection (recommended)
•Inspect tires for wear. Rotation recommended for optimal tire life.
•Inspect air filter restriction gauge, replace filter as required
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
60,000 miles (96,500 km)
•Change engine oil and replace oil filter
•Replace engine- and frame-mounted fuel filters
•Change automatic transmission fluid and external filter element
•Change manual transmission fluid
•Lubricate 4x4 front hub needle bearings (Excursion only)
•Lubricate 4x2 front wheel bearings, adjust wheel bearings and replace
grease seals (if non-sealed bearings)
•Perform multi-point inspection (recommended)
•Inspect tires for wear and rotate
•Inspect air filter restriction gauge, replace filter as required
•Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints.
•Inspect engine cooling system and hoses
•Inspect brake pads, shoes, rotors, drums, brake lines and hoses and
parking brake system.
•Inspect exhaust system and heat shields
•Check wheels for end play and noise
General Owner’s Information
57

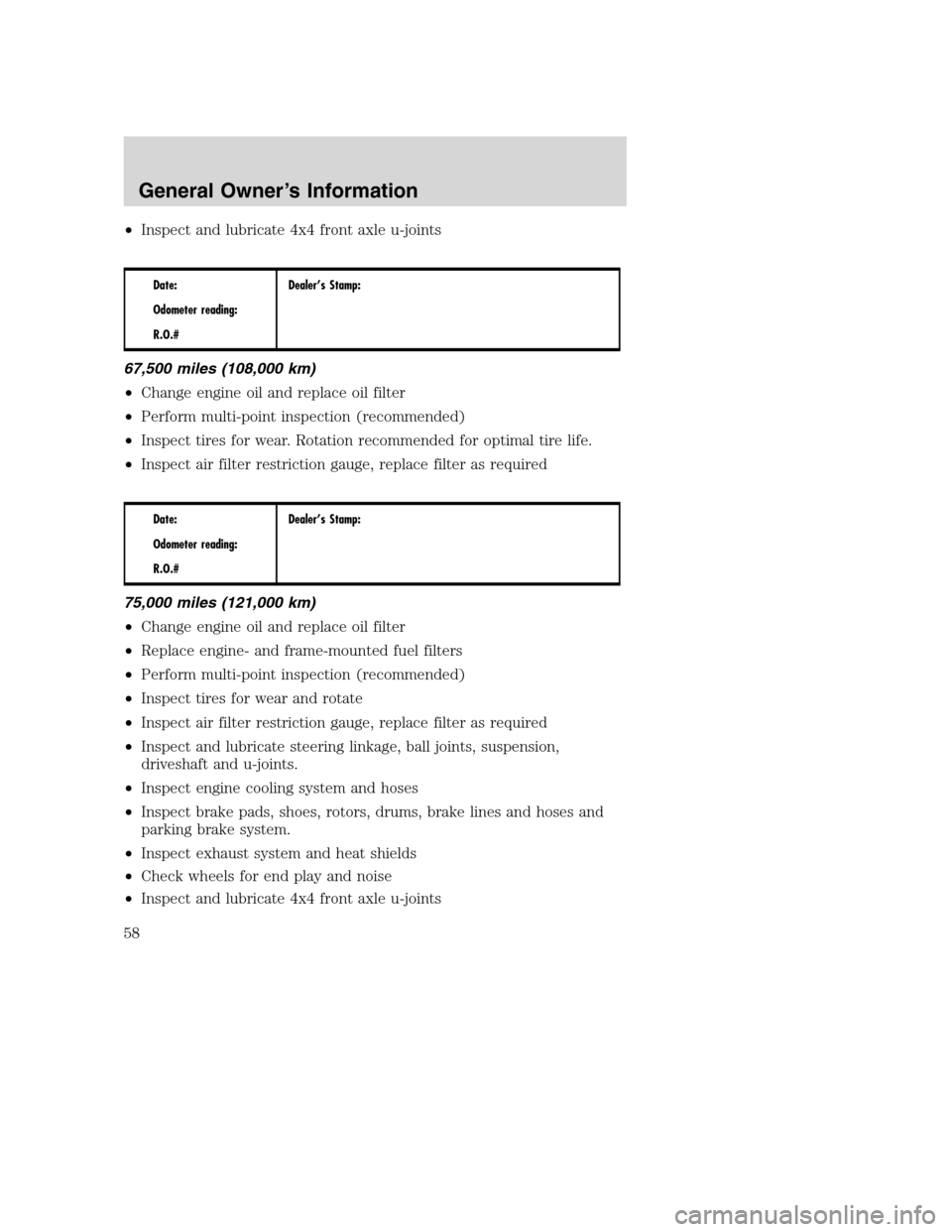

•Inspect and lubricate 4x4 front axle u-joints
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
67,500 miles (108,000 km)
•Change engine oil and replace oil filter
•Perform multi-point inspection (recommended)
•Inspect tires for wear. Rotation recommended for optimal tire life.
•Inspect air filter restriction gauge, replace filter as required
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
75,000 miles (121,000 km)
•Change engine oil and replace oil filter
•Replace engine- and frame-mounted fuel filters
•Perform multi-point inspection (recommended)
•Inspect tires for wear and rotate
•Inspect air filter restriction gauge, replace filter as required
•Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints.
•Inspect engine cooling system and hoses
•Inspect brake pads, shoes, rotors, drums, brake lines and hoses and
parking brake system.
•Inspect exhaust system and heat shields
•Check wheels for end play and noise
•Inspect and lubricate 4x4 front axle u-joints
General Owner’s Information
58

Date:
Odometer reading:
R.O.#Dealer’s Stamp:

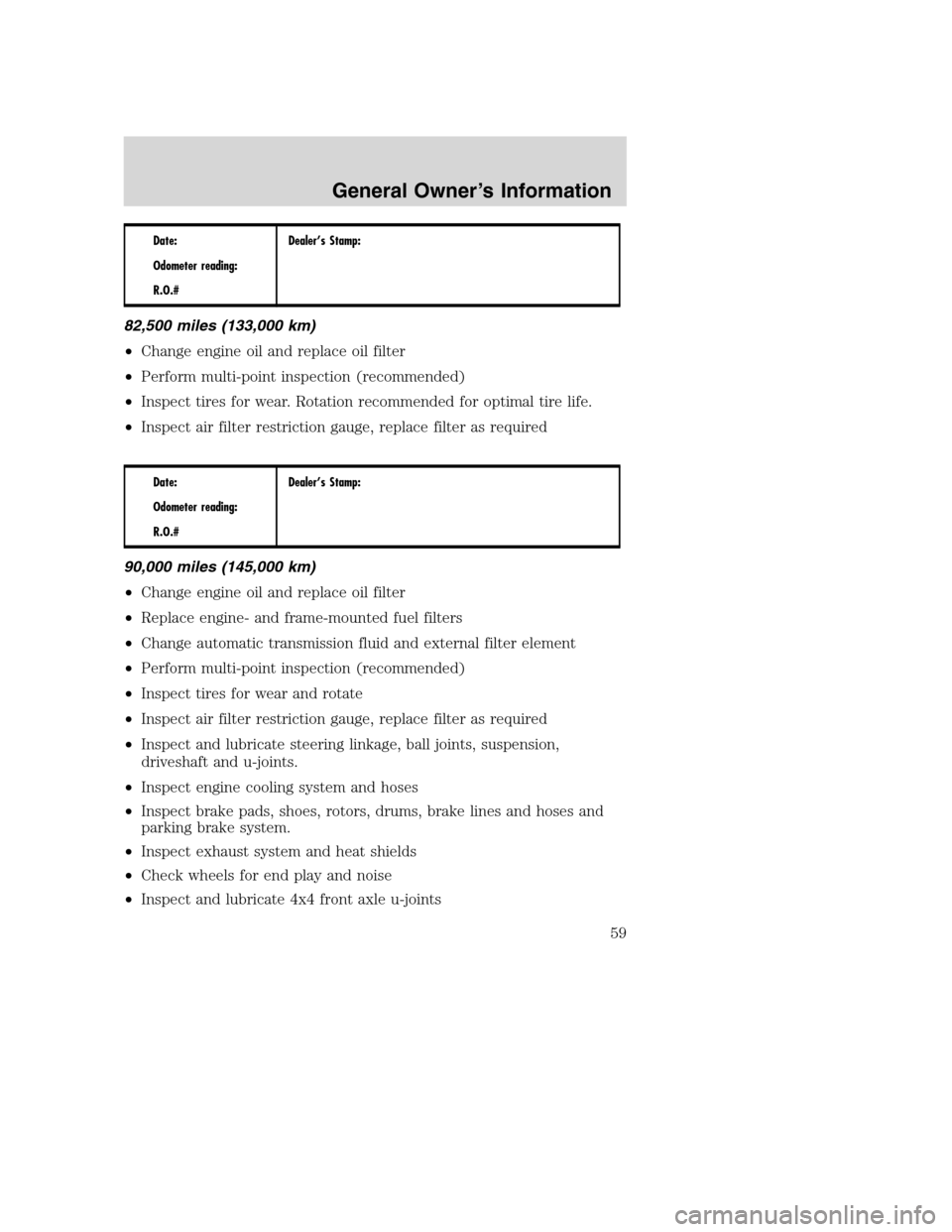

82,500 miles (133,000 km)
•Change engine oil and replace oil filter
•Perform multi-point inspection (recommended)
•Inspect tires for wear. Rotation recommended for optimal tire life.
•Inspect air filter restriction gauge, replace filter as required
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
90,000 miles (145,000 km)
•Change engine oil and replace oil filter
•Replace engine- and frame-mounted fuel filters
•Change automatic transmission fluid and external filter element
•Perform multi-point inspection (recommended)
•Inspect tires for wear and rotate
•Inspect air filter restriction gauge, replace filter as required
•Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints.
•Inspect engine cooling system and hoses
•Inspect brake pads, shoes, rotors, drums, brake lines and hoses and
parking brake system.
•Inspect exhaust system and heat shields
•Check wheels for end play and noise
•Inspect and lubricate 4x4 front axle u-joints
General Owner’s Information
59

Date:
Odometer reading:
R.O.#Dealer’s Stamp:

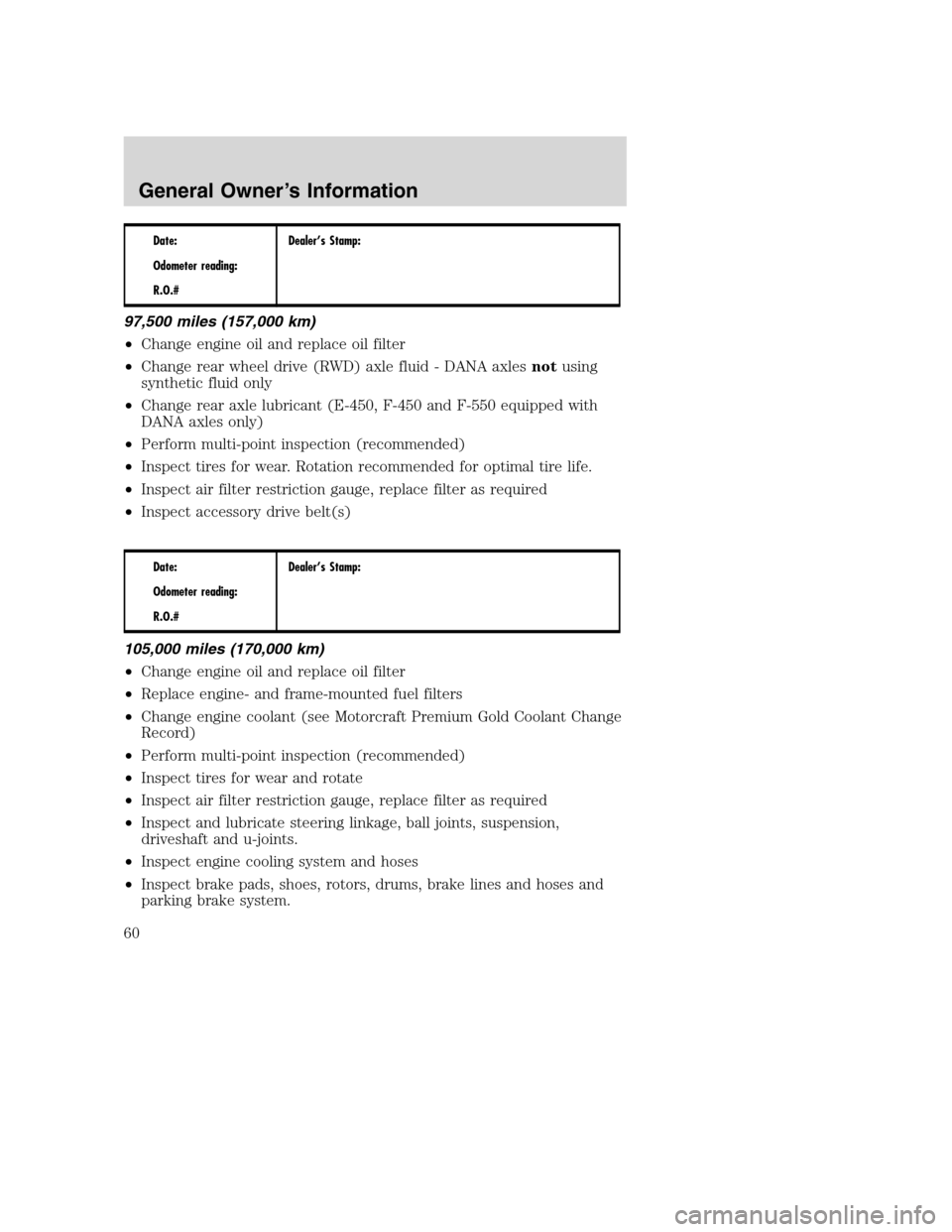

97,500 miles (157,000 km)
•Change engine oil and replace oil filter
•Change rear wheel drive (RWD) axle fluid - DANA axlesnotusing
synthetic fluid only
•Change rear axle lubricant (E-450, F-450 and F-550 equipped with
DANA axles only)
•Perform multi-point inspection (recommended)
•Inspect tires for wear. Rotation recommended for optimal tire life.
•Inspect air filter restriction gauge, replace filter as required
•Inspect accessory drive belt(s)
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
105,000 miles (170,000 km)
•Change engine oil and replace oil filter
•Replace engine- and frame-mounted fuel filters
•Change engine coolant (see Motorcraft Premium Gold Coolant Change
Record)
•Perform multi-point inspection (recommended)
•Inspect tires for wear and rotate
•Inspect air filter restriction gauge, replace filter as required
•Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints.
•Inspect engine cooling system and hoses
•Inspect brake pads, shoes, rotors, drums, brake lines and hoses and
parking brake system.
General Owner’s Information
60

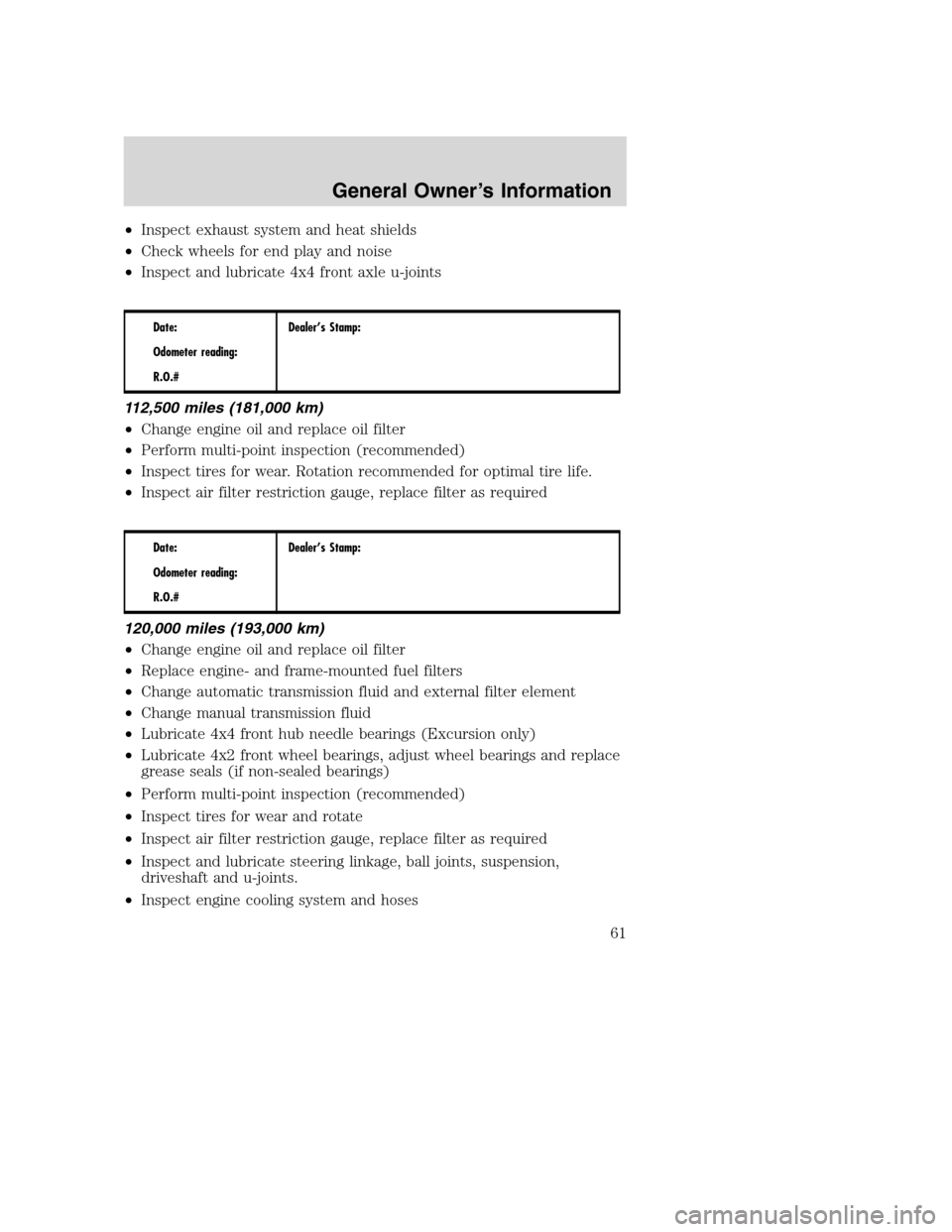

•Inspect exhaust system and heat shields
•Check wheels for end play and noise
•Inspect and lubricate 4x4 front axle u-joints
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
112,500 miles (181,000 km)
•Change engine oil and replace oil filter
•Perform multi-point inspection (recommended)
•Inspect tires for wear. Rotation recommended for optimal tire life.
•Inspect air filter restriction gauge, replace filter as required
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
120,000 miles (193,000 km)
•Change engine oil and replace oil filter
•Replace engine- and frame-mounted fuel filters
•Change automatic transmission fluid and external filter element
•Change manual transmission fluid
•Lubricate 4x4 front hub needle bearings (Excursion only)
•Lubricate 4x2 front wheel bearings, adjust wheel bearings and replace
grease seals (if non-sealed bearings)
•Perform multi-point inspection (recommended)
•Inspect tires for wear and rotate
•Inspect air filter restriction gauge, replace filter as required
•Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints.
•Inspect engine cooling system and hoses
General Owner’s Information
61

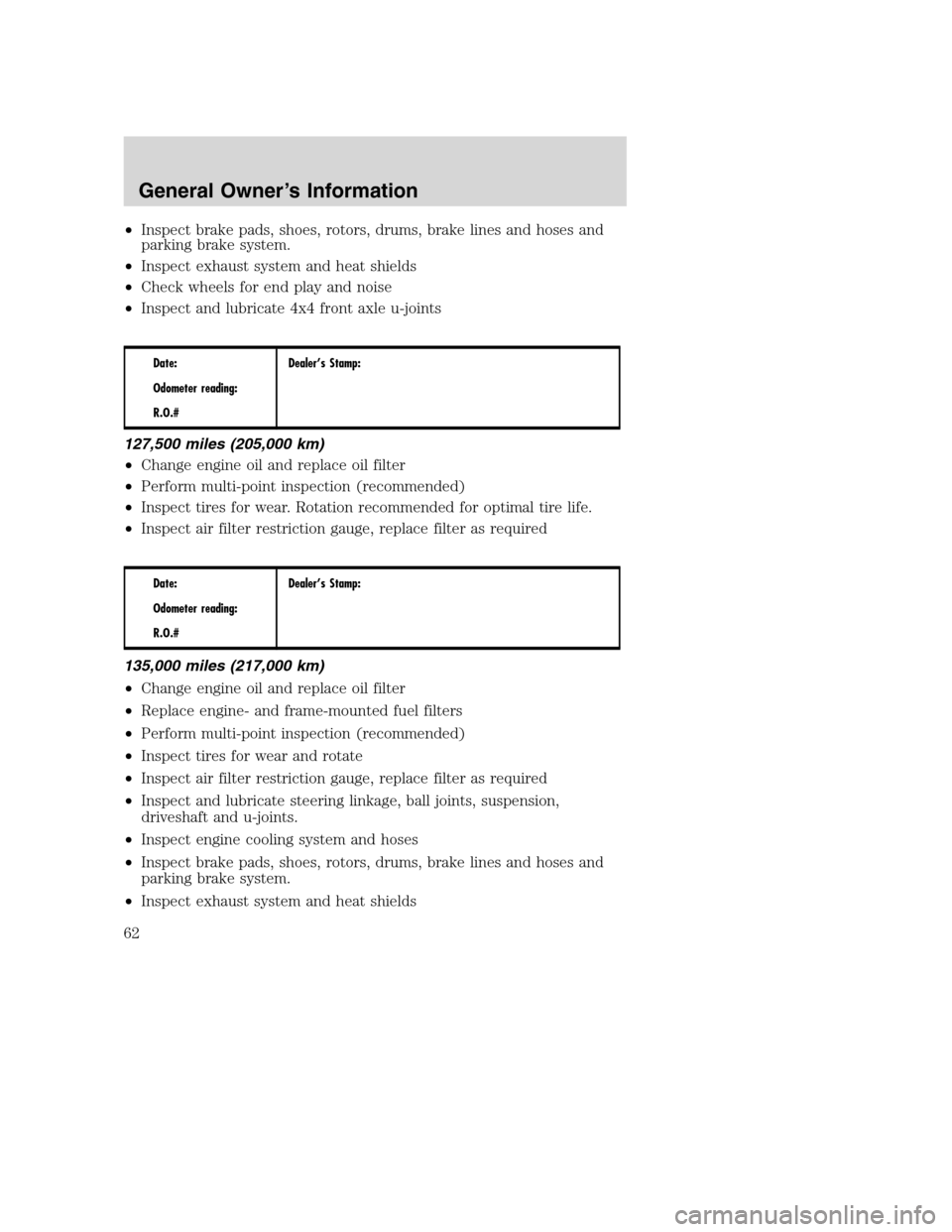

•Inspect brake pads, shoes, rotors, drums, brake lines and hoses and
parking brake system.
•Inspect exhaust system and heat shields
•Check wheels for end play and noise
•Inspect and lubricate 4x4 front axle u-joints
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
127,500 miles (205,000 km)
•Change engine oil and replace oil filter
•Perform multi-point inspection (recommended)
•Inspect tires for wear. Rotation recommended for optimal tire life.
•Inspect air filter restriction gauge, replace filter as required
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
135,000 miles (217,000 km)
•Change engine oil and replace oil filter
•Replace engine- and frame-mounted fuel filters
•Perform multi-point inspection (recommended)
•Inspect tires for wear and rotate
•Inspect air filter restriction gauge, replace filter as required
•Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints.
•Inspect engine cooling system and hoses
•Inspect brake pads, shoes, rotors, drums, brake lines and hoses and
parking brake system.
•Inspect exhaust system and heat shields
General Owner’s Information
62

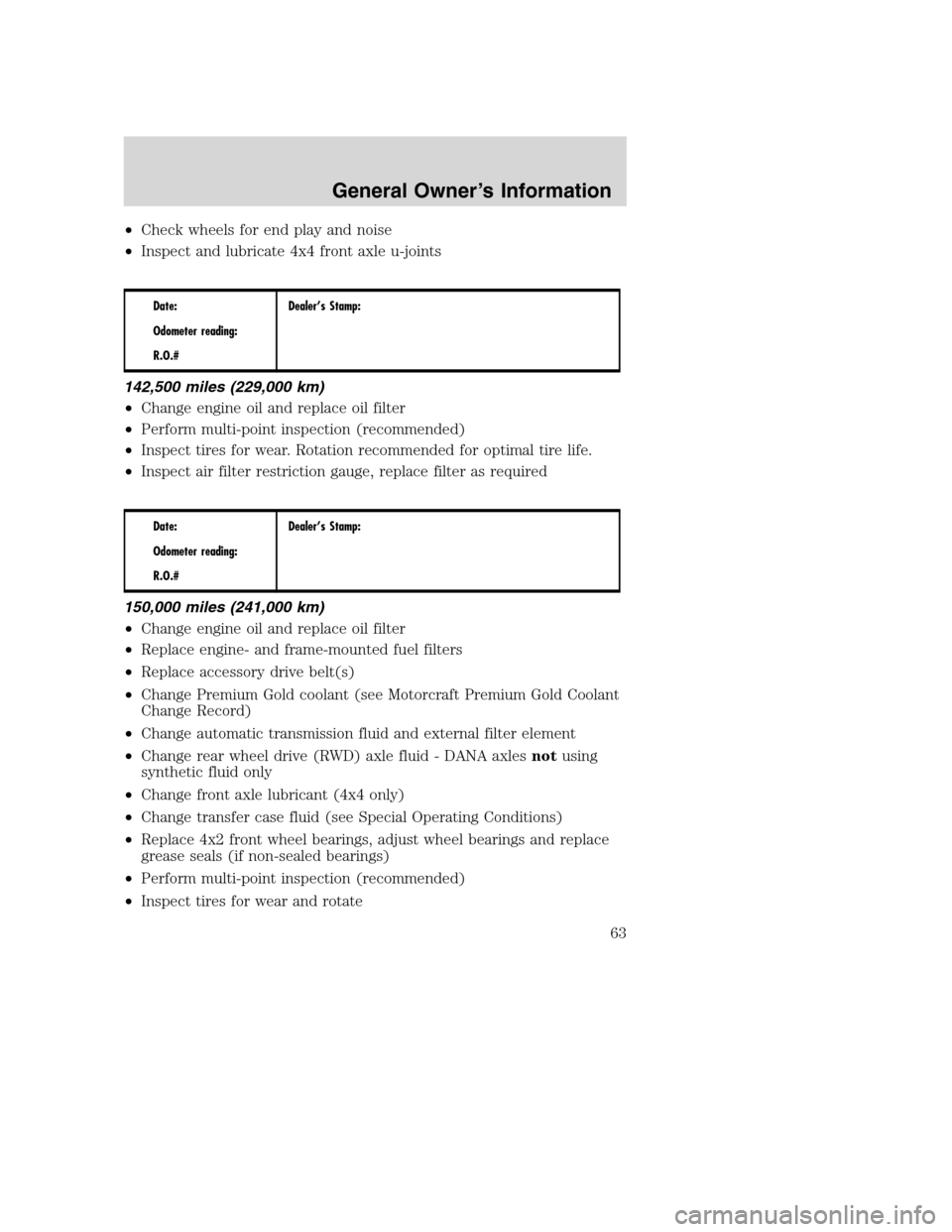

•Check wheels for end play and noise
•Inspect and lubricate 4x4 front axle u-joints
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
142,500 miles (229,000 km)
•Change engine oil and replace oil filter
•Perform multi-point inspection (recommended)
•Inspect tires for wear. Rotation recommended for optimal tire life.
•Inspect air filter restriction gauge, replace filter as required
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
150,000 miles (241,000 km)
•Change engine oil and replace oil filter
•Replace engine- and frame-mounted fuel filters
•Replace accessory drive belt(s)
•Change Premium Gold coolant (see Motorcraft Premium Gold Coolant
Change Record)
•Change automatic transmission fluid and external filter element
•Change rear wheel drive (RWD) axle fluid - DANA axlesnotusing
synthetic fluid only
•Change front axle lubricant (4x4 only)
•Change transfer case fluid (see Special Operating Conditions)
•Replace 4x2 front wheel bearings, adjust wheel bearings and replace
grease seals (if non-sealed bearings)
•Perform multi-point inspection (recommended)
•Inspect tires for wear and rotate
General Owner’s Information
63

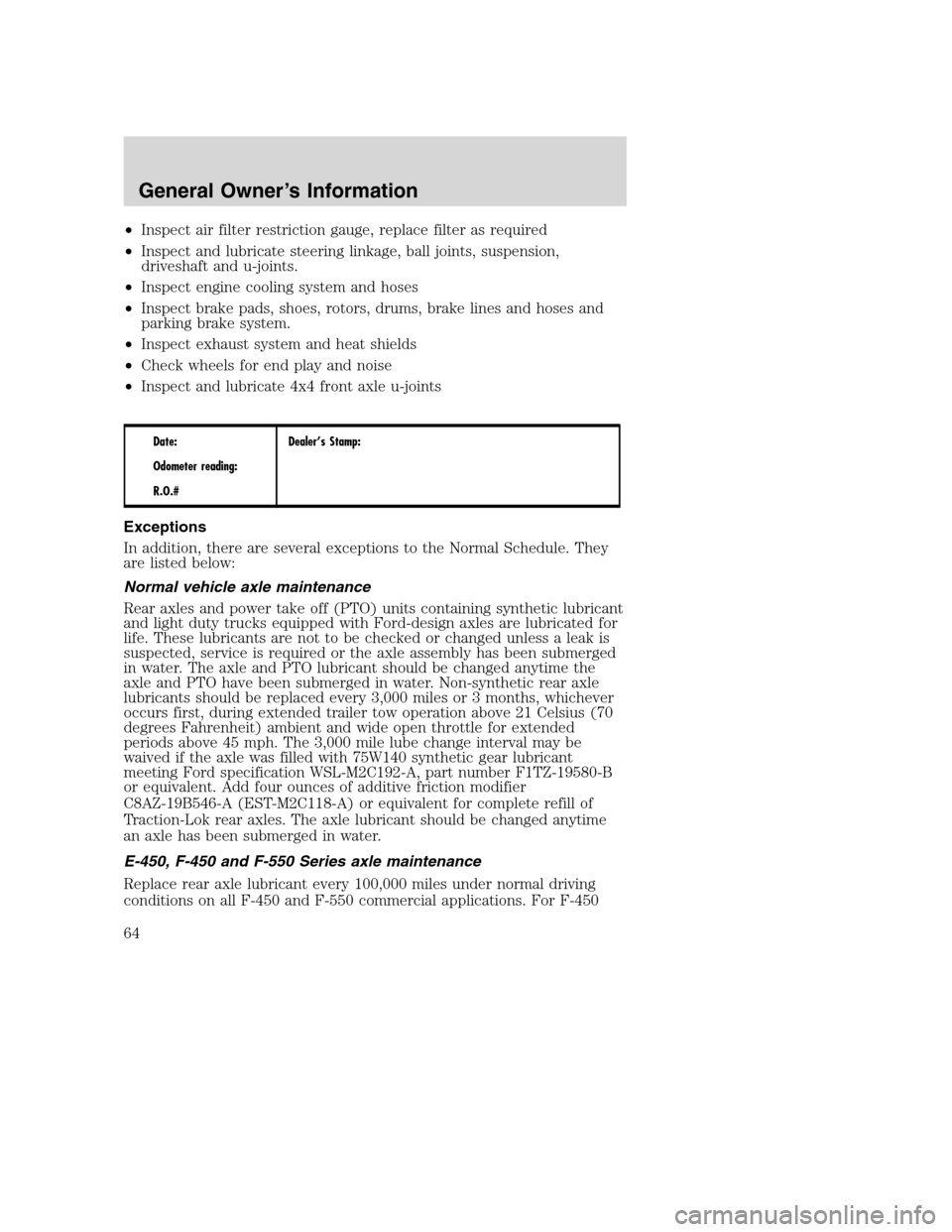

•Inspect air filter restriction gauge, replace filter as required
•Inspect and lubricate steering linkage, ball joints, suspension,
driveshaft and u-joints.
•Inspect engine cooling system and hoses
•Inspect brake pads, shoes, rotors, drums, brake lines and hoses and
parking brake system.
•Inspect exhaust system and heat shields
•Check wheels for end play and noise
•Inspect and lubricate 4x4 front axle u-joints
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Exceptions
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
Rear axles and power take off (PTO) units containing synthetic lubricant
and light duty trucks equipped with Ford-design axles are lubricated for
life. These lubricants are not to be checked or changed unless a leak is
suspected, service is required or the axle assembly has been submerged
in water. The axle and PTO lubricant should be changed anytime the
axle and PTO have been submerged in water. Non-synthetic rear axle
lubricants should be replaced every 3,000 miles or 3 months, whichever
occurs first, during extended trailer tow operation above 21 Celsius (70
degrees Fahrenheit) ambient and wide open throttle for extended
periods above 45 mph. The 3,000 mile lube change interval may be
waived if the axle was filled with 75W140 synthetic gear lubricant
meeting Ford specification WSL-M2C192-A, part number F1TZ-19580-B
or equivalent. Add four ounces of additive friction modifier
C8AZ-19B546-A (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles. The axle lubricant should be changed anytime
an axle has been submerged in water.
E-450, F-450 and F-550 Series axle maintenance
Replace rear axle lubricant every 100,000 miles under normal driving
conditions on all F-450 and F-550 commercial applications. For F-450
General Owner’s Information
64
