2005 FORD ESCAPE Owners Manual

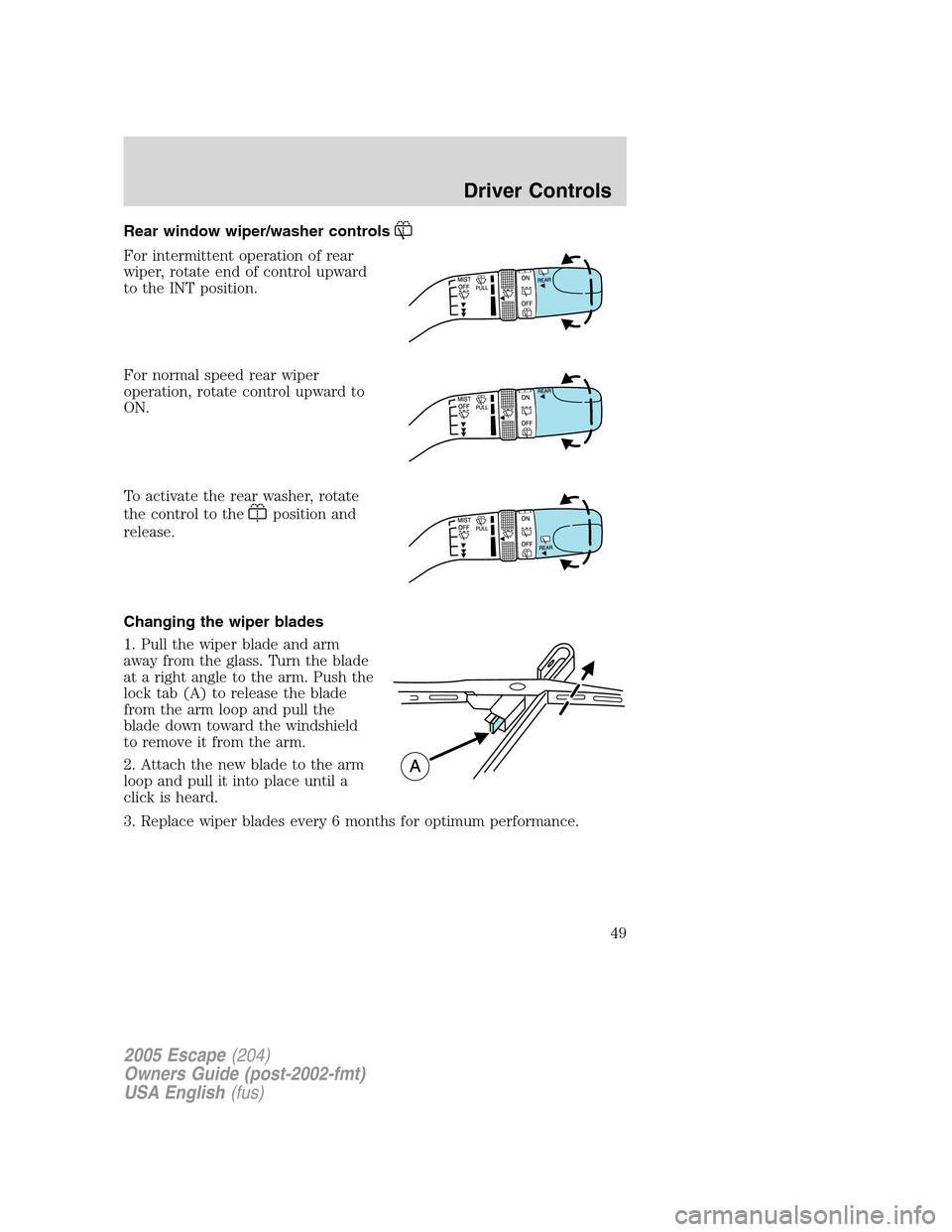

Rear window wiper/washer controls
For intermittent operation of rear
wiper, rotate end of control upward
to the INT position.
For normal speed rear wiper
operation, rotate control upward to
ON.
To activate the rear washer, rotate
the control to the
position and
release.
Changing the wiper blades
1. Pull the wiper blade and arm
away from the glass. Turn the blade
at a right angle to the arm. Push the
lock tab (A) to release the blade
from the arm loop and pull the
blade down toward the windshield
to remove it from the arm.
2. Attach the new blade to the arm
loop and pull it into place until a
click is heard.
3. Replace wiper blades every 6 months for optimum performance.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
49

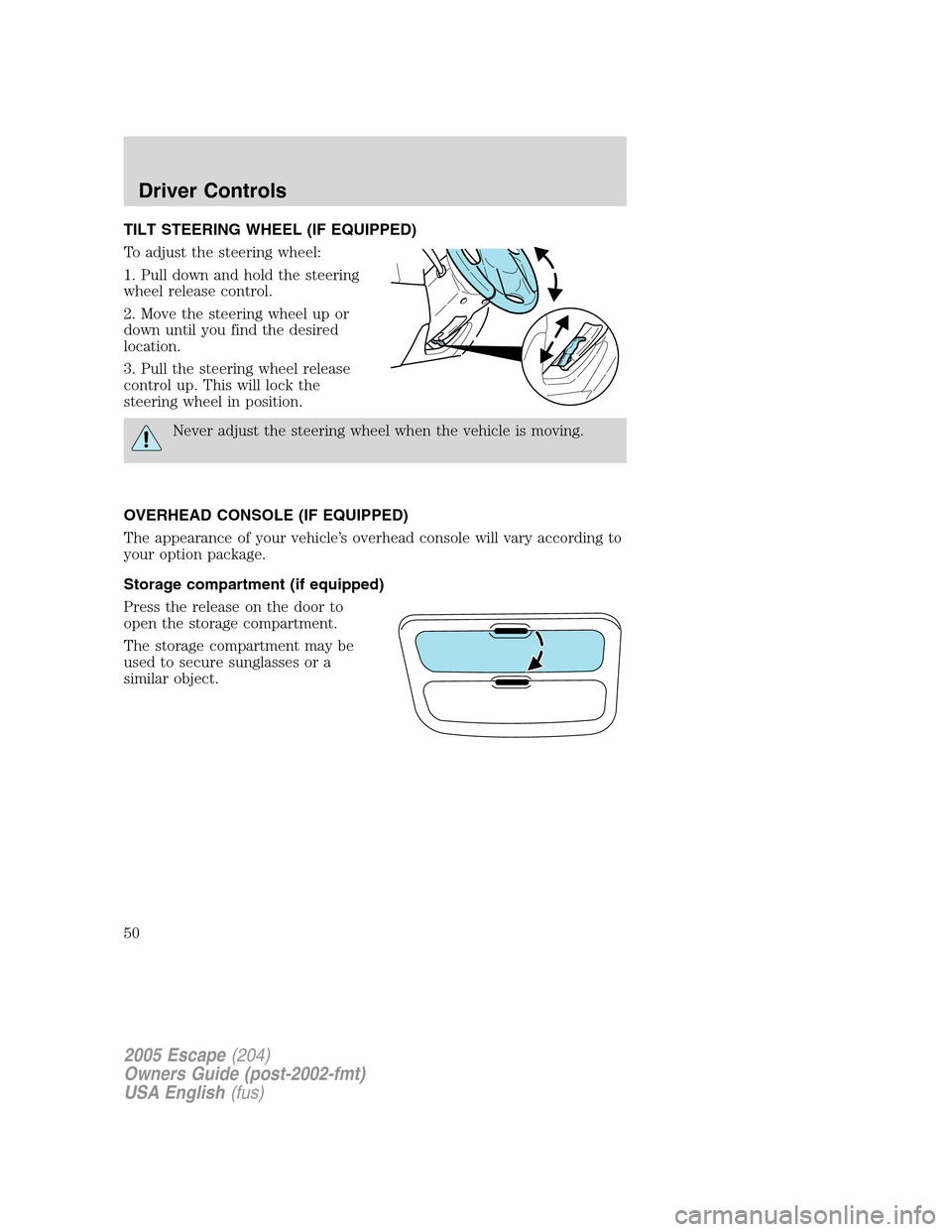

TILT STEERING WHEEL (IF EQUIPPED)
To adjust the steering wheel:
1. Pull down and hold the steering
wheel release control.
2. Move the steering wheel up or
down until you find the desired
location.
3. Pull the steering wheel release
control up. This will lock the
steering wheel in position.
Never adjust the steering wheel when the vehicle is moving.
OVERHEAD CONSOLE (IF EQUIPPED)
The appearance of your vehicle’s overhead console will vary according to
your option package.
Storage compartment (if equipped)
Press the release on the door to
open the storage compartment.
The storage compartment may be
used to secure sunglasses or a
similar object.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
50

Installing a garage door opener (if equipped)
The storage compartment can be converted to accommodate a variety of
aftermarket garage door openers:
•Remove the Velcro pad (2) from
the storage compartment door
(3).
•Place Velcro (5) on aftermarket
transmitter (6) opposite of
actuator control (8).
•Measure the thickness (4) of the
aftermarket transmitter (6).
•Remove the rubber actuator (1)
from the storage compartment
(7) by pulling the rubber actuator
(1) forward and twisting at the
same time.
Note: The length of the rubber
actuator (1) is critical.Use care
in cutting it to length. If the rubber
actuator (1) is cut too much the
aftermarket transmitter (6) will not
activate the garage door opener. If
the rubber actuator (1) is cut too
long, the storage compartment door (3) will not close properly.
Excessive force to close the storage compartment door (3) may cause
the door latch to break.
•Per the table below, cut the rubber actuator (1) to the proper length
based on the thickness (4) measured in the third step.
ApproximateThickness of Transmitter(GDO)
inches mmCut to Bottom of Notch
Less Than
1/4 6.35 No Cut
7/8 22.00 Notch 2
1.0 26.00 Notch 4
1–3/16 32.00 Notch 6
•Reinstall the rubber actuator (1) in the storage compartment (7) by
twisting and pushing it back into the slot.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
51

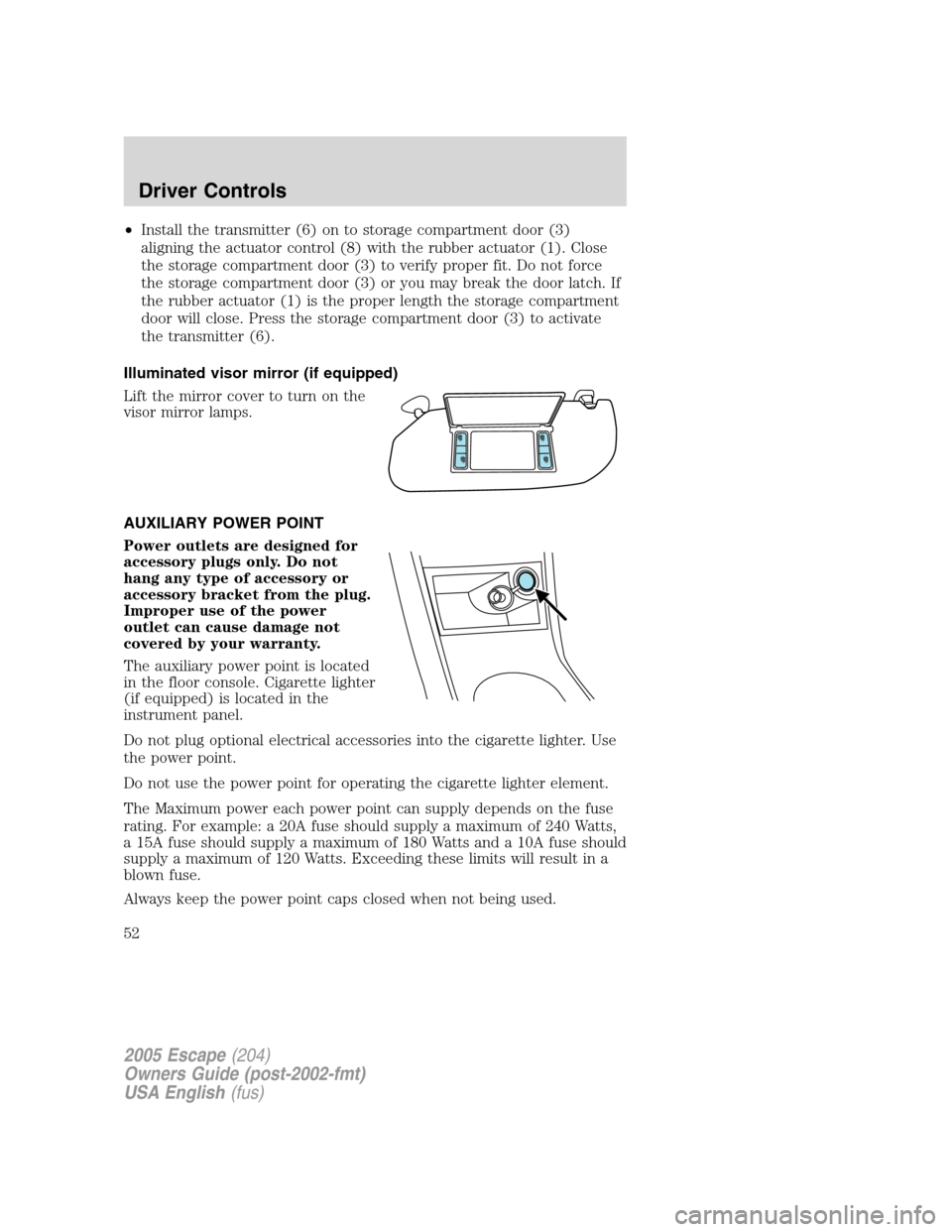

•Install the transmitter (6) on to storage compartment door (3)
aligning the actuator control (8) with the rubber actuator (1). Close
the storage compartment door (3) to verify proper fit. Do not force
the storage compartment door (3) or you may break the door latch. If
the rubber actuator (1) is the proper length the storage compartment
door will close. Press the storage compartment door (3) to activate
the transmitter (6).
Illuminated visor mirror (if equipped)
Lift the mirror cover to turn on the
visor mirror lamps.
AUXILIARY POWER POINT
Power outlets are designed for
accessory plugs only. Do not
hang any type of accessory or
accessory bracket from the plug.
Improper use of the power
outlet can cause damage not
covered by your warranty.
The auxiliary power point is located
in the floor console. Cigarette lighter
(if equipped) is located in the
instrument panel.
Do not plug optional electrical accessories into the cigarette lighter. Use
the power point.
Do not use the power point for operating the cigarette lighter element.
The Maximum power each power point can supply depends on the fuse
rating. For example: a 20A fuse should supply a maximum of 240 Watts,
a 15A fuse should supply a maximum of 180 Watts and a 10A fuse should
supply a maximum of 120 Watts. Exceeding these limits will result in a
blown fuse.
Always keep the power point caps closed when not being used.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
52

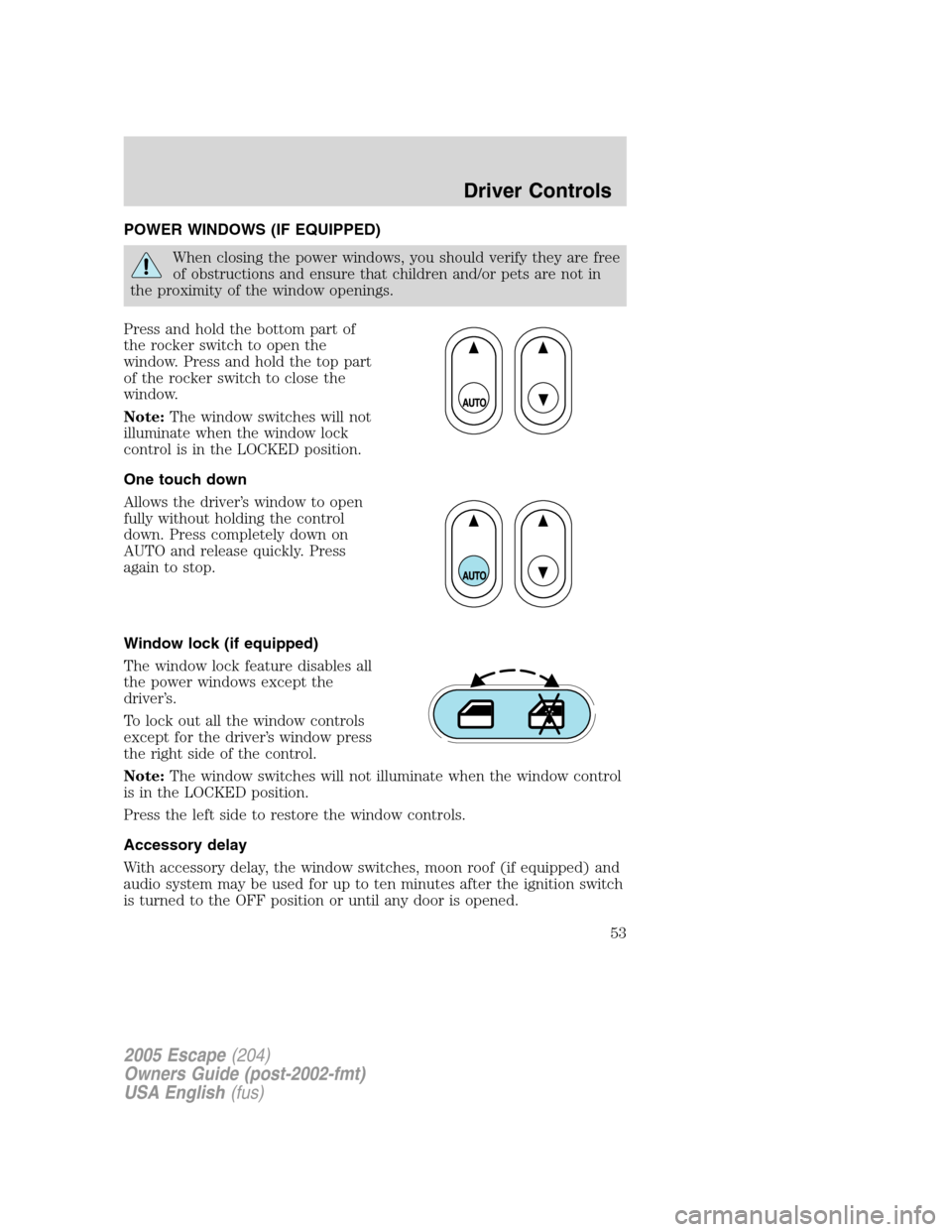

POWER WINDOWS (IF EQUIPPED)
When closing the power windows, you should verify they are free
of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
Press and hold the bottom part of
the rocker switch to open the
window. Press and hold the top part
of the rocker switch to close the
window.
Note:The window switches will not
illuminate when the window lock
control is in the LOCKED position.
One touch down
Allows the driver’s window to open
fully without holding the control
down. Press completely down on
AUTO and release quickly. Press
again to stop.
Window lock (if equipped)
The window lock feature disables all
the power windows except the
driver’s.
To lock out all the window controls
except for the driver’s window press
the right side of the control.
Note:The window switches will not illuminate when the window control
is in the LOCKED position.
Press the left side to restore the window controls.
Accessory delay
With accessory delay, the window switches, moon roof (if equipped) and
audio system may be used for up to ten minutes after the ignition switch
is turned to the OFF position or until any door is opened.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
53

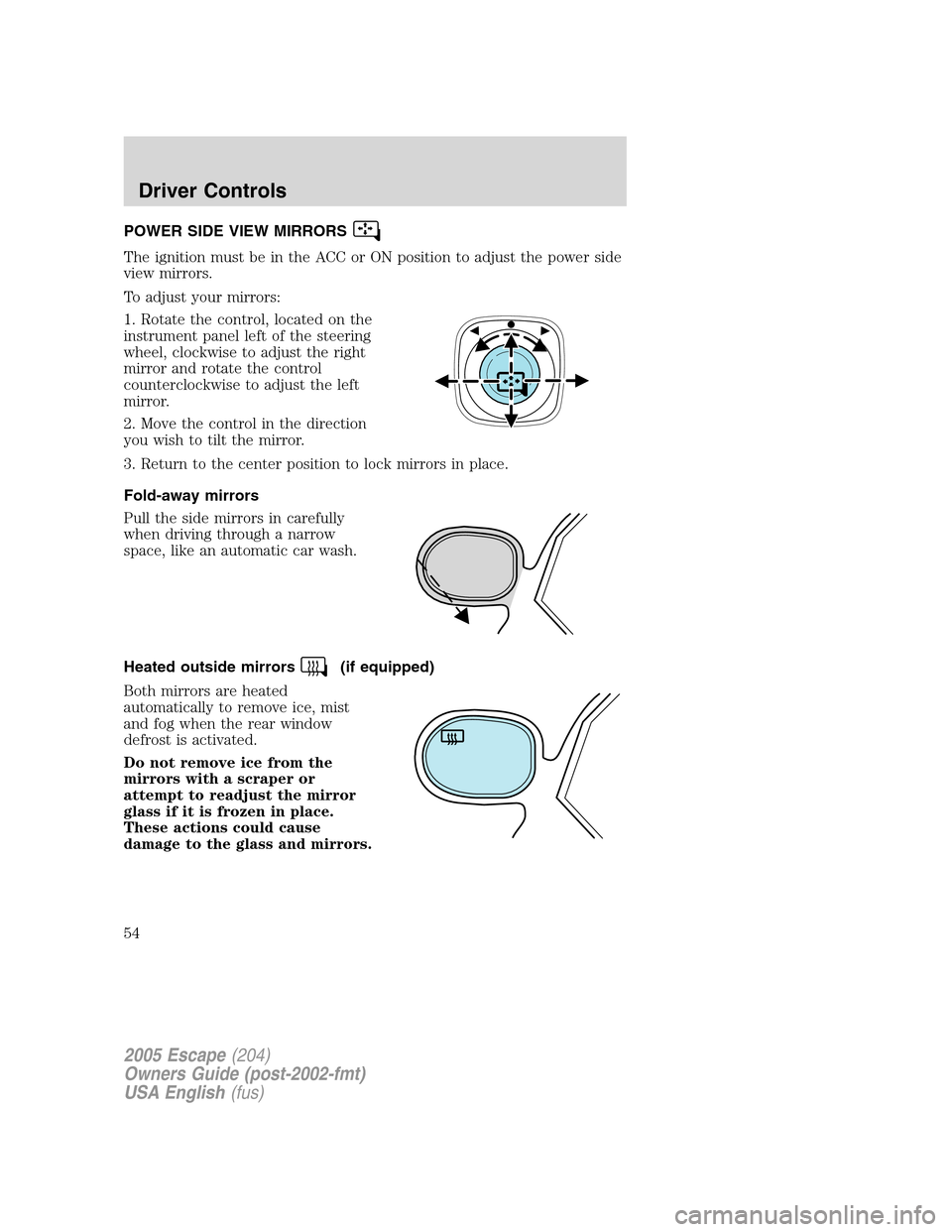

POWER SIDE VIEW MIRRORS
The ignition must be in the ACC or ON position to adjust the power side
view mirrors.
To adjust your mirrors:
1. Rotate the control, located on the
instrument panel left of the steering
wheel, clockwise to adjust the right
mirror and rotate the control
counterclockwise to adjust the left
mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Fold-away mirrors
Pull the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause
damage to the glass and mirrors.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
54

Automatic dimming rear view mirror (if equipped)
Your vehicle may be equipped with
an inside rear view mirror with an
auto-dimming feature. When the
auto-dimming mirror is turned on,
as indicated by an illuminated green
LED to the left of the button on
mirror, it will detect bright lights
(glare) from behind the vehicle, and will change from the normal, high
reflective state, to the darkened state to minimize glare.
When the auto-dimming mirror is turned on, it will automatically return
to the normal, high reflective, state whenever the vehicle is placed in R
(reverse) to ensure a clear view while backing up.
Do not block the sensor located to the right of the mirror button or the
sensor located on the back side of the mirror as this may impair mirror
performance.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a speed of 48 km/h (30 mph)
or more without keeping your foot on the accelerator pedal. Speed
control does not work at speeds below 48 km/h (30 mph).
Do not use the speed control in heavy traffic or on roads that
are winding, slippery or unpaved.
Setting speed control
The controls for using your speed
control are located on the steering
wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed.
ON
OFF
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
55

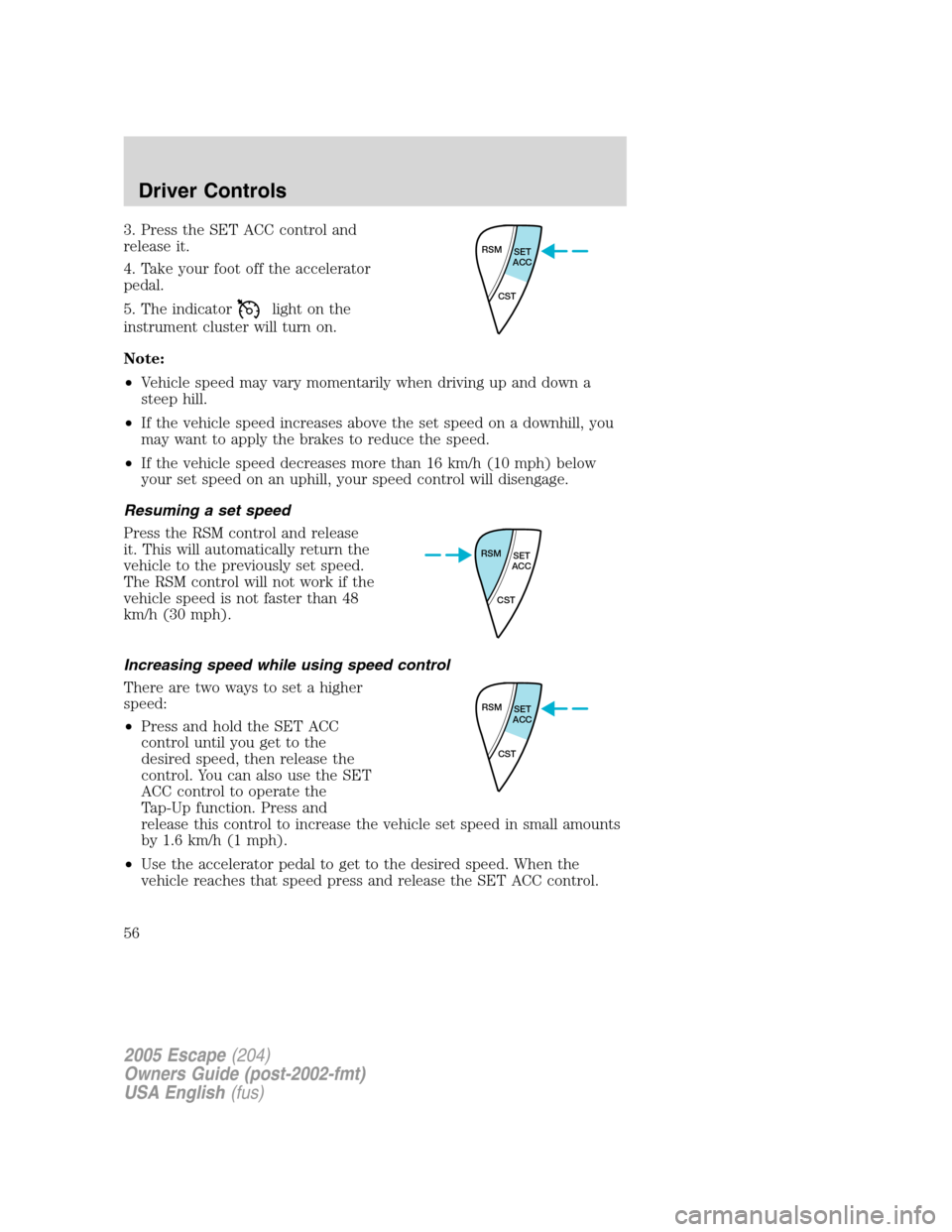

3. Press the SET ACC control and
release it.
4. Take your foot off the accelerator
pedal.
5. The indicator
light on the
instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 16 km/h (10 mph) below
your set speed on an uphill, your speed control will disengage.
Resuming a set speed
Press the RSM control and release
it. This will automatically return the
vehicle to the previously set speed.
The RSM control will not work if the
vehicle speed is not faster than 48
km/h (30 mph).
Increasing speed while using speed control
There are two ways to set a higher
speed:
•Press and hold the SET ACC
control until you get to the
desired speed, then release the
control. You can also use the SET
ACC control to operate the
Tap-Up function. Press and
release this control to increase the vehicle set speed in small amounts
by 1.6 km/h (1 mph).
•Use the accelerator pedal to get to the desired speed. When the
vehicle reaches that speed press and release the SET ACC control.
RSM
SET
ACC
CST
RSM
SET
ACC
CST
RSM
SET
ACC
CST
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
56
