2005 FORD ESCAPE wipers

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 25A* I/P fuse panel (RUN/START)
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay -
Electrochromatic mirror, Cigar
lighter, Front and rear wipers
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
11 10A* PCM
12 20A* Power point #1
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
1530A* Anti-lock Brake System (ABS)
solenoid
17 50A** Ignition (main)
18 40A** Blower motor
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
176

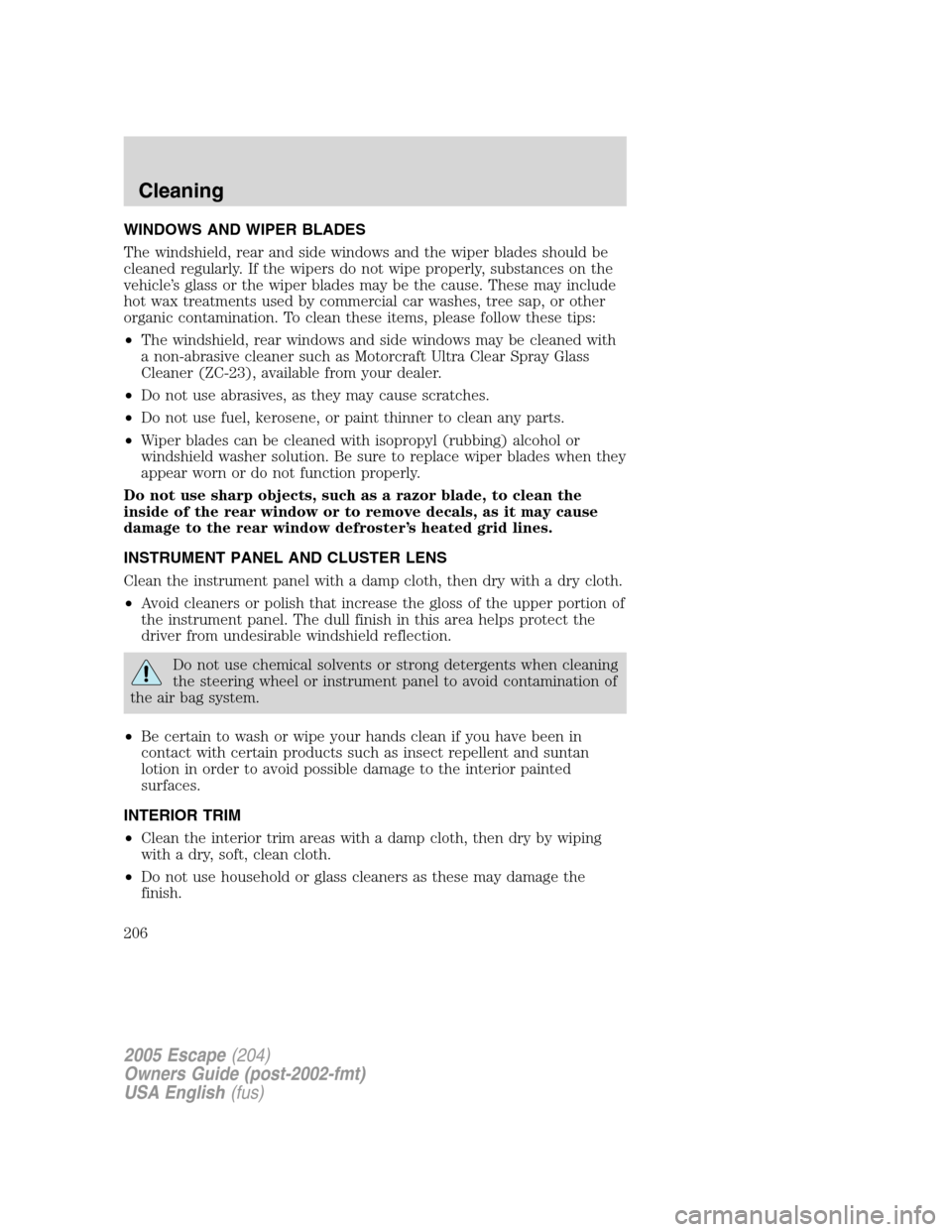

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, tree sap, or other
organic contamination. To clean these items, please follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23), available from your dealer.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
•Wiper blades can be cleaned with isopropyl (rubbing) alcohol or
windshield washer solution. Be sure to replace wiper blades when they
appear worn or do not function properly.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
INSTRUMENT PANEL AND CLUSTER LENS
Clean the instrument panel with a damp cloth, then dry with a dry cloth.
•Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
Do not use chemical solvents or strong detergents when cleaning
the steering wheel or instrument panel to avoid contamination of
the air bag system.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the interior painted
surfaces.
INTERIOR TRIM
•Clean the interior trim areas with a damp cloth, then dry by wiping
with a dry, soft, clean cloth.
•Do not use household or glass cleaners as these may damage the
finish.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Cleaning
206

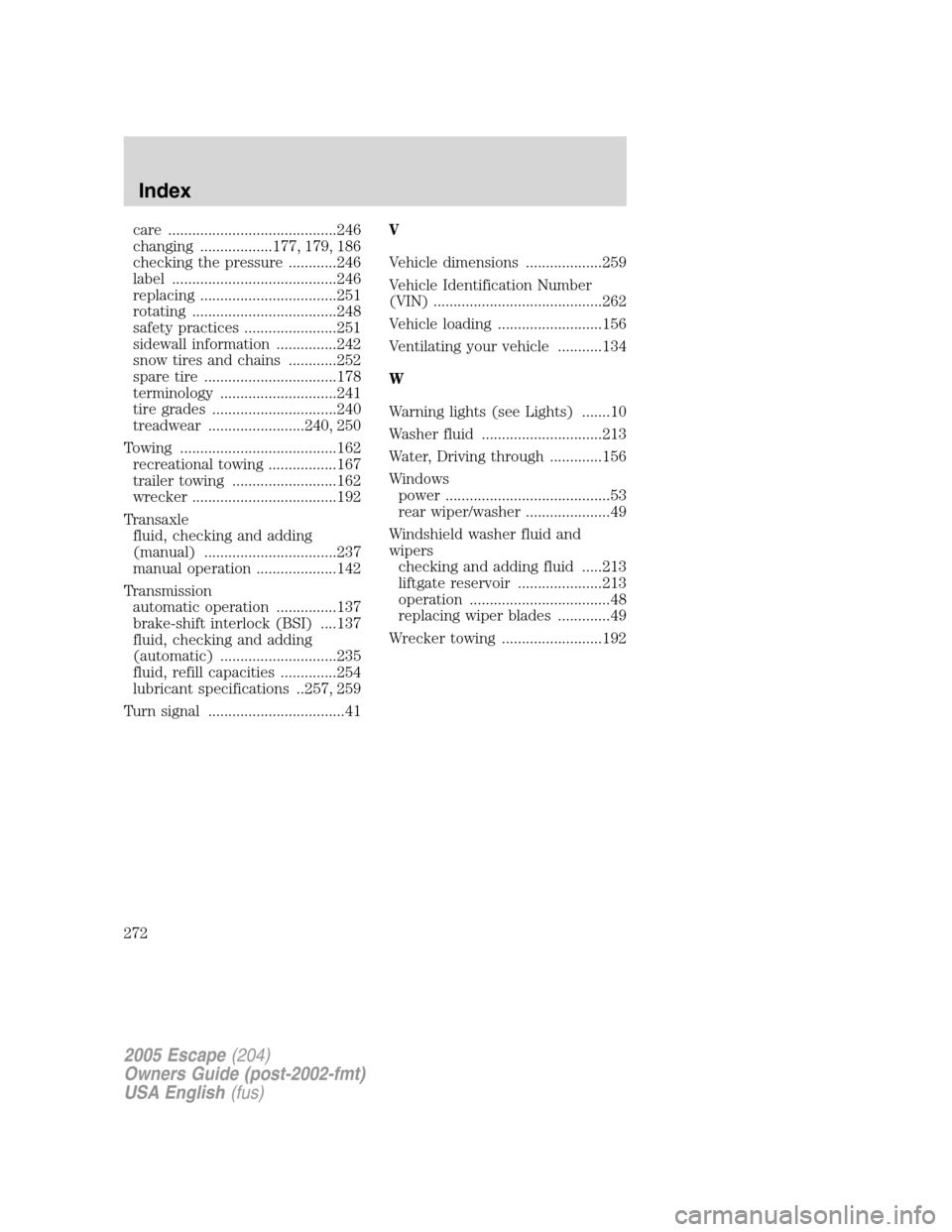

care ..........................................246
changing ..................177, 179, 186
checking the pressure ............246
label .........................................246
replacing ..................................251
rotating ....................................248
safety practices .......................251
sidewall information ...............242
snow tires and chains ............252
spare tire .................................178
terminology .............................241
tire grades ...............................240
treadwear ........................240, 250
Towing .......................................162
recreational towing .................167
trailer towing ..........................162
wrecker ....................................192
Transaxle
fluid, checking and adding
(manual) .................................237
manual operation ....................142
Transmission
automatic operation ...............137
brake-shift interlock (BSI) ....137
fluid, checking and adding
(automatic) .............................235
fluid, refill capacities ..............254
lubricant specifications ..257, 259
Turn signal ..................................41V
Vehicle dimensions ...................259
Vehicle Identification Number
(VIN) ..........................................262
Vehicle loading ..........................156
Ventilating your vehicle ...........134
W
Warning lights (see Lights) .......10
Washer fluid ..............................213
Water, Driving through .............156
Windows
power .........................................53
rear wiper/washer .....................49
Windshield washer fluid and
wipers
checking and adding fluid .....213
liftgate reservoir .....................213
operation ...................................48
replacing wiper blades .............49
Wrecker towing .........................192
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
272
