2005 FORD ESCAPE Owners Manual

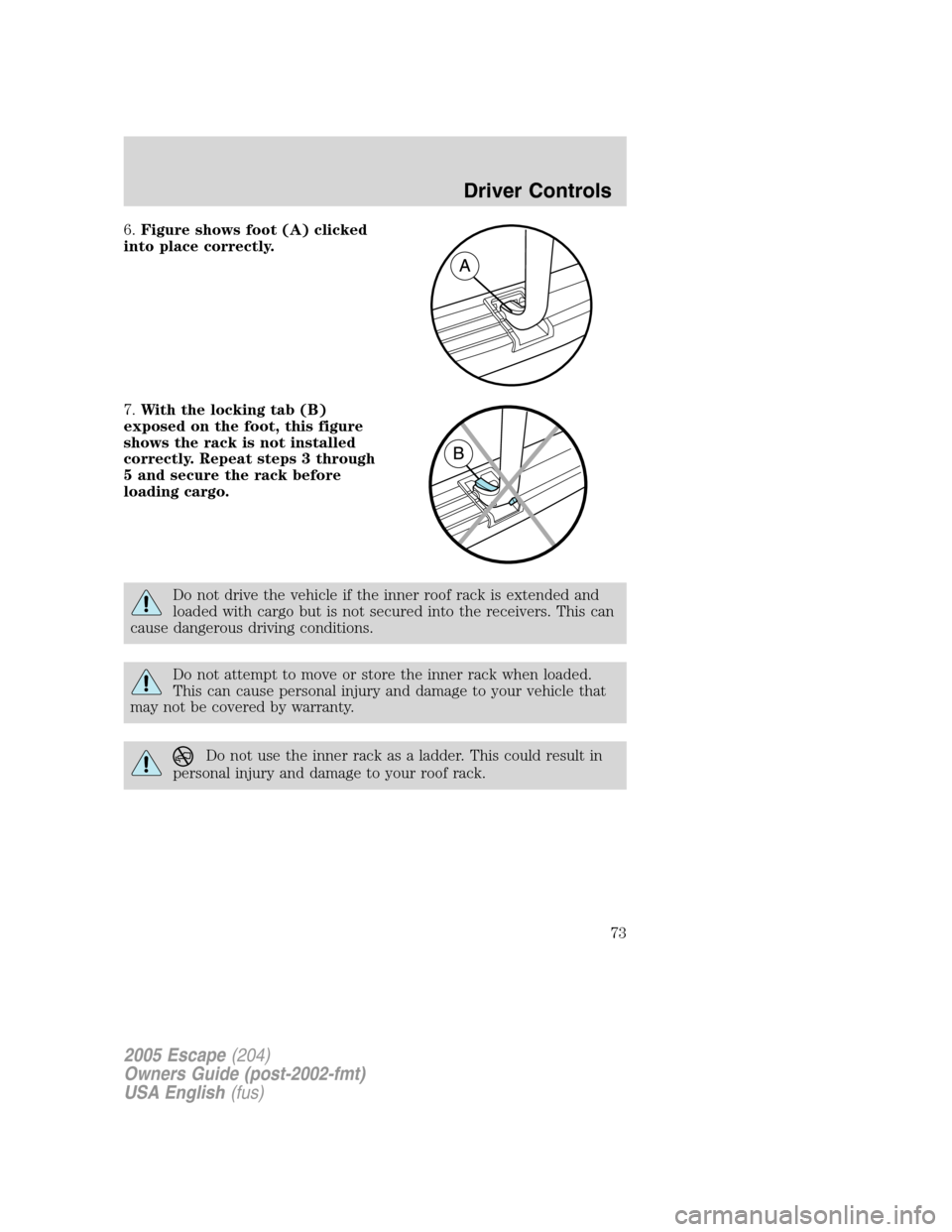

6.Figure shows foot (A) clicked
into place correctly.
7.With the locking tab (B)
exposed on the foot, this figure
shows the rack is not installed
correctly. Repeat steps 3 through
5 and secure the rack before
loading cargo.
Do not drive the vehicle if the inner roof rack is extended and
loaded with cargo but is not secured into the receivers. This can
cause dangerous driving conditions.
Do not attempt to move or store the inner rack when loaded.
This can cause personal injury and damage to your vehicle that
may not be covered by warranty.
Do not use the inner rack as a ladder. This could result in
personal injury and damage to your roof rack.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
73

To stow the inner rack:
1. Rotate the handle on the lift bar
of the inner rack in the direction of
the arrows on the handle and pull
the inner rack away from the
bumper.
2. Lift the inner rack (pivoting at
the hinges).
3. Continue lifting the inner rack
until it is parallel with the roof.
4. Slide the rack forward onto the
roof, pushing the rack into its final
stowed position.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
74

5. Lift the feet over the side rails and lock them into place.
6. Ensure both feet are locked and secured into place.
To adjust the cross-bar assembly on the inner rack:
1. Loosen the screws on the
cross-bar with a T-25 Torx driver.
2. Move the cross-bar to the desired
location, keeping the cross-bar
parallel with the upper bar.
3. Tighten the screws with the T-25
Torx driver.
4. Ensure that the cross-bar is
tightened and secured into place
before attempting to load cargo.
Loading cargo:
Only load cargo in the approved
area (1). Do not load cargo outside
of the designated area (2).
Distribute the load as evenly as
possible. Always use tie downs to
secure the load.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
75

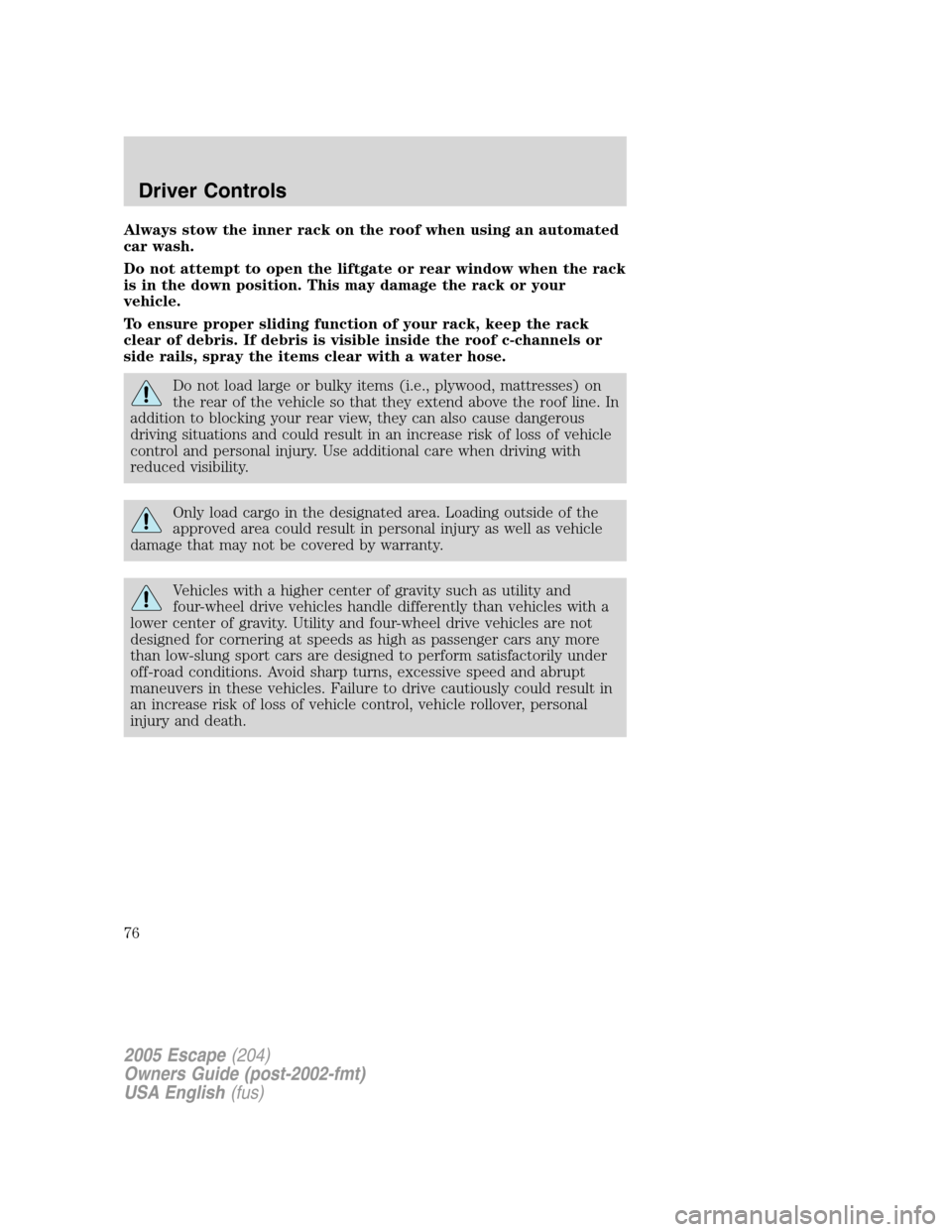

Always stow the inner rack on the roof when using an automated
car wash.
Do not attempt to open the liftgate or rear window when the rack
is in the down position. This may damage the rack or your
vehicle.
To ensure proper sliding function of your rack, keep the rack
clear of debris. If debris is visible inside the roof c-channels or
side rails, spray the items clear with a water hose.
Do not load large or bulky items (i.e., plywood, mattresses) on
the rear of the vehicle so that they extend above the roof line. In
addition to blocking your rear view, they can also cause dangerous
driving situations and could result in an increase risk of loss of vehicle
control and personal injury. Use additional care when driving with
reduced visibility.
Only load cargo in the designated area. Loading outside of the
approved area could result in personal injury as well as vehicle
damage that may not be covered by warranty.
Vehicles with a higher center of gravity such as utility and
four-wheel drive vehicles handle differently than vehicles with a
lower center of gravity. Utility and four-wheel drive vehicles are not
designed for cornering at speeds as high as passenger cars any more
than low-slung sport cars are designed to perform satisfactorily under
off-road conditions. Avoid sharp turns, excessive speed and abrupt
maneuvers in these vehicles. Failure to drive cautiously could result in
an increase risk of loss of vehicle control, vehicle rollover, personal
injury and death.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
76

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
Refer toSecuriLock
Passive Anti-Theft Systemfor more information.
POWER DOOR LOCKS
The power door lock controls are
located on the driver and front
passenger door panels.
Pressing the
will unlock all the
doors. Pressing the
will lock all
the doors.
Power door lock/unlock inhibit feature
As a theft deterrent, the power door lock controls can be disabled 20
seconds after the ignition has been turned to the 1 (LOCK) position. The
door lock controls are reenabled when the vehicle is unlocked using the
key in the door lock cylinder or the by pressing
on the remote entry
transmitter. This feature can be turned on or off using the following
procedure:
Before starting, ensure the ignition is in the 1 (LOCK) position and all
vehicle doors are closed. You must complete Steps 1–7 within 30 seconds
or the procedure will have to be repeated.
1.
Place the key in the ignition and turn the ignition to the 3 (RUN) position.
2. Press the power door unlock control on the door panel three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the 3 (RUN) position. The horn will chirp
one time to confirm programming mode has been entered and is active.
6. Press the power door lock control on the door panel two times. The
horn will chirp two times to confirm the feature is off; the horn will chirp
two times and honk one time to confirm the feature is on.
7. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
The horn will chirp one time to confirm the programming mode has been exited.
Repeat the procedure to turn the feature on or off.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
Locks and Security
77

Door key unlocking/locking
Two step door unlocking
1. Turn the key in the door cylinder to unlock the driver’s door.Note:
The interior lamps will illuminate if the control on the overhead lamp is
in the DOOR position, the flashers will flash twice, and the perimeter
alarm system (if equipped) will deactivate. For more information, refer
toIlluminated entrylater in this chapter.
2. Turn the key in the door cylinder again within three seconds to unlock
the passenger doors, the liftgate and liftgate glass.
Locking the doors
Turn the key in the door cylinder to lock all the doors. The park lamps
will flash once and the perimeter alarm (if equipped) will start the
arming process. For more information concerning the perimeter alarm,
refer toPerimeter alarm system (if equipped)later in this chapter.
If any of the doors or the hood are not properly closed the park lamps
will not flash.
Autolock (if equipped)
This feature will automatically lock all the doors when:
•all the doors are closed,
•the ignition key is in the 3 (RUN) position,
•the gearshift lever is shifted into, then out of, R (Reverse) and then
•the brake pedal is released.
This feature will also automatically relock all the doors when:
•the ignition is in the 3 (RUN) position and any door is opened then
closed, and
•you put the vehicle in motion by releasing the brake pedal.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
78

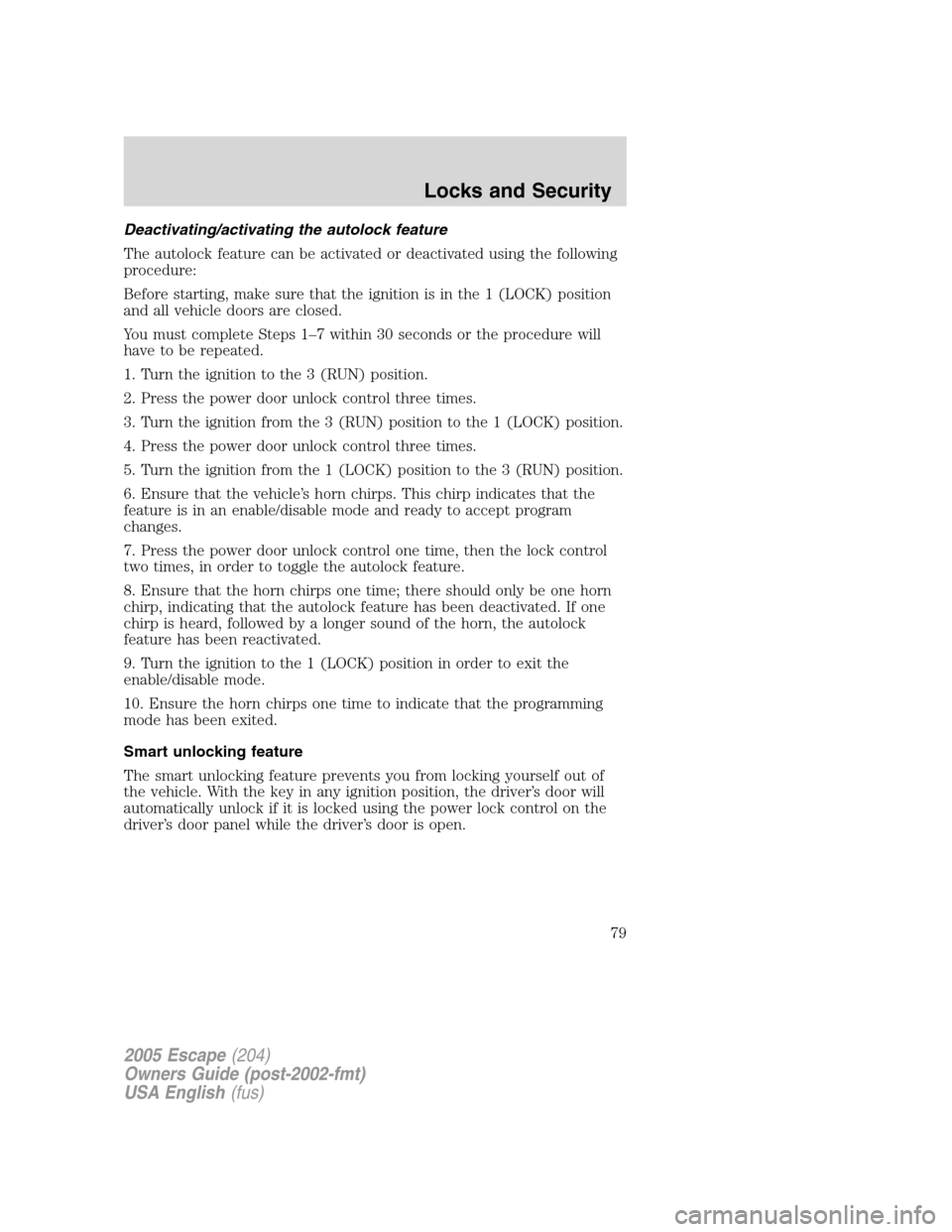

Deactivating/activating the autolock feature
The autolock feature can be activated or deactivated using the following
procedure:
Before starting, make sure that the ignition is in the 1 (LOCK) position
and all vehicle doors are closed.
You must complete Steps 1–7 within 30 seconds or the procedure will
have to be repeated.
1. Turn the ignition to the 3 (RUN) position.
2. Press the power door unlock control three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
4. Press the power door unlock control three times.
5. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position.
6. Ensure that the vehicle’s horn chirps. This chirp indicates that the
feature is in an enable/disable mode and ready to accept program
changes.
7. Press the power door unlock control one time, then the lock control
two times, in order to toggle the autolock feature.
8. Ensure that the horn chirps one time; there should only be one horn
chirp, indicating that the autolock feature has been deactivated. If one
chirp is heard, followed by a longer sound of the horn, the autolock
feature has been reactivated.
9. Turn the ignition to the 1 (LOCK) position in order to exit the
enable/disable mode.
10. Ensure the horn chirps one time to indicate that the programming
mode has been exited.
Smart unlocking feature
The smart unlocking feature prevents you from locking yourself out of
the vehicle. With the key in any ignition position, the driver’s door will
automatically unlock if it is locked using the power lock control on the
driver’s door panel while the driver’s door is open.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
79

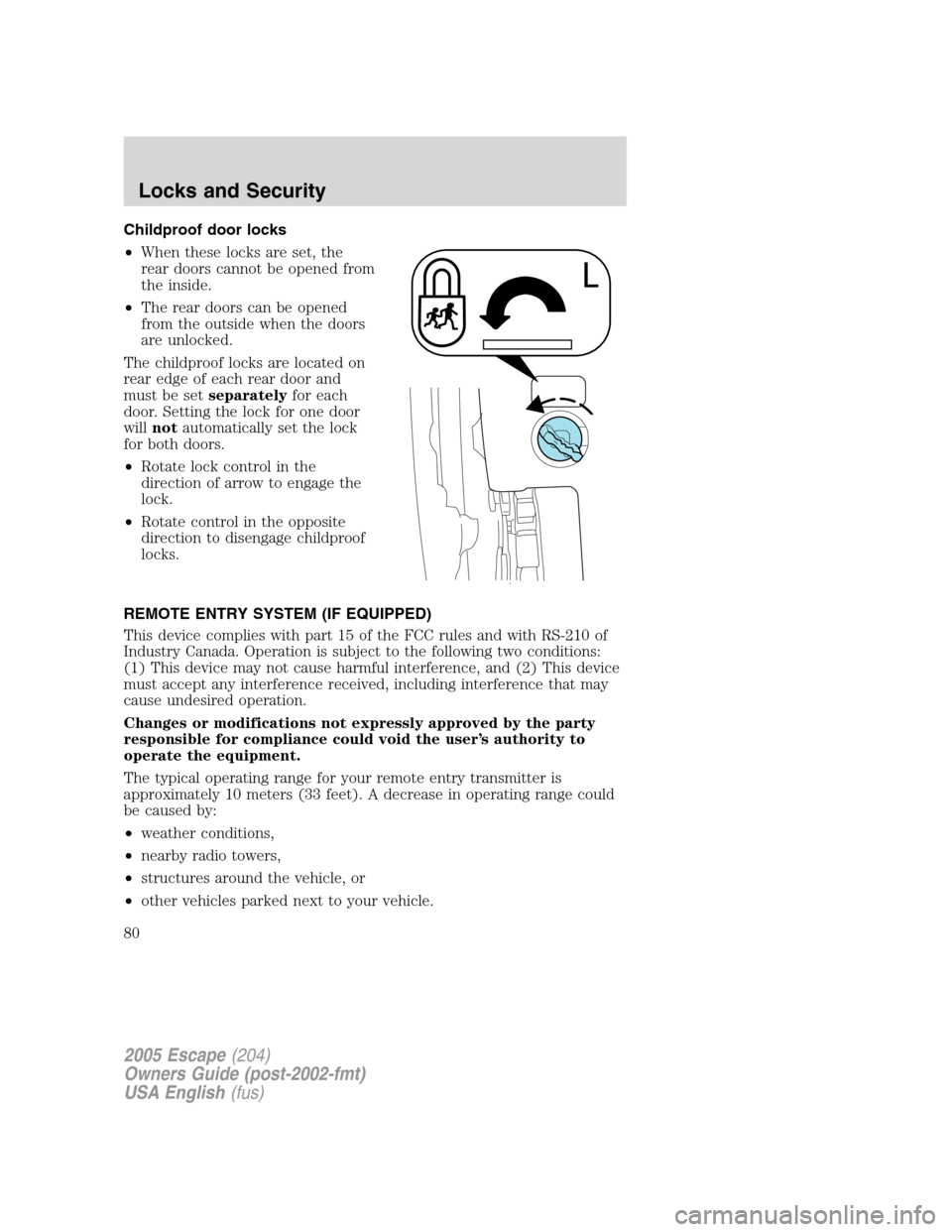

Childproof door locks
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the doors
are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be setseparatelyfor each
door. Setting the lock for one door
willnotautomatically set the lock
for both doors.
•Rotate lock control in the
direction of arrow to engage the
lock.
•Rotate control in the opposite
direction to disengage childproof
locks.
REMOTE ENTRY SYSTEM (IF EQUIPPED)
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 10 meters (33 feet). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
80
