IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
• On the highways — Slow down.
• In city traffic — While stopped, put transaxle in
neutral, but do not increase engine idle speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition. If your air conditioner
is on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C
removes this heat. You can also turn the Temperature
control to maximum heat, the Mode control to floor, and
the fan control to High. This allows the heater core to act
as a supplement to the radiator and aids in removing heat
from the engine cooling system. CAUTION!Driving with a hot cooling system could damage
your vehicle. If temperature gauge reads “ H ” , pull
over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “ H ” , turn the engine off immediately, and call for
service. WHAT TO DO IN EMERGENCIES 345
6

WARNING!A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, see Section 7, Maintenance, of this
manual. Follow the warnings under the Cooling
System Pressure Cap paragraph. JACKING AND TIRE CHANGING
WARNING!• Getting under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never get any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• The jack is designed to use as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.
• For vehicles equipped with fold-in-floor seating, if it
is necessary to retrieve the spare tire from under the
vehicle on the side of the vehicle close to moving
traffic. Pull far enough off the road to avoid the
danger of being hit.346 WHAT TO DO IN EMERGENCIES

Jacking Instructions — Fold-in-Floor Seating
Preparations For Jacking
Park the vehicle on a firm level surface, avoid ice or
slippery areas, set the parking brake and place the gear
selector in PARK. Turn OFF the ignition.
WARNING!Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel. • Turn on the Hazard Warning Flasher.
• Block both the front and rear
of the wheel diagonally oppo-
site the jacking position. For
example, if changing the right
front tire, block the left rear
wheel.
• Passengers should not remain in the vehicle when the
vehicle is being jacked. WHAT TO DO IN EMERGENCIES 347
6

Jack Location — Fold-in-Floor Seating
The jack, jack handle and winch handle tools are stowed
behind the rear left side trim panel in the rear cargo area.
Pull up on the lever to release the cover. Remove the scissors jack and jack handle by rotating the
small wing nut to the left. Also remove the tool pouch
containing the spare tire winch handle tools, which is
located next to the jack and jack handle.
Jack Location
Jack Removal/Installation348 WHAT TO DO IN EMERGENCIES

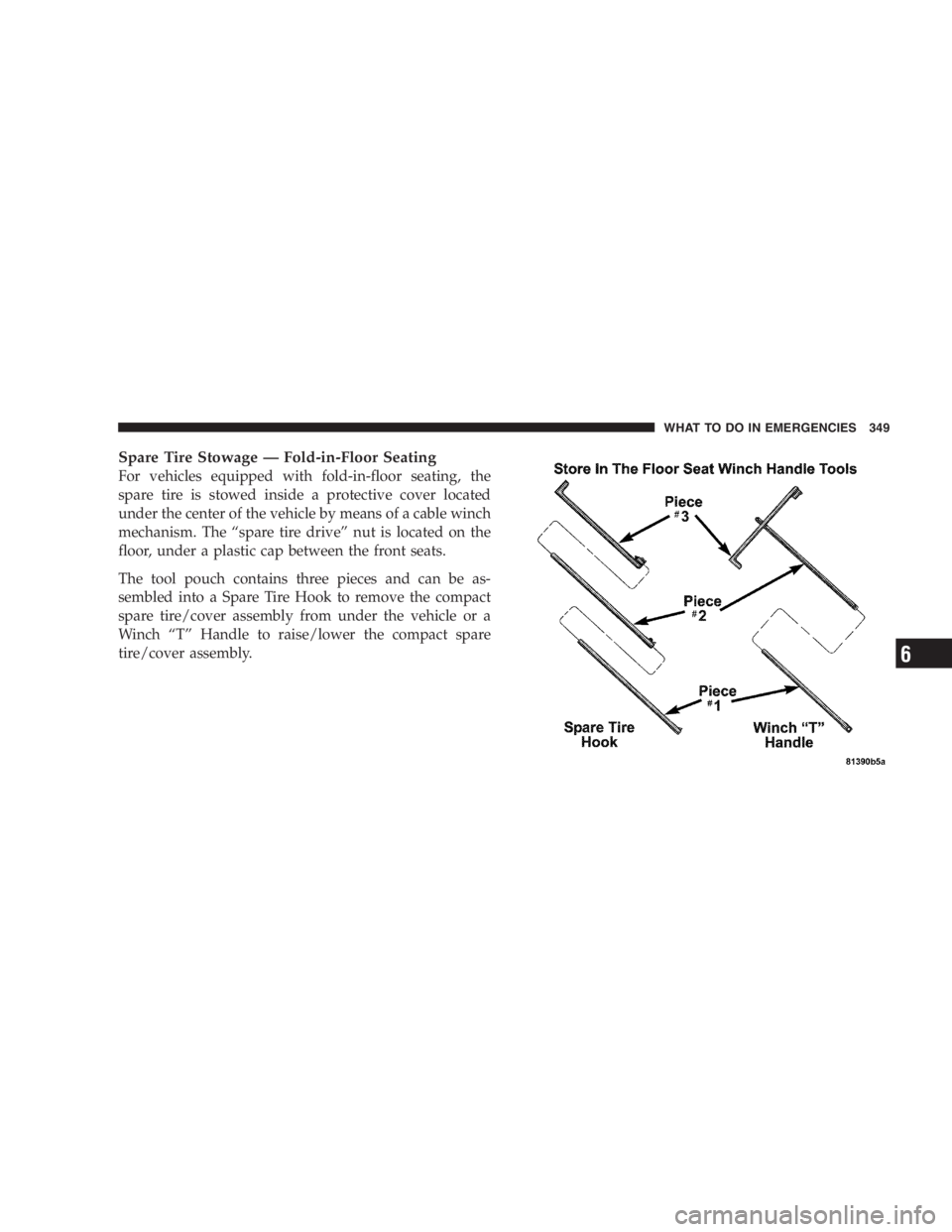

Spare Tire Stowage — Fold-in-Floor Seating
For vehicles equipped with fold-in-floor seating, the
spare tire is stowed inside a protective cover located
under the center of the vehicle by means of a cable winch
mechanism. The “ spare tire drive ” nut is located on the
floor, under a plastic cap between the front seats.
The tool pouch contains three pieces and can be as-
sembled into a Spare Tire Hook to remove the compact
spare tire/cover assembly from under the vehicle or a
Winch “ T ” Handle to raise/lower the compact spare
tire/cover assembly. WHAT TO DO IN EMERGENCIES 349
6

Jacking Instructions — Fold-in-Floor Seating
1. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground.
2. To remove the compact spare tire/cover assembly,
assemble the winch handle extensions to form a “ T ’ and
fit the winch “ T ” handle over the drive nut. Rotate the
nut to the left approximately 33 turns until the winch
mechanism stops turning freely, this will allow enough
slack in the cable to allow you to pull the spare tire out
from under the vehicle. Spare Tire Removal350 WHAT TO DO IN EMERGENCIES

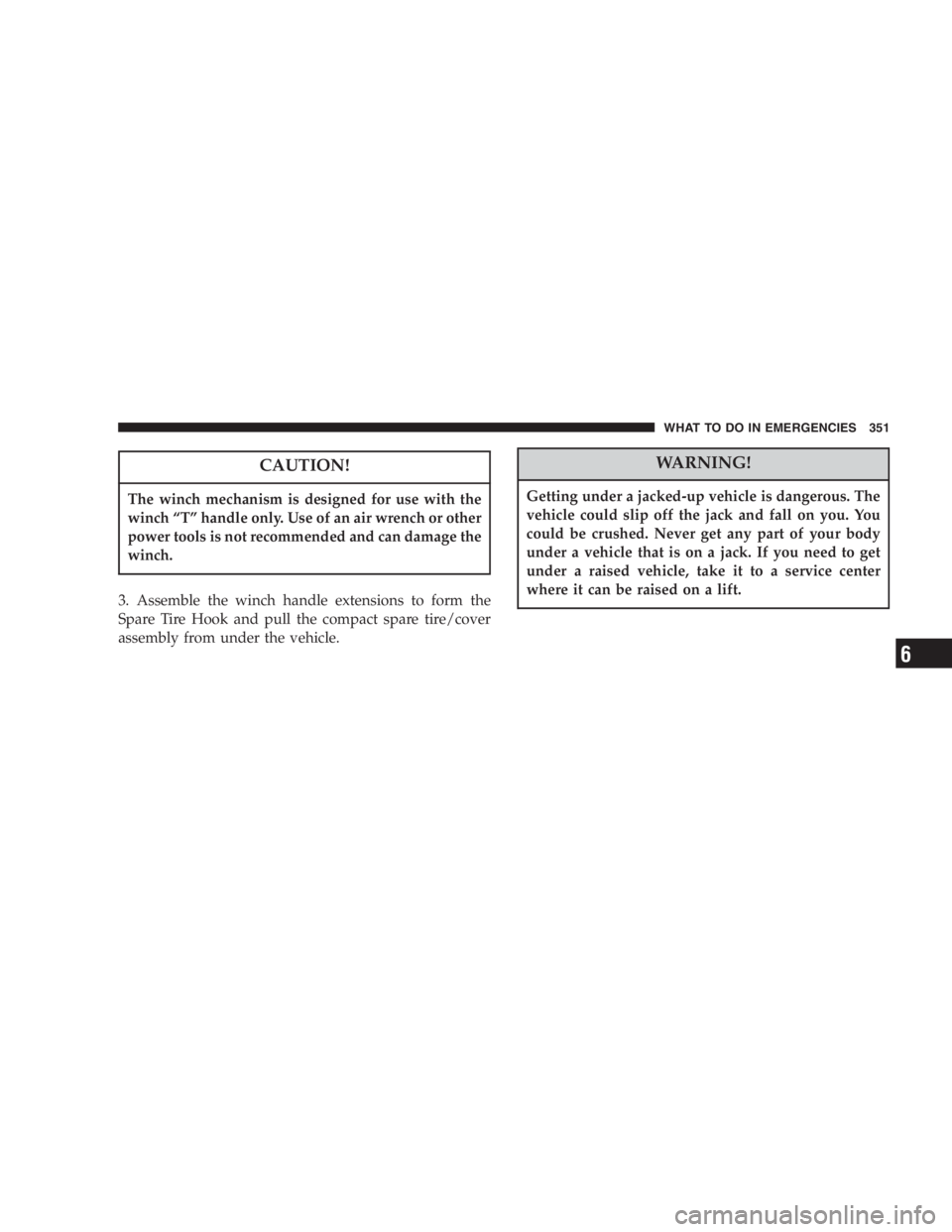

CAUTION!The winch mechanism is designed for use with the
winch “ T ” handle only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.
3. Assemble the winch handle extensions to form the
Spare Tire Hook and pull the compact spare tire/cover
assembly from under the vehicle. WARNING!Getting under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never get any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift. WHAT TO DO IN EMERGENCIES 351
6

NOTE: If either front tire is flat, it may be necessary to
jack up the vehicle to remove the compact spare tire/
cover assembly from under the vehicle. Refer to jack
engagement locations in the following steps for proper
jack placement. 4. When the compact spare tire/cover assembly is clear
of the vehicle, stand the tire/cover assembly upright and
remove the wheel spacer by squeezing the two retaining
tabs together.
5. There are two jack engagement locations on each side
of the body, refer to the following illustration.Spare Tire/Cover Removal Wheel Spacer Removal352 WHAT TO DO IN EMERGENCIES
