2005 CHRYSLER VOYAGER Module

PASSENGER HEATED SEAT MODULE C3 (EXPORT) - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16LG/OR SEAT TEMP SENSOR INPUT
2 P89 20LG/BR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR GROUND
4 P88 16LG/LB SEAT CUSHION HEATER B(+) DRIVER
PASSENGER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
2 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
PASSENGER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
2 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
PASSENGER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
2 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
8W - 80 - 110 8W-80 CONNECTOR PIN-OUTSRS

POWER FOLDING MIRROR SWITCH (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
2 Z888 20BK/YL GROUND
POWER LIFTGATE MODULE C1 - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 16TN/BR LIFTGATE OPEN DRIVER
3 Q89 16TN/OR LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
POWER LIFTGATE MODULE C2 - 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
2- -
3 Q151 22TN/DB (EXCEPT EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
3 Q151 20TN/DB (EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 22OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
18 Q94 22TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/DG LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 113

POWERTRAIN CONTROL MODULE C1 - BLACK 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9 Z130 18BK/BR GROUND
10 - -
11 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 F1 18PK/WT (EATX) FCM OUTPUT (UNLOCK-RUN-START)
13 N7 18DB/OR (MTX) VEHICLE SPEED SENSOR SIGNAL
14 - -
15 - -
16 - -
17 - -
18 Z131 18BK/DG GROUND
19 - -
20 G6 16VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
21 - -
22 G31 18VT/LG AAT SIGNAL
23 - -
24 - -
25 D20 20WT/LG SCI RECEIVE (PCM)
26 D123 20WT/BR (2.4L EATX) SCI RECEIVE (TCM)
26 D123 20WT/OR (3.3L/3.8L) SCI RECEIVE (TCM)
27 - -
28 - -
29 A109 18OR/RD FUSED B(+)
30 T751 18YL FUSED IGNITION SWITCH OUTPUT (START)
31 K141 18DB/YL O2 1/2 SIGNAL
32 K904 18DB/DG (2.4L) O2 RETURN (DOWN)
32 K904 18BR/DG (3.3L/3.8L) O2 RETURN (DOWN)
33 - -
34 - -
35 - -
36 D21 20WT/DG (2.4L) SCI TRANSMIT (PCM)
36 D21 20WT/BR (3.3L/3.8L) SCI TRANSMIT (PCM)
37 D15 18DG/YL (EATX) SCI TRANSMIT (TCM)
38 D25 18WT/VT PCI BUS
8W - 80 - 116 8W-80 CONNECTOR PIN-OUTSRS

POWERTRAIN CONTROL MODULE C2 - ORANGE 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 K58 16BR/VT (3.3L/3.8L) INJECTOR CONTROL NO. 6
5 K38 16BR/OR (3.3L/3.8L) INJECTOR CONTROL NO. 5
6- -
7 K18 16BR/OR (3.3L/3.8L) COIL CONTROL NO. 3
8 K35 18DB/VT (3.3L) EGR SOLENOID CONTROL
9 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
10 K19 16DB/DG COIL CONTROL NO. 1
11 K14 16 BR/TN INJECTOR CONTROL NO. 4
12 K13 16BR/LB INJECTOR CONTROL NO. 3
13 K12 16BR/DB INJECTOR CONTROL NO. 2
14 K11 16BR/YL INJECTOR CONTROL NO. 1
15 - -
16 - -
17 - -
18 K99 18BR/LG O2 1/1 HEATER CONTROL
19 K20 18BR/GY GEN FIELD CONTROL
20 K2 18VT/OR ECT SIGNAL
21 K22 18BR/OR TP SIGNAL
22 K34 18DB/LG (3.3L) EGR SOLENOID SIGNAL
23 K1 18VT/BR MAP SIGNAL
24 K942 18BR/LG (EXCEPT 3.3L) KS RETURN
25 K42 18DB/YL (EXCEPT 3.3L) KS SIGNAL
26 - -
27 K900 18DB/DG SENSOR GROUND
28 K961 18BR/VT IAC RETURN
29 F855 20PK/YL 5 VOLT SUPPLY
30 K21 18DB/LG IAT SIGNAL
31 K41 18DB/LB O2 1/1 SIGNAL
32 K902 18BR/DG O2 RETURN (UP)
33 - -
34 K44 18DB/GY CMP SIGNAL
35 K24 18BR/LB CKP SIGNAL
36 - -
37 - -
38 K61 18VT/GY IAC MOTOR CONTROL
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 117

POWERTRAIN CONTROL MODULE C3 - NATURAL 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 K51 18BR/WT ASD RELAY CONTROL
4- -
5 V35 18VT/OR S/C VENT CONTROL
6 K173 18BR/VT RAD FAN RELAY CONTROL
7 V32 18VT/YL SPEED CONTROL SUPPLY
8 K106 20VT/LB (EXCEPT EXPORT) NVLD SOL CONTROL
9 K299 18BR/WT O2 1/2 HEATER CONTROL
10 - -
11 C13 18LB/OR A/C CLUTCH RELAY CONTROL
12 V36 18VT/YL S/C VACUUM CONTROL
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 K342 16BR/WT ASD RELAY OUTPUT
20 K52 18DB/WT EVAP PURGE CONTROL
21 T141 18YL (MTX EXPORT) FUSED IGNITION SWITCH OUTPUT (START)
22 - -
23 B29 18DG/WT BRAKE SWITCH SIGNAL
24 - -
25 - -
26 - -
27 - -
28 K342 16BR/WT ASD RELAY OUTPUT
29 K70 18DB/BR EVAP PURGE SIGNAL
30 - -
31 C18 18LB/BR A/C PRESSURE SIGNAL
32 K91 18DB/YL BATTERY TEMP SIGNAL
33 - -
34 V37 18VT S/C SWITCH NO. 1 SIGNAL
35 K107 20VT/WT (EXCEPT EXPORT) NVLD SWITCH SIGNAL
36 - -
37 K31 18BR FUEL PUMP RELAY CONTROL
38 T752 18DG/OR STARTER RELAY CONTROL
8W - 80 - 118 8W-80 CONNECTOR PIN-OUTSRS

POWERTRAIN CONTROL MODULE C4 - GREEN 38 WAY
CAV CIRCUIT FUNCTION
1 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
2 T59 18DB/LB UNDERDRIVE SOLENOID CONTROL
3- -
4- -
5- -
6 T19 18YL/DB 2-4 SOLENOID CONTROL
7- -
8- -
9- -
10 T20 18DG/WT LOW/REVERSE SOLENOID CONTROL
11 - -
12 - -
13 Z133 16BK/LG GROUND
14 Z133 16BK/LG GROUND
15 T1 18DG/LB TRS T1 SENSE
16 T3 18DG/DB TRS T3 SENSE
17 - -
18 T15 18YL/BR TRANSMISSION CONTROL RELAY CONTROL
19 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
20 - -
21 - -
22 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
23 - -
24 - -
25 - -
26 - -
27 T41 18DG/GY TRS T41 SENSE
28 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
29 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
30 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
31 - -
32 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
33 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
34 T13 18DG/VT SPEED SENSOR GROUND
35 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
36 - -
37 T42 18DG/YL TRS T42 SENSE
38 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 119

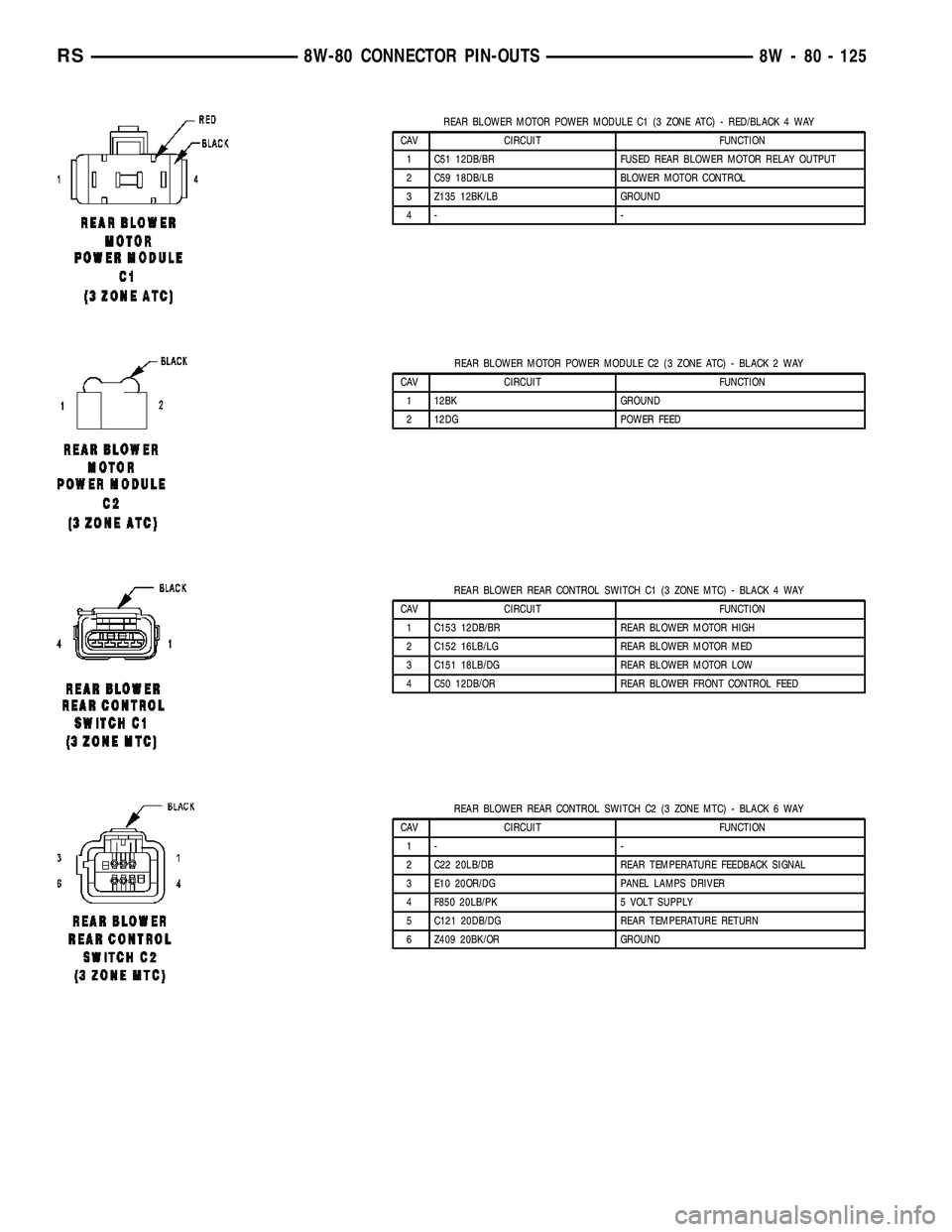

REAR BLOWER MOTOR POWER MODULE C1 (3 ZONE ATC) - RED/BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C51 12DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
2 C59 18DB/LB BLOWER MOTOR CONTROL
3 Z135 12BK/LB GROUND
4- -
REAR BLOWER MOTOR POWER MODULE C2 (3 ZONE ATC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 12BK GROUND
2 12DG POWER FEED
REAR BLOWER REAR CONTROL SWITCH C1 (3 ZONE MTC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C153 12DB/BR REAR BLOWER MOTOR HIGH
2 C152 16LB/LG REAR BLOWER MOTOR MED
3 C151 18LB/DG REAR BLOWER MOTOR LOW
4 C50 12DB/OR REAR BLOWER FRONT CONTROL FEED
REAR BLOWER REAR CONTROL SWITCH C2 (3 ZONE MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 C22 20LB/DB REAR TEMPERATURE FEEDBACK SIGNAL
3 E10 20OR/DG PANEL LAMPS DRIVER
4 F850 20LB/PK 5 VOLT SUPPLY
5 C121 20DB/DG REAR TEMPERATURE RETURN
6 Z409 20BK/OR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 125

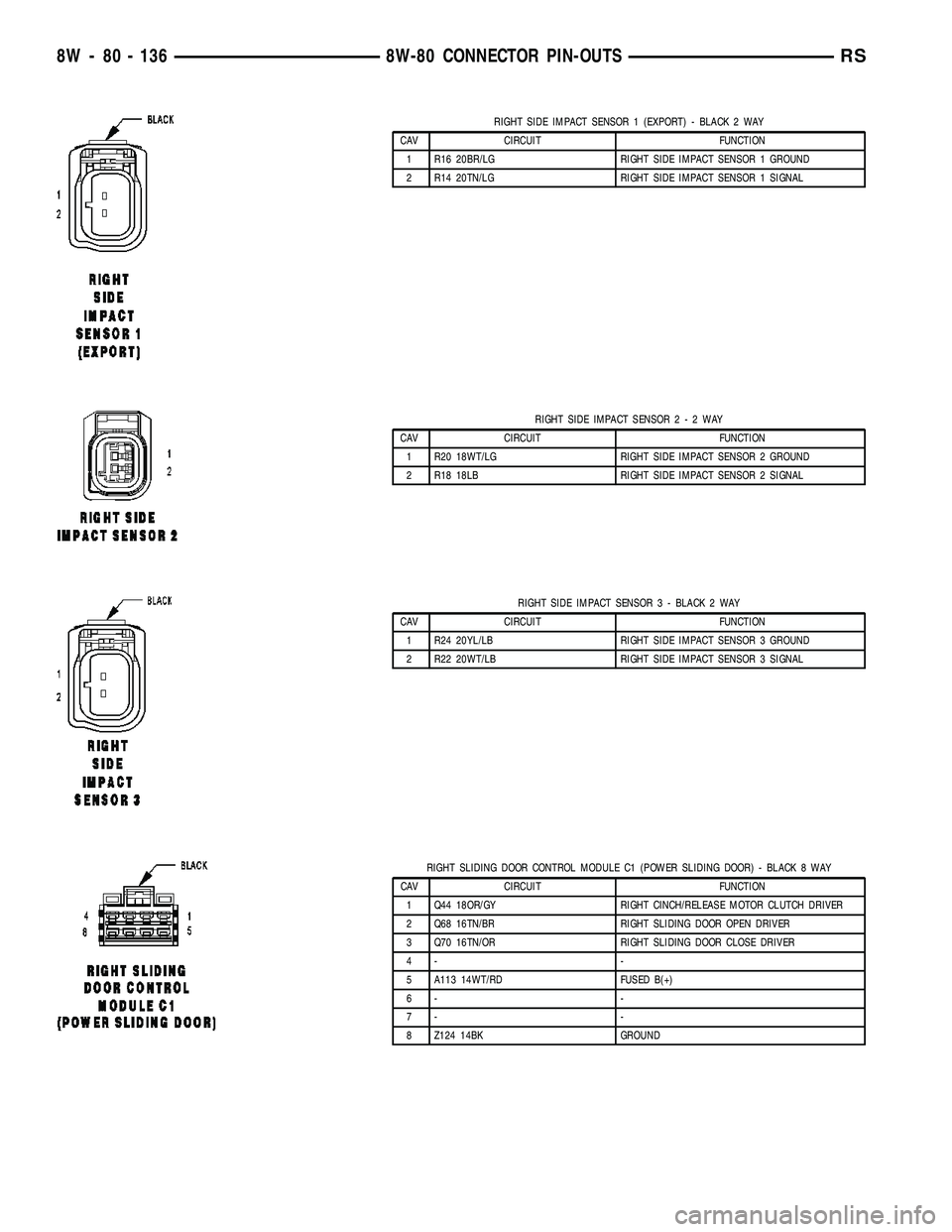

RIGHT SIDE IMPACT SENSOR 1 (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND
2 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL
RIGHT SIDE IMPACT SENSOR2-2WAY
CAV CIRCUIT FUNCTION
1 R20 18WT/LG RIGHT SIDE IMPACT SENSOR 2 GROUND
2 R18 18LB RIGHT SIDE IMPACT SENSOR 2 SIGNAL
RIGHT SIDE IMPACT SENSOR 3 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R24 20YL/LB RIGHT SIDE IMPACT SENSOR 3 GROUND
2 R22 20WT/LB RIGHT SIDE IMPACT SENSOR 3 SIGNAL
RIGHT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER
3 Q70 16TN/OR RIGHT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z124 14BK GROUND
8W - 80 - 136 8W-80 CONNECTOR PIN-OUTSRS
