2005 CHRYSLER VOYAGER Module

FRONT BLOWER MODULE C1 (ATC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z134 12BK/OR GROUND
3 C56 20DB/LB BLOWER MOTOR CONTROL
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
FRONT BLOWER MODULE C2 (ATC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C7 12DB (EXCEPT EXPORT) HIGH SPEED BLOWER MOTOR
1 C7 12DG (EXPORT) HIGH SPEED BLOWER MOTOR
2 C70 12DB/YL (EXCEPT EXPORT) BLOWER MOTOR DRIVER
2 C70 12BK (EXPORT) BLOWER MOTOR DRIVER
FRONT CIGAR LIGHTER - RED/NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
1 F306 18DB/PK FUSED ACCESSORY RELAY OUTPUT
2- -
3 Z736 18BK/YL GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-71

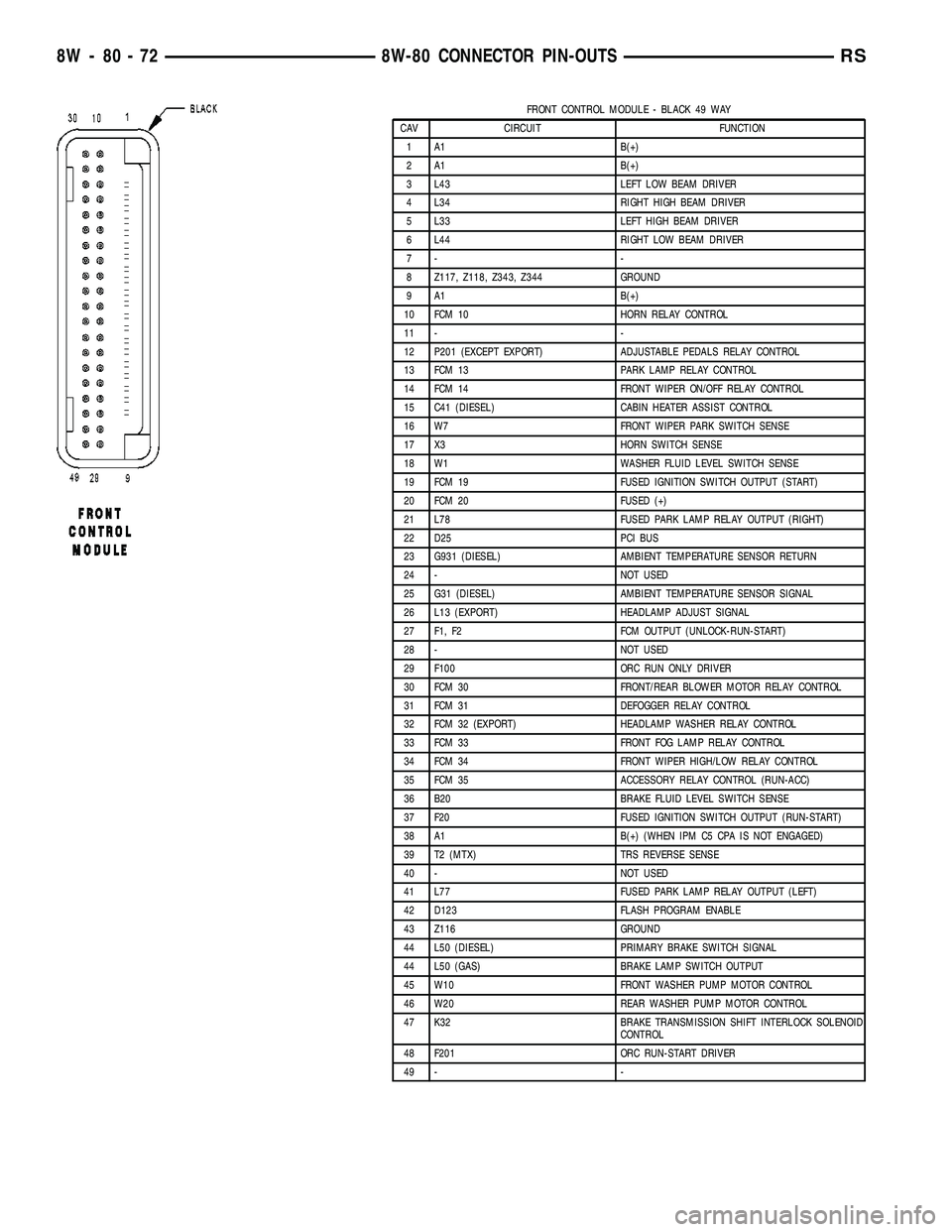

FRONT CONTROL MODULE - BLACK 49 WAY
CAV CIRCUIT FUNCTION
1 A1 B(+)
2 A1 B(+)
3 L43 LEFT LOW BEAM DRIVER
4 L34 RIGHT HIGH BEAM DRIVER
5 L33 LEFT HIGH BEAM DRIVER
6 L44 RIGHT LOW BEAM DRIVER
7- -
8 Z117, Z118, Z343, Z344 GROUND
9 A1 B(+)
10 FCM 10 HORN RELAY CONTROL
11 - -
12 P201 (EXCEPT EXPORT) ADJUSTABLE PEDALS RELAY CONTROL
13 FCM 13 PARK LAMP RELAY CONTROL
14 FCM 14 FRONT WIPER ON/OFF RELAY CONTROL
15 C41 (DIESEL) CABIN HEATER ASSIST CONTROL
16 W7 FRONT WIPER PARK SWITCH SENSE
17 X3 HORN SWITCH SENSE
18 W1 WASHER FLUID LEVEL SWITCH SENSE
19 FCM 19 FUSED IGNITION SWITCH OUTPUT (START)
20 FCM 20 FUSED (+)
21 L78 FUSED PARK LAMP RELAY OUTPUT (RIGHT)
22 D25 PCI BUS
23 G931 (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
24 - NOT USED
25 G31 (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
26 L13 (EXPORT) HEADLAMP ADJUST SIGNAL
27 F1, F2 FCM OUTPUT (UNLOCK-RUN-START)
28 - NOT USED
29 F100 ORC RUN ONLY DRIVER
30 FCM 30 FRONT/REAR BLOWER MOTOR RELAY CONTROL
31 FCM 31 DEFOGGER RELAY CONTROL
32 FCM 32 (EXPORT) HEADLAMP WASHER RELAY CONTROL
33 FCM 33 FRONT FOG LAMP RELAY CONTROL
34 FCM 34 FRONT WIPER HIGH/LOW RELAY CONTROL
35 FCM 35 ACCESSORY RELAY CONTROL (RUN-ACC)
36 B20 BRAKE FLUID LEVEL SWITCH SENSE
37 F20 FUSED IGNITION SWITCH OUTPUT (RUN-START)
38 A1 B(+) (WHEN IPM C5 CPA IS NOT ENGAGED)
39 T2 (MTX) TRS REVERSE SENSE
40 - NOT USED
41 L77 FUSED PARK LAMP RELAY OUTPUT (LEFT)
42 D123 FLASH PROGRAM ENABLE
43 Z116 GROUND
44 L50 (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
44 L50 (GAS) BRAKE LAMP SWITCH OUTPUT
45 W10 FRONT WASHER PUMP MOTOR CONTROL
46 W20 REAR WASHER PUMP MOTOR CONTROL
47 K32 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
48 F201 ORC RUN-START DRIVER
49 - -
8W - 80 - 72 8W-80 CONNECTOR PIN-OUTSRS

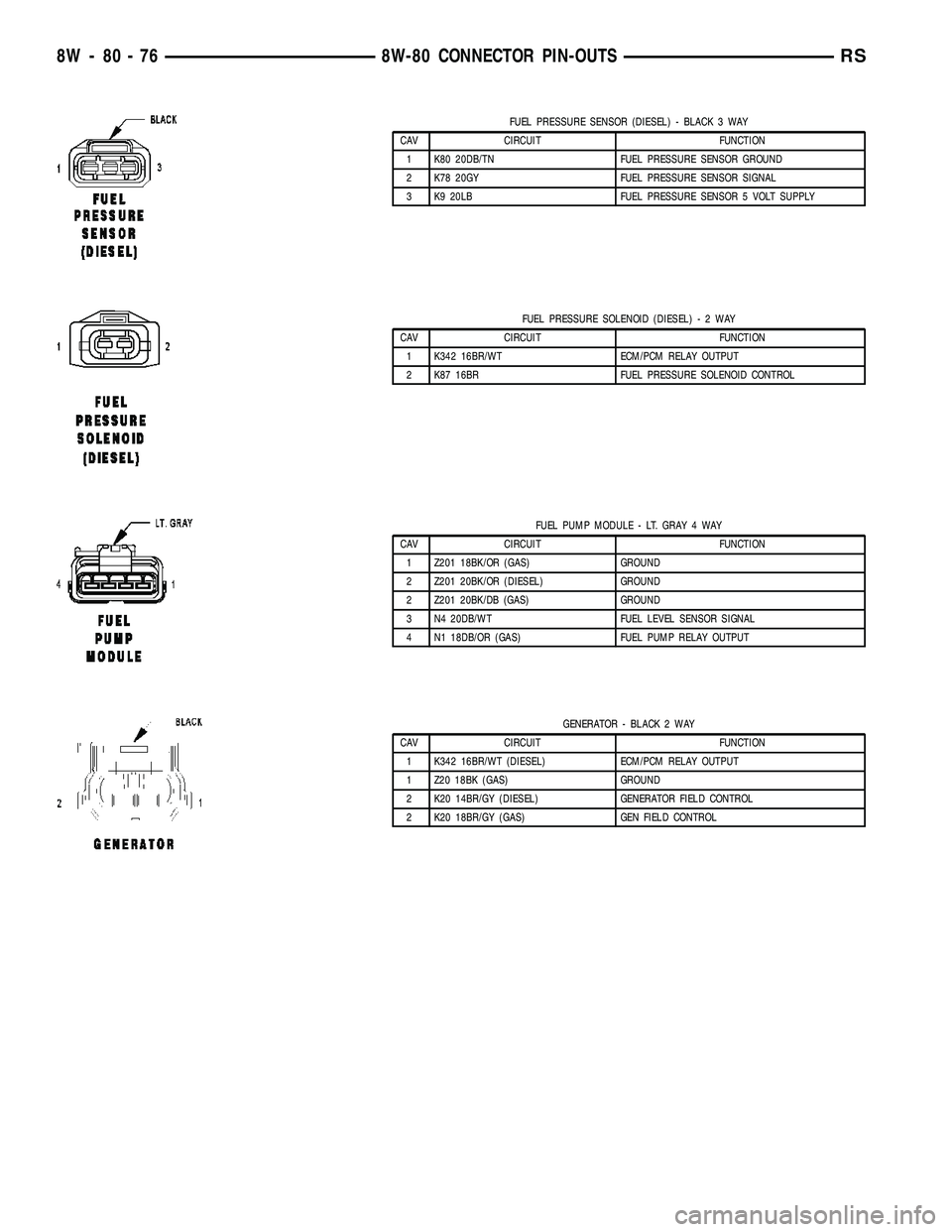

FUEL PRESSURE SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
2 K78 20GY FUEL PRESSURE SENSOR SIGNAL
3 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
FUEL PRESSURE SOLENOID (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT ECM/PCM RELAY OUTPUT
2 K87 16BR FUEL PRESSURE SOLENOID CONTROL
FUEL PUMP MODULE - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z201 18BK/OR (GAS) GROUND
2 Z201 20BK/OR (DIESEL) GROUND
2 Z201 20BK/DB (GAS) GROUND
3 N4 20DB/WT FUEL LEVEL SENSOR SIGNAL
4 N1 18DB/OR (GAS) FUEL PUMP RELAY OUTPUT
GENERATOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT (DIESEL) ECM/PCM RELAY OUTPUT
1 Z20 18BK (GAS) GROUND
2 K20 14BR/GY (DIESEL) GENERATOR FIELD CONTROL
2 K20 18BR/GY (GAS) GEN FIELD CONTROL
8W - 80 - 76 8W-80 CONNECTOR PIN-OUTSRS

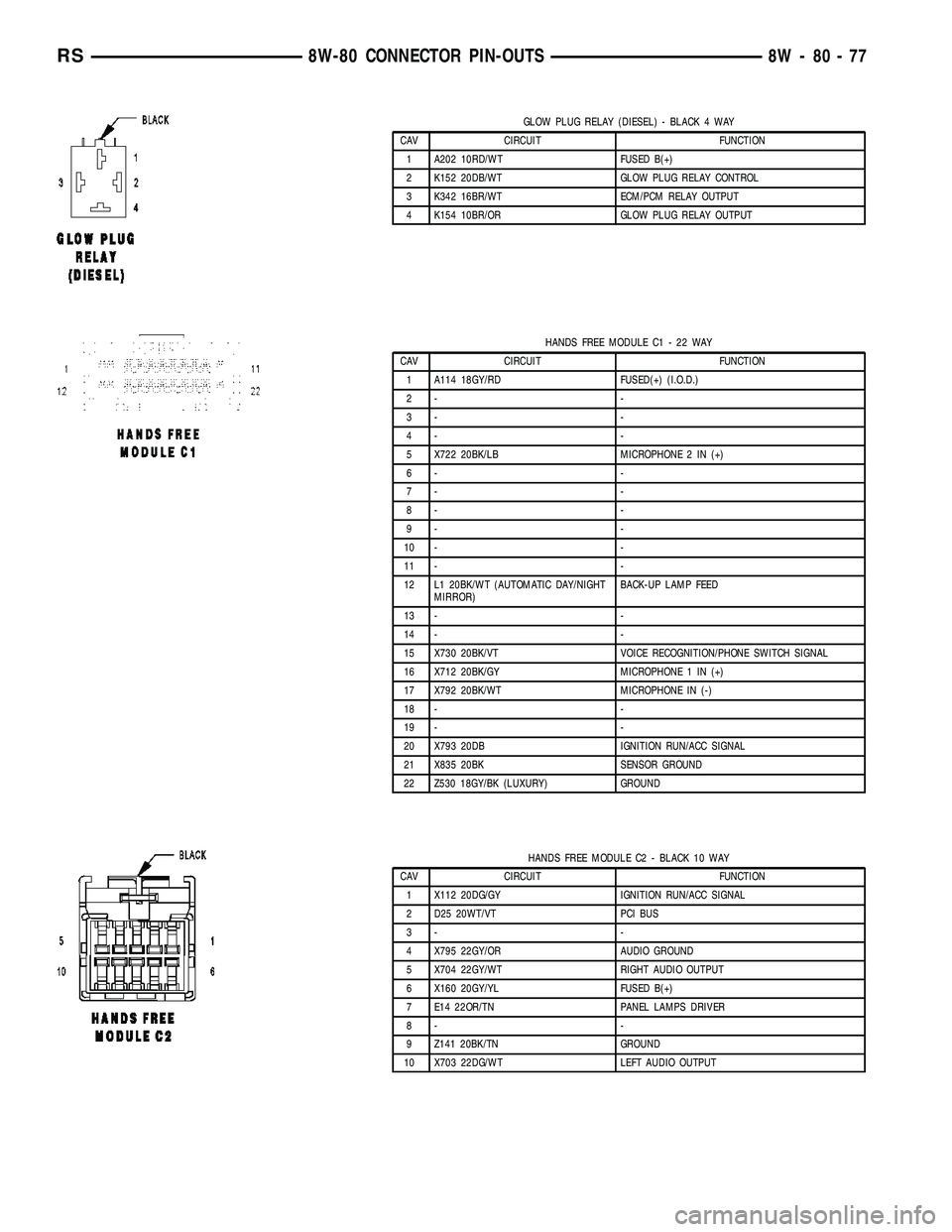

GLOW PLUG RELAY (DIESEL) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 A202 10RD/WT FUSED B(+)
2 K152 20DB/WT GLOW PLUG RELAY CONTROL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
4 K154 10BR/OR GLOW PLUG RELAY OUTPUT
HANDS FREE MODULE C1 - 22 WAY
CAV CIRCUIT FUNCTION
1 A114 18GY/RD FUSED(+) (I.O.D.)
2- -
3- -
4- -
5 X722 20BK/LB MICROPHONE 2 IN (+)
6- -
7- -
8- -
9- -
10 - -
11 - -
12 L1 20BK/WT (AUTOMATIC DAY/NIGHT
MIRROR)BACK-UP LAMP FEED
13 - -
14 - -
15 X730 20BK/VT VOICE RECOGNITION/PHONE SWITCH SIGNAL
16 X712 20BK/GY MICROPHONE 1 IN (+)
17 X792 20BK/WT MICROPHONE IN (-)
18 - -
19 - -
20 X793 20DB IGNITION RUN/ACC SIGNAL
21 X835 20BK SENSOR GROUND
22 Z530 18GY/BK (LUXURY) GROUND
HANDS FREE MODULE C2 - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 X112 20DG/GY IGNITION RUN/ACC SIGNAL
2 D25 20WT/VT PCI BUS
3- -
4 X795 22GY/OR AUDIO GROUND
5 X704 22GY/WT RIGHT AUDIO OUTPUT
6 X160 20GY/YL FUSED B(+)
7 E14 22OR/TN PANEL LAMPS DRIVER
8- -
9 Z141 20BK/TN GROUND
10 X703 22DG/WT LEFT AUDIO OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W-80-77

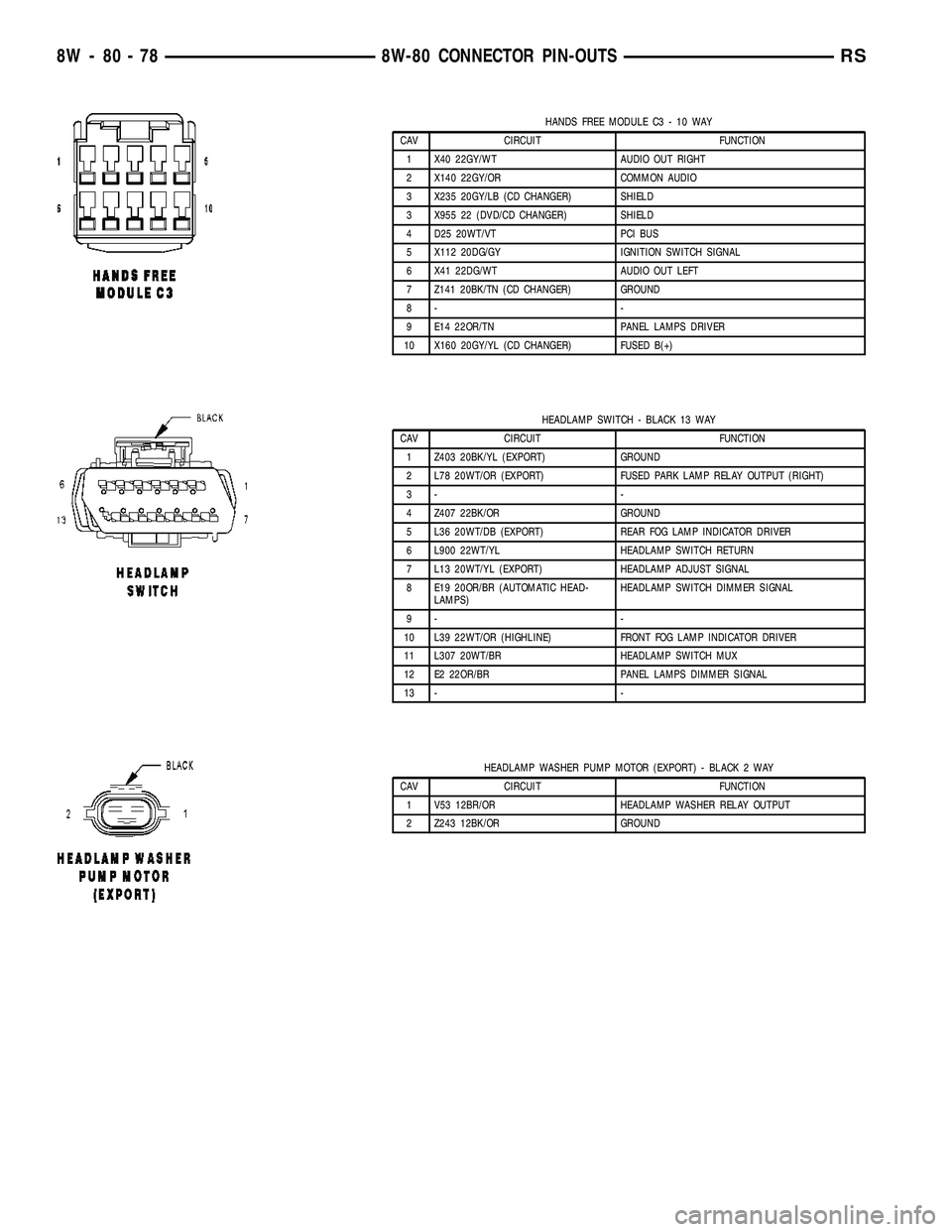

HANDS FREE MODULE C3 - 10 WAY
CAV CIRCUIT FUNCTION
1 X40 22GY/WT AUDIO OUT RIGHT
2 X140 22GY/OR COMMON AUDIO
3 X235 20GY/LB (CD CHANGER) SHIELD
3 X955 22 (DVD/CD CHANGER) SHIELD
4 D25 20WT/VT PCI BUS
5 X112 20DG/GY IGNITION SWITCH SIGNAL
6 X41 22DG/WT AUDIO OUT LEFT
7 Z141 20BK/TN (CD CHANGER) GROUND
8- -
9 E14 22OR/TN PANEL LAMPS DRIVER
10 X160 20GY/YL (CD CHANGER) FUSED B(+)
HEADLAMP SWITCH - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 Z403 20BK/YL (EXPORT) GROUND
2 L78 20WT/OR (EXPORT) FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3- -
4 Z407 22BK/OR GROUND
5 L36 20WT/DB (EXPORT) REAR FOG LAMP INDICATOR DRIVER
6 L900 22WT/YL HEADLAMP SWITCH RETURN
7 L13 20WT/YL (EXPORT) HEADLAMP ADJUST SIGNAL
8 E19 20OR/BR (AUTOMATIC HEAD-
LAMPS)HEADLAMP SWITCH DIMMER SIGNAL
9- -
10 L39 22WT/OR (HIGHLINE) FRONT FOG LAMP INDICATOR DRIVER
11 L307 20WT/BR HEADLAMP SWITCH MUX
12 E2 22OR/BR PANEL LAMPS DIMMER SIGNAL
13 - -
HEADLAMP WASHER PUMP MOTOR (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 V53 12BR/OR HEADLAMP WASHER RELAY OUTPUT
2 Z243 12BK/OR GROUND
8W - 80 - 78 8W-80 CONNECTOR PIN-OUTSRS

INTEGRATED POWER MODULE C1 - 20 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 L43 18WT/DB LEFT LOW BEAM DRIVER
5 Z344 16BK/TN GROUND
6 L34 16WT/GY RIGHT HIGH BEAM DRIVER
7 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
8 L33 18WT/LG LEFT HIGH BEAM DRIVER
9 G31 18VT/LG (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
10 L44 16WT/TN RIGHT LOW BEAM DRIVER
11 - -
12 - -
13 Z343 18BK/LG GROUND
14 - -
15 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
16 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
17 - -
18 G931 18VT/BR (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
19 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
20 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
INTEGRATED POWER MODULE C2 - GREEN/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1 N173 18DB/VT (GAS) RAD FAN RELAY CONTROL
2 V53 12BR/OR (EXPORT) HEADLAMP WASHER RELAY OUTPUT
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
4 L13 18WT/YL (EXPORT) HEADLAMP ADJUST SIGNAL
5 X2 18DG/OR HORN RELAY OUTPUT
6 L90 18WT/OR (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
7 L61 18WT/LB LEFT FRONT TURN SIGNAL DRIVER
8- -
9 A112 12OR/RD FUSED B(+)
10 L89 18WT/YL (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
8W - 80 - 82 8W-80 CONNECTOR PIN-OUTSRS

INTEGRATED POWER MODULE C3 - 20 WAY
CAV CIRCUIT FUNCTION
1 N21 20DB/TN (DIESEL) LIFT PUMP RELAY CONTROL
1 Z115 20BK/OR (GAS) GROUND
2 F1 18PK/WT FCM OUTPUT (UNLOCK-RUN-START)
3 T751 20YL (DIESEL) FUSED IGNITION SWITCH OUTPUT (START)
3 T751 18YL (GAS) FUSED IGNITION SWITCH OUTPUT (START)
4 T2 18DG/WT (MTX) TRS REVERSE SENSE
5 N2 18DB/YL (DIESEL) LIFT PUMP RELAY OUTPUT
5 T16 18YL/OR (GAS EATX) TRANSMISSION CONTROL RELAY OUTPUT
6 F202 20PK/GY (DIESEL) FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 T15 18YL/BR (GAS EATX) TRANSMISSION CONTROL RELAY CONTROL
7 C3 20DB/YL A/C CLUTCH RELAY OUTPUT
8 Z114 18BK/LG (DIESEL) GROUND
8 K31 18BR (GAS) FUEL PUMP RELAY CONTROL
9 C13 20LB/OR (DIESEL) A/C COMPRESSOR CLUTCH RELAY CONTROL
9 C13 18LB/OR (GAS) A/C COMPRESSOR CLUTCH RELAY CONTROL
10 A119 16RD/OR (DIESEL) FUSED B(+)
11 C41 20LB/DG (DIESEL) CABIN HEATER ASSIST CONTROL
12 - -
13 D25 20WT/VT (DIESEL MTX) PCI BUS
13 D25 18WT/VT (GAS/DIESEL EATX) PCI BUS
14 T752 20DG/OR (DIESEL) STARTER MOTOR RELAY CONTROL
14 T752 18DG/OR (GAS) STARTER RELAY CONTROL
15 Z116 18BK/VT GROUND
16 K51 20BR/WT (DIESEL) ECM/PCM RELAY CONTROL
16 K51 18BR/WT (GAS) ASD RELAY CONTROL
17 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
18 K173 18BR/VT (GAS) RAD FAN RELAY CONTROL
19 K342 16BR/WT (DIESEL) ECM/PCM RELAY OUTPUT
19 F202 20PK/GY (GAS) FUSED IGNITION SWITCH OUTPUT (RUN-START)
20 A109 18OR/RD (GAS) FUSED B(+)
INTEGRATED POWER MODULE C4 - BLUE 10 WAY
CAV CIRCUIT FUNCTION
1 Z127 12BK (ASSY. PLANT EVAC &
FILL)GROUND
2 T750 12YL/GY STARTER MOTOR RELAY OUTPUT
3 K342 16BR/WT (DIESEL) ECM/PCM RELAY OUTPUT
3 K342 16BR/WT (GAS) ASD RELAY OUTPUT
4 F500 16DG/PK (ASSY. PLANT EVAC &
FILL)FUSED IGNITION SWITCH OUTPUT (RUN)
5- -
6 D25 18WT/VT (ABS) PCI BUS
7 A107 12TN/RD (ABS) FUSED B(+)
8 A111 12DG/RD (ABS) FUSED B(+)
9- -
10 - -
RS8W-80 CONNECTOR PIN-OUTS8W-80-83

INTEGRATED POWER MODULE C5 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 A1 4RD B(+)
2- -
3- -
4- -
INTEGRATED POWER MODULE C6 - NATURAL 10 WAY
CAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 Z117 16BK/WT GROUND
3 Z118 16BK/WT (LWB/EXPORT) GROUND
3 Z118 16BK/YL (SWB/EXCEPT EXPORT) GROUND
4 A110 12OR/RD (POWER SEAT) FUSED B(+)
5- -
6- -
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 F307 18LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESSORY RELAY OUTPUT
8 F307 18LB/PK (BATTERY POSITION) FUSED B(+)
9 A113 12WT/RD (POWER SLIDING
DOOR)FUSED B(+)
10 - -
INTEGRATED POWER MODULE C7 - 20 WAY
CAV CIRCUIT FUNCTION
1 C16 20DB/GY FUSED DEFOGGER RELAY OUTPUT
2 T141 20YL/OR (DIESEL) FUSED IGNITION SWITCH OUTPUT (START)
2 T751 20YL (GAS) FUSED IGNITION SWITCH OUTPUT (START)
3 D25 20WT/VT PCI BUS
4 L13 20WT/YL (EXPORT) HEADLAMP ADJUST SIGNAL
5 K32 18DB/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
6- -
7 W7 20BR/GY WIPER PARK SWITCH SENSE
8 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
9 F201 20PK/OR ORC RUN-START DRIVER
10 - -
11 A106 20LB/RD FUSED B(+)
12 P201 20LG/DB (EXCEPT EXPORT/EX-
CEPT MEMORY)ADJUSTABLE PEDALS RELAY CONTROL
13 F2 18PK/YL FCM OUTPUT (UNLOCK-RUN-START)
14 - -
15 A114 16GY/RD FUSED B(+) (I.O.D.)
16 D123 20WT/BR FLASH PROGRAM ENABLE
17 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
17 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
18 - -
19 X3 20DG/VT HORN SWITCH SENSE
20 F100 18PK/VT ORC RUN ONLY DRIVER
8W - 80 - 84 8W-80 CONNECTOR PIN-OUTSRS
