2005 CHRYSLER CARAVAN sensor

PASSENGER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A S1 16DB (EXCEPT EXPORT) SEAT HEATER B(+) DRIVER
A P88 16LG/LB (EXPORT) SEAT HEATER B(+) DRIVER
B S2 20DG (EXCEPT EXPORT) SEAT HEATER GROUND
B Z848 18BK/OR (EXPORT) GROUND
C Z848 20BK/OR (EXCEPT EXPORT) GROUND
C P89 20LG/BR (EXPORT) SEAT SENSOR 5 VOLT SUPPLY
D Z848 16BK/OR (EXCEPT EXPORT) GROUND
D P87 16LG/OR (EXPORT) SEAT TEMP SENSOR INPUT
PASSENGER HEATED SEAT MODULE (EXCEPT EXPORT) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 P8 20LG/DG PASSENGER HEATED SEAT SWITCH MUX
4 Z848 16BK/OR GROUND
5 A210 14OR/RD (EXCEPT POWER
SEAT)FUSED (+)
5 A210 16OR/RD (POWER SEAT) FUSED B(+)
6 S2 20DG SEAT HEATER GROUND
7 S1 16DB SEAT HEATER B(+) DRIVER
8 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
PASSENGER HEATED SEAT MODULE C1 (EXPORT) - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z848 18BK/OR GROUND
2 P8 20LG/WT PASSENGER HEATED SEAT SWITCH MUX
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED (B+)
PASSENGER HEATED SEAT MODULE C2 (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18WT SEAT BACK HEATER B(+) DRIVER
2 S2 18GY SEAT BACK HEATER GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 109

PASSENGER HEATED SEAT MODULE C3 (EXPORT) - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16LG/OR SEAT TEMP SENSOR INPUT
2 P89 20LG/BR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR GROUND
4 P88 16LG/LB SEAT CUSHION HEATER B(+) DRIVER
PASSENGER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
2 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
PASSENGER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
2 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
PASSENGER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
2 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
8W - 80 - 110 8W-80 CONNECTOR PIN-OUTSRS

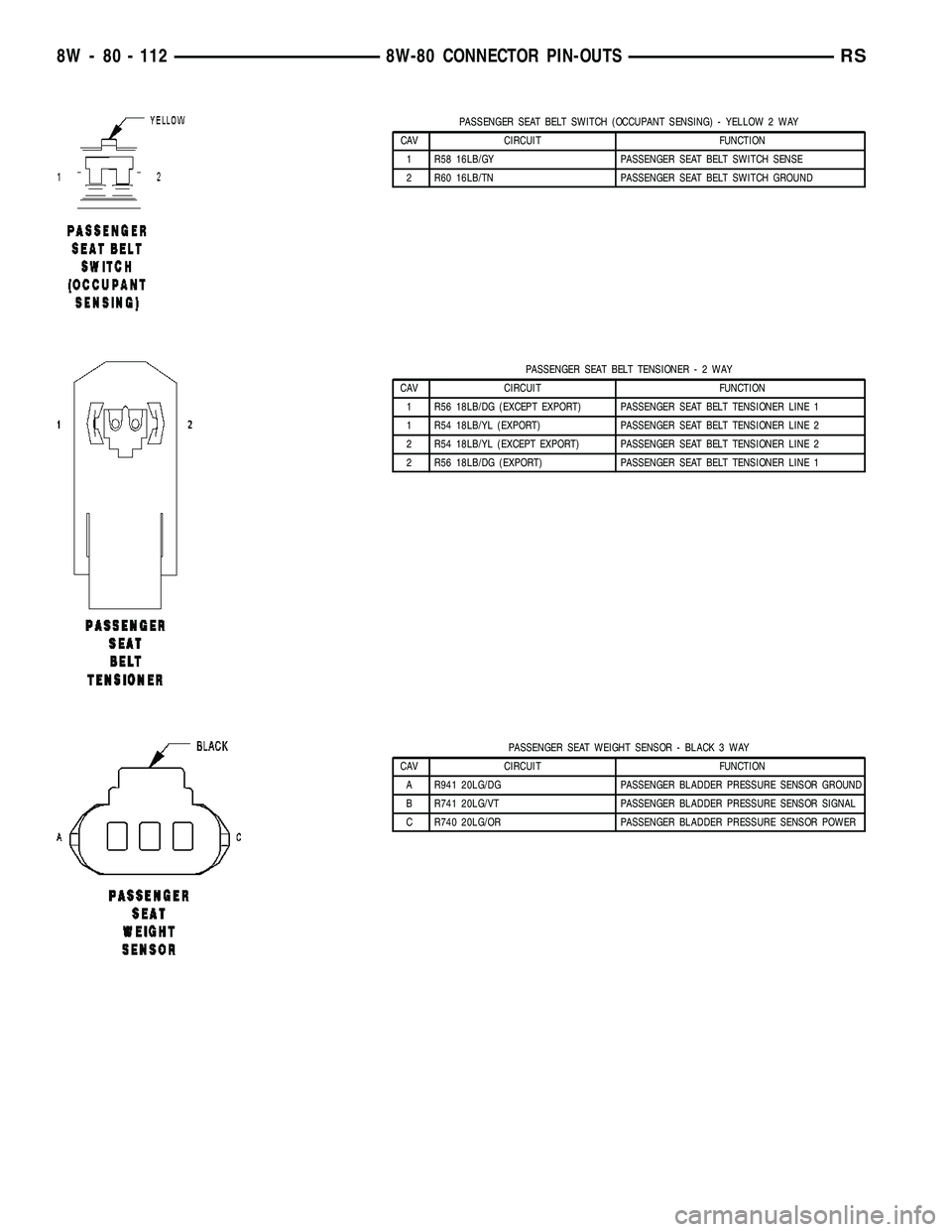

PASSENGER SEAT BELT SWITCH (OCCUPANT SENSING) - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R58 16LB/GY PASSENGER SEAT BELT SWITCH SENSE
2 R60 16LB/TN PASSENGER SEAT BELT SWITCH GROUND
PASSENGER SEAT BELT TENSIONER-2WAY
CAV CIRCUIT FUNCTION
1 R56 18LB/DG (EXCEPT EXPORT) PASSENGER SEAT BELT TENSIONER LINE 1
1 R54 18LB/YL (EXPORT) PASSENGER SEAT BELT TENSIONER LINE 2
2 R54 18LB/YL (EXCEPT EXPORT) PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG (EXPORT) PASSENGER SEAT BELT TENSIONER LINE 1
PASSENGER SEAT WEIGHT SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A R941 20LG/DG PASSENGER BLADDER PRESSURE SENSOR GROUND
B R741 20LG/VT PASSENGER BLADDER PRESSURE SENSOR SIGNAL
C R740 20LG/OR PASSENGER BLADDER PRESSURE SENSOR POWER
8W - 80 - 112 8W-80 CONNECTOR PIN-OUTSRS

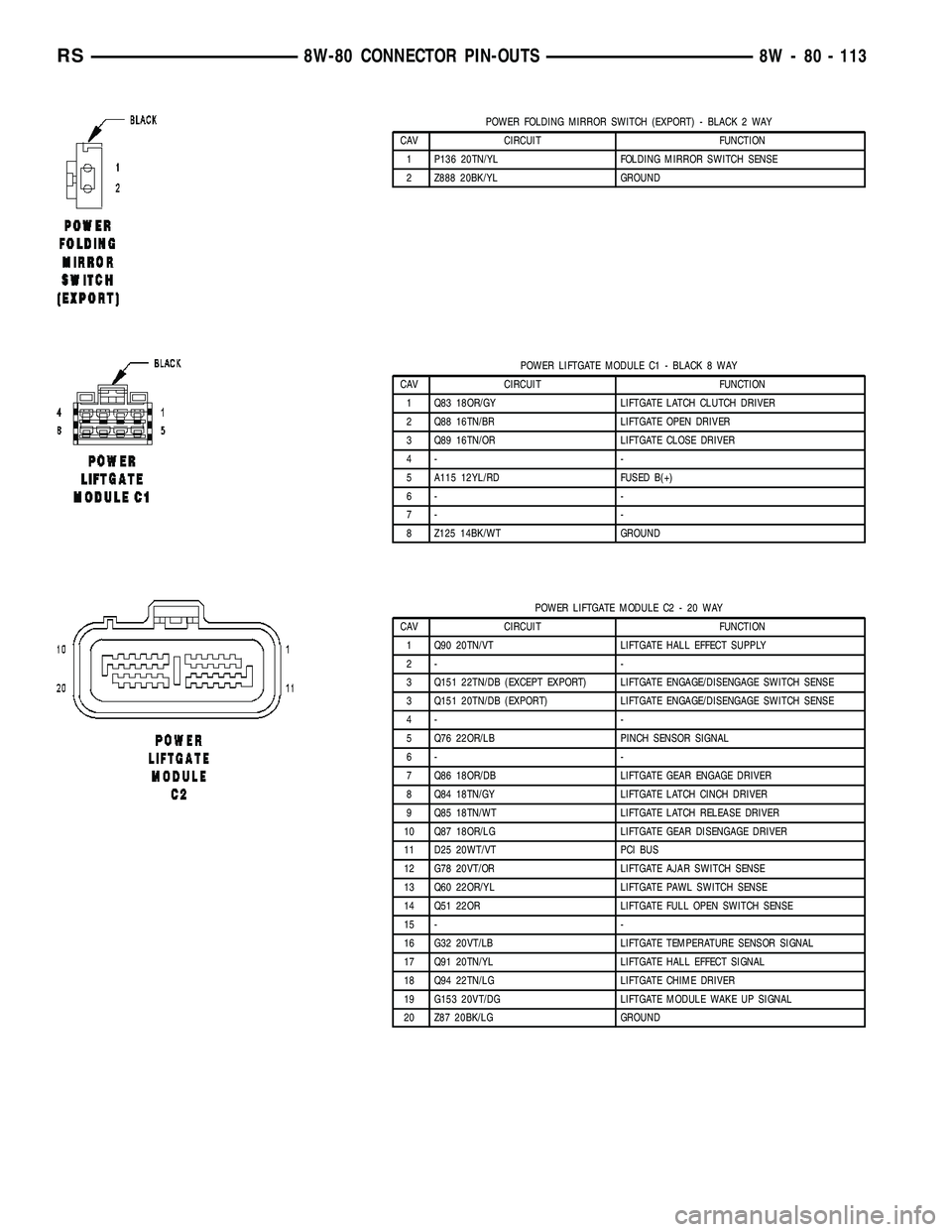

POWER FOLDING MIRROR SWITCH (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
2 Z888 20BK/YL GROUND
POWER LIFTGATE MODULE C1 - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 16TN/BR LIFTGATE OPEN DRIVER
3 Q89 16TN/OR LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
POWER LIFTGATE MODULE C2 - 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
2- -
3 Q151 22TN/DB (EXCEPT EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
3 Q151 20TN/DB (EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 22OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
18 Q94 22TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/DG LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 113

POWERTRAIN CONTROL MODULE C1 - BLACK 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9 Z130 18BK/BR GROUND
10 - -
11 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 F1 18PK/WT (EATX) FCM OUTPUT (UNLOCK-RUN-START)
13 N7 18DB/OR (MTX) VEHICLE SPEED SENSOR SIGNAL
14 - -
15 - -
16 - -
17 - -
18 Z131 18BK/DG GROUND
19 - -
20 G6 16VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
21 - -
22 G31 18VT/LG AAT SIGNAL
23 - -
24 - -
25 D20 20WT/LG SCI RECEIVE (PCM)
26 D123 20WT/BR (2.4L EATX) SCI RECEIVE (TCM)
26 D123 20WT/OR (3.3L/3.8L) SCI RECEIVE (TCM)
27 - -
28 - -
29 A109 18OR/RD FUSED B(+)
30 T751 18YL FUSED IGNITION SWITCH OUTPUT (START)
31 K141 18DB/YL O2 1/2 SIGNAL
32 K904 18DB/DG (2.4L) O2 RETURN (DOWN)
32 K904 18BR/DG (3.3L/3.8L) O2 RETURN (DOWN)
33 - -
34 - -
35 - -
36 D21 20WT/DG (2.4L) SCI TRANSMIT (PCM)
36 D21 20WT/BR (3.3L/3.8L) SCI TRANSMIT (PCM)
37 D15 18DG/YL (EATX) SCI TRANSMIT (TCM)
38 D25 18WT/VT PCI BUS
8W - 80 - 116 8W-80 CONNECTOR PIN-OUTSRS

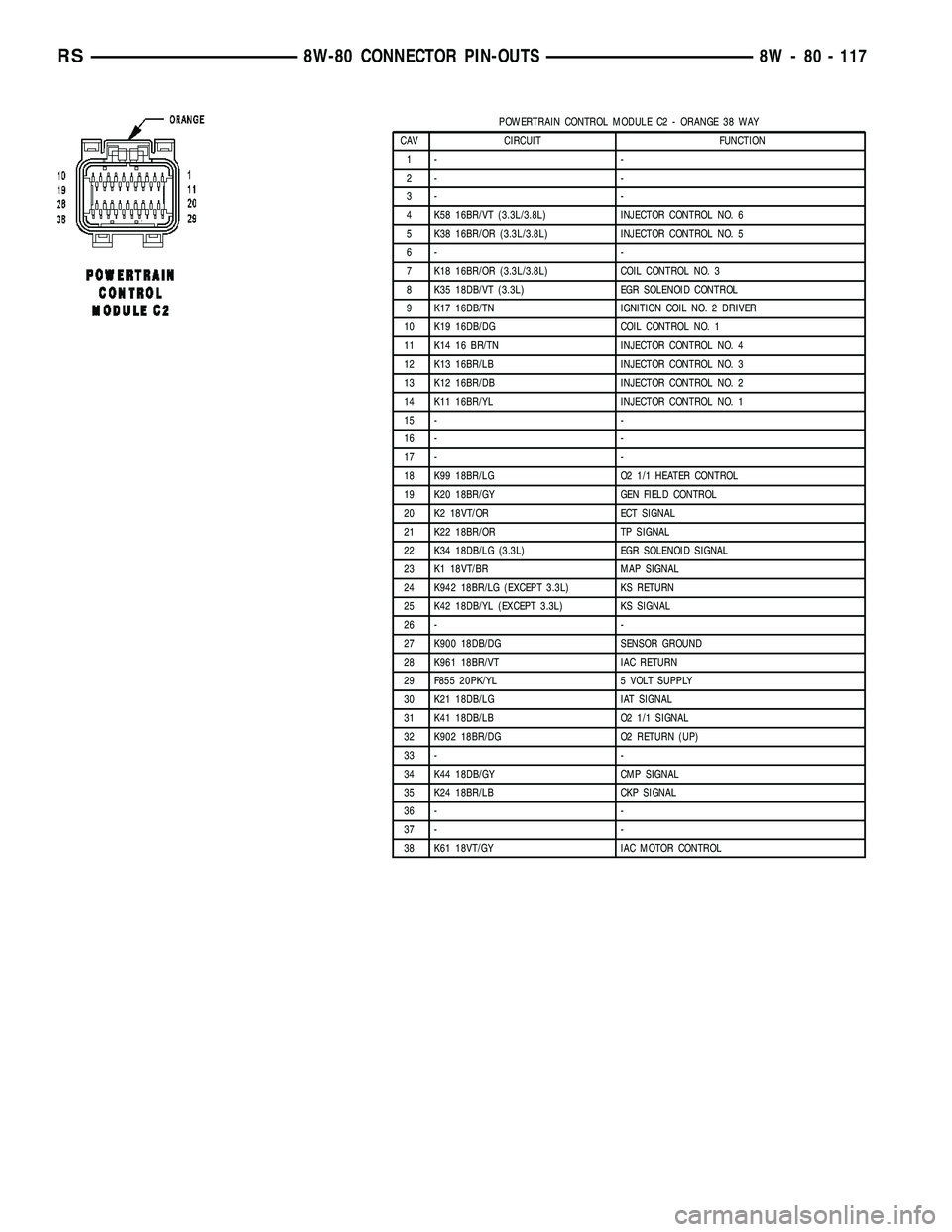

POWERTRAIN CONTROL MODULE C2 - ORANGE 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 K58 16BR/VT (3.3L/3.8L) INJECTOR CONTROL NO. 6
5 K38 16BR/OR (3.3L/3.8L) INJECTOR CONTROL NO. 5
6- -
7 K18 16BR/OR (3.3L/3.8L) COIL CONTROL NO. 3
8 K35 18DB/VT (3.3L) EGR SOLENOID CONTROL
9 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
10 K19 16DB/DG COIL CONTROL NO. 1
11 K14 16 BR/TN INJECTOR CONTROL NO. 4
12 K13 16BR/LB INJECTOR CONTROL NO. 3
13 K12 16BR/DB INJECTOR CONTROL NO. 2
14 K11 16BR/YL INJECTOR CONTROL NO. 1
15 - -
16 - -
17 - -
18 K99 18BR/LG O2 1/1 HEATER CONTROL
19 K20 18BR/GY GEN FIELD CONTROL
20 K2 18VT/OR ECT SIGNAL
21 K22 18BR/OR TP SIGNAL
22 K34 18DB/LG (3.3L) EGR SOLENOID SIGNAL
23 K1 18VT/BR MAP SIGNAL
24 K942 18BR/LG (EXCEPT 3.3L) KS RETURN
25 K42 18DB/YL (EXCEPT 3.3L) KS SIGNAL
26 - -
27 K900 18DB/DG SENSOR GROUND
28 K961 18BR/VT IAC RETURN
29 F855 20PK/YL 5 VOLT SUPPLY
30 K21 18DB/LG IAT SIGNAL
31 K41 18DB/LB O2 1/1 SIGNAL
32 K902 18BR/DG O2 RETURN (UP)
33 - -
34 K44 18DB/GY CMP SIGNAL
35 K24 18BR/LB CKP SIGNAL
36 - -
37 - -
38 K61 18VT/GY IAC MOTOR CONTROL
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 117

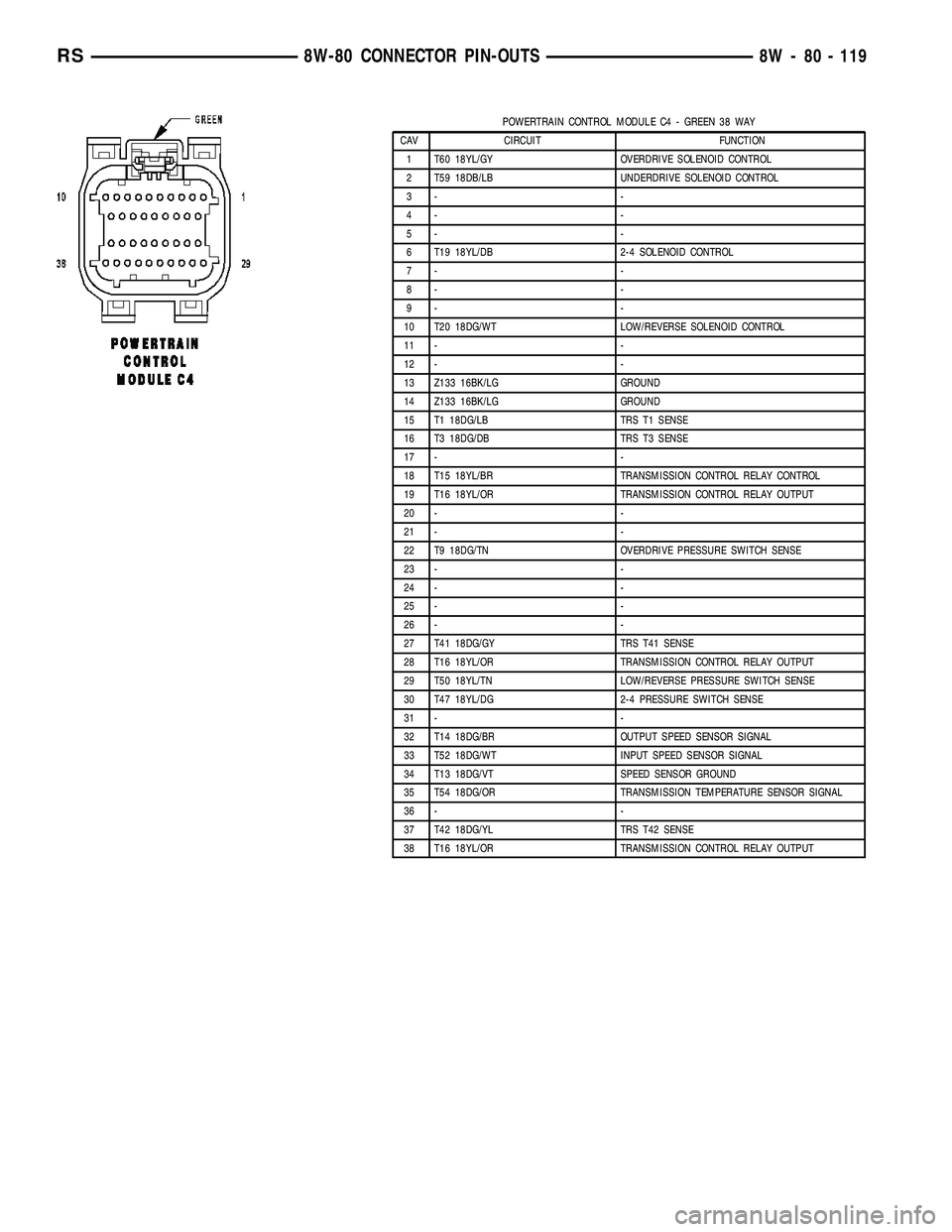

POWERTRAIN CONTROL MODULE C4 - GREEN 38 WAY
CAV CIRCUIT FUNCTION
1 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
2 T59 18DB/LB UNDERDRIVE SOLENOID CONTROL
3- -
4- -
5- -
6 T19 18YL/DB 2-4 SOLENOID CONTROL
7- -
8- -
9- -
10 T20 18DG/WT LOW/REVERSE SOLENOID CONTROL
11 - -
12 - -
13 Z133 16BK/LG GROUND
14 Z133 16BK/LG GROUND
15 T1 18DG/LB TRS T1 SENSE
16 T3 18DG/DB TRS T3 SENSE
17 - -
18 T15 18YL/BR TRANSMISSION CONTROL RELAY CONTROL
19 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
20 - -
21 - -
22 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
23 - -
24 - -
25 - -
26 - -
27 T41 18DG/GY TRS T41 SENSE
28 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
29 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
30 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
31 - -
32 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
33 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
34 T13 18DG/VT SPEED SENSOR GROUND
35 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
36 - -
37 T42 18DG/YL TRS T42 SENSE
38 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 119

REAR DOME LAMP (EXCEPT LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3- -
REAR INTRUSION SENSOR (UNITED KINGDOM)-3WAY
CAV CIRCUIT FUNCTION
1 A645 20RD/VT REAR INTRUSION SENSOR SIGNAL
2- -
3 G945 20VT/DG SENSOR GROUND
REAR MODE MOTOR (3 ZONE ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C154 18LB/GY REAR MODE DOOR DRIVER (B)
2 C53 18LB REAR MODE DOOR DRIVER (A)
REAR POWER OUTLET - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 F307 18LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 18LB/PK (BATTERY POSITION) FUSED B(+)
2- -
3 Z737 18BK/LB GROUND
8W - 80 - 126 8W-80 CONNECTOR PIN-OUTSRS
