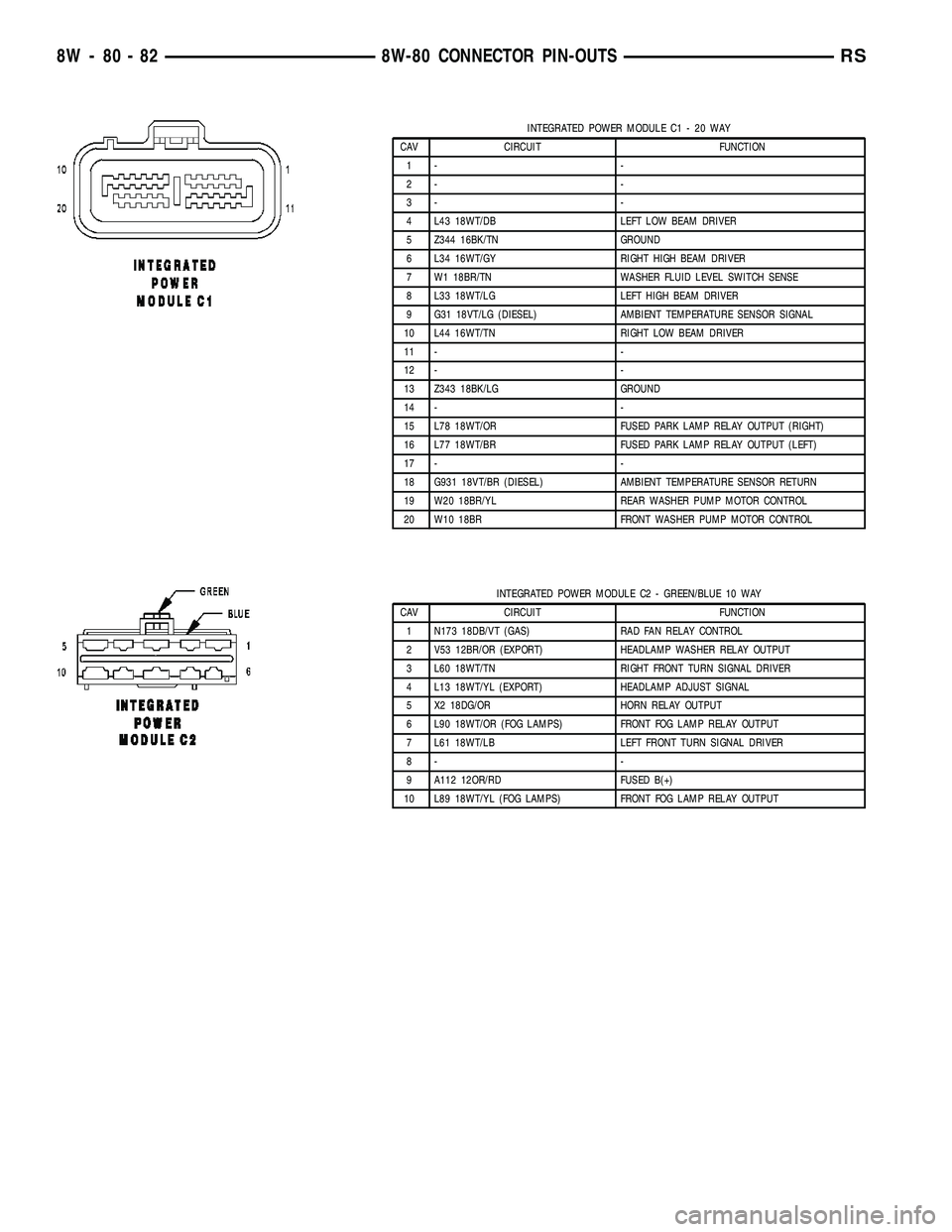

INTEGRATED POWER MODULE C1 - 20 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 L43 18WT/DB LEFT LOW BEAM DRIVER
5 Z344 16BK/TN GROUND
6 L34 16WT/GY RIGHT HIGH BEAM DRIVER
7 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
8 L33 18WT/LG LEFT HIGH BEAM DRIVER
9 G31 18VT/LG (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
10 L44 16WT/TN RIGHT LOW BEAM DRIVER
11 - -
12 - -
13 Z343 18BK/LG GROUND
14 - -
15 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
16 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
17 - -
18 G931 18VT/BR (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
19 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
20 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
INTEGRATED POWER MODULE C2 - GREEN/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1 N173 18DB/VT (GAS) RAD FAN RELAY CONTROL
2 V53 12BR/OR (EXPORT) HEADLAMP WASHER RELAY OUTPUT
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
4 L13 18WT/YL (EXPORT) HEADLAMP ADJUST SIGNAL
5 X2 18DG/OR HORN RELAY OUTPUT
6 L90 18WT/OR (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
7 L61 18WT/LB LEFT FRONT TURN SIGNAL DRIVER
8- -
9 A112 12OR/RD FUSED B(+)
10 L89 18WT/YL (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
8W - 80 - 82 8W-80 CONNECTOR PIN-OUTSRS

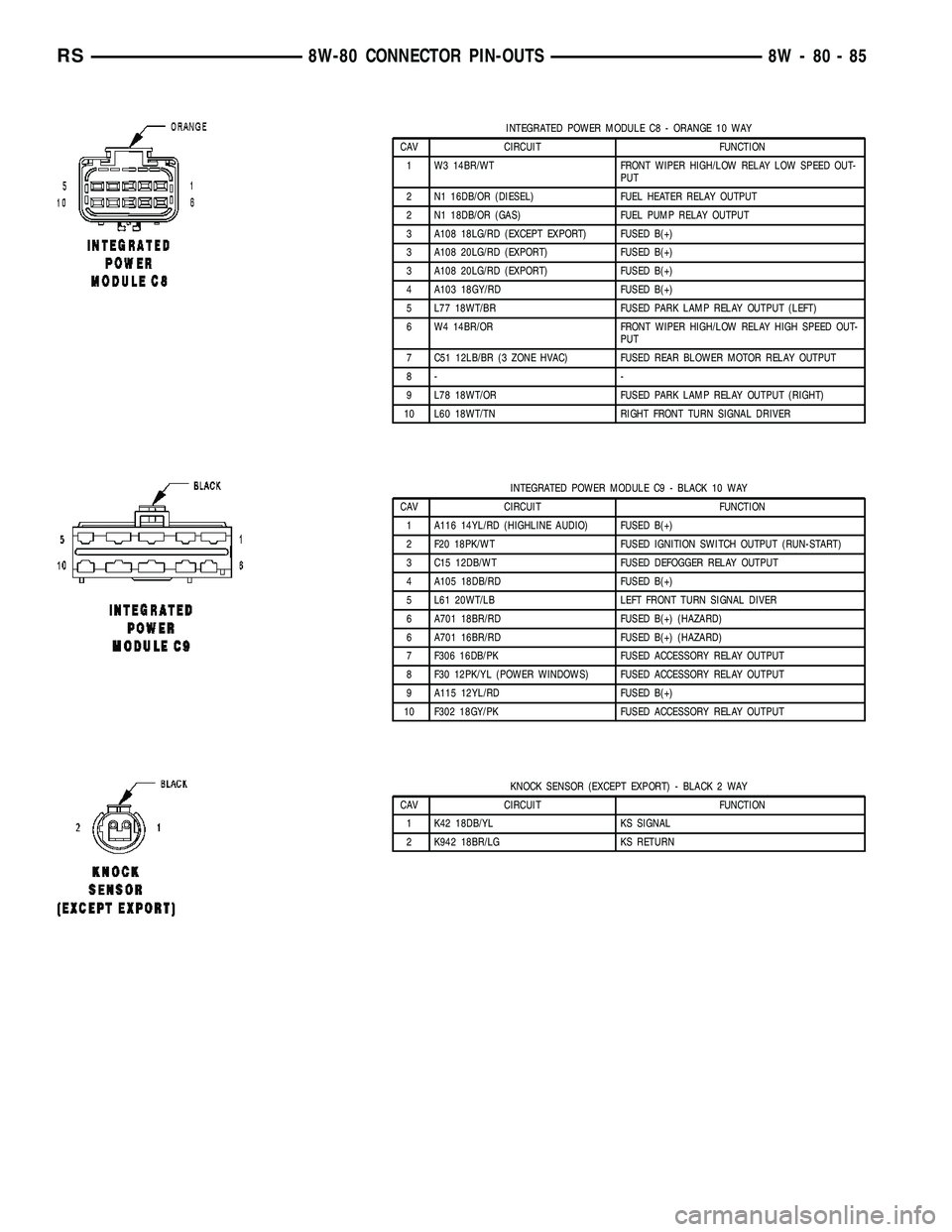

INTEGRATED POWER MODULE C8 - ORANGE 10 WAY
CAV CIRCUIT FUNCTION
1 W3 14BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT-
PUT
2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT
2 N1 18DB/OR (GAS) FUEL PUMP RELAY OUTPUT
3 A108 18LG/RD (EXCEPT EXPORT) FUSED B(+)
3 A108 20LG/RD (EXPORT) FUSED B(+)
3 A108 20LG/RD (EXPORT) FUSED B(+)
4 A103 18GY/RD FUSED B(+)
5 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
6 W4 14BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUT-
PUT
7 C51 12LB/BR (3 ZONE HVAC) FUSED REAR BLOWER MOTOR RELAY OUTPUT
8- -
9 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
10 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
INTEGRATED POWER MODULE C9 - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 A116 14YL/RD (HIGHLINE AUDIO) FUSED B(+)
2 F20 18PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 C15 12DB/WT FUSED DEFOGGER RELAY OUTPUT
4 A105 18DB/RD FUSED B(+)
5 L61 20WT/LB LEFT FRONT TURN SIGNAL DIVER
6 A701 18BR/RD FUSED B(+) (HAZARD)
6 A701 16BR/RD FUSED B(+) (HAZARD)
7 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
8 F30 12PK/YL (POWER WINDOWS) FUSED ACCESSORY RELAY OUTPUT
9 A115 12YL/RD FUSED B(+)
10 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
KNOCK SENSOR (EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K42 18DB/YL KS SIGNAL
2 K942 18BR/LG KS RETURN
RS8W-80 CONNECTOR PIN-OUTS8W-80-85

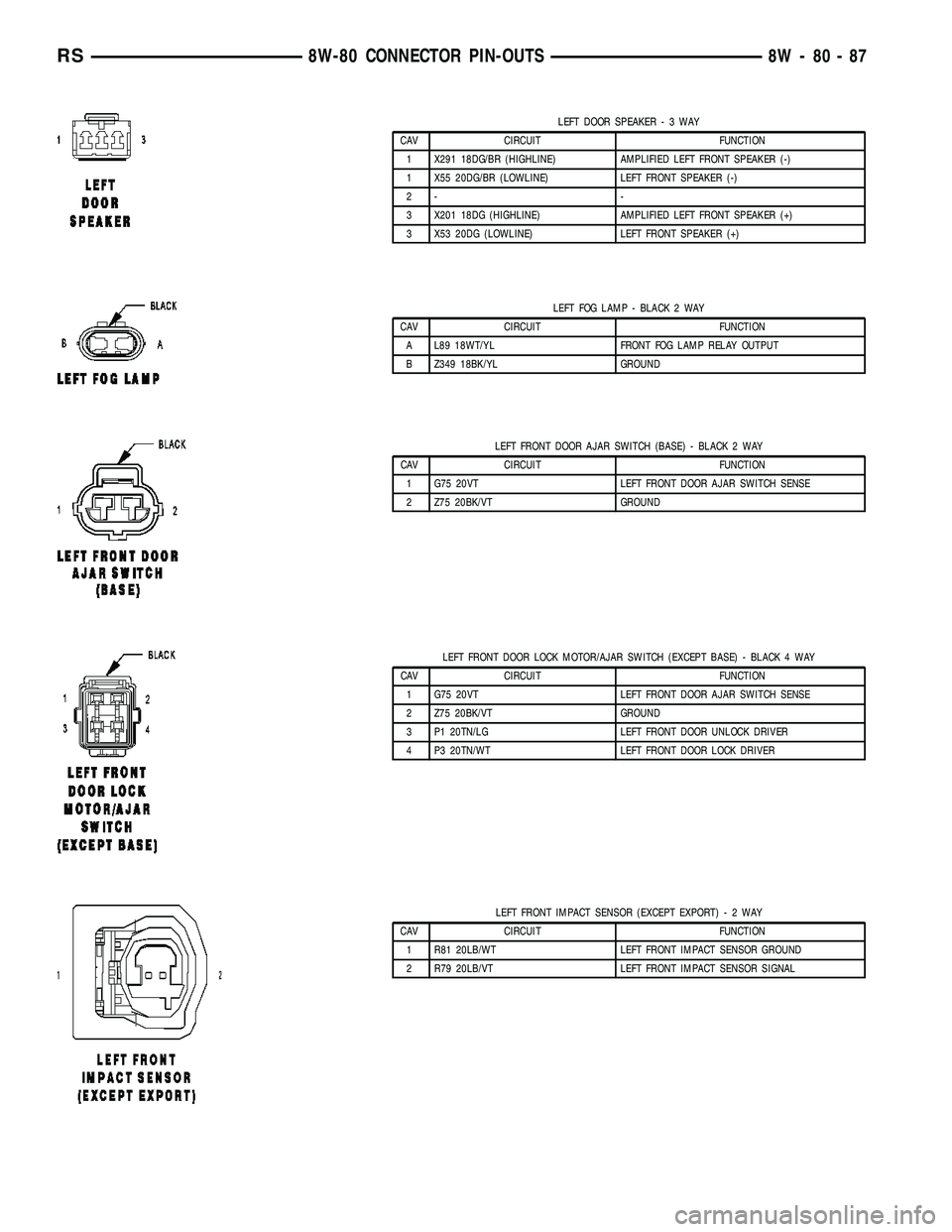

LEFT DOOR SPEAKER-3WAY
CAV CIRCUIT FUNCTION
1 X291 18DG/BR (HIGHLINE) AMPLIFIED LEFT FRONT SPEAKER (-)
1 X55 20DG/BR (LOWLINE) LEFT FRONT SPEAKER (-)
2- -
3 X201 18DG (HIGHLINE) AMPLIFIED LEFT FRONT SPEAKER (+)
3 X53 20DG (LOWLINE) LEFT FRONT SPEAKER (+)
LEFT FOG LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A L89 18WT/YL FRONT FOG LAMP RELAY OUTPUT
B Z349 18BK/YL GROUND
LEFT FRONT DOOR AJAR SWITCH (BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z75 20BK/VT GROUND
LEFT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z75 20BK/VT GROUND
3 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
4 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
LEFT FRONT IMPACT SENSOR (EXCEPT EXPORT)-2WAY
CAV CIRCUIT FUNCTION
1 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
2 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W-80-87

LEFT FRONT IMPACT SENSOR (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
2 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
LEFT FRONT PARK/TURN SIGNAL LAMP - DK. GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 L61 18WT/LB LEFT FRONT TURN SIGNAL DRIVER
2 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 Z377 18BK/BR GROUND
LEFT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
1 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
LEFT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q53 20OR LEFT FULL OPEN SWITCH SENSE
2 Z77 20BK/GY GROUND
8W - 80 - 88 8W-80 CONNECTOR PIN-OUTSRS

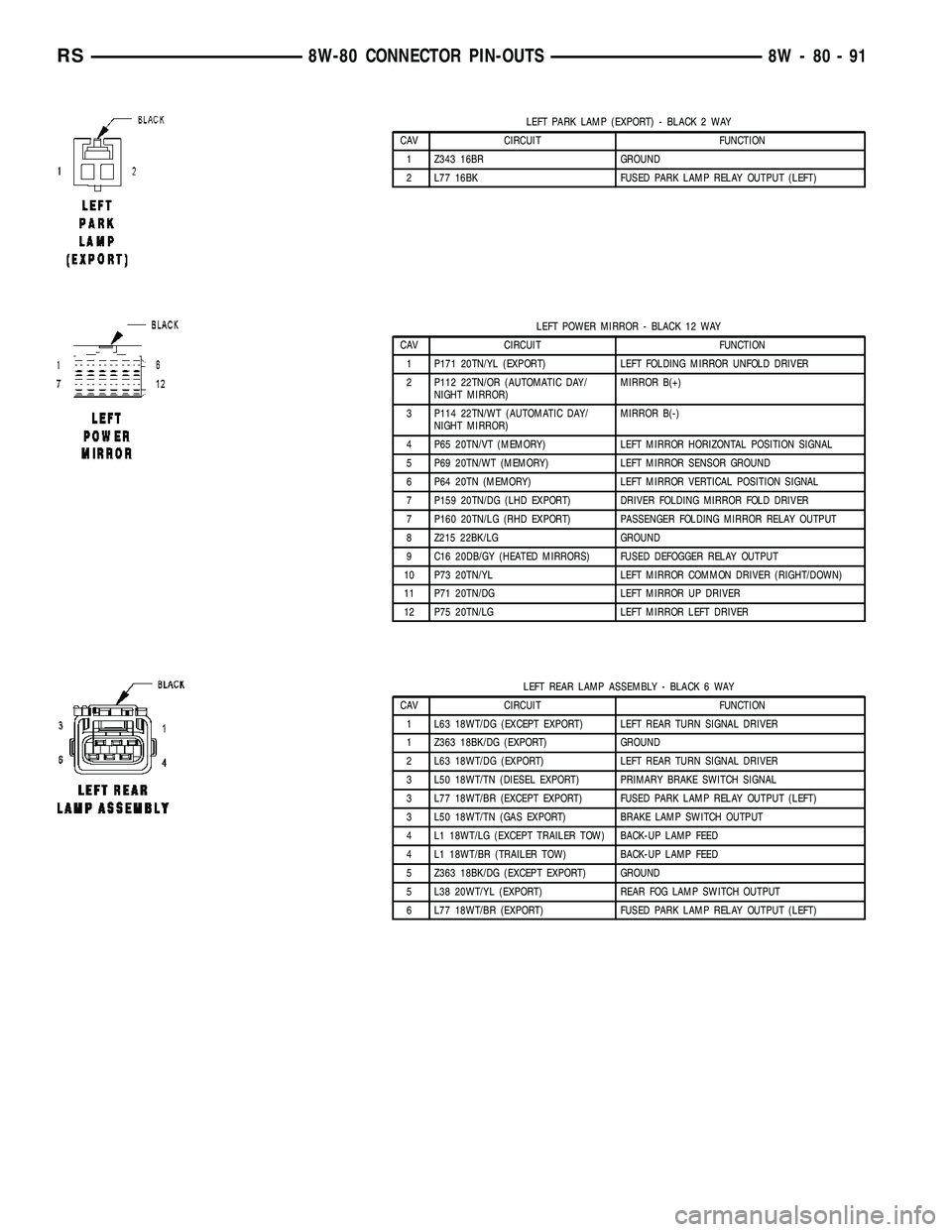

LEFT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
LEFT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P171 20TN/YL (EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 22TN/OR (AUTOMATIC DAY/
NIGHT MIRROR)MIRROR B(+)
3 P114 22TN/WT (AUTOMATIC DAY/
NIGHT MIRROR)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P159 20TN/DG (LHD EXPORT) DRIVER FOLDING MIRROR FOLD DRIVER
7 P160 20TN/LG (RHD EXPORT) PASSENGER FOLDING MIRROR RELAY OUTPUT
8 Z215 22BK/LG GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED DEFOGGER RELAY OUTPUT
10 P73 20TN/YL LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR UP DRIVER
12 P75 20TN/LG LEFT MIRROR LEFT DRIVER
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 L63 18WT/DG (EXCEPT EXPORT) LEFT REAR TURN SIGNAL DRIVER
1 Z363 18BK/DG (EXPORT) GROUND
2 L63 18WT/DG (EXPORT) LEFT REAR TURN SIGNAL DRIVER
3 L50 18WT/TN (DIESEL EXPORT) PRIMARY BRAKE SWITCH SIGNAL
3 L77 18WT/BR (EXCEPT EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L50 18WT/TN (GAS EXPORT) BRAKE LAMP SWITCH OUTPUT
4 L1 18WT/LG (EXCEPT TRAILER TOW) BACK-UP LAMP FEED
4 L1 18WT/BR (TRAILER TOW) BACK-UP LAMP FEED
5 Z363 18BK/DG (EXCEPT EXPORT) GROUND
5 L38 20WT/YL (EXPORT) REAR FOG LAMP SWITCH OUTPUT
6 L77 18WT/BR (EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
RS8W-80 CONNECTOR PIN-OUTS8W-80-91

LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
LEFT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X10 22RD/DB RADIO CONTROL MUX
2 X20 22RD/BK RADIO CONTROL MUX RETURN
LEFT REPEATER LAMP (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+)
2 L163 20WT/BR LEFT SIDE REPEATER LAMP FEED
LEFT SIDE IMPACT SENSOR 1 (EXCEPT EXPORT)-2WAY
CAV CIRCUIT FUNCTION
1 R15 20DB LEFT SIDE IMPACT SENSOR 1 GROUND
2 R13 20LB LEFT SIDE IMPACT SENSOR 1 SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W-80-93

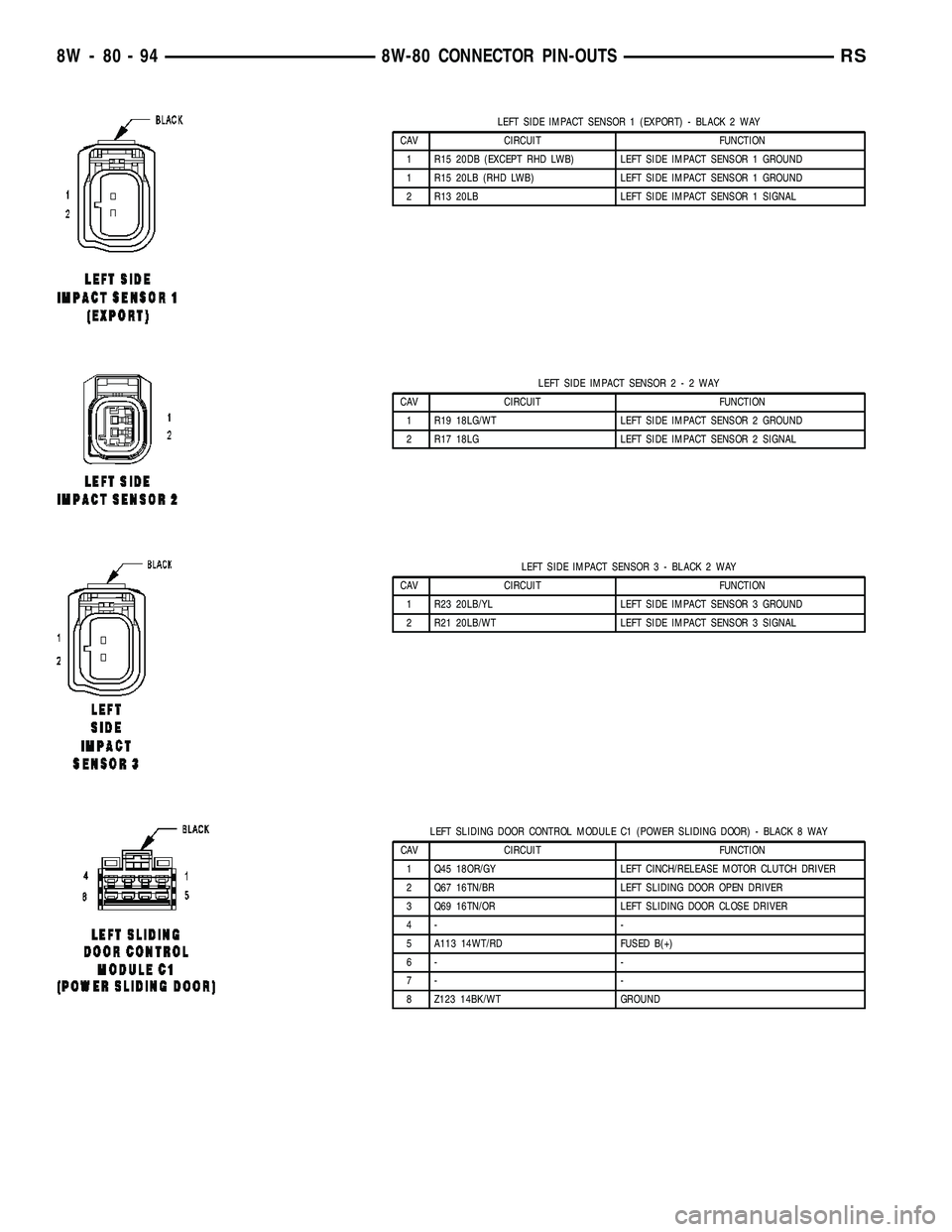

LEFT SIDE IMPACT SENSOR 1 (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R15 20DB (EXCEPT RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
1 R15 20LB (RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND
2 R13 20LB LEFT SIDE IMPACT SENSOR 1 SIGNAL
LEFT SIDE IMPACT SENSOR2-2WAY
CAV CIRCUIT FUNCTION
1 R19 18LG/WT LEFT SIDE IMPACT SENSOR 2 GROUND
2 R17 18LG LEFT SIDE IMPACT SENSOR 2 SIGNAL
LEFT SIDE IMPACT SENSOR 3 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R23 20LB/YL LEFT SIDE IMPACT SENSOR 3 GROUND
2 R21 20LB/WT LEFT SIDE IMPACT SENSOR 3 SIGNAL
LEFT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q45 18OR/GY LEFT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q67 16TN/BR LEFT SLIDING DOOR OPEN DRIVER
3 Q69 16TN/OR LEFT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z123 14BK/WT GROUND
8W - 80 - 94 8W-80 CONNECTOR PIN-OUTSRS

LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
LICENSE LAMP (MANUAL RELEASE) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
