2005 CHRYSLER CARAVAN sensor

A/C-HEATER CONTROL C2 (MTC) - BLACK/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
3 C73 14DB/VT (EXCEPT EXPORT) BLOWER MOTOR M2 DRIVER
3 C74 12DB/WT (EXPORT) BLOWER MOTOR M3 DRIVER
4 Z134 12BK/LG GROUND
5 C71 16DB/BR (EXPORT) BLOWER MOTOR LOW DRIVER
6- -
7- -
8- -
9 C72 16DB/OR (EXCEPT EXPORT) BLOWER MOTOR M1 DRIVER
9 C73 14DB/VT (EXPORT) BLOWER MOTOR M2 DRIVER
10 C71 16DB/BR (EXCEPT EXPORT) BLOWER MOTOR LOW DRIVER
10 C72 16DB/OR (EXPORT) BLOWER MOTOR M1 DRIVER
ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - 10 WAY
CAV CIRCUIT FUNCTION
A- -
B- -
C- -
D K4 20BK/LB SENSOR GROUND
E K151 20WT LOW IDLE POSITION SWITCH SENSE
F- -
G K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
NO.1
H K23 20BR/WT ACCELERATOR PEDAL POSITION SENSOR SIGNAL
NO.2
J K900 20DB/DG SENSOR GROUND
K F852 20VT/PK ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
ADJUSTABLE PEDALS MOTOR (EXCEPT EXPORT)-2WAY
CAV CIRCUIT FUNCTION
1 P205 18LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2 P206 18LG/TN ADJUSTABLE PEDALS MOTOR REARWARD
RS8W-80 CONNECTOR PIN-OUTS8W-80-7

ADJUSTABLE PEDALS RELAY (EXCEPT EXPORT/EXCEPT MEMORY)-9WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 A128 18RD/OR ADJUSTABLE PEDALS RELAY OUTPUT
6 P201 20LG/DB ADJUSTABLE PEDALS RELAY CONTROL
7- -
8 A108 18LG/RD FUSED B(+)
9- -
ADJUSTABLE PEDALS SENSOR (EXCEPT EXPORT)-3WAY
CAV CIRCUIT FUNCTION
1 G11 18VT/TN (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR FEED
1 G11 20VT/TN (MEMORY) ADJUSTABLE PEDALS SENSOR FEED
2 G12 18VT/BR (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR SIGNAL
2 G12 22VT/BR (MEMORY) ADJUSTABLE PEDALS SENSOR SIGNAL
3 G912 18VT/WT (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR RETURN
3 G912 20VT/WT (MEMORY) ADJUSTABLE PEDALS SENSOR RETURN
ADJUSTABLE PEDALS SWITCH (EXCEPT EXPORT)-4WAY
CAV CIRCUIT FUNCTION
1 A128 18RD/OR (EXCEPT MEMORY) ADJUSTABLE PEDALS RELAY OUTPUT
1 A114 18GY/RD (MEMORY) FUSED B(+) (I.O.D.)
2 Z146 18BK/YL GROUND
3 Q102 18OR/LB ADJUSTABLE PEDALS SWITCH REARWARD
4 Q103 18OR/LG ADJUSTABLE PEDALS SWITCH FORWARD
AMBIENT TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G31 18VT/LG (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
1 G31 18VT/LG (GAS) AAT SIGNAL
2 G931 18VT/BR (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
2 K900 18DB/DG (GAS) SENSOR GROUND
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTSRS

ATC REMOTE SENSOR (ATC)-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTO TEMP CONTROL C1 - NATURAL 13 WAY
CAV CIRCUIT FUNCTION
1 C161 22LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C61 22DB/LG DRIVER BLEND DOOR DRIVER (A)
3 C133 22DB/WT PASSENGER BLEND DOOR DRIVER (B)
4 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C132 22DB/YL RECIRCULATION DOOR DRIVER (B)
6 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
7 C135 22DB/GY MODE DOOR DRIVER (B)
8 C35 22LB/LG MODE DOOR DRIVER (A)
9 C53 22LB REAR MODE DOOR DRIVER (A)
10 C154 22LB/OR REAR MODE DOOR DRIVER (B)
11 C54 22LB/YL REAR BLEND DOOR DRIVER (A)
12 C169 22DB/OR REAR BLEND DOOR DRIVER (B)
13 - -
AUTO TEMP CONTROL C2 - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 C21 22LB EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG (LHD) SENSOR GROUND
2 C121 22DB/DG (RHD) SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 18GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 22DB/VT (LHD) BLOWER MOTOR CONTROL
7 C56 22DB/LB (RHD) BLOWER MOTOR CONTROL
8 C59 22DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN (3 ZONE) KDB CLOCK
10 D17 22WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 - -
13 - -
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSRS

AUTO TEMP CONTROL C3-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
BACK-UP LAMP SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T2 18DG/WT TRS REVERSE SENSE
2 Z252 18BK/WT GROUND
BATTERY TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K25 20BR/TN (DIESEL) BATTERY TEMPERATURE SENSOR SIGNAL
1 K91 18DB/YL (GAS) BATTERY TEMP SIGNAL
2 K900 20DB/DG (DIESEL) SENSOR GROUND
2 K900 18DB/DG (GAS) SENSOR GROUND
BELT TENSION SENSOR (OCCUPANT SENSING) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 R86 20LG/LB BELT TENSION SENSOR FEED
2 R986 20LG/BR BELT TENSION SENSOR GROUND
3 D105 20WT/OR BELT TENSION SENSOR SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W-80-11

BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAY
CAV CIRCUIT FUNCTION
1 G23 22VT/DB (POWER SLIDING
DOOR)SLIDING DOORS OVERHEAD SWITCH MUX
2 D123 20WT/BR FLASH PROGRAM ENABLE
3 G152 22VT/GY (POWER SLIDING
DOOR)RIGHT SLIDING DOOR WAKE UP SIGNAL
4 G151 22VT/BR (POWER SLIDING
DOOR)LEFT SLIDING DOOR WAKE UP SIGNAL
5 G76 20VT/YL RIGHT SLIDING DOOR AJAR SWITCH SENSE
6 G75 20VT (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
6 G74 20VT/WT (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G74 20VT/WT (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G75 20VT (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
8 G77 22VT/GY LEFT SLIDING DOOR AJAR SWITCH SENSE
9 E10 20OR/DG (3 ZONE HVAC) PANEL LAMPS DRIVER
10 - -
11 L162 20WT/VT (EXPORT) RIGHT SIDE REPEATER LAMP FEED
12 G42 22VT/YL (POWER SLIDING
DOOR)RIGHT SLIDING DOOR PILLAR SWITCH MUX
13 - -
14 G163 20VT/LB (EXPORT) LEFT CYLINDER LOCK SWITCH MUX
15 G162 20VT/TN (EXPORT) RIGHT CYLINDER LOCK SWITCH MUX
16 L50 18WT/TN (EXCEPT EXPORT) BRAKE LAMP SWITCH OUTPUT
17 F503 20WT/PK (EXCEPT BASE) FUSED IGNITION SWITCH OUTPUT (RUN)
18 G41 22VT/DG (POWER SLIDING
DOOR)LEFT SLIDING DOOR PILLAR SWITCH MUX
19 L163 20WT/BR (EXPORT) LEFT SIDE REPEATER LAMP FEED
20 N4 20DB/WT FUEL LEVEL SENSOR SIGNAL
21 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
21 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
22 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
22 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
23 D25 20WT/VT PCI BUS
24 - -
25 M11 20YL/VT COURTESY LAMPS DRIVER
26 P31 20TN/YL (POWER RELEASE) LIFTGATE RELEASE DRIVER
27 - -
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 G70 22VT/LB (EXPORT) HOOD AJAR SWITCH SENSE
31 F500 18DG/PK (ABS) FUSED IGNITION SWITCH OUTPUT (RUN)
32 - -
33 M21 20YL/BR COURTESY LAMPS DRIVER
34 M27 20YL/LB READING LAMPS DRIVER
8W - 80 - 14 8W-80 CONNECTOR PIN-OUTSRS

BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAY
CAV CIRCUIT FUNCTION
1 L91 22WT/DB (LHD) HAZARD SWITCH SENSE
1 L91 20WT/DB (RHD) HAZARD SWITCH SENSE
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 G20 20VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 G926 22VT/WT (ATC/EXPORT MTC) REAR WIPER SWITCH MUX RETURN
17 L900 22WT/YL HEADLAMP SWITCH MUX RETURN
18 L307 20WT/BR HEADLAMP SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 L36 20WT/DB (EXPORT) REAR FOG LAMP INDICATOR DRIVER
26 X20 22GY/WT (REMOTE AUDIO) RADIO CONTROL MUX
27 G194 22VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
28 W26 22BR/DB (PREMIUM/LUXURY/
EXPORT)REAR WIPER SWITCH MUX
29 W52 22BR/YL FRONT WIPER SWITCH MUX
30 E2 22OR/BR PANEL LAMPS DIMMER SIGNAL
31 L305 20WT/LB TURN SIGNAL SWITCH MUX
32 - -
33 - -
34 L39 22WT/OR (HIGHLINE) FRONT FOG LAMP INDICATOR DRIVER
BOOST PRESSURE SENSOR (DIESEL)-4WAY
CAV CIRCUIT FUNCTION
1 K121 20DB BOOST PRESSURE SENSOR GROUND
2 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
3 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
4 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
8W - 80 - 16 8W-80 CONNECTOR PIN-OUTSRS

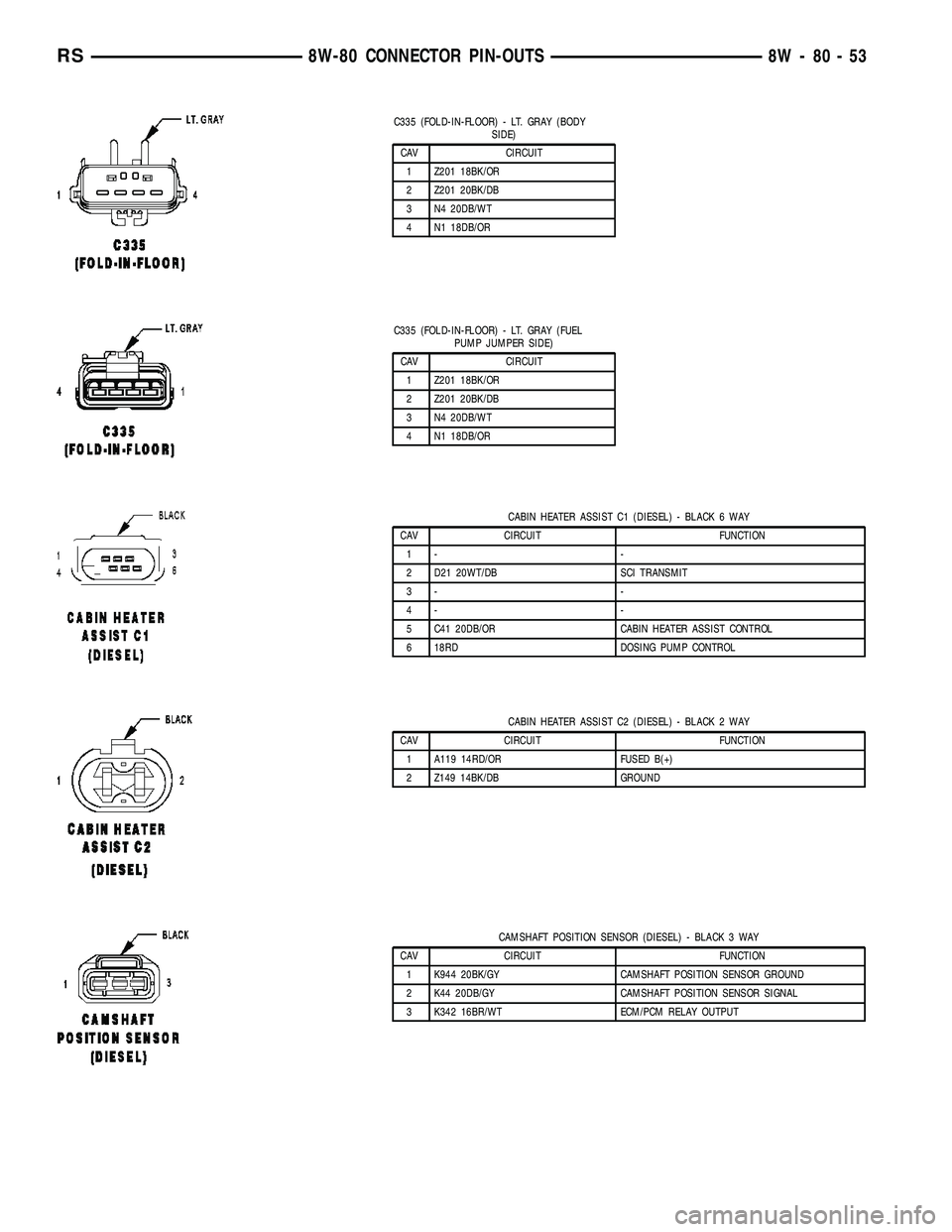

C335 (FOLD-IN-FLOOR) - LT. GRAY (BODY
SIDE)
CAV CIRCUIT
1 Z201 18BK/OR
2 Z201 20BK/DB
3 N4 20DB/WT
4 N1 18DB/OR
C335 (FOLD-IN-FLOOR) - LT. GRAY (FUEL
PUMP JUMPER SIDE)
CAV CIRCUIT
1 Z201 18BK/OR
2 Z201 20BK/DB
3 N4 20DB/WT
4 N1 18DB/OR
CABIN HEATER ASSIST C1 (DIESEL) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D21 20WT/DB SCI TRANSMIT
3- -
4- -
5 C41 20DB/OR CABIN HEATER ASSIST CONTROL
6 18RD DOSING PUMP CONTROL
CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND
2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W-80-53

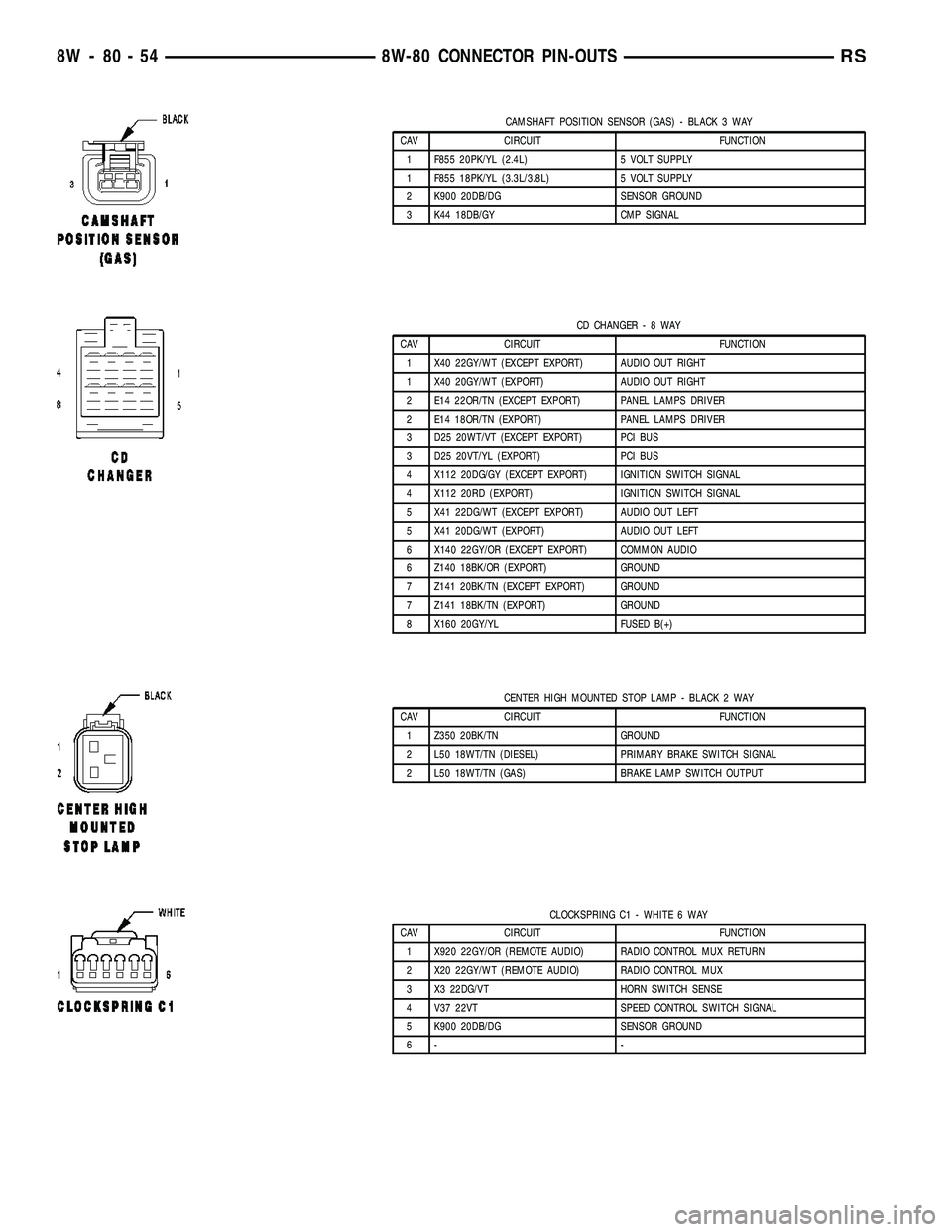

CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
1 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K44 18DB/GY CMP SIGNAL
CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 22GY/WT (EXCEPT EXPORT) AUDIO OUT RIGHT
1 X40 20GY/WT (EXPORT) AUDIO OUT RIGHT
2 E14 22OR/TN (EXCEPT EXPORT) PANEL LAMPS DRIVER
2 E14 18OR/TN (EXPORT) PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT EXPORT) PCI BUS
3 D25 20VT/YL (EXPORT) PCI BUS
4 X112 20DG/GY (EXCEPT EXPORT) IGNITION SWITCH SIGNAL
4 X112 20RD (EXPORT) IGNITION SWITCH SIGNAL
5 X41 22DG/WT (EXCEPT EXPORT) AUDIO OUT LEFT
5 X41 20DG/WT (EXPORT) AUDIO OUT LEFT
6 X140 22GY/OR (EXCEPT EXPORT) COMMON AUDIO
6 Z140 18BK/OR (EXPORT) GROUND
7 Z141 20BK/TN (EXCEPT EXPORT) GROUND
7 Z141 18BK/TN (EXPORT) GROUND
8 X160 20GY/YL FUSED B(+)
CENTER HIGH MOUNTED STOP LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z350 20BK/TN GROUND
2 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
2 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
CLOCKSPRING C1 - WHITE 6 WAY
CAV CIRCUIT FUNCTION
1 X920 22GY/OR (REMOTE AUDIO) RADIO CONTROL MUX RETURN
2 X20 22GY/WT (REMOTE AUDIO) RADIO CONTROL MUX
3 X3 22DG/VT HORN SWITCH SENSE
4 V37 22VT SPEED CONTROL SWITCH SIGNAL
5 K900 20DB/DG SENSOR GROUND
6- -
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSRS
