2005 CHEVROLET VENTURE instrument cluster

Here are four things that some owners ask about. All
these things are normal and do not indicate that
anything is wrong with the fuel gage.
At the gas station, the gas pump shuts off before
the gage reads full.
It takes a little more or a little less fuel to ll up than
the gage reads. For example, the gage reads half
full, but it took more or less than half of the
tank’s capacity to ll it.
The gage pointer may move while cornering,
braking or speeding up.
The gage may not indicate empty when the ignition
is turned off.
Message Center
The message center is located in the instrument
panel cluster. It gives you important safety and
maintenance facts.
Service Traction System Warning
Message
If your vehicle has the traction control system and this
message is displayed when you’re driving, there may be
a problem with your traction control system. Your
vehicle may need service.
When this message is displayed, the traction control
system will not limit wheel spin. Adjust your driving
accordingly.United States
Canada
3-46

If you ever have a problem on the road and do not have
a spare fuse, you can borrow one that has the same
amperage or use one of the spare fuses in the
underhood fuse block. Just pick some feature of your
vehicle that you can get along without – like the radio or
cigarette lighter – and use its fuse, if it is the right
amperage. Replace it as soon as you can.
There are two fuse blocks in your vehicle, the instrument
panel fuse block and the underhood fuse block.
Instrument Panel Fuse Block
The instrument panel fuse
block is located to the right
of the glove box on the end
of the instrument panel.
Pull the door open to access the instrument panel
fuse block.
Fuse Usage
SWC
BACKLIGHTSteering Wheel Radio Control
Switches (Illumination)
PCM/PASS
KEY/CLUSTERInstrument Cluster to PRNDL
Indicators
PWR MIRROR Power Remote Control Mirror Switch
CRUISECruise Control Module, Switch and
Release Switch
Blank Not Used
PCM/CRANKPowertrain Control Module (PCM),
Ignition Crank
PASS KEY PASS-Key
®III System
PWR LOCK Power Door Locks
5-93

Fuse Usage
HTD MIRROR Heated Mirrors
RH T/LP Not Used
RR FOG LP Not Used
CIGAR/DIC/
APO FRTCigarette Lighter, DIC, Front
Auxiliary Power Outlets, Data Link
T/SIG Turn Signal Switch
PWR QTR
VENTInterior Lamp and Multifunction
Switch (Power Vent Switch),
Auto Level
FRT/WPR/
WSHRWindshield Wiper/Washer Motor
and Switch
HAZARD Hazard Switch
RR PWR SCKTRear Electric Accessory Plug
Housing
DRLDaytime Running Lamp Control
Module
LH T/LP Not Used
RR
DEFOG/HTD
MIRRORRear Window Defogger Relay,
Heated Mirrors
ON STAR OnStar
®
SIR Inatable Restraint Control Module
HVAC
BLOWERHeater-A/C Control
Fuse Usage
MALL
CLUSTERInstrument Cluster, Body Control
Module, Electronic Level Control
(ELC) Sensor and Relay, Theft,
Door Ajar
STOP LAMP Stoplamp Switch
CLUSTER
BATTModule/Electronic Brake Control
Module/Electronic Brake Traction
Control Module (EBCM/EBTCM)
ENHANCED
EVAP/AWDEvaporative Emissions (EVAP)
Canister Vent Solenoid Valve,
All-Wheel Drive (AWD)
Blank Not Used
ELC/TRAILERELC Air Compressor and ELC
Height Sensor, Trailer Harness
CTSY LAMP Courtesy Lamp
IGN 1BCM, Electronic Brake Control
Indicator Lamp Driver Module,
Instrument Panel Cluster, Rear Side
Door Actuator Control Module, Rear
Windows, Rear Parking Aid
RR HVAC
TEMP CONTRear HVAC-A/C Control
RR
WPR/WSHRRear Window Wiper Motor, Rear
Window Wiper/Washer and
Multifunction Switch (Rear Window
Wiper/Washer Switch)
5-94

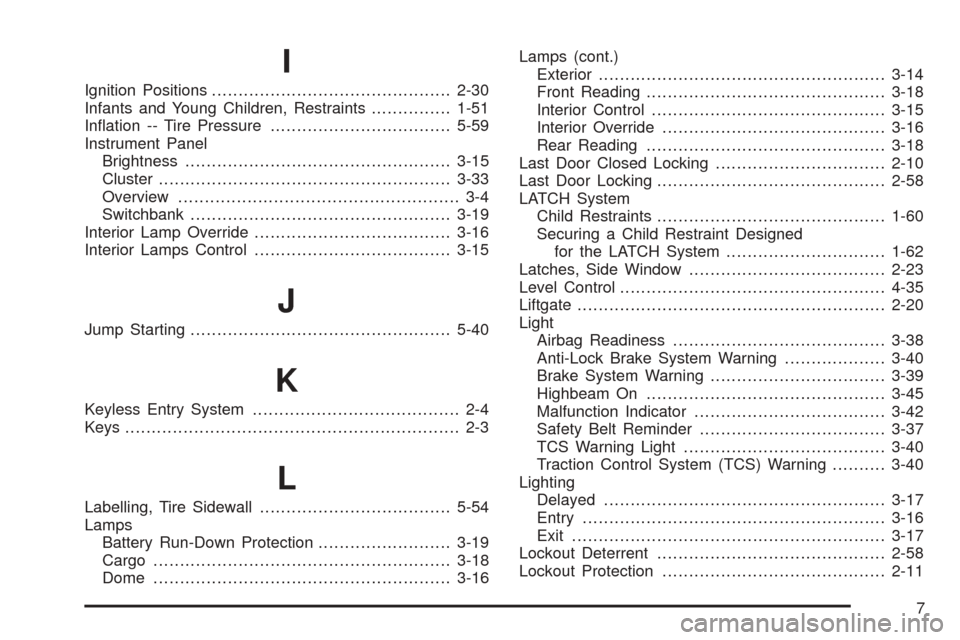

I
Ignition Positions.............................................2-30
Infants and Young Children, Restraints...............1-51
Ination -- Tire Pressure..................................5-59
Instrument Panel
Brightness..................................................3-15
Cluster.......................................................3-33
Overview..................................................... 3-4
Switchbank.................................................3-19
Interior Lamp Override.....................................3-16
Interior Lamps Control.....................................3-15
J
Jump Starting.................................................5-40
K
Keyless Entry System....................................... 2-4
Keys............................................................... 2-3
L
Labelling, Tire Sidewall....................................5-54
Lamps
Battery Run-Down Protection.........................3-19
Cargo........................................................3-18
Dome........................................................3-16Lamps (cont.)
Exterior......................................................3-14
Front Reading.............................................3-18
Interior Control............................................3-15
Interior Override..........................................3-16
Rear Reading.............................................3-18
Last Door Closed Locking................................2-10
Last Door Locking...........................................2-58
LATCH System
Child Restraints...........................................1-60
Securing a Child Restraint Designed
for the LATCH System..............................1-62
Latches, Side Window.....................................2-23
Level Control..................................................4-35
Liftgate..........................................................2-20
Light
Airbag Readiness........................................3-38
Anti-Lock Brake System Warning...................3-40
Brake System Warning.................................3-39
Highbeam On.............................................3-45
Malfunction Indicator....................................3-42
Safety Belt Reminder...................................3-37
TCS Warning Light......................................3-40
Traction Control System (TCS) Warning..........3-40
Lighting
Delayed.....................................................3-17
Entry.........................................................3-16
Exit...........................................................3-17
Lockout Deterrent...........................................2-58
Lockout Protection..........................................2-11
7
