2005 CHEVROLET UPLANDER Owners Manual

11. Now fasten the left and right halves of the shoulder
harness clip together. The clip can be easily pulled
apart and is designed to pull apart during a
collision.
{CAUTION:
A built-in child restraint harness that is not
properly adjusted can cause injury to the child
in a sudden stop or collision. A harness that is
loose, twisted, worn improperly or improperly
fastened will not be able to restrain the child’s
upper body. Make sure the harness is adjusted
correctly. Fastening the clip is not a substitute
for adjusting the harness so that it is snug.
1-67

12. Pull the shoulder harness adjustment strap (A)
rmly until the harness is snugly adjusted around
the child. You should not be able to put more than
two ngers between the harness and the child’s
chest. Make sure the harness and buckle strap are
not twisted.13. Adjust the position of the harness on the child’s
shoulder by moving the clip along the harness
until it is level with the child’s armpits. On each side
of the harness, the shoulder part should be
centered on the child’s shoulder. The harness
should be away from the child’s face and neck, but
not falling from the child’s shoulders.
If you expect that the child will sleep while riding,
you can recline the seatback. SeeBucket Seats on
page 1-9.
1-68

Removing the Child from the Built-In
Child Restraint
1. Unfasten the shoulder harness clip.2. Unlatch the harness by pushing the button on the
buckle.
3. Move one side of the harness off the child’s
shoulder.
4. Move the other side of the harness off the child’s
shoulder.
5. Remove the child from the child restraint cushion.
1-69

Storing the Built-In Child Restraint
Always properly store the built-in child restraint before
using the vehicle’s lap-shoulder belt.
1. Move both latch plates and both sides of the
shoulder harness clip to the bottom of the harness
straps.2. Fold the child restraint cushion and leg rest up into
the seatback.
3. Press the child restraint cushion rmly into the
seatback.
1-70

4. Then press the leg rest rmly into the seatback,
and secure it by pressing the upper corners
against the fastener strips on the seatback.5. Rotate the head restraint forward and push it all the
way down.
Just like the other restraint systems in your vehicle, your
built-in child restraint needs to be periodically checked
and may need to have parts replaced after a crash. See
Checking the Restraint Systems on page 1-87and
Replacing Restraint System Parts After a Crash
on page 1-87.
1-71

Airbag System
Your vehicle has a frontal airbag for the driver and a
frontal airbag for the right front passenger. Your vehicle
may also have side impact airbags. Side impact
airbags are available for the driver and right front
passenger.
If your vehicle has a side impact airbag for the driver
and/or the right front passenger, the words AIR BAG will
appear on the airbag covering on the side of the
seatback closest to the door.Frontal airbags are designed to help reduce the risk of
injury from the force of an inating frontal airbag.
But these airbags must inate very quickly to do their
job and comply with federal regulations.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are designed to work
with safety belts but do not replace them.
CAUTION: (Continued)
1-72

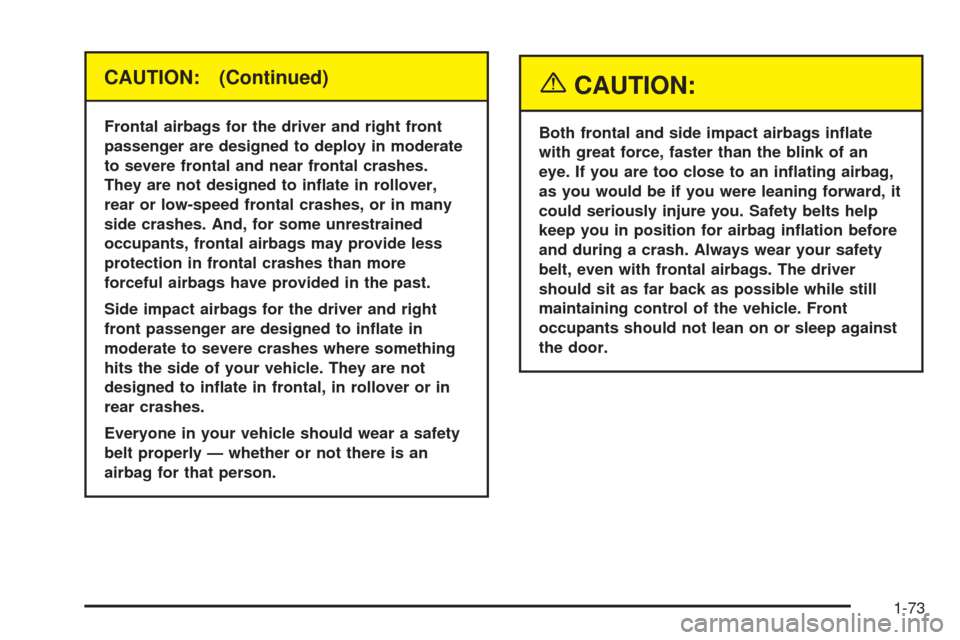

CAUTION: (Continued)
Frontal airbags for the driver and right front
passenger are designed to deploy in moderate
to severe frontal and near frontal crashes.
They are not designed to inate in rollover,
rear or low-speed frontal crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide less
protection in frontal crashes than more
forceful airbags have provided in the past.
Side impact airbags for the driver and right
front passenger are designed to inate in
moderate to severe crashes where something
hits the side of your vehicle. They are not
designed to inate in frontal, in rollover or in
rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts help
keep you in position for airbag ination before
and during a crash. Always wear your safety
belt, even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Front
occupants should not lean on or sleep against
the door.
1-73

{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-42orInfants and
Young Children on page 1-45.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-34
for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
1-74
