2005 CHEVROLET SSR Owners Manual

Passenger’s Seat
The power seat controls are located on the outboard
side of the passenger’s seat.
Horizontal Control
To adjust the seat, slide the control forward or rearward
to move the seat forward or rearward.
Vertical Control
The vertical control is used to operate the power
lumbar.
Adjust the seat cushion using the horizontal control.
To adjust the seatback, seeReclining Seatbacks
on page 1-4. Once the seat is in the desired position,
adjust the lumbar.
Press the vertical control forward to increase support
and rearward to decrease support.
1-3

Heated Seats
If your vehicle has this
feature, the switches are
located on the outboard
side of the driver’s
and passenger’s seats.
This feature will heat the lower cushion and lower back
of the driver’s and passenger’s seats.
Press LO to turn the heater on low. Press HI to turn the
heater on high. Put the switch in the center position
to turn the heater off.
The engine must be running for the heated seats to work.
Also, the passenger’s safety belt must be buckled for the
heated seat feature to work on the passenger’s seat.
If you turn the ignition off when the heated seats are on,
the heated seats will turn off. They will come on again
when you restart the vehicle.
Reclining Seatbacks
The seatbacks in your vehicle provide head restraint,
helping to prevent neck injury in a rear impact, but they
do not provide rollover protection.
To recline the seatback, lift the lever on the outboard
side of the seat cushion.
Release the lever to lock the seatback where you
want it. Pull up on the lever without pushing on the
seatback, and the seat will go to an upright position.
1-4

But don’t have a seatback reclined if your vehicle
is moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-5

Seatback Latches
To fold the seatback
forward, push the lever on
the side of the seatback
rearward and pull the
seatback forward.
To return the seatback to the upright position, push it
all the way back until the latch catches. If the seatback
was reclined before being folded forward, it will return
to the reclined position.{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
1-6

{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a crash
and you are not wearing a safety belt, your
injuries can be much worse. You can hit things
inside the vehicle or be ejected from it. You can
be seriously injured or killed. In the same crash,
you might not be if you are buckled up. Always
fasten your safety belt, and check that your
passenger’s belt is fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or killed.
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and
safety belts. Be sure everyone in your vehicle
is in a seat and using a safety belt properly.Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-26.
In most states and all Canadian provinces, the law says
to wear safety belts. Here’s why:They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter...a lot!
1-7

Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it’s just a seat
on wheels.Put someone on it.
1-8

Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.The person keeps going until stopped by something.

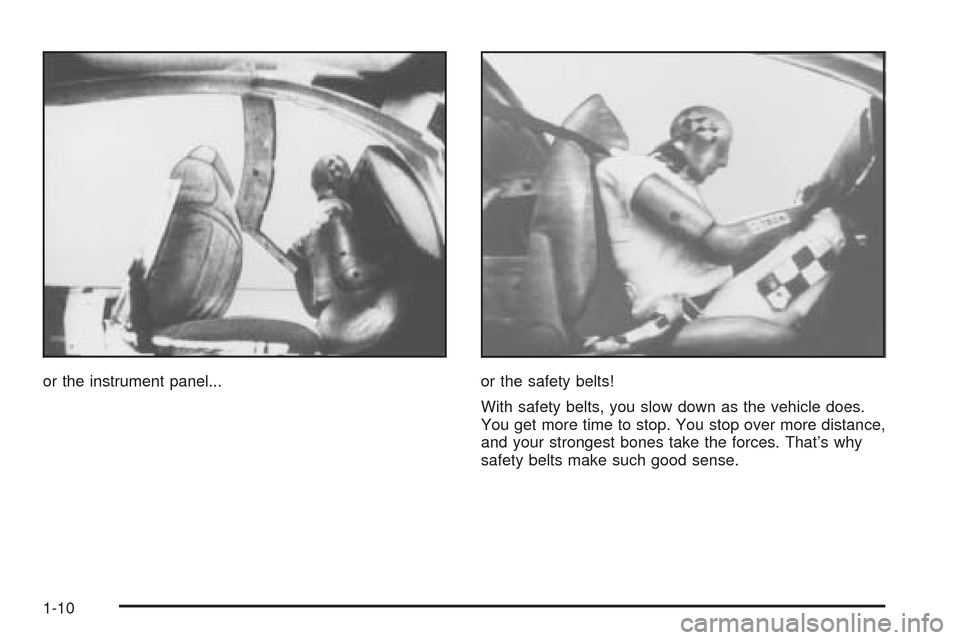

In a real vehicle, it could be the windshield...
1-9

or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make such good sense.
1-10
