Fuses Usage
POWER
MIRRORSPower Mirrors
EPS Electric Power Steering
RUN/CRANKCruise Control, Electronic Range
Select
HVAC
BLOWER
HIGH (Relay)Climate Control System
CLUSTER/
THEFTInstrument Panel Cluster, Theft
Deterrent System
ONSTAR OnStar
®System
NOT
INSTALLEDNot Used
AIRBAG (IGN) Airbag System
HVAC CTRL
(BATT)Climate Control System
PEDAL Adjustable Throttle and Brake Pedal
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
NOT
INSTALLEDNot Used
NOT
INSTALLEDNot Used
RADIO Audio System
INTERIOR
LIGHTSOverhead Lighting, Trunk/Cargo
Lighting
Fuses Usage
REAR WIPER Rear Wiper System/Washer Pump
HVAC
CTRL (IGN)Climate Control System
HVAC
BLOWERClimate Control System
DOOR LOCK Automatic Door Lock System
ROOF/
HEAT SEATSunroof, Heated Seats, Automatic
Dimming Rearview Mirror
POWER
WINDOWSPower Window Switch
NOT
INSTALLEDNot Used
NOT
INSTALLEDNot Used
AIRBAG
(BATT)Airbag System
FUSE PULLER Fuse Puller
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
5-85

Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery. SeeEngine
Compartment Overview on page 5-12for more information on location.
5-86

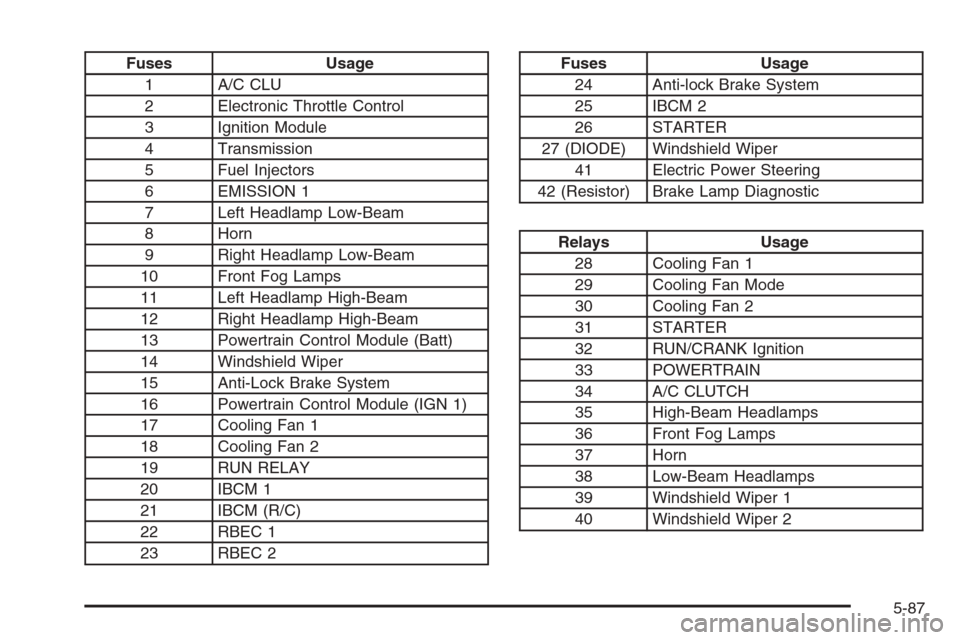

Fuses Usage
1 A/C CLU
2 Electronic Throttle Control
3 Ignition Module
4 Transmission
5 Fuel Injectors
6 EMISSION 1
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Powertrain Control Module (Batt)
14 Windshield Wiper
15 Anti-Lock Brake System
16 Powertrain Control Module (IGN 1)
17 Cooling Fan 1
18 Cooling Fan 2
19 RUN RELAY
20 IBCM 1
21 IBCM (R/C)
22 RBEC 1
23 RBEC 2Fuses Usage
24 Anti-lock Brake System
25 IBCM 2
26 STARTER
27 (DIODE) Windshield Wiper
41 Electric Power Steering
42 (Resistor) Brake Lamp Diagnostic
Relays Usage
28 Cooling Fan 1
29 Cooling Fan Mode
30 Cooling Fan 2
31 STARTER
32 RUN/CRANK Ignition
33 POWERTRAIN
34 A/C CLUTCH
35 High-Beam Headlamps
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
5-87

Rear Compartment Fuse BlockThe rear compartment fuse block is located in the trunk
of the vehicle. Access the fuse block through the
trunk panel on the driver’s side of the rear cargo area.
5-88

Fuses Usage
1 Not Used
2 Driver Seat Controls
3 Not UsedFuses Usage
4 (Resistor) Driver Door Key Lock Cylinder
5 Emission
6 Parklamps
5-89

Fuses Usage
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Auxiliary Power 2
13 Not Used
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry System,
XM Satellite Radio, Rear Seat
Entertainment System, Homelink
17 Back-up Lamps
18 Not Used
19 Not Used
20Cigarette Lighter, Auxiliary Power
Outlet
21 Not Used
22 TrunkFuses Usage
23 Rear Window Defogger
24 Heated Mirror Controls
25 Fuel Pump
Relays Usage
26 Rear Window Defogger
27 Parklamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk
37 Fuel Pump
38 (Diode) Cargo Lamps
5-90

Capacities and Specications
The following approximate capacities are given in English and metric conversions. Please refer toRecommended
Fluids and Lubricants on page 6-12for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a 1.35 lbs 0.61 kg
Automatic Transaxle Complete Overhaul 9.5 qt 9.0 L
Cooling System
2.2L L4 Engine 6.9 qt 6.5 L
3.5L V6 Engine 10.1 qt 9.6 L
Engine Oil with Filter
2.2L L4 Engine 5.0 qt 4.7 L
3.5L V6 Engine 4.0 qt 3.8 L
Fuel Tank 16.1 gal 61.1 L
Wheel Nut Torque 100 ft lb 140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this
manual.
5-91

Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
2.2L L4 F Automatic 0.042 inches (1.06 mm)
3.5L V6 8 Automatic 0.060 inches (1.52 mm)
