{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new GM original equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to the
proper torque specication. SeeCapacities
and Specifications on page 5-91for wheel nut
torque specication.
Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication. SeeCapacities and
Specifications on page 5-91for the wheel nut torque
specication.13. Tighten the wheel nuts
rmly in a crisscross
sequence, as shown,
with the wheel wrench.
Notice:Wheel covers will not t on your compact
spare. If you try to put a wheel cover on the compact
spare, you could damage the cover or the spare.
Do not try to put a wheel cover on your compact spare
tire. It will not t. Store the wheel cover and wheel
nut caps in the trunk until you have the at tire repaired
or replaced.
5-69

Storing a Flat or Spare Tire and
Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone. Store
all these in the proper place.
For the sedan, store the at tire and jack in the compact
tire compartment as follows:
1. Remove the center cap from the wheel.
2. Place the tire in the compartment, valve stem
down, with the bolt extending through the wheel
center hole.
3. Place the jack and wrench over the bolt, inside the
wheel.
4. Secure by tightening the larger wing nut onto
the bolt.A. Cover
B. Wing Nut
C. JackD. Flat Tire (Valve
Stem down)
E. Bolt Sedan
5-70

For the MAXX, store the at tire and jack in the compact
spare tire compartment as follows:
1. Remove the bolt extension (in the yellow sleeve)
from the jack.
2. Place the jack over the bolt (A) on the oor making
sure it contacts the bolt as shown. Secure it with
the bracket and nut provided.3. With the valve stem up, place the tire on the
compartment oor with the rear of the tire beneath
the trim panel. The tire may not lay completely
at. Line up a wheel nut hole with the bolt.
4. With the yellow cap in place to prevent the wheel
from being scratched, screw the bolt extension
onto the bolt through the wheel nut hole.
5. Remove the plug from the center hole of the oor
cover by pressing on the tabs on the bottom of the
cover. Remove the yellow cap from the bolt
extension.
6. Fold the rear ap of the cover up and place the
cover on top of the wheel. The extension will
come through the center hole in the cover.
7. Secure the cover with the larger wing nut.
MAXX
5-71

A. Wing Nut
B. Cover
C. Bolt Extension
D. Flat Tire (Valve
Stem up)E. Nut
F. Bracket
G. Jack
H. Bolt
The compact spare tire is for temporary use only.
Replace the compact spare tire with a full-size tire as
soon as you can. SeeCompact Spare Tire on
page 5-73. Store the compact spare tire and tools as
shown in the following diagram.A. Cover
B. Wing Nut
C. Spare Tire
D. Nut
E. Bracket
(MAXX only)F. Jack (plus bolt
extension,
MAXX only)
G. Bolt MAXX
5-72

Compact Spare Tire
Although the compact spare tire was fully inated when
the vehicle was new, it can lose air after a time.
Check the ination pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on the vehicle, stop
as soon as possible and make sure the spare tire
is correctly inated. The compact spare is made to
perform well at speeds up to 65 mph (105 km/h)
for distances up to 3,000 miles (5 000 km), so you can
nish your trip and have the full-size tire repaired or
replaced at your convenience. Of course, it is best
to replace the spare with a full-size tire as soon as
possible. The spare tire will last longer and be in good
shape in case it is needed again.
Notice:When the compact spare is installed, do
not take your vehicle through an automatic car wash
with guide rails. The compact spare can get
caught on the rails. That can damage the tire and
wheel, and maybe other parts of your vehicle.
Do not use the compact spare on other vehicles.
And do not mix the compact spare tire or wheel with
other wheels or tires. They will not t. Keep the
spare tire and its wheel together.Notice:Tire chains will not t your compact spare.
Using them can damage your vehicle and can
damage the chains too. Do not use tire chains on
your compact spare.
Appearance Care
Cleaning products can be hazardous. Some are toxic.
Other cleaning products can burst into ames if a match
is struck near them or if they get on a hot part of the
vehicle. Some are dangerous if their fumes are inhaled
in an enclosed space. When anything from a container
is used to clean the vehicle, be sure to follow the
manufacturer’s warnings and instructions. Always open
the doors or windows of the vehicle when cleaning
the inside.
Never use these to clean the vehicle:
Benzene
Naphtha
Carbon Tetrachloride
Acetone
Paint Thinner
Turpentine
Lacquer Thinner
Nail Polish Remover
5-73

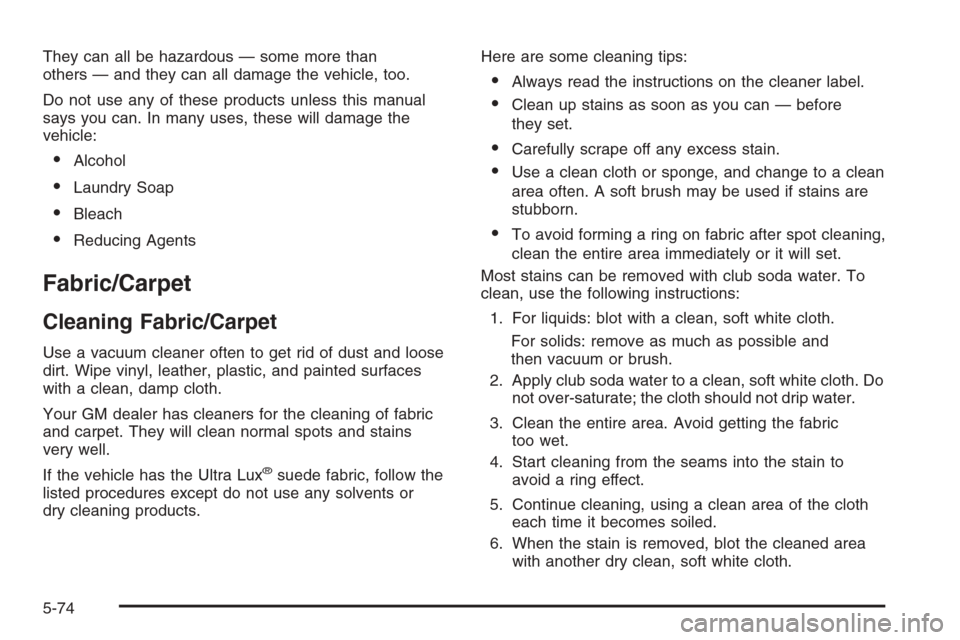

They can all be hazardous — some more than
others — and they can all damage the vehicle, too.
Do not use any of these products unless this manual
says you can. In many uses, these will damage the
vehicle:
Alcohol
Laundry Soap
Bleach
Reducing Agents
Fabric/Carpet
Cleaning Fabric/Carpet
Use a vacuum cleaner often to get rid of dust and loose
dirt. Wipe vinyl, leather, plastic, and painted surfaces
with a clean, damp cloth.
Your GM dealer has cleaners for the cleaning of fabric
and carpet. They will clean normal spots and stains
very well.
If the vehicle has the Ultra Lux
®suede fabric, follow the
listed procedures except do not use any solvents or
dry cleaning products.Here are some cleaning tips:
Always read the instructions on the cleaner label.
Clean up stains as soon as you can — before
they set.
Carefully scrape off any excess stain.
Use a clean cloth or sponge, and change to a clean
area often. A soft brush may be used if stains are
stubborn.
To avoid forming a ring on fabric after spot cleaning,
clean the entire area immediately or it will set.
Most stains can be removed with club soda water. To
clean, use the following instructions:
1. For liquids: blot with a clean, soft white cloth.
For solids: remove as much as possible and
then vacuum or brush.
2. Apply club soda water to a clean, soft white cloth. Do
not over-saturate; the cloth should not drip water.
3. Clean the entire area. Avoid getting the fabric
too wet.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the cloth
each time it becomes soiled.
6. When the stain is removed, blot the cleaned area
with another dry clean, soft white cloth.
5-74

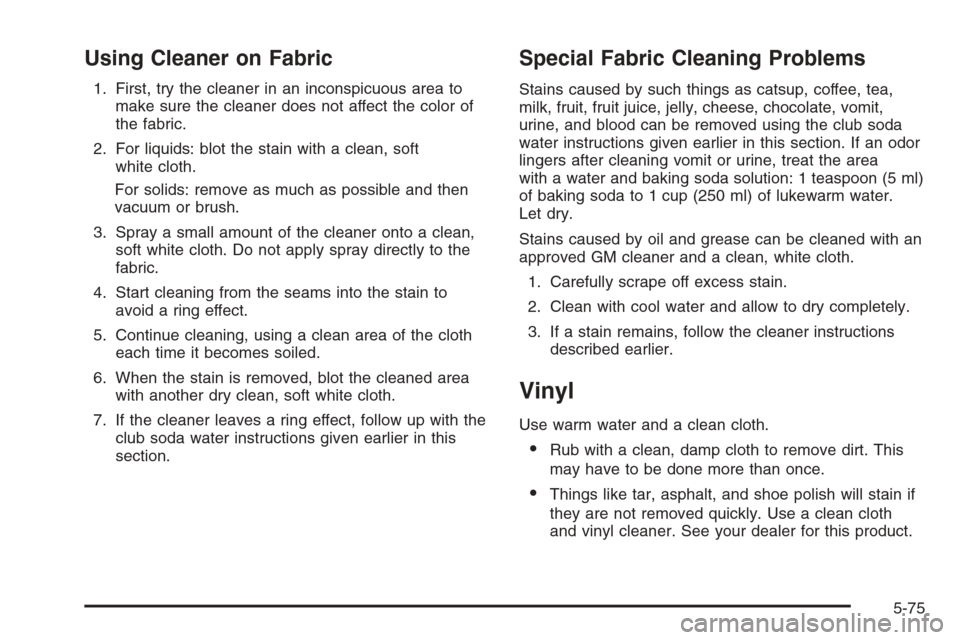

Using Cleaner on Fabric
1. First, try the cleaner in an inconspicuous area to
make sure the cleaner does not affect the color of
the fabric.
2. For liquids: blot the stain with a clean, soft
white cloth.
For solids: remove as much as possible and then
vacuum or brush.
3. Spray a small amount of the cleaner onto a clean,
soft white cloth. Do not apply spray directly to the
fabric.
4. Start cleaning from the seams into the stain to
avoid a ring effect.
5. Continue cleaning, using a clean area of the cloth
each time it becomes soiled.
6. When the stain is removed, blot the cleaned area
with another dry clean, soft white cloth.
7. If the cleaner leaves a ring effect, follow up with the
club soda water instructions given earlier in this
section.
Special Fabric Cleaning Problems
Stains caused by such things as catsup, coffee, tea,
milk, fruit, fruit juice, jelly, cheese, chocolate, vomit,
urine, and blood can be removed using the club soda
water instructions given earlier in this section. If an odor
lingers after cleaning vomit or urine, treat the area
with a water and baking soda solution: 1 teaspoon (5 ml)
of baking soda to 1 cup (250 ml) of lukewarm water.
Let dry.
Stains caused by oil and grease can be cleaned with an
approved GM cleaner and a clean, white cloth.
1. Carefully scrape off excess stain.
2. Clean with cool water and allow to dry completely.
3. If a stain remains, follow the cleaner instructions
described earlier.
Vinyl
Use warm water and a clean cloth.
Rub with a clean, damp cloth to remove dirt. This
may have to be done more than once.
Things like tar, asphalt, and shoe polish will stain if
they are not removed quickly. Use a clean cloth
and vinyl cleaner. See your dealer for this product.
5-75

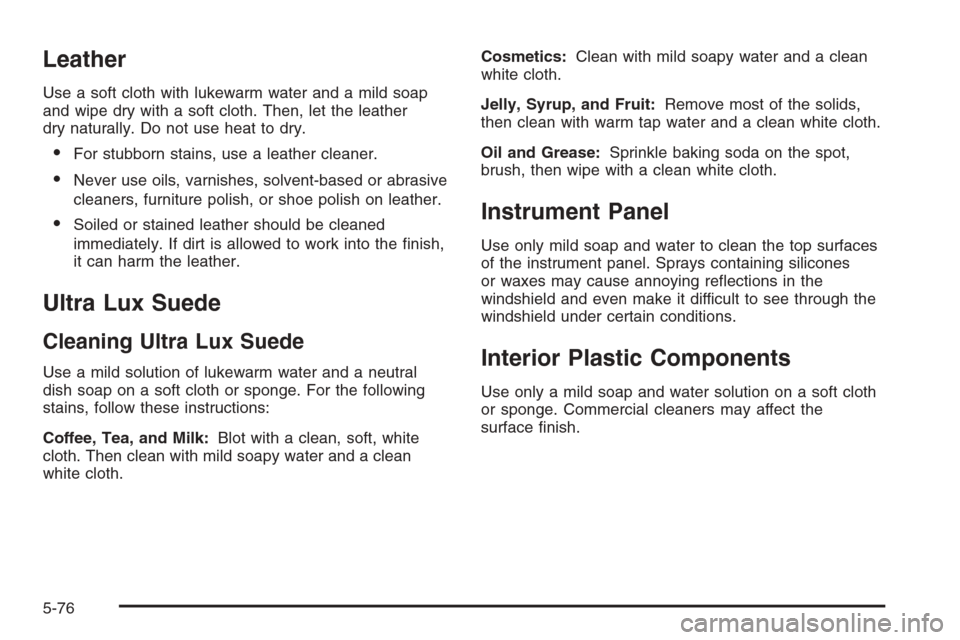

Leather
Use a soft cloth with lukewarm water and a mild soap
and wipe dry with a soft cloth. Then, let the leather
dry naturally. Do not use heat to dry.
For stubborn stains, use a leather cleaner.
Never use oils, varnishes, solvent-based or abrasive
cleaners, furniture polish, or shoe polish on leather.
Soiled or stained leather should be cleaned
immediately. If dirt is allowed to work into the nish,
it can harm the leather.
Ultra Lux Suede
Cleaning Ultra Lux Suede
Use a mild solution of lukewarm water and a neutral
dish soap on a soft cloth or sponge. For the following
stains, follow these instructions:
Coffee, Tea, and Milk:Blot with a clean, soft, white
cloth. Then clean with mild soapy water and a clean
white cloth.Cosmetics:Clean with mild soapy water and a clean
white cloth.
Jelly, Syrup, and Fruit:Remove most of the solids,
then clean with warm tap water and a clean white cloth.
Oil and Grease:Sprinkle baking soda on the spot,
brush, then wipe with a clean white cloth.
Instrument Panel
Use only mild soap and water to clean the top surfaces
of the instrument panel. Sprays containing silicones
or waxes may cause annoying reections in the
windshield and even make it difficult to see through the
windshield under certain conditions.
Interior Plastic Components
Use only a mild soap and water solution on a soft cloth
or sponge. Commercial cleaners may affect the
surface nish.
