2005 CHEVROLET COLORADO Owners Manual

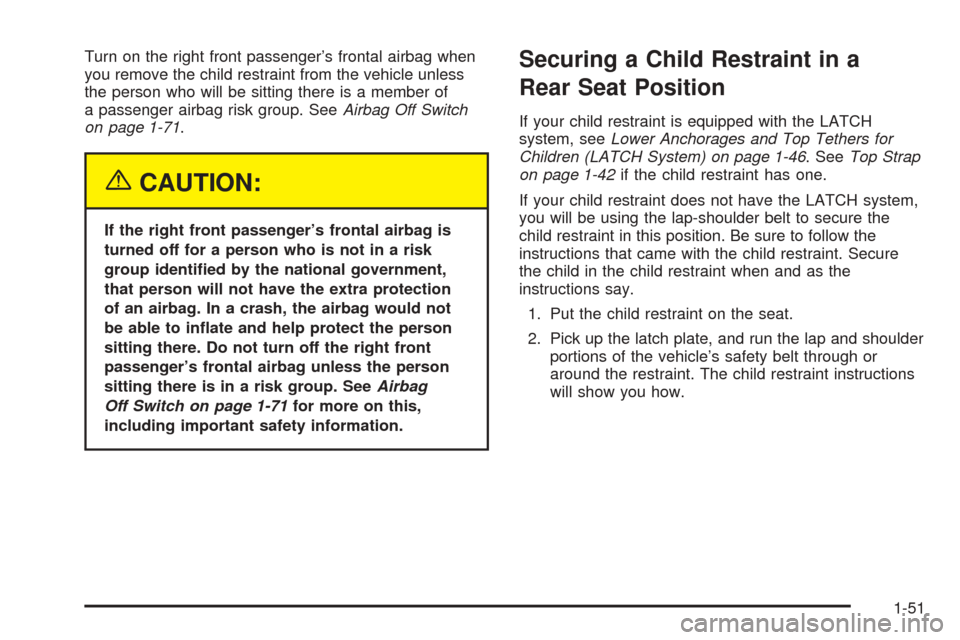

Turn on the right front passenger’s frontal airbag when
you remove the child restraint from the vehicle unless
the person who will be sitting there is a member of
a passenger airbag risk group. SeeAirbag Off Switch
on page 1-71.
{CAUTION:
If the right front passenger’s frontal airbag is
turned off for a person who is not in a risk
group identied by the national government,
that person will not have the extra protection
of an airbag. In a crash, the airbag would not
be able to inate and help protect the person
sitting there. Do not turn off the right front
passenger’s frontal airbag unless the person
sitting there is in a risk group. SeeAirbag
Off Switch on page 1-71for more on this,
including important safety information.
Securing a Child Restraint in a
Rear Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-51

3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock (crew cab only).
1-52

5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger. For outboard seating
positions, when the safety belt is not in use, slide
the latch plate up the safety belt webbing. The latch
plate should rest on the stitching on the safety belt, near
the upper anchor on the side wall.
Securing a Child Restraint in the
Center Front Seat Position
Do not use child restraints in this position. The restraints
will not work properly.
1-53

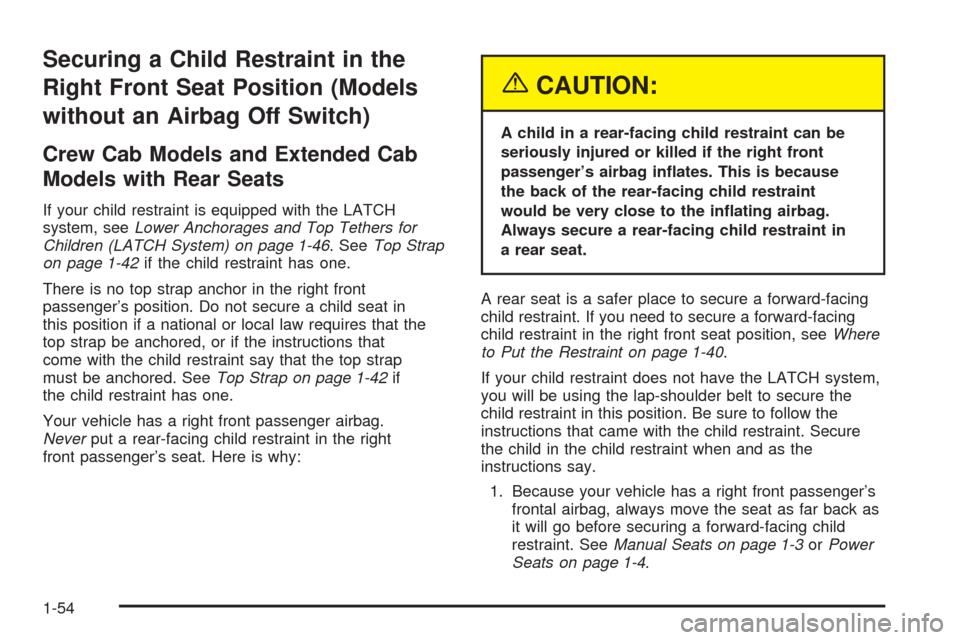

Securing a Child Restraint in the
Right Front Seat Position (Models
without an Airbag Off Switch)
Crew Cab Models and Extended Cab
Models with Rear Seats
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
There is no top strap anchor in the right front
passenger’s position. Do not secure a child seat in
this position if a national or local law requires that the
top strap be anchored, or if the instructions that
come with the child restraint say that the top strap
must be anchored. SeeTop Strap on page 1-42if
the child restraint has one.
Your vehicle has a right front passenger airbag.
Neverput a rear-facing child restraint in the right
front passenger’s seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
Always secure a rear-facing child restraint in
a rear seat.
A rear seat is a safer place to secure a forward-facing
child restraint. If you need to secure a forward-facing
child restraint in the right front seat position, seeWhere
to Put the Restraint on page 1-40.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Because your vehicle has a right front passenger’s
frontal airbag, always move the seat as far back as
it will go before securing a forward-facing child
restraint. SeeManual Seats on page 1-3orPower
Seats on page 1-4.
1-54

2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-55

6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger. When the safety
belt is not in use, slide the latch plate up the safety belt
webbing. The latch plate should rest on the stitching
on the safety belt, near the upper anchor on the
side wall.
Securing a Child Restraint in the
Right Front Seat Position (Models
with an Airbag Off Switch)
Regular Cab Models and Extended Cab
Models without Rear Seats
Your vehicle has a right front passenger’s frontal airbag.
Regular cab models and extended cab models without
rear seats have a switch on the instrument panel
that you can use to turn off the right front passenger’s
frontal airbag. SeeAirbag Off Switch on page 1-71
for more on this, including important safety information.
1-56

Unless the right front passenger’s frontal airbag has
been turned off, never put a rear facing child restraint
in the right front passenger’s seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s frontal airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the inating
airbag. Do not use a rear-facing child restraint
in this vehicle unless the airbag has been
turned off.
Even though the airbag off switch is designed
to turn off the right front passenger’s frontal
airbag, no system is fail-safe, and no one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though it is
turned off. We recommend that rear-facing
child restraints be transported in vehicles with
a rear seat that will accommodate a rear-facing
child restraint, whenever possible. United States
Canada
1-57

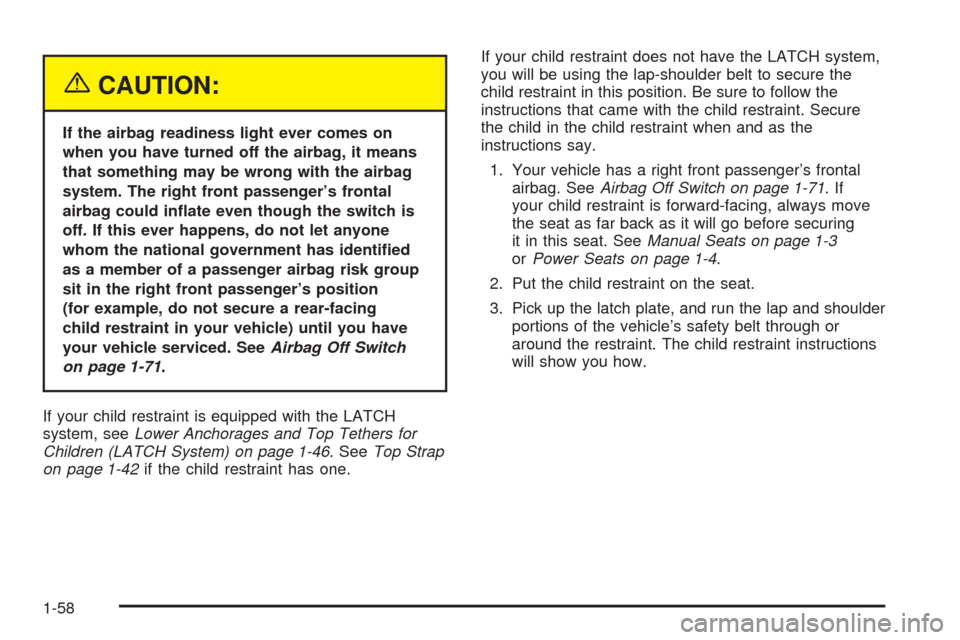

{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the airbag, it means
that something may be wrong with the airbag
system. The right front passenger’s frontal
airbag could inate even though the switch is
off. If this ever happens, do not let anyone
whom the national government has identied
as a member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing
child restraint in your vehicle) until you have
your vehicle serviced. SeeAirbag Off Switch
on page 1-71.
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has a right front passenger’s frontal
airbag. SeeAirbag Off Switch on page 1-71.If
your child restraint is forward-facing, always move
the seat as far back as it will go before securing
it in this seat. SeeManual Seats on page 1-3
orPower Seats on page 1-4.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-58
