A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-35.
B. Battery. SeeBattery on page 5-39.
C. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-94.
D. Remote Positive (+) Battery Terminal. SeeJump
Starting on page 5-40.
E. Radiator Pressure Cap. SeeRadiator Pressure Cap
on page 5-24.
F. Engine Coolant Recovery Tank. SeeCooling System
on page 5-27.
G. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-34.
H. Electric Engine Cooling Fan. SeeCooling System on
page 5-27.
I. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-13.
J. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-13.
K. Automatic Transaxle Fluid Dipstick. See “Checking
the Fluid Level” underAutomatic Transaxle Fluid
on page 5-19.
L. Brake Fluid Reservoir. See “Brake Fluid” under
Brakes on page 5-36.
M. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-18.Engine Oil
Checking Engine Oil
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 5-12for
the location of the engine oil dipstick.
Turn off the engine and give the oil several minutes to
drain back into the oil pan. If you don’t, the oil
dipstick might not show the actual level.
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
5-13

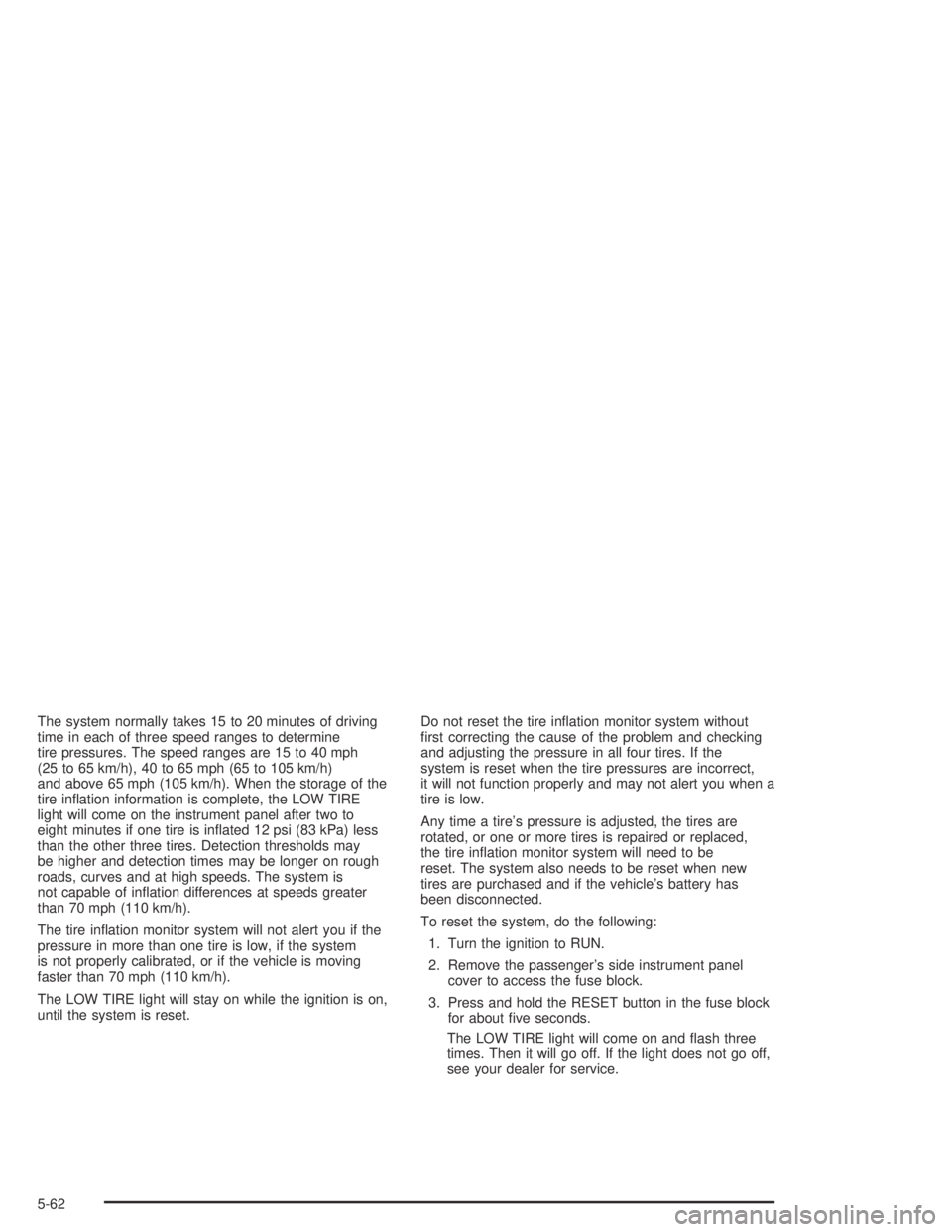

The system normally takes 15 to 20 minutes of driving
time in each of three speed ranges to determine
tire pressures. The speed ranges are 15 to 40 mph
(25 to 65 km/h), 40 to 65 mph (65 to 105 km/h)
and above 65 mph (105 km/h). When the storage of the
tire ination information is complete, the LOW TIRE
light will come on the instrument panel after two to
eight minutes if one tire is inated 12 psi (83 kPa) less
than the other three tires. Detection thresholds may
be higher and detection times may be longer on rough
roads, curves and at high speeds. The system is
not capable of ination differences at speeds greater
than 70 mph (110 km/h).
The tire ination monitor system will not alert you if the
pressure in more than one tire is low, if the system
is not properly calibrated, or if the vehicle is moving
faster than 70 mph (110 km/h).
The LOW TIRE light will stay on while the ignition is on,
until the system is reset.Do not reset the tire ination monitor system without
rst correcting the cause of the problem and checking
and adjusting the pressure in all four tires. If the
system is reset when the tire pressures are incorrect,
it will not function properly and may not alert you when a
tire is low.
Any time a tire’s pressure is adjusted, the tires are
rotated, or one or more tires is repaired or replaced,
the tire ination monitor system will need to be
reset. The system also needs to be reset when new
tires are purchased and if the vehicle’s battery has
been disconnected.
To reset the system, do the following:
1. Turn the ignition to RUN.
2. Remove the passenger’s side instrument panel
cover to access the fuse block.
3. Press and hold the RESET button in the fuse block
for about ve seconds.
The LOW TIRE light will come on and ash three
times. Then it will go off. If the light does not go off,
see your dealer for service.
5-62

Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood fuse block. An electrical overload will
cause the headlamps to go on and off, or in some cases
to remain off. If this happens, have the headlamp
system checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
have it xed.
Power Windows and Other
Power Options
Circuit breakers in the instrument panel fuse block
protect the power windows and other power accessories.
When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the
problem is xed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and in the fuse block wiring itself. This greatly reduces
the chance of res caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
a bad fuse is replaced with a new one of the identical
size and rating.
Instrument Panel Fuse Block
Some fuses are located
in a fuse block on the
passenger’s side of
the instrument panel.
Pull off the cover
labeled FUSES to
expose the fuse block.
5-91

Circuit
BreakersUsage
TIRE RESET Tire Ination Monitor Reset Button
PWR/WNDW
PWR S/ROOFPower Windows, Power Sunroof
R/DEFOG Rear Window Defogger
PWR/ SEAT Power Seat
Blank Not Used
Fuses Usage
PRK/LCK Ignition Key Solenoid
Blank Not Used
Blank Not Used
PCM, BCM,
U/HIgnition Signal: Hot in Run and Start,
Powertrain Control Module, Body
Control Module, Underhood Relay
RADIO PREM.
SOUNDNot Used
PWR MIR Power Mirrors
Blank Not Used
INT/ILLUM Panel Dimming
Blank Not Used
IGN 0: CLSTR,
PCM & BCMIgnition Signal: Hot in Run,
Unlock and Start; Cluster,
Powertrain Control Module,
Body Control Module
Blank Not Used
Blank Not Used
Blank Not Used
ACCY PWR
BUSInterior Lamps
DR/ LCK Door Locks
5-92

Fuses Usage
Blank Not Used
R/LAMPS Taillamps, License Plate Lamps
Blank Not Used
Blank Not Used
CRUISE Cruise Control
Blank Not Used
CLSTR Instrument Panel Cluster
LTR Cigarette Lighter
STOP LAMPS Stoplamps
ONSTAR OnStar
®
PRK/LGHT Parking Lamps
Blank Not Used
CRNK SIG,
BCM, CLSTRCrank Signal, Body Control Module,
Cluster, Powertrain Control Module
HVACIgnition Signal, Heating, Ventilation,
and Air Conditioning Control Head
BTSI (REGAL) Not Used
AIR BAG Air Bag
Fuses Usage
BCM PWR Body Control Module
HAZARD Hazard Warning Flashers
LH HTD SEAT Not Used
Blank Not Used
BCM ACCYIgnition Signal: Hot in ACCESSORY
and RUN, Body Control Module
Blank Not Used
LOW BLWR Low Blower
ABS Anti-Lock Brakes
TRN SIG Turn Signals, Cornering Lamps
RADIO, HVAC,
RFA, CLSTR
ALDLRadio, Heating Ventilation and
Air Conditioning Head; Remote
Keyless Entry, Cluster
HI BLWR High Blower
RH HTD SEAT Not Used
STR/WHL/
CNTRLAudio Steering Wheel Controls
WPR Windshield Wipers
5-93

Underhood Fuse Block
Some fuses and relays are located in the underhood
fuse block on the passenger’s side of the vehicle in the
engine compartment. SeeEngine Compartment
Overview on page 5-12for more information on location.
Fuses Usage
1 Anti-Lock Brake System
2 Starter Solenoid
3 Power Seat, Rear Window Defogger
4High Blower, Hazard Flasher,
Stoplamps, Power Mirror,
Door Locks
Fuses Usage
5Ignition Switch, Stoplamps,
Anti-Lock Brake System, Turn
Signals, Cluster, Air Bag, Daytime
Running Lamps Module
6 Cooling Fan
7Retained Accessory Power,
Remote Keyless Entry, Data Link,
Heating, Ventilation, and Air
Conditioning Head; Cluster, Radio,
Cigarette Lighter
8Ignition Switch, Wipers, Audio
Steering Wheel Controls, Body
Control Module, Power Windows,
Sunroof, Heating, Ventilation, and
Air Conditioning Controls; Daytime
Running Lamps, Rear Window
Defogger Relay
Relays Usage
9 Cooling Fan 2
10 Cooling Fan 3
11 Starter Solenoid
12 Cooling Fan 1
13 Ignition Main
14 Air Pump (Optional)
5-94

Relays Usage
15 Not Used
16 Horn
17 Fog Lamps
18 Not Used
19 Fuel Pump
Fuses Usage
20 Not Used
21 Generator
22 Engine Control Module
23 Air Conditioner Compressor Clutch
24 Cooling Fan
25 Electronic Ignition
26 Transaxle
27 Horn
28 Fuel Injector
29 Oxygen Sensor
Fuses Usage
30 Engine Emissions
31 Fog Lamps
32 Right Headlamp
33 Rear Compartment Release
34 Parking Lamps
35 Fuel Pump
36 Left Headlamp
37 Not Used
38 Not Used
39 Not Used
40 Not Used
41 Not Used
42 Not Used
43 Not Used
§Air Conditioner Compressor
Clutch Diode
5-95

D
Daytime Running Lamps/Automatic
Headlamp System.......................................3-14
Defensive Driving............................................. 4-2
Delayed Entry Lighting.....................................3-16
Delayed Exit Lighting.......................................3-17
Delayed Headlamps........................................3-13
Doing Your Own Service Work........................... 5-4
Dome Lamp...................................................3-16
Door
Locks........................................................2-10
Power Door Locks.......................................2-11
Programmable Automatic Door Locks.............2-11
Trunk Ajar Warning Light..............................3-42
Driver
Position, Safety Belt.....................................1-12
Driving
At Night.....................................................4-16
City...........................................................4-20
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-21
Hill and Mountain Roads..............................4-24
In Rain and on Wet Roads...........................4-17
Rocking Your Vehicle to Get it Out.................4-31
Winter........................................................4-26
Dual Automatic Climate Control System.............3-21
Dual Climate Control System............................3-18
E
Electrical System
Add-On Equipment......................................5-90
Fuses and Circuit Breakers...........................5-91
Headlamp Wiring.........................................5-91
Instrument Panel Fuse Block.........................5-91
Power Windows and Other Power Options......5-91
Underhood Fuse Block.................................5-94
Windshield Wiper Fuses...............................5-91
Engine
Air Cleaner/Filter.........................................5-18
Battery.......................................................5-39
Change Engine Oil Light...............................3-40
Check and Service Engine Soon Light............3-36
Coolant......................................................5-22
Coolant Heater............................................2-20
Coolant Temperature Gage...........................3-35
Coolant Temperature Warning Light................3-35
Drive Belt Routing.......................................6-15
Engine Compartment Overview......................5-12
Exhaust.....................................................2-27
Oil .............................................................5-13
Overheated Protection Operating Mode...........5-26
Overheating................................................5-25
Starting......................................................2-19
Enhanced Traction System (ETS)........................ 4-9
Warning Light.............................................3-34
Entry Lighting.................................................3-16
4
