2005 Alfa Romeo 147 Owner handbook (in English)

VEHICLE MAINTENANCE
239
Changing the windscreen wiper
blade(fig. 13)
Instructions for removing the
windscreen wiper blade
Proceed as follows:
– raise the windscreen wiper arm (A);
– turn blade (B) 90° around pin (C), set
at the end of the arm;
– remove the blade from pin (C).Instructions for refitting the
windscreen wiper blade
To refit the blade proceed as follows:
– fit pin (C) into the hole located at the
middle of the blade (B);
– place the arm with the blade on the
windscreen.
Changing the rearscreen blade
(fig. 14)
– Raise the cover (A) and remove the arm
from the car, slackening the nut (B) that
fastens it to the pivot pin.
– Correctly position the new arm and firm-
ly tighten the nut.
– Lower the cover.
fig. 14
A0A0227m
SPRAY JETS (fig. 15-16)
If the jet of fluid is inadequate, firstly check
that there is fluid in the reservoir: see
“Checking levels” in this chapter.
Then check that the nozzle holes are not
clogged, if necessary use a needle.
If necessary, direct the jet of fluid work-
ing on the adjustment screw (A).
fig. 15
A0A0460m
fig. 16
A0A0461m
Driving with worn wiper
blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING
fig. 13
A0A0728m

VEHICLE MAINTENANCE
240
HEADLIGHT WASHERS
Regularly check that the spray jets are in-
tact and clean (fig. 17).
If it is necessary to direct the jet, contact
an Alfa Romeo Authorised Service.
BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are:
– atmospheric pollution
– salty air and humidity (coastal areas, or
hot humid climates)
– seasonal environment conditions.
Not to be underestimated is also the abra-
sive action of wind-borne atmospheric dust
and sand and mud and gravel raised by oth-
er vehicles.
On your
Alfa 147 GTA, Alfa Romeo
has implemented the best manufacturing
technologies to effectively protect the body-
work against corrosion.
These include:
– Painting products and systems which
give the vehicle particular resistance to cor-
rosion and abrasion.
– Use of galvanised (or pretreated) steel
sheets, with high resistance to corrosion.
– Spraying the underbody, engine com-
partment, wheel arches and other parts with
highly protective wax products.
fig. 17
A0A0425m
– Spraying of plastic parts, with a protec-
tive function, in the more exposed points:
underdoor, inner wheel arch linings, etc.
– Use of “open” boxed sections to pre-
vent condensation and pockets of moisture
from triggering rust inside.
VEHICLE EXTERIOR AND
UNDERBODY WARRANTY
TheAlfa 147 GTAis guaranteed
against perf oration due to rust of any orig-
inal element of the structure or body. For the
general terms of this warranty, refer to the
Warranty Booklet.

VEHICLE MAINTENANCE
241
ADVICE FOR PRESERVING
THE BODYWORK
Paint
The paintwork does not only serve an aes-
thetic purpose but also protects the under-
lying sheet metal.
In the case of deep scrapes or scores, you
are advised to have the necessary touch-
ing up carried out immediately to avoid the
formation of rust.
Only original products should be used for
touching up paint (see “Body paint identi-
fication plate” in the “Technical Specifica-
tions” chapter).
Normal paint maintenance consists in
washing at intervals depending on the con-
ditions and environment of use. For exam-
ple, in highly polluted areas, or if the roads
are sprayed with salt, it is wise to wash the
car more frequently.Do not wash the vehicle after it has been
left in the sun or with the bonnet hot: this
may alter the shine of the paintwork.
Exterior plastic parts must be cleaned in
the same way as the rest of the vehicle.
Where possible, do not park under trees;
the resinous substance many species release
give the paint a dull appearance and in-
crease the possibility of triggering rust
processes.
IMPORTANTBird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly aggres-
sive.
Windows
Use specific products to clean the windows.
Use clean cloths to avoid scratching or al-
tering the transparency of the glass.
IMPORTANTThe inside of the
rearscreen should be wiped gently with a
cloth in the direction of the filaments to
avoid damaging the heating device. Detersives pollute water.
The car should therefore be
washed in areas equipped
for the collection and purification
of the liquid used in the washing
process.
To correctly wash the car:
1) Remove the aerial from the roof to pre-
vent damage to it if the car is washed in
an automatic system.
2) Spray the vehicle with a low pressure
jet of water.
3) Pass a sponge moistened with a light
detergent solution, rinsing the sponge fre-
quently.
4) Rinse well with water and dry with a
jet of air or chamois leather.
When drying, take particular care with the
less visible parts like door surrounds, bon-
net and around the headlights where wa-
ter may stagnate. The vehicle should not be
taken to a closed area immediately, but left
in the open so that residual water can evap-
orate.

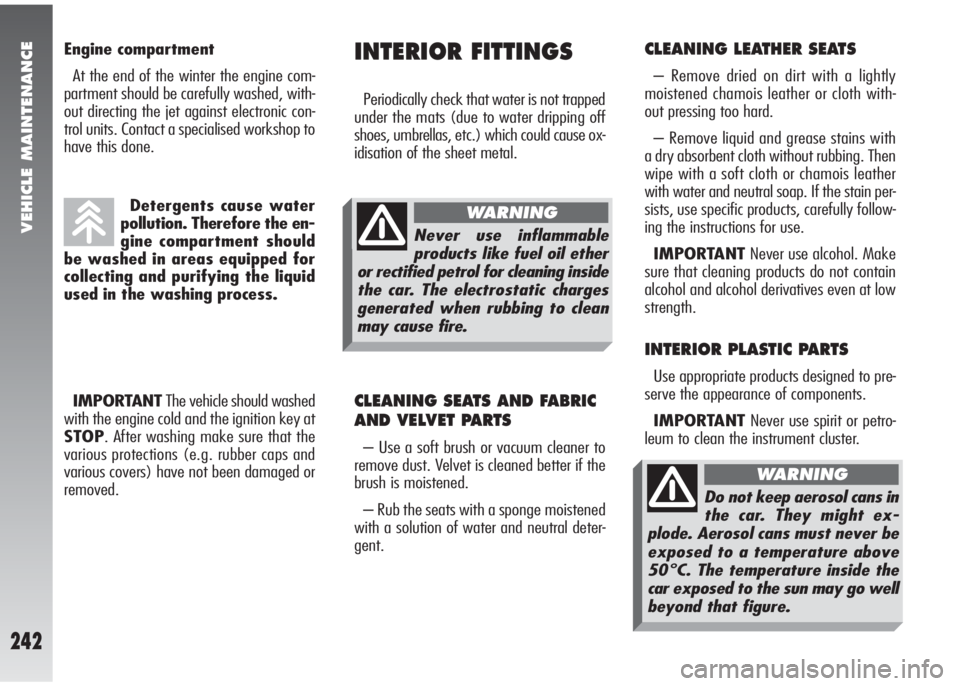

VEHICLE MAINTENANCE
242
CLEANING LEATHER SEATS
– Remove dried on dirt with a lightly
moistened chamois leather or cloth with-
out pressing too hard.
– Remove liquid and grease stains with
a dry absorbent cloth without rubbing. Then
wipe with a soft cloth or chamois leather
with water and neutral soap. If the stain per-
sists, use specific products, carefully follow-
ing the instructions for use.
IMPORTANTNever use alcohol. Make
sure that cleaning products do not contain
alcohol and alcohol derivatives even at low
strength.
INTERIOR PLASTIC PARTS
Use appropriate products designed to pre-
serve the appearance of components.
IMPORTANTNever use spirit or petro-
leum to clean the instrument cluster. Engine compartment
At the end of the winter the engine com-
partment should be carefully washed, with-
out directing the jet against electronic con-
trol units. Contact a specialised workshop to
have this done.
INTERIOR FITTINGS
Periodically check that water is not trapped
under the mats (due to water dripping off
shoes, umbrellas, etc.) which could cause ox-
idisation of the sheet metal.
Detergents cause water
pollution. Therefore the en-
gine compartment should
be washed in areas equipped for
collecting and purifying the liquid
used in the washing process.
IMPORTANTThe vehicle should washed
with the engine cold and the ignition key at
STOP. After washing make sure that the
various protections (e.g. rubber caps and
various covers) have not been damaged or
removed.CLEANING SEATS AND FABRIC
AND VELVET PARTS
– Use a soft brush or vacuum cleaner to
remove dust. Velvet is cleaned better if the
brush is moistened.
– Rub the seats with a sponge moistened
with a solution of water and neutral deter-
gent.
Never use inflammable
products like fuel oil ether
or rectified petrol for cleaning inside
the car. The electrostatic charges
generated when rubbing to clean
may cause fire.
WARNING
Do not keep aerosol cans in
the car. They might ex-
plode. Aerosol cans must never be
exposed to a temperature above
50°C. The temperature inside the
car exposed to the sun may go well
beyond that figure.
WARNING

TECHNICAL SPECIFICATIONS
243
IDENTIFICATION
LABEL
This (fig. 2) is to be found on the front
cross member of the engine compartment.
It contains the following information:
(A)Space for details of national ho-
mologation
(B)Space for punching the consecutive
chassis number
(C)Space available for maximum
weights authorised by various na-
tional regulations
(D)Space for version and any supple-
mentary indications to those speci-
fied(E)Space for smoke coefficient (Diesel
versions)
(F)Space for punching manufacturer’s
name.
BODYWORK LABEL
This is located in the engine bay, to one
side of the upper right shock absorber
(fig. 3) and contains:
– Type of vehicle: ZAR 937.000
– Manufacturer’s serial number (chassis
number).
IDENTIFICATION
D ATA
You are advised to note the identification
codes. The identification data stamped and
given on the labels and their position are
the following (fig. 1):
1- Identification label
2- Body label
3- Bodywork paint identification label
4- Engine label.
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
fig. 1
A0A0462m
fig. 2
A0A0246m
fig. 3
A0A0247m

TECHNICAL SPECIFICATIONS
244
BODYWORK PAINT
IDENTIFICATION LABEL
The label (fig. 4) is on the inner left edge
of the tailgate. It contains the following in-
formation:
A. Paint manufacturer.
B. Name of colour.
C. Colour code.
ENGINE STAMP
The engine marking is stamped on the
gearbox side of the crankcase, in corre-
spondence with the exhaust manifold.
fig. 4
A0A0248m
ENGINE CODES - BODY VERSIONS
3.2 V6 24V
3.2 V6 24V Selespeed937AXL1B 16C
937AXL11 17C Engine code
932A000
932A000Body versions

TECHNICAL SPECIFICATIONS
245
Code type
Cycle
Number and position of cylinders
Piston bore and stroke mm
Total displacement cm3
Maximum horsepower (EEC):
kW
HP
at rpm
Maximum torque (EEC):
Nm
kgm
at rpm
Spark plugs
Fuel
ENGINE
3.2 V6 24V
932A000
Otto
6 in 60° V
93 x 78
3179
184
250
6200
300
30.6
4800
NGK R PFR6B
Unleaded petrol 95 RON
(Specification EN228)
3.2 V6 24V Selespeed
932A000
Otto
6 in 60° V
93 x 78
3179
184
250
6200
300
30.6
4800
NGK R PFR6B
Unleaded petrol 95 RON
(Specification EN228)

TECHNICAL SPECIFICATIONS
246
Supply
Firing order
FUEL SUPPLY
TRANSMISSION
3.2 V6 24V
Electronic injection Multi Point
1-4-2-5-3-6
Gearbox
Clutch
Drive
3.2 V6 24V
Six forward gears plus reverse all synchronised
Dry single disk with hydraulic control
Front
3.2 V6 24V Selespeed
Electronic injection Multi Point
1-4-2-5-3-6
3.2 V6 24V Selespeed
Six forward gears plus reverse with electronic control
Dry single disk with electrohydraulic control
Front
Alterations or repairs to the supply system not carried out correctly or without taking account of the
technical specifications of the system, may cause abnormal functioning with the risk of fire.
WARNING
