Auto Door Unlock
You can select f rom three possible
settings f or auto door unlock:
SHIFT TO P The driver’s door or
all the doors, depending on your
selection in DOOR LOCK MODE
(see page ), unlock whenever
you move the shif t lever to Park.
OFF
The auto door lock is deactivated all
the time.
Select the desired condition by
pressing the or button, and
enter your selection by pressing the
SEL/RESET button.
The conf irmation screen is shown
f or 2 seconds, then the CUSTOMIZE
ENTRY screen returns.
To exit this mode without changing
the current settings, select EXIT,
and press the SEL/RESET button.
IGN OFF The driver’s door or all
doors, depending on your selection
in DOOR LOCK MODE (see page
), unlock when you turn the
ignition switch to LOCK (0).
OFF The auto door unlock is
deactivated all the time.
Select the desired setting by
pressing the or button, and
enter your selection by pressing the
SEL/RESET button.
The conf irmation screen is shown
f or 2 seconds, then the CUSTOMIZE
ENTRY screen returns.
To exit this mode without changing
the current settings, select EXIT,
and press the SEL/RESET button.
97 97
Multi-Inf ormation Display
96

ÛÝ
Keyless Lock Acknowledgment
Door Lock Mode
If you unlock the doors by pressing
the button on the remote, you can
select whether the driver’s door
unlocks or all the doors unlock.
Select the desired mode by pressing
the or button, and enter your
selection by pressing the SEL/
RESET button.
The conf irmation screen is shown
f or 2 seconds, then the CUSTOMIZE
ENTRY screen returns. To exit this mode without changing
the current settings, select EXIT,
and press the SEL/RESET button.
When you press the LOCK button
on the remote a second time within 5
seconds after you lock the doors, the
hood, and the trunk with the remote,
a beeper will sound and the exterior
lights will blink once to verif y that
the doors are locked and the security
system is ready.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
97

ÛÝ
ÛÝ Select the desired time by pressing
the or button and, enter your
selection by pressing the SEL/
RESET button.
The conf irmation screen is shown
f or 2 seconds, then the CUSTOMIZE
ENTRY screen returns.
To exit this mode without changing
the current settings, select EXIT,
and press the SEL/RESET button.
If you unlock the doors by pressing
the button on the remote or
grabbing the driver’s door handle
while carrying the remote, but do not
open any of the doors within 30
seconds, the doors automatically
relock and the security system sets.
You can select this relock time to be
90, 60, or 30 seconds.
When you press the UNLOCK
buttonontheremoteasecondtime
within 5 seconds af ter you unlock
the doors with the remote, the
beeper will sound twice and the
exterior lights will blink twice to
verif y that the doors are unlocked
and the security system is turned of f .
The conf irmation screen is shown
f or 2 seconds, then the CUSTOMIZE
ENTRY screen returns. If you do not want the beeper to
sound and the exterior lights to blink,
select OFF by pressing the or
button, and enter your selection by
pressing the SEL/RESET button.
To exit this mode without changing
the current settings, select EXIT,
and press the SEL/RESET button.
Security Relock Timer
Multi-Inf ormation Display
98

Û
Ý
ÛÝ
With the ignition switch in the ON
(II) position, press the INFO button
f or more than 3 seconds, then
release it. The CUSTOMIZE ENTRY
screen appears on the multi-
inf ormation display.
Select CHG SETTING, and press the
SEL/RESET button.
If you select EXIT and press the
SEL/RESET button, the
CUSTOMIZE GROUP screen is
shown again. You can customize the WIPER
ACTION in this mode. Each time you press the INFO ( / ) button, the display changes as
shown in the illustration.
Select WIPER SET UP, and press
the SEL/RESET button.
CONT INUED
Multi-Inf ormation Display
Wiper Setup
Inst rument s and Cont rols
99
Press the or button.
Press the SEL/RESET button.

ÛÝ
µ µ

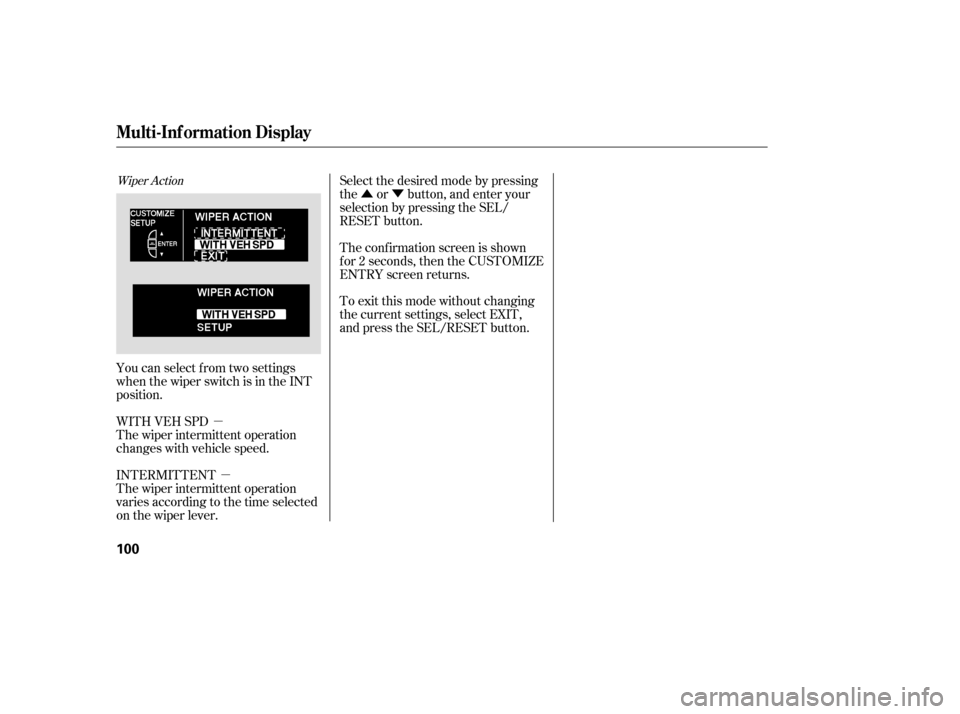

Wiper Action
You can select from two settings
when the wiper switch is in the INT
position. To exit this mode without changing
the current settings, select EXIT,
and press the SEL/RESET button. Select the desired mode by pressing
the or button, and enter your
selection by pressing the SEL/
RESET button.
WITH VEH SPD
The wiper intermittent operation
changes with vehicle speed.
INTERMITTENT
The wiper intermittent operation
varies according to the time selected
on the wiper lever. The conf irmation screen is shown
f or 2 seconds, then the CUSTOMIZE
ENTRY screen returns.
Multi-Inf ormation Display
100

Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
You can use the f og lights only when
the headlights are on low beam.
The headlights revert to normal
operation when you turn them on
with the switch. With the light switch in the AUTO
position, you can also use the f og
lights when the headlights turn on
automatically. They will go of f when
the headlights turn of f .
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch of f , even if you set the
parking brake.This f eature turns of f the headlights,
all other exterior lights, and the
instrument panel lights within 15
seconds after you turn the ignition
switch to LOCK (0) and close the
driver’s door.
To change the ‘‘HEADLIGHT AUTO
OFF TIMER’’ setting, see page . If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light system. Take your vehicle to a
dealer to have it checked.
When the multi-information display
shows a ‘‘DRL OFF’’ message, the
daytime running lights are of f .
Follow the procedure in the lef t
column to turn them on.The automatic lighting of f f eature
activates if you leave the headlight
switch in the ‘‘ ’’ or ‘‘ ’’
position or if the lights are turned on
by setting the switch in the ‘‘AUTO’’
position, turn the ignition switch to
LOCK (0), then open and close the
driver’s door.
If you turn the ignition switch to
LOCK (0) with the headlight switch
on, but do not open the door and get
out, the lights turn off after 10
minutes (3 minutes, if the switch is
in the ‘‘AUTO’’ position).
The lights turn on again when you
unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
go of f . With the driver’s door open,
you will hear a lights-on reminder
chime.
92
Headlights
Fog Lights
Daytime Running Lights Automatic Lighting Of f Feature
106

The adaptive f ront lighting system
(AFS) helps to improve visibility
during nighttime driving. The AFS
controls the aiming direction and
lighting distribution of the low
beams according to the amount of
turn applied to the steering wheel
during cornering or turning. To turn
the AFS on, turn the ignition to ON
(II), and turn the headlights on.If the AFS indicator comes on and
starts blinking while driving, pull to
the side of the road when it is saf e,
and turn of f the engine. If the AFS
indicator keeps blinking, or starts
blinking again while driving af ter
turning the ignition switch to ON (II),
the AFS is not working properly (see
page ). Have the AFS inspected
by your dealer.
When the AFS indicator comes on,
you will also see a ‘‘CHECK
ADAPTIVE FRONT LIGHTING
SYSTEM’’ message on the multi-
inf ormation display (see page ). Without AFS, your vehicle still has
normal lighting ability to continue
driving.
67
76
A dapt ive Front L ight ing Syst em (A FS)
AFS Indicator
Inst rument s and Cont rols
107

´
µ´ µ
Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both indicators in the instrument
panel to f lash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled. Adjust the brightness of the
instrument panel by pressing the
or button. Press the button to
increase the brightness and the
button to decrease it. You can adjust
the brightness with the headlight
switch on or of f .
The level of brightness is shown on
the multi-information display while
you adjust it. It goes out 5 seconds
af ter you f inish adjusting.
CONT INUED
Instrument Panel Brightness
Hazard Warning Button
Hazard Warning Button, Instrument Panel Brightness
Inst rument s and Cont rols
109
ADJUSTMENT BUTTON
U.S.
CANADA
