2005.5 Peugeot 307 Break Dag Owner's Manual

Instruments and controls24 -
01-10-2005
25Instruments and controls-
01-10-2005

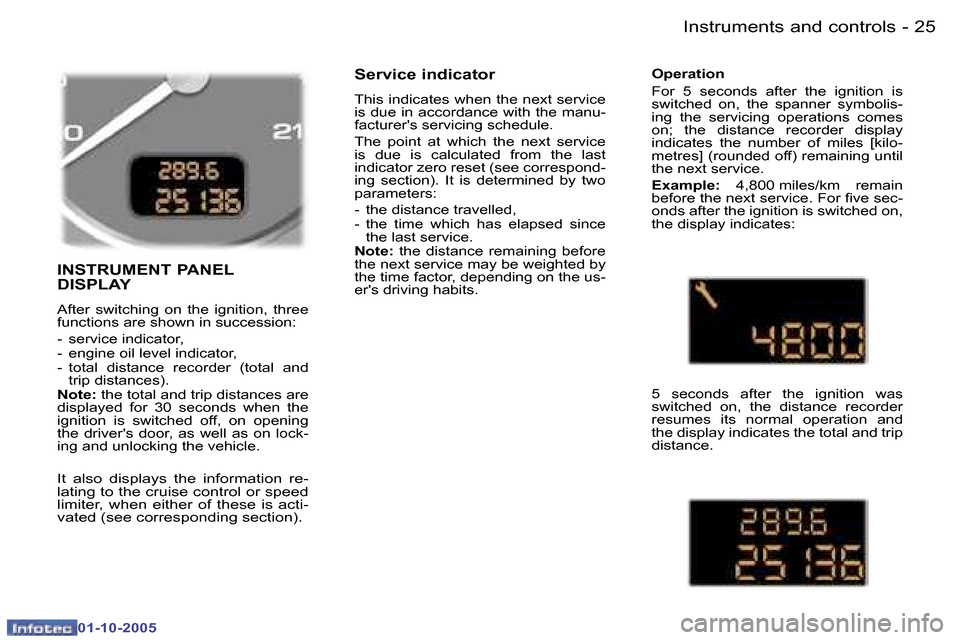

INSTRUMENT PANEL
DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator,
- total distance recorder (total and trip distances).
Note: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver's door, as well as on lock-
ing and unlocking the vehicle.
It also displays the information re-
lating to the cruise control or speed
limiter, when either of these is acti-
vated (see corresponding section).
Service indicator
This indicates when the next service
is due in accordance with the manu-
facturer's servicing schedule.
The point at which the next service
is due is calculated from the last
indicator zero reset (see correspond-
ing section). It is determined by two
parameters:
- the distance travelled,
- the time which has elapsed since the last service.
Note: the distance remaining before
the next service may be weighted by
the time factor, depending on the us-
er's driving habits. Operation
For 5 seconds after the ignition is
switched on, the spanner symbolis-
ing the servicing operations comes
on; the distance recorder display
indicates the number of miles [kilo-
metres] (rounded off) remaining until
the next service.
Example:
4,800 miles/km remain
before the next service. For ive sec-
onds after the ignition is switched on,
the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total and trip
distance.

Instruments and controls24 -
01-10-2005
25Instruments and controls-
01-10-2005
INSTRUMENT PANEL
DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator,
- total distance recorder (total and trip distances).
Note: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver's door, as well as on lock-
ing and unlocking the vehicle.
It also displays the information re-
lating to the cruise control or speed
limiter, when either of these is acti-
vated (see corresponding section).
Service indicator
This indicates when the next service
is due in accordance with the manu-
facturer's servicing schedule.
The point at which the next service
is due is calculated from the last
indicator zero reset (see correspond-
ing section). It is determined by two
parameters:
- the distance travelled,
- the time which has elapsed since the last service.
Note: the distance remaining before
the next service may be weighted by
the time factor, depending on the us-
er's driving habits. Operation
For 5 seconds after the ignition is
switched on, the spanner symbolis-
ing the servicing operations comes
on; the distance recorder display
indicates the number of miles [kilo-
metres] (rounded off) remaining until
the next service.
Example:
4,800 miles/km remain
before the next service. For ive sec-
onds after the ignition is switched on,
the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total and trip
distance.

Instruments and controls26 -
01-10-2005
27Instruments and controls-
01-10-2005

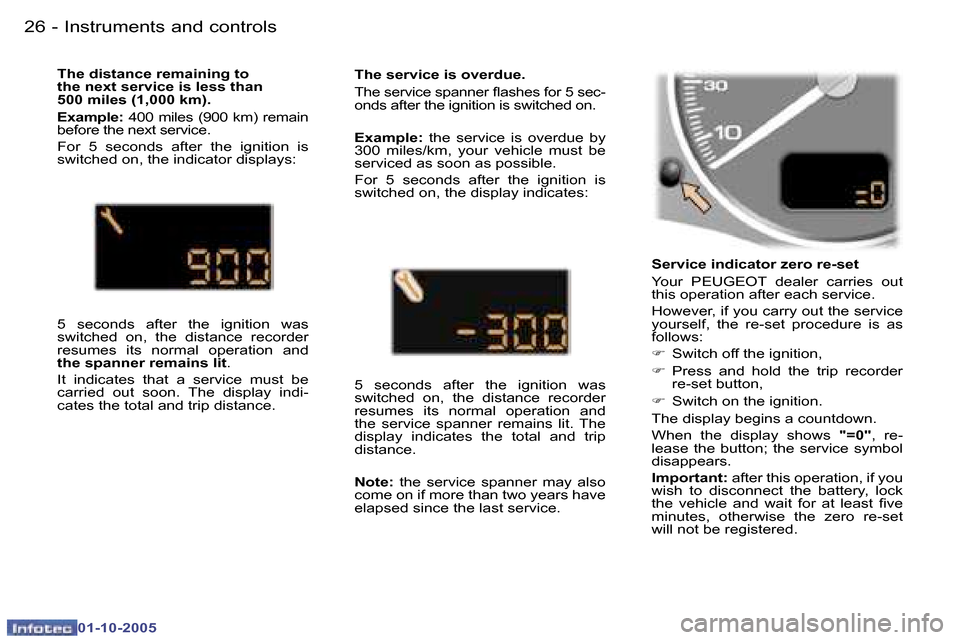

Service indicator zero re-set
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
F Switch off the ignition,
F Press and hold the trip recorder
re-set button,
F Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-
lease the button; the service symbol
disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least ive
minutes, otherwise the zero re-set
will not be registered.
The service is overdue.
The service spanner lashes for 5 sec-
onds after the ignition is switched on.
Example:
the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the service spanner remains lit. The
display indicates the total and trip
distance.
Note: the service spanner may also
come on if more than two years have
elapsed since the last service.
The distance remaining to
the next service is less than
500 miles (1,000 km).
Example:
400 miles (900 km) remain
before the next service.
For 5 seconds after the ignition is
switched on, the indicator displays:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the spanner remains lit .
It indicates that a service must be
carried out soon. The display indi-
cates the total and trip distance.

Instruments and controls26 -
01-10-2005
27Instruments and controls-
01-10-2005
Service indicator zero re-set
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
F Switch off the ignition,
F Press and hold the trip recorder
re-set button,
F Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-
lease the button; the service symbol
disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least ive
minutes, otherwise the zero re-set
will not be registered.
The service is overdue.
The service spanner lashes for 5 sec-
onds after the ignition is switched on.
Example:
the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the service spanner remains lit. The
display indicates the total and trip
distance.
Note: the service spanner may also
come on if more than two years have
elapsed since the last service.
The distance remaining to
the next service is less than
500 miles (1,000 km).
Example:
400 miles (900 km) remain
before the next service.
For 5 seconds after the ignition is
switched on, the indicator displays:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the spanner remains lit .
It indicates that a service must be
carried out soon. The display indi-
cates the total and trip distance.

Instruments and controls26 -
01-10-2005
27Instruments and controls-
01-10-2005
Lighting rheostat
With the lights on, press the button to
vary the intensity of the lighting of the
instruments and controls. When the
lighting reaches the minimum (or maxi-
mum) setting, release the button then
press it again to increase (or reduce)
the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
Trip recorder zero reset
button
With the ignition on, press the button
until the zeros appear.
Pressing the button enables you to
alternate between the distance re-
corder and cruise control or speed
limiter displays, when either of these
is activated.

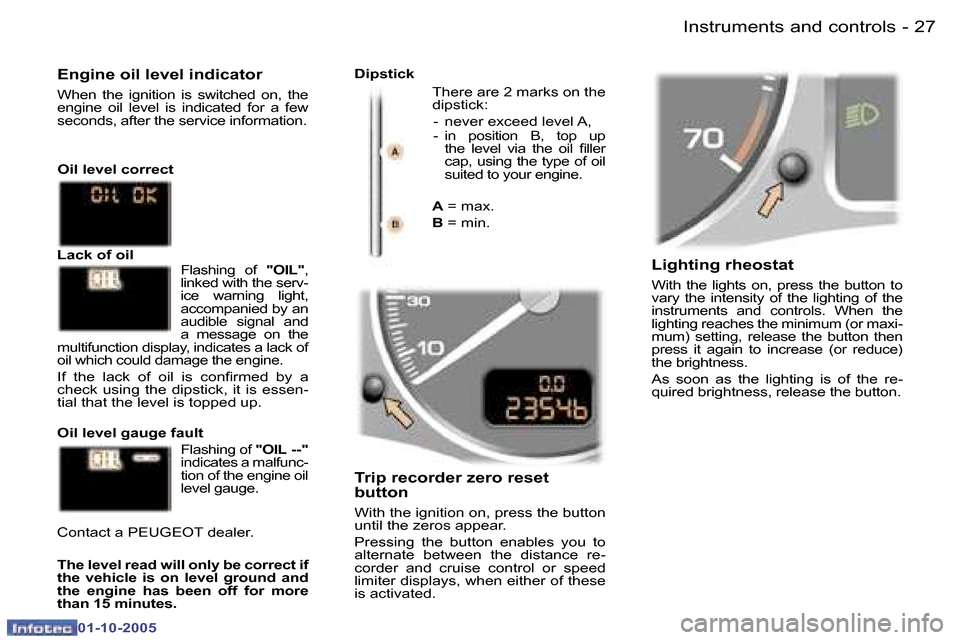

Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information.Oil level correct
Oil level gauge fault Flashing of "OIL --"
indicates a malfunc-
tion of the engine oil
level gauge.
Contact a PEUGEOT dealer.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes. Flashing of
"OIL",
linked with the serv-
ice warning light,
accompanied by an
audible signal and
a message on the
multifunction display, indicates a lack of
oil which could damage the engine.
If the lack of oil is conirmed by a
check using the dipstick, it is essen-
tial that the level is topped up.
Lack of oil Dipstick
There are 2 marks on the
dipstick:- never exceed level A,
- in position B, top up the level via the oil iller
cap, using the type of oil
suited to your engine.
A = max.
B = min.

Instruments and controls28 -
01-10-2005
29Instruments and controls-
01-10-2005

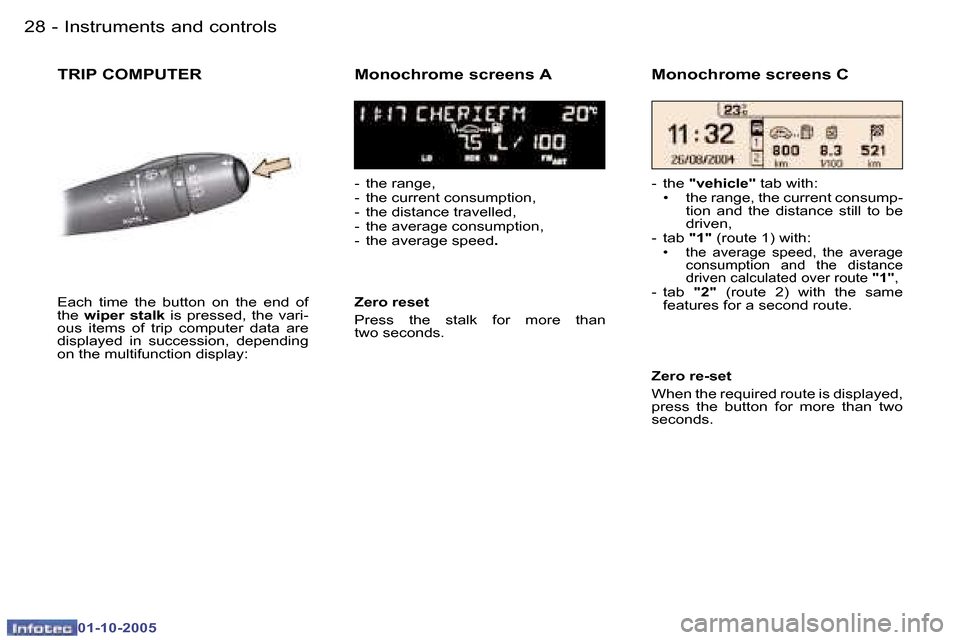

TRIP COMPUTER Monochrome screens A
- the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.
Each time the button on the end of
the wiper stalk is pressed, the vari-
ous items of trip computer data are
displayed in succession, depending
on the multifunction display: Zero reset
Press the stalk for more than
two seconds.
Monochrome screens C
- the
"vehicle" tab with:
• the range, the current consump- tion and the distance still to be
driven,
- tab "1" (route 1) with:
• the average speed, the average
consumption and the distance
driven calculated over route "1",
- tab "2" (route 2) with the same
features for a second route.
Zero re-set
When the required route is displayed,
press the button for more than two
seconds.

Instruments and controls28 -
01-10-2005
29Instruments and controls-
01-10-2005
Colour screen DT
- the "Current information" with:
• the range,
• the current consumption,
• the distance still to be driven.
- "Route 1" with:
• the distance travelled,
• the average consumption,
• the average speed,
- "Route 2" with the same features
for a second route.

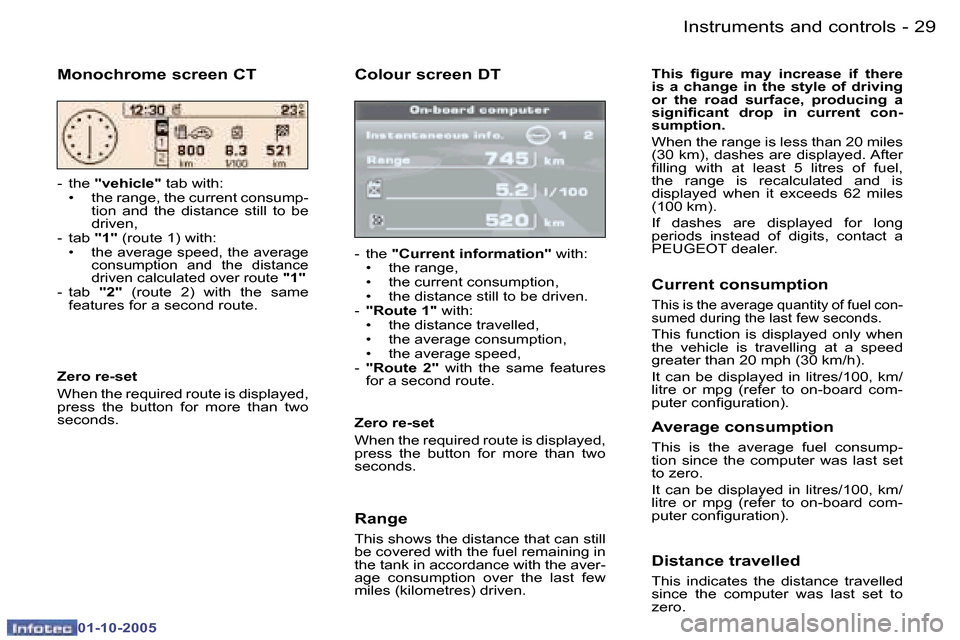

Monochrome screen CT
- the "vehicle" tab with:
• the range, the current consump- tion and the distance still to be
driven,
- tab "1" (route 1) with:
• the average speed, the average
consumption and the distance
driven calculated over route "1"
- tab "2" (route 2) with the same
features for a second route.
Zero re-set
When the required route is displayed,
press the button for more than two
seconds. Zero re-set
When the required route is displayed,
press the button for more than two
seconds.This igure may increase if there
is a change in the style of driving
or the road surface, producing a
signiicant drop in current con-
sumption.
When the range is less than 20 miles
(30 km), dashes are displayed. After
illing with at least 5 litres of fuel,
the range is recalculated and is
displayed when it exceeds 62 miles
(100 km).
If dashes are displayed for long
periods instead of digits, contact a
PEUGEOT dealer.
Current consumption
This is the average quantity of fuel con-
sumed during the last few seconds.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
It can be displayed in litres/100, km/
litre or mpg (refer to on-board com-
puter coniguration).
Average consumption
This is the average fuel consump-
tion since the computer was last set
to zero.
It can be displayed in litres/100, km/
litre or mpg (refer to on-board com-
puter coniguration).
Distance travelled
This indicates the distance travelled
since the computer was last set to
zero.
Range
This shows the distance that can still
be covered with the fuel remaining in
the tank in accordance with the aver-
age consumption over the last few
miles (kilometres) driven.

Instruments and controls30 -
01-10-2005
The routes "1" and ''2'' are independ-
ent but have identical application.
Route "1" for example allows you
to make daily calculations and route
"2" monthly calculations.
Distance remaining to be
travelled
This is the distance remaining to the
inal destination. It can either be cal-
culated continuously by the naviga-
tion system if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
The routes Access via the general menu
Screen C
Screen CT
Screen DT
"On-board computer" menu
Press the
"MENU" button to access
the general menu.
Select the icon ''On-board computer'' ,
then validate to access its menu.
Depending on the multifunction display,
this menu offers various choices:
- Enter distance to destination,
- Warning log.
- Status of the functions.
or
- On-board computer coniguration.
- Diagnostics,
- Status of the functions. Enter distance to destination
If guidance has not been activated,
this enables you to enter an approxi-
mate distance to inal destination
value, to permit all of the on-board
computer calculations.
Warning log
This summarises the active warning
messages, displaying them in suc-
cession on the multifunction display.
Status of the functions
This summarises the active or not
active status of the functions present
on the vehicle.
On-board computer coniguration
This function allows the distance to
the destination to be input (when
guidance is not activated; otherwise
this information is given by the navi-
gation system) and also changing of
the units of measurement (°C or °F,
km and litres or miles and gallons).
The consumption values (current or
average) can be displayed in litres/
100, km/litre or mpg.
Diagnostics
This presents the information relating
to the warning log, as regards the en-
ergy remaining in the back-up battery
and the number of satellites which
can be seen by the GPS system.
