Familiarisation

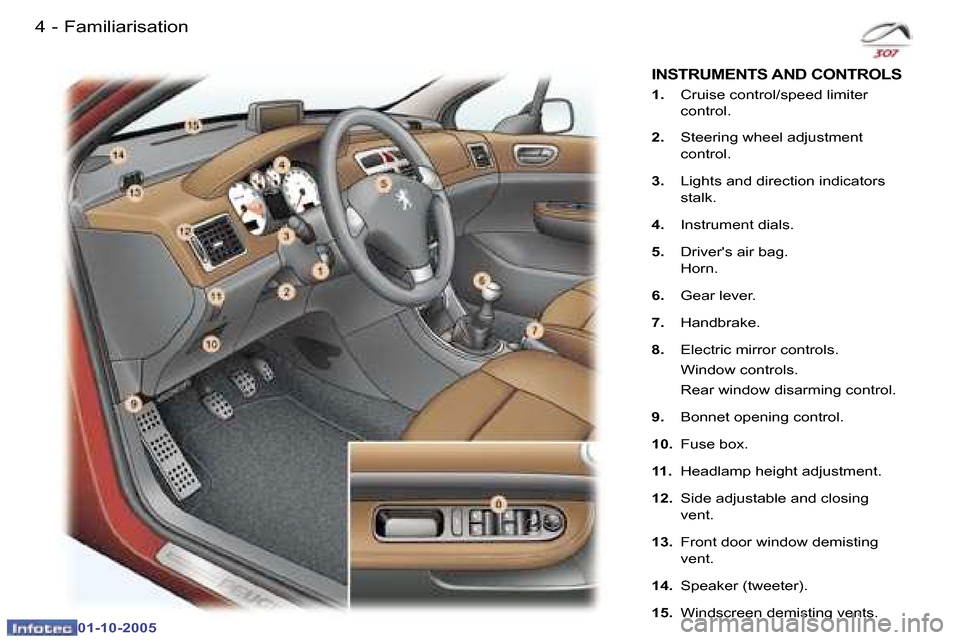

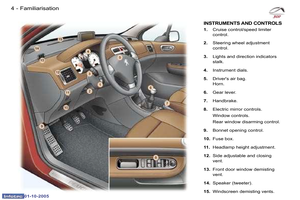

INSTRUMENTS AND CONTROLS

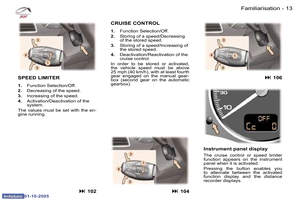

1. Cruise control/speed limiter
control.
2. Steering wheel adjustment
control.

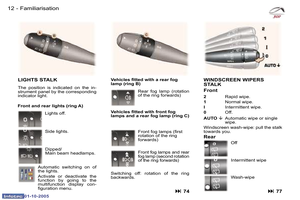

3. Lights and direction indicators
stalk.

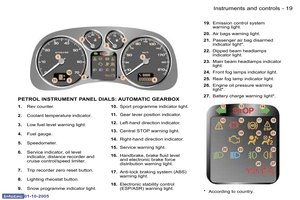

4. Instrument dials.
5. Driver's air bag.

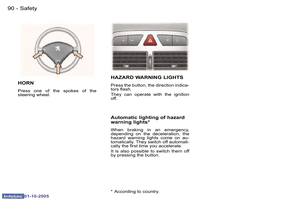

Horn.
6. Gear lever.
7. Handbrake.
8. Electric mirror controls.
Window controls.
Rear window disarming control.
9. Bonnet opening control.

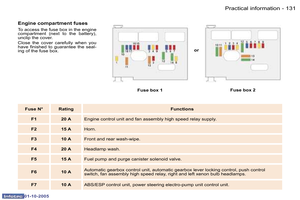

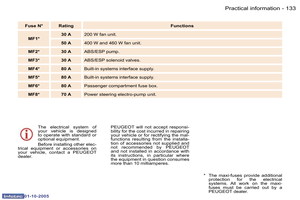

10. Fuse box.
11. Headlamp height adjustment.
12. Side adjustable and closing
vent.
13. Front door window demisting
vent.
14. Speaker (tweeter).
15. Windscreen demisting vents.

4 -
01-10-2005
5
-
01-10-2005

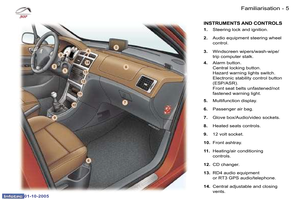

Familiarisation
1. Steering lock and ignition.

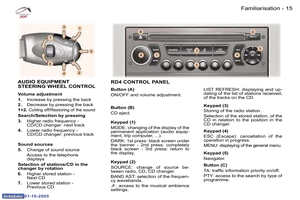

2. Audio equipment steering wheel
control.

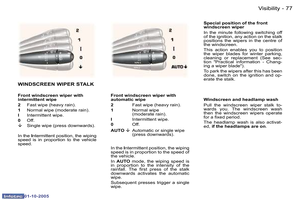

3. Windscreen wipers/wash-wipe/
trip computer stalk.
4. Alarm button.
Central locking button.
Hazard warning lights switch.
Electronic stability control button (ESP/ASR).
Front seat belts unfastened/not fastened warning light.
5. Multifunction display.
6. Passenger air bag.
7. Glove box/Audio/video sockets.
8. Heated seats controls.
9. 12 volt socket.
10. Front ashtray.
11. Heating/air conditioning
controls.
12. CD changer.

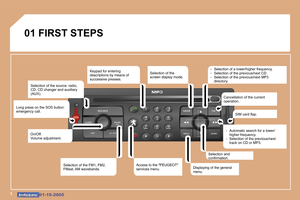

13. RD4 audio equipment
or RT3 GPS audio/telephone.
14. Central adjustable and closing
vents.
INSTRUMENTS AND CONTROLS

6 -
01-10-2005
7
-
01-10-2005
Familiarisation

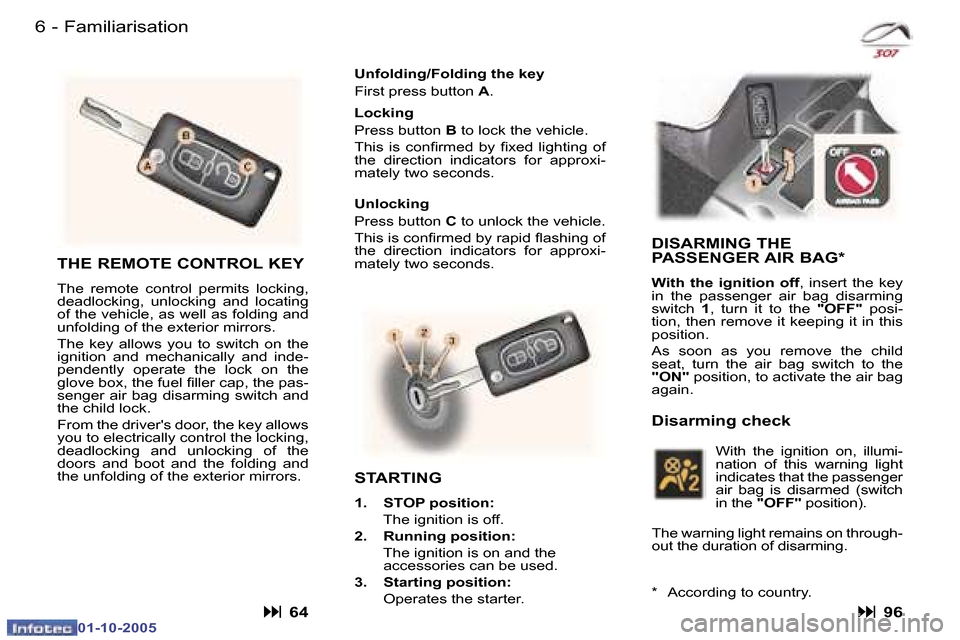

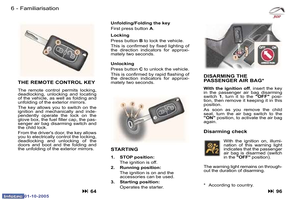

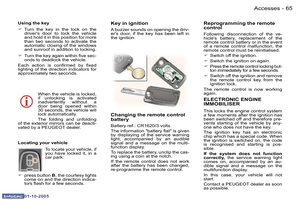

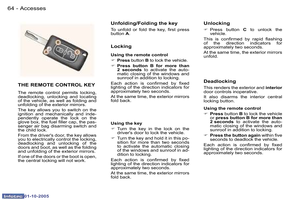

THE REMOTE CONTROL KEY
The remote control permits locking,
deadlocking, unlocking and locating
of the vehicle, as well as folding and
unfolding of the exterior mirrors.
The key allows you to switch on the
ignition and mechanically and inde-
pendently operate the lock on the
glove box, the fuel iller cap, the pas-
senger air bag disarming switch and
the child lock.
From the driver's door, the key allows
you to electrically control the locking,
deadlocking and unlocking of the
doors and boot and the folding and
the unfolding of the exterior mirrors. Unfolding/Folding the key
First press button
A.
Unlocking
Press button C to unlock the vehicle.
This is conirmed by rapid lashing of
the direction indicators for approxi-
mately two seconds.
STARTING
1. STOP position:
The ignition is off.
2. Running position:
The ignition is on and the accessories can be used.
3. Starting position:
Operates the starter.

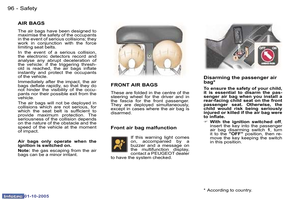

DISARMING THE
PASSENGER AIR BAG*
With the ignition off , insert the key
in the passenger air bag disarming
switch 1, turn it to the "OFF" posi-
tion, then remove it keeping it in this
position.
As soon as you remove the child
seat, turn the air bag switch to the
"ON" position, to activate the air bag
again.
With the ignition on, illumi-
nation of this warning light
indicates that the passenger
air bag is disarmed (switch
in the "OFF" position).
The warning light remains on through-
out the duration of disarming.
Disarming check
: 64
Locking
Press button B to lock the vehicle.
This is conirmed by ixed lighting of
the direction indicators for approxi-
mately two seconds.
* According to country.
: 96

10 -
01-10-2005
11
-
01-10-2005
Familiarisation

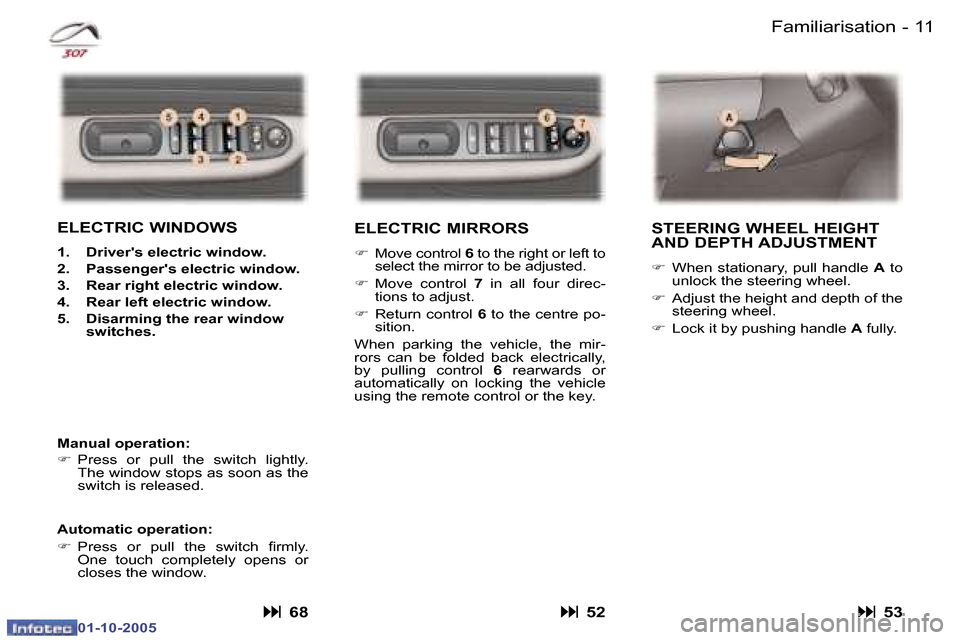

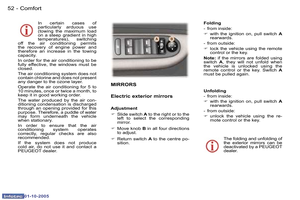

ELECTRIC MIRRORS
F Move control 6 to the right or left to
select the mirror to be adjusted.
F Move control 7 in all four direc-
tions to adjust.
F Return control 6 to the centre po-
sition.
When parking the vehicle, the mir-
rors can be folded back electrically,
by pulling control 6 rearwards or
automatically on locking the vehicle
using the remote control or the key.

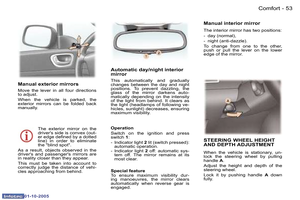

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
F When stationary, pull handle A to
unlock the steering wheel.
F Adjust the height and depth of the
steering wheel.
F Lock it by pushing handle A fully.
: 53

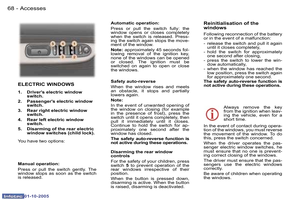

ELECTRIC WINDOWS
1. Driver's electric window.
2. Passenger's electric window.
3. Rear right electric window.
4. Rear left electric window.
5. Disarming the rear window
switches.
Manual operation:
F Press or pull the switch lightly.
The window stops as soon as the
switch is released.
Automatic operation:
F Press or pull the switch irmly.
One touch completely opens or
closes the window.
: 68: 52

6 -
01-10-2005
7
-
01-10-2005
Familiarisation

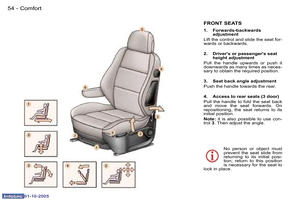

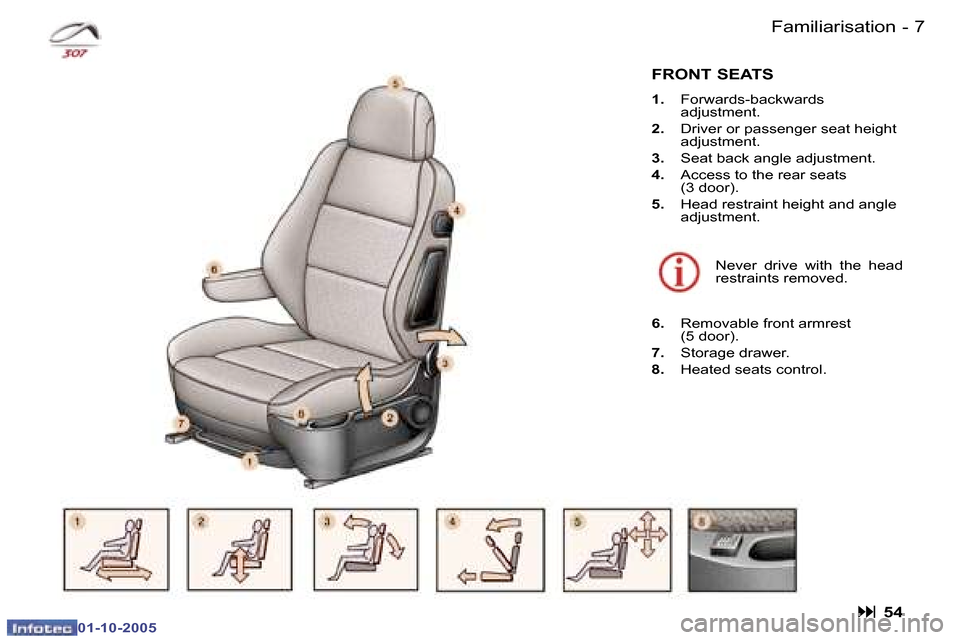

FRONT SEATS
1. Forwards-backwards
adjustment.
2. Driver or passenger seat height
adjustment.
3. Seat back angle adjustment.
4. Access to the rear seats
(3 door).

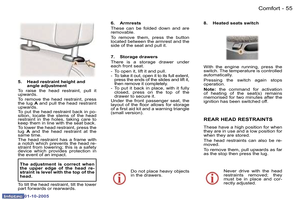

5. Head restraint height and angle
adjustment.
Never drive with the head
restraints removed.
6. Removable front armrest
(5 door).
7. Storage drawer.
8. Heated seats control.
: 54

8 -
01-10-2005
9
-
01-10-2005
Familiarisation

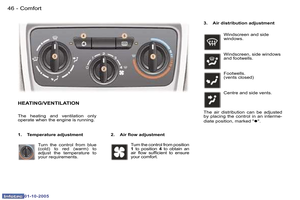

1. Temperature
adjustment.

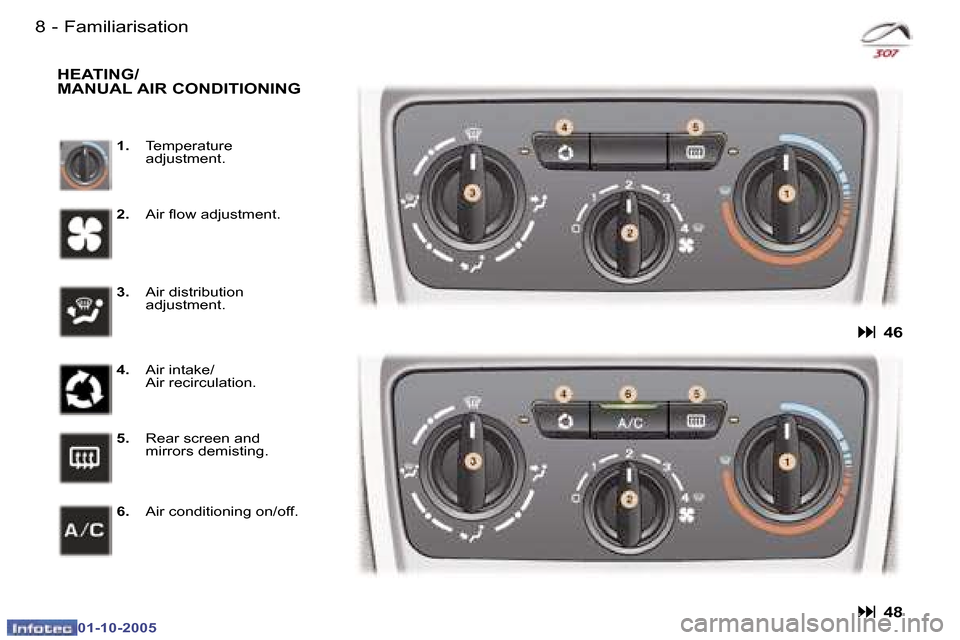

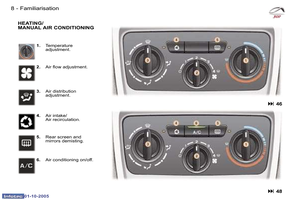

HEATING/
MANUAL AIR CONDITIONING
2. Air low adjustment.
3. Air distribution
adjustment.
4. Air intake/
Air recirculation.
5. Rear screen and
mirrors demisting.
6. Air conditioning on/off.
: 46
: 48

–
8 -
01-10-2005
9
-
01-10-2005
Familiarisation

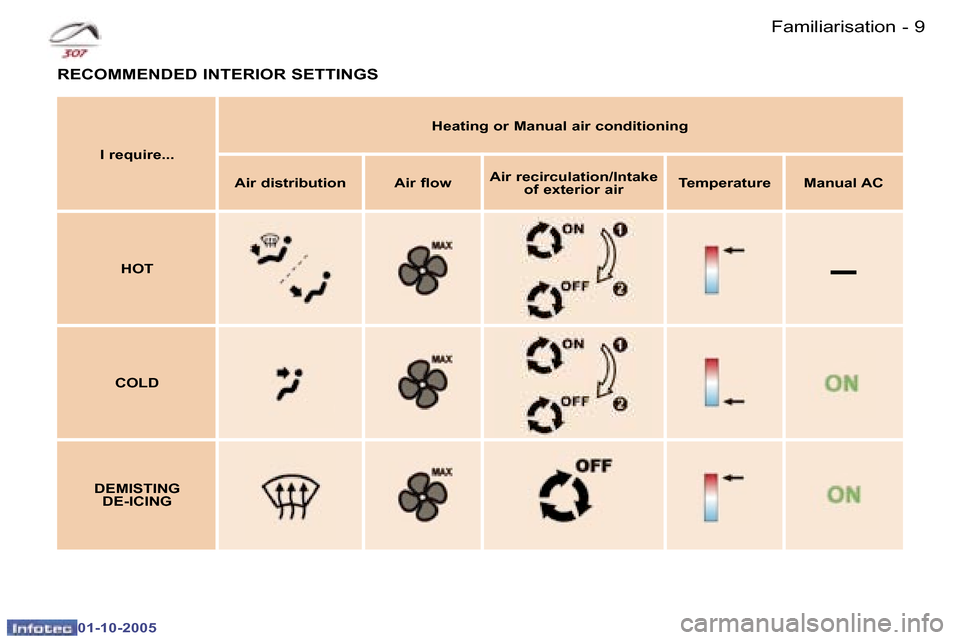

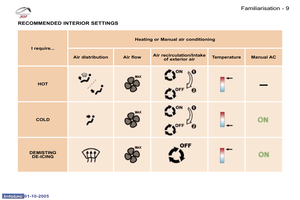

I require... Heating or Manual air conditioning
Air distribution Air low Air recirculation/Intake
of exterior air Temperature Manual AC
HOT
COLD
DEMISTING DE-ICING
RECOMMENDED INTERIOR SETTINGS

10 -
01-10-2005
11
-
01-10-2005
Familiarisation
: 50

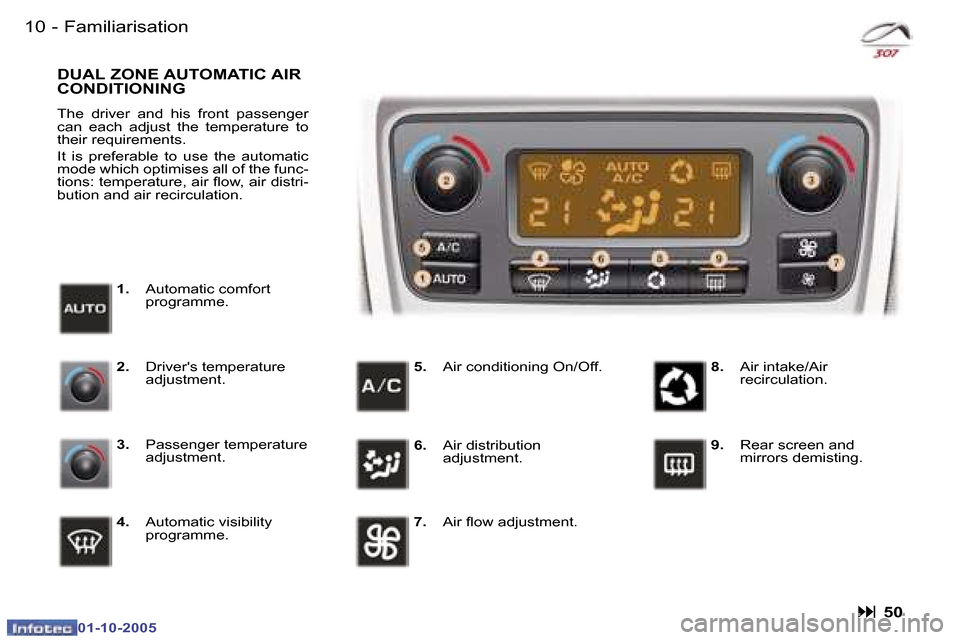

1. Automatic comfort
programme.

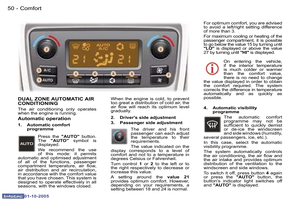

DUAL ZONE AUTOMATIC AIR
CONDITIONING
The driver and his front passenger
can each adjust the temperature to
their requirements.
It is preferable to use the automatic
mode which optimises all of the func-
tions: temperature, air low, air distri-
bution and air recirculation.
2. Driver's temperature
adjustment.
3. Passenger temperature
adjustment.
4. Automatic visibility
programme. 5.
Air conditioning On/Off.
6. Air distribution
adjustment.
7. Air low adjustment. 8.
Air intake/Air
recirculation.
9. Rear screen and
mirrors demisting.
