5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-9,
8-81–8-89
Rear brakeCheck operation, condition and free play.
Adjust if necessary.5-5–5-9,
8-81, 8-91–8-95
FuelCheck fuel level.
Fill with fuel if necessary.5-11–5-13
Engine oilCheck oil level.
Fill with oil if necessary.5-15, 8-29–8-39
Coolant reservoirCheck coolant level in reservoir.
Fill with coolant if necessary.5-19–5-21,
8-45–8-55
Final gear oilCheck for leakage. 5-17, 8-39–8-43
ThrottleCheck for proper throttle cable operation. 5-21, 8-79
Wheels and tiresCheck tire pressure, wear and damage.5-25–5-31,
8-103–8-105
Fittings and fastenersCheck all fittings and fasteners. 5-23
Lights and switchesCheck for proper operation.5-23, 8-97,
8-117–8-121
U5VH61.book Page 1 Friday, May 2, 2003 2:19 PM

5-13

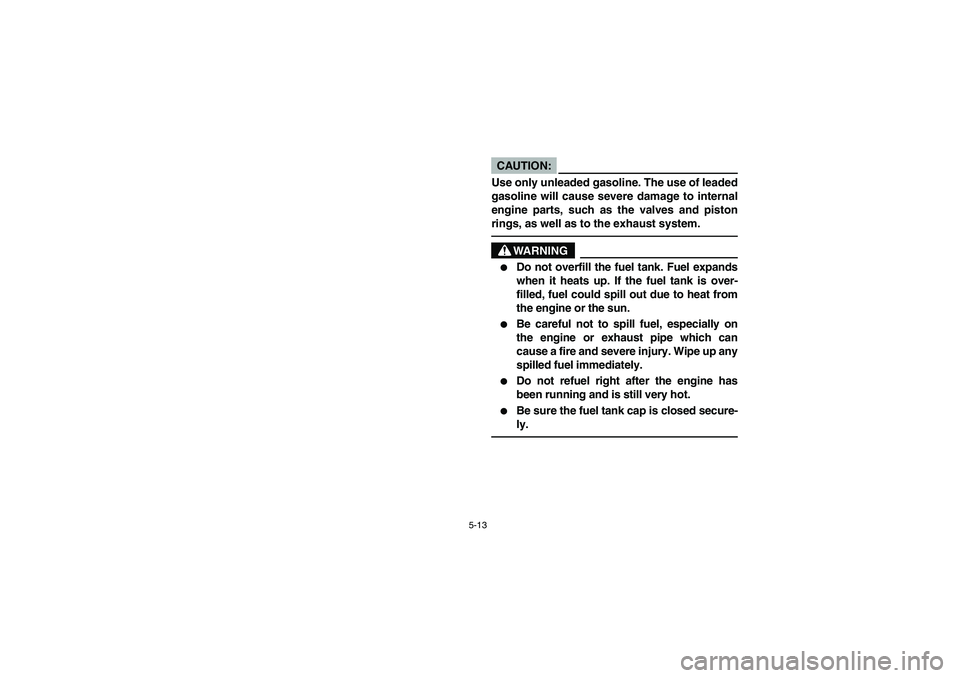

CAUTION:_ Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system. _
WARNING
_

Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is over-
filled, fuel could spill out due to heat from
the engine or the sun.


Be careful not to spill fuel, especially on
the engine or exhaust pipe which can
cause a fire and severe injury. Wipe up any
spilled fuel immediately.


Do not refuel right after the engine has
been running and is still very hot.


Be sure the fuel tank cap is closed secure-
ly.
_
U5VH61.book Page 13 Friday, May 2, 2003 2:19 PM

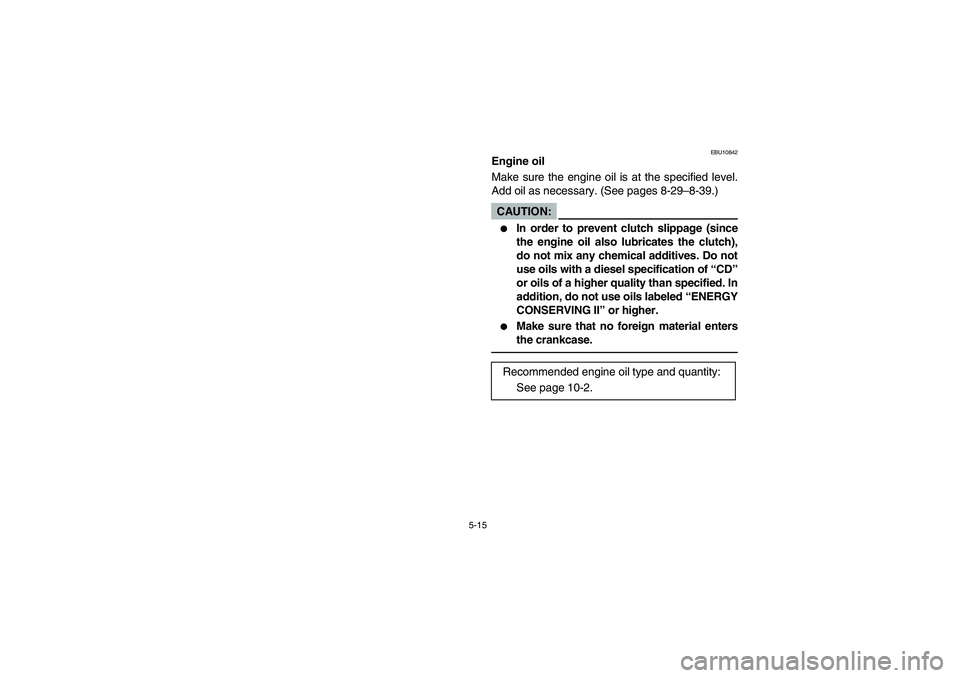

5-15
EBU10842
Engine oil
Make sure the engine oil is at the specified level.
Add oil as necessary. (See pages 8-29–8-39.)CAUTION:_

In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD”
or oils of a higher quality than specified. In
addition, do not use oils labeled “ENERGY
CONSERVING II” or higher.


Make sure that no foreign material enters
the crankcase.
_
Recommended engine oil type and quantity:
See page 10-2.
U5VH61.book Page 15 Friday, May 2, 2003 2:19 PM

5-19
EBU01316
Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level is
satisfactory if it is between the minimum and max-
imum level marks on the coolant reservoir. If the
coolant level is at or below the minimum level
mark, add distilled water to bring the level up to the
maximum level mark. Change the coolant every
two years. (See pages 8-45–8-55 for details.)CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _
Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
U5VH61.book Page 19 Friday, May 2, 2003 2:19 PM

5-21
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _
EBU01083
Throttle lever
Check to see that the throttle lever operates cor-
rectly. It must open smoothly and spring back to
the idle position when released. Have a Yamaha
dealer repair as necessary for proper operation.
U5VH61.book Page 21 Friday, May 2, 2003 2:19 PM

6-3
EBU01265
Starting a cold engine
WARNING
_ Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision. _1. Apply the rear brake lever.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON”, and then set
the engine stop switch to “”.
4. Shift the drive select lever into the neutral po-
sition.
U5VH61.book Page 3 Friday, May 2, 2003 2:19 PM

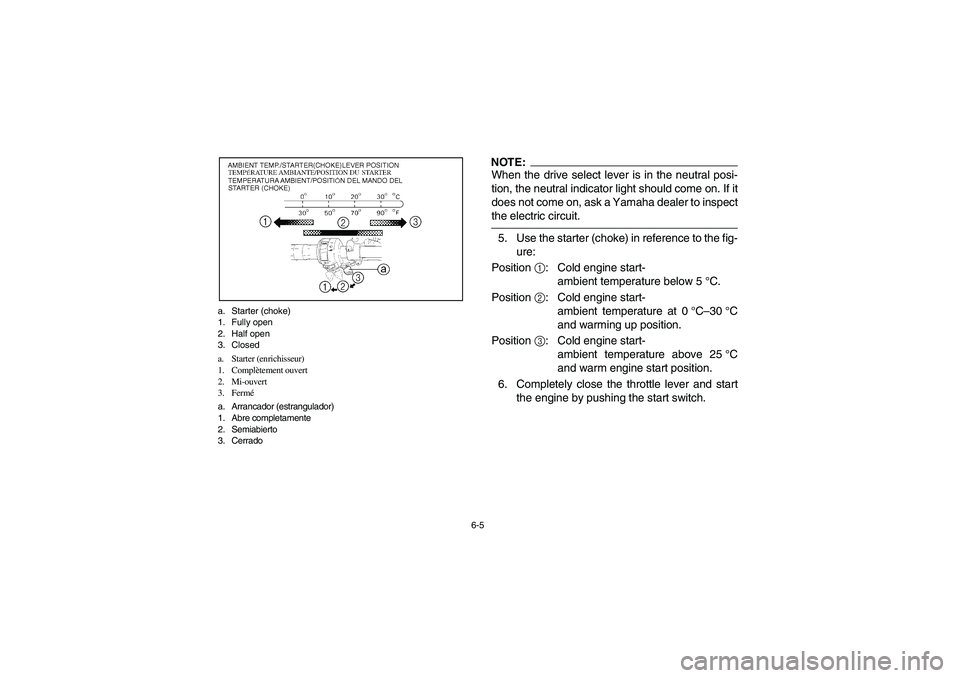

6-5 a. Starter (choke)
1. Fully open
2. Half open
3. Closed
a. Starter (enrichisseur)
1. Complètement ouvert
2. Mi-ouvert
3. Fermé
a. Arrancador (estrangulador)
1. Abre completamente
2. Semiabierto
3. Cerrado
NOTE:_ When the drive select lever is in the neutral posi-
tion, the neutral indicator light should come on. If it
does not come on, ask a Yamaha dealer to inspect
the electric circuit. _5. Use the starter (choke) in reference to the fig-
ure:
Position
1: Cold engine start-
ambient temperature below 5°C.
Position
2: Cold engine start-
ambient temperature at 0°C–30°C
and warming up position.
Position
3: Cold engine start-
ambient temperature above 25°C
and warm engine start position.
6. Completely close the throttle lever and start
the engine by pushing the start switch.
