2004 YAMAHA KODIAK 450 engine

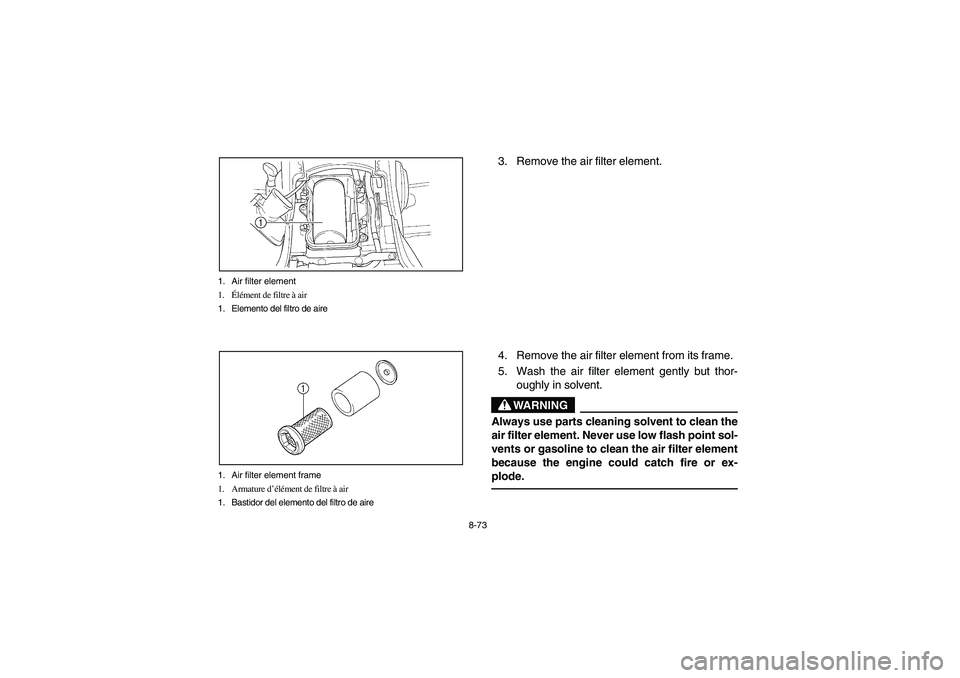

8-73 1. Air filter element
1.Élément de filtre à air
1. Elemento del filtro de aire
1. Air filter element frame
1. Armature d’élément de filtre à air
1. Bastidor del elemento del filtro de aire
3. Remove the air filter element.
4. Remove the air filter element from its frame.
5. Wash the air filter element gently but thor-
oughly in solvent.
WARNING
_ Always use parts cleaning solvent to clean the
air filter element. Never use low flash point sol-
vents or gasoline to clean the air filter element
because the engine could catch fire or ex-
plode. _
U5ND60.book Page 73 Friday, May 10, 2002 12:10 PM

8-75

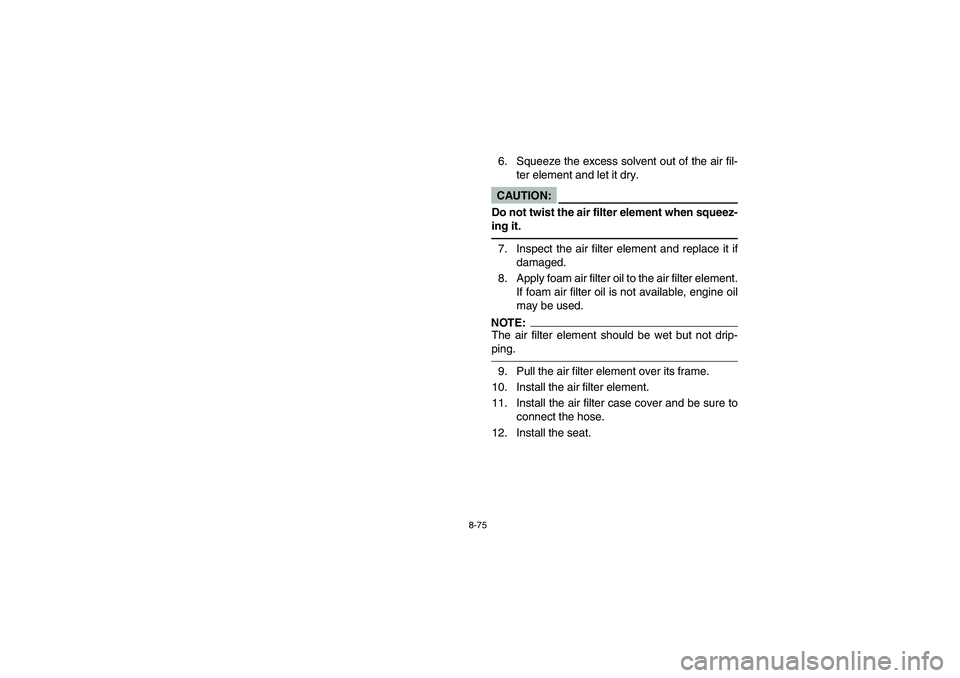

6. Squeeze the excess solvent out of the air fil-
ter element and let it dry.CAUTION:_ Do not twist the air filter element when squeez-
ing it. _7. Inspect the air filter element and replace it if
damaged.
8. Apply foam air filter oil to the air filter element.
If foam air filter oil is not available, engine oil
may be used.NOTE:_ The air filter element should be wet but not drip-
ping. _9. Pull the air filter element over its frame.
10. Install the air filter element.
11. Install the air filter case cover and be sure to
connect the hose.
12. Install the seat.
U5ND60.book Page 75 Friday, May 10, 2002 12:10 PM

8-77
NOTE:_ The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the machine is operated in extremely dusty
areas. Each time air filter element maintenance is
performed, check the air inlet to the air filter case
for obstructions. Check the air filter element rubber
joint to the carburetor and manifold fittings for an
airtight seal. Tighten all fittings securely to avoid
the possibility of unfiltered air entering the engine. _CAUTION:_ Never operate the engine with the air filter ele-
ment removed. This will allow unfiltered air to
enter, causing rapid engine wear and possible
engine damage. Additionally, operation with-
out the air filter element will affect carburetor
jetting with subsequent poor performance and
possible engine overheating. _
U5ND60.book Page 77 Friday, May 10, 2002 12:10 PM

8-79 1. V-belt cooling duct check hose
1. Flexible de contrôle du conduit de refroidissement de la courroie
trapézoïdale
1. Manguera de comprobación del conducto de enfriamiento de
la correa trapezoidal
1. V-belt case drain plug
1. Boulon de vidange du carter de courroie trapézoïdale
1. Tapón de drenaje de la caja de la correa trapezoidal
EBU00874
V-belt cooling duct check hose
If dust or water collects in the V-belt cooling duct
check hose, remove the hose and clean it.
V-belt case drain plug
After riding in water deep enough to allow it to en-
ter the V-belt case, remove this plug to drain the
water from the case.NOTE:_ If water drains from the V-belt case after removing
the plug, have a Yamaha dealer inspect the ATV
as the water may affect other engine parts. _
U5ND60.book Page 79 Friday, May 10, 2002 12:10 PM

8-81
EBU00296

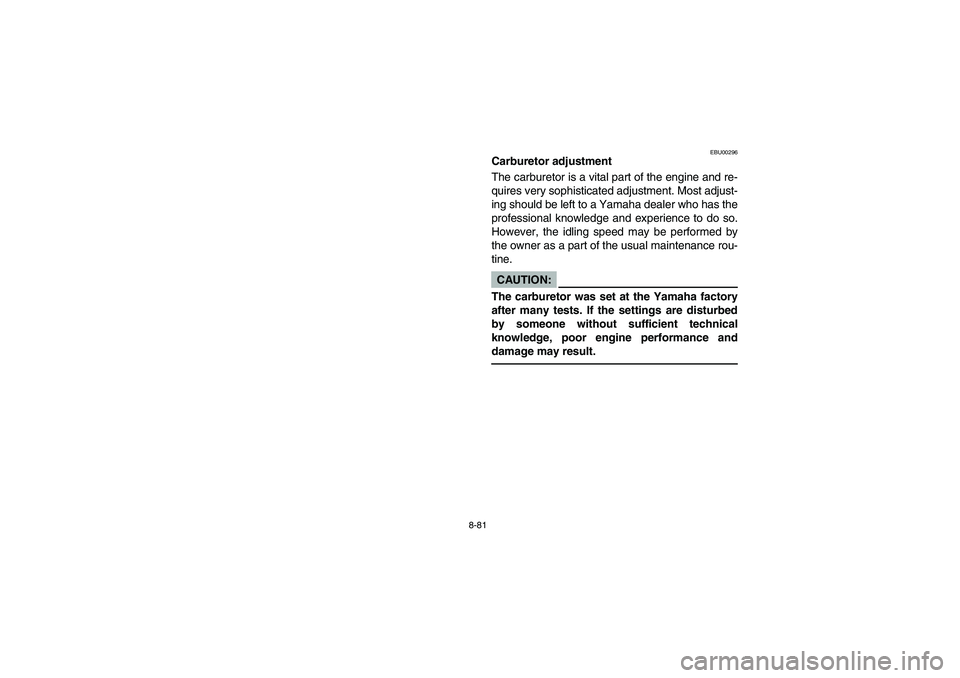

Carburetor adjustment
The carburetor is a vital part of the engine and re-
quires very sophisticated adjustment. Most adjust-
ing should be left to a Yamaha dealer who has the
professional knowledge and experience to do so.
However, the idling speed may be performed by
the owner as a part of the usual maintenance rou-
tine.CAUTION:
The carburetor was set at the Yamaha factory
after many tests. If the settings are disturbed
by someone without sufficient technical
knowledge, poor engine performance and
damage may result.
U5ND60.book Page 81 Friday, May 10, 2002 12:10 PM

8-83 1. Throttle stop screw
1. Vis d’arrêt de l’accélérateur
1. Tornillo de tope del acelerador
EBU00657
Idle speed adjustmentNOTE:A diagnostic tachometer must be used for this pro-
cedure.1. Start the engine and warm it up for a few min-
utes at approximately 1,000 to 2,000 r/min.
Occasionally rev the engine to 4,000 to
5,000 r/min. The engine is warm when it
quickly responds to the throttle.
2. Remove panel D. (See pages 8-17–8-21 for
removal and installation procedures.)
3. Connect the tachometer and set the idle to
the specified idling speed by adjusting the
throttle stop screw. Turn the screw in to in-
crease engine speed, and out to decrease
engine speed.
4. Install the panel.Specified idle speed:
1,450–1,550 r/min
U5ND60.book Page 83 Friday, May 10, 2002 12:10 PM

8-85
EBU00303

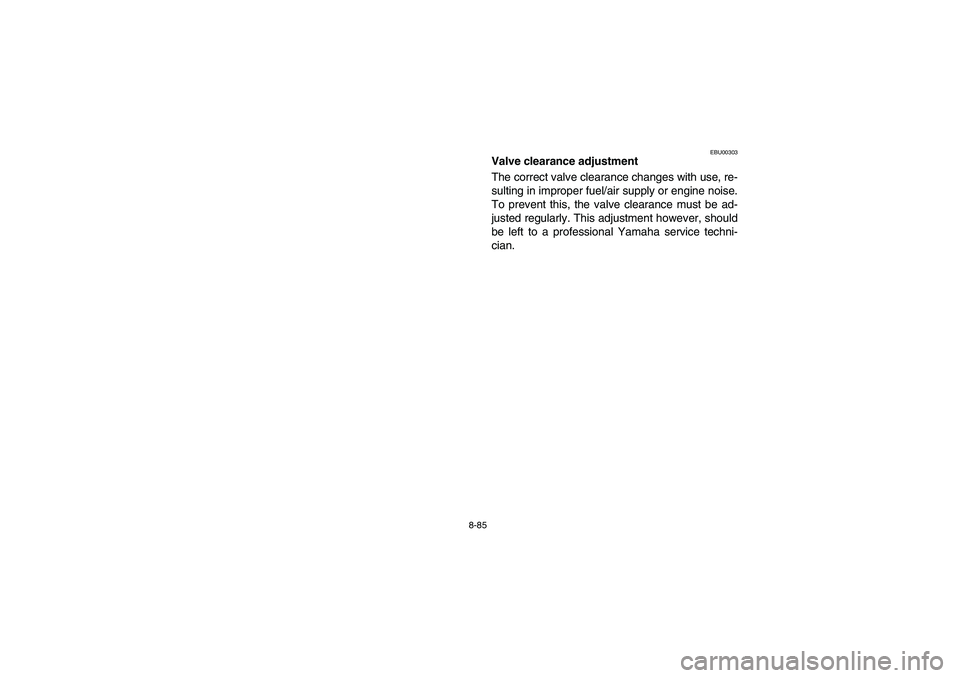

Valve clearance adjustment
The correct valve clearance changes with use, re-
sulting in improper fuel/air supply or engine noise.
To prevent this, the valve clearance must be ad-
justed regularly. This adjustment however, should
be left to a professional Yamaha service techni-
cian.
U5ND60.book Page 85 Friday, May 10, 2002 12:10 PM

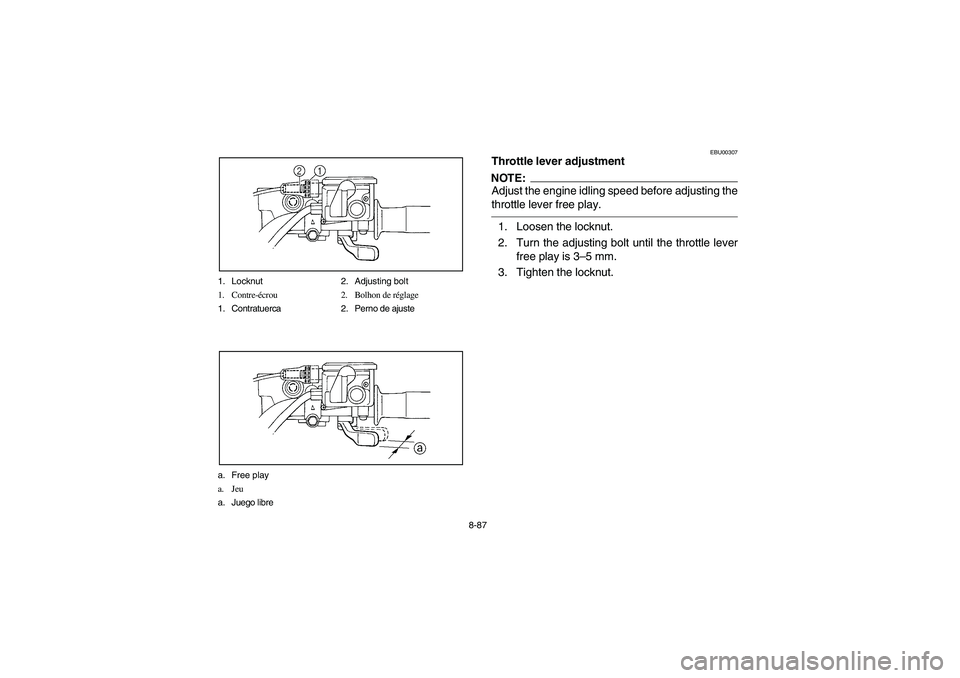

8-87 1. Locknut 2. Adjusting bolt
1. Contre-écrou 2. Bolhon de réglage
1. Contratuerca 2. Perno de ajuste
a. Free play
a. Jeu
a. Juego libre
EBU00307
Throttle lever adjustmentNOTE:Adjust the engine idling speed before adjusting the
throttle lever free play.1. Loosen the locknut.
2. Turn the adjusting bolt until the throttle lever
free play is 3–5 mm.
3. Tighten the locknut.
U5ND60.book Page 87 Friday, May 10, 2002 12:10 PM
