2004 YAMAHA KODIAK 450 engine

8-105
EBU00570

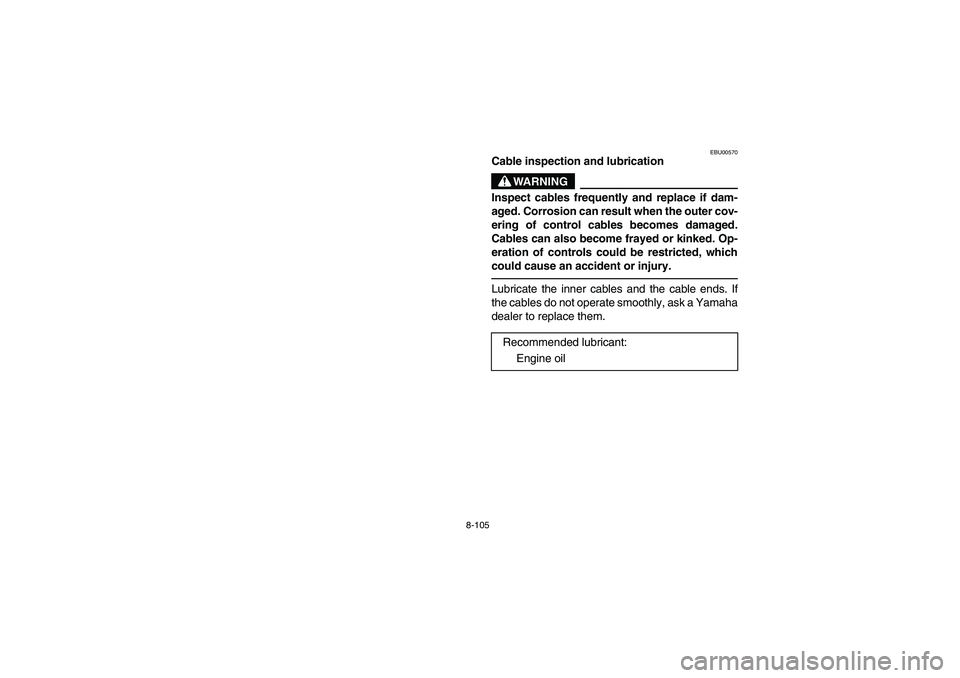

Cable inspection and lubrication
WARNING
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the outer cov-
ering of control cables becomes damaged.
Cables can also become frayed or kinked. Op-
eration of controls could be restricted, which
could cause an accident or injury.Lubricate the inner cables and the cable ends. If
the cables do not operate smoothly, ask a Yamaha
dealer to replace them.
Recommended lubricant:
Engine oil
U5ND60.book Page 105 Friday, May 10, 2002 12:10 PM

8-131
EBU00724Troubleshooting chart
Starting problems or poor engine performance1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.Turn the fuel cock
lever to “OFF”.No fuel.Fuel cock is
clogged.
Clean the
fuel cock. Some fuel.Turn the fuel cock
lever to “RES”.Restart the engine.
No fuel.Supply fuel.
2. Compression
Use the electric
starter to see if
there is compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove the
spark plug and
check electrodes.WetWipe clean with dry cloth.
DryAttach spark plug cap and
ground to chassis.Use the
electric starter.Spark is good.Ignition system is
normal.
Spark is weak.
Adjust the spark plug gap
or replace the spark plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use the electric starter.Engine turns over
quickly.Battery is good.
Engine turns over
slowly.Check the connections.Check the
fuel flow.
Turn the fuel cock
lever to “ON”.
Remove the fuel hose
from the fuel cock.
U5ND60.book Page 131 Friday, May 10, 2002 12:10 PM

8-132
Engine overheatingNOTE:If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. Wait until the
engine has cooled.
Check the coolant level in the
reservoir tank and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
U5ND60.book Page 132 Friday, May 10, 2002 12:10 PM

9-1
EBU00420
CLEANING AND STORAGE
A. CLEANING
Frequent, thorough cleaning of your machine will
not only enhance its appearance but will improve
its general performance and extend the useful life
of many components.
1. Before cleaning the machine:
a. Block off the end of the exhaust pipe to pre-
vent water entry. A plastic bag and strong
rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, ap-
ply degreaser with a paint brush. Do not ap-
ply degreaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the
job.
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

9-5
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish.
When finished, start the engine and let it idle
for several minutes.
WARNING
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out the
linings.
U5ND60.book Page 5 Friday, May 10, 2002 12:10 PM

9-7
EBU00427

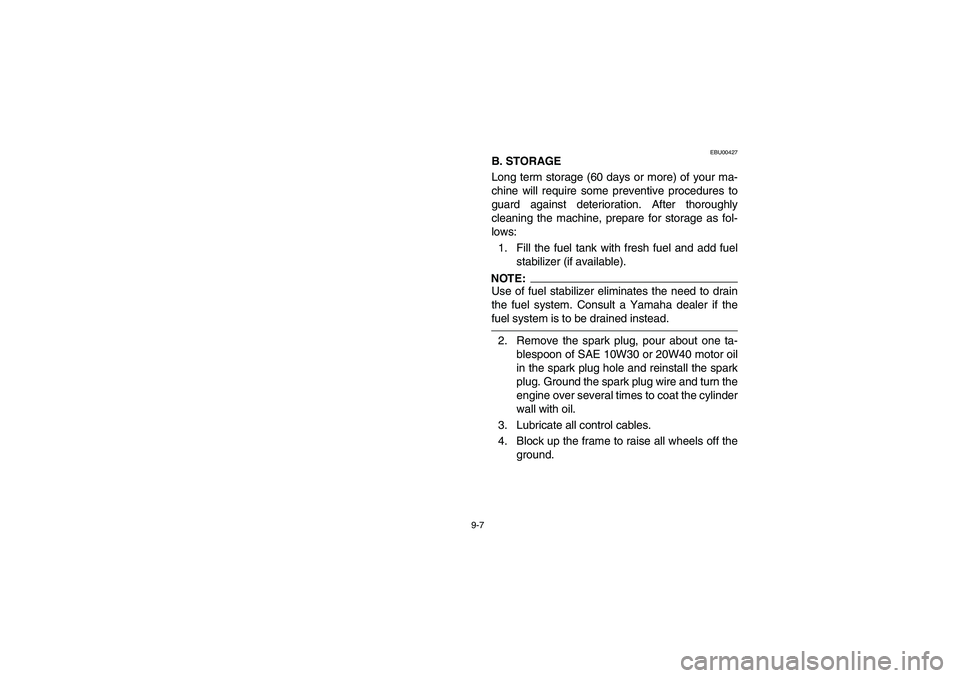

B. STORAGE
Long term storage (60 days or more) of your ma-
chine will require some preventive procedures to
guard against deterioration. After thoroughly
cleaning the machine, prepare for storage as fol-
lows:
1. Fill the fuel tank with fresh fuel and add fuel
stabilizer (if available).NOTE:Use of fuel stabilizer eliminates the need to drain
the fuel system. Consult a Yamaha dealer if the
fuel system is to be drained instead.2. Remove the spark plug, pour about one ta-
blespoon of SAE 10W30 or 20W40 motor oil
in the spark plug hole and reinstall the spark
plug. Ground the spark plug wire and turn the
engine over several times to coat the cylinder
wall with oil.
3. Lubricate all control cables.
4. Block up the frame to raise all wheels off the
ground.
U5ND60.book Page 7 Friday, May 10, 2002 12:10 PM

10-1
EBU00428
SPECIFICATIONS
Model YFM450FA
Dimensions:
Overall length 1,984 mm
Overall width 1,085 mm
Overall height 1,120 mm
Seat height 827 mm
Wheelbase 1,233 mm
Ground clearance 245 mm
Minimum turning radius 3,000 mm
Basic weight:
With oil and full fuel tank 267 kg
Noise and vibration level:
Noise level (77/311/EEC) 79.7 dB(A)
Vibration on seat (EN1032, ISO5008) Not exceed 0.5 m/s
2
Vibration on handlebar (EN1032, ISO5008) 2.5 m/s
2
Engine:
Engine type Liquid-cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 421 cm
3
Bore
× stroke 84.5
× 75.0 mm
Compression ratio 10 :1
Starting system Electric and recoil starter
Lubrication system Wet sump
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

10-2
10
Engine oil:
Type
Recommended engine oil classification API Service SE, SF, SG type or higher
Quantity:
Periodic oil change
With oil filter replacement
Total amount2.3 L
2.4 L
2.6 L Model YFM450FA
-20˚-10˚0˚
10˚20˚30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
CAUTION:
In order to prevent clutch slippage (since the en-
gine oil also lubricates the clutch), do not mix any
chemical additives. Do not use oils with a diesel
specification of “CD” or oils of a higher quality
than specified. In addition, do not use oils labeled
“ENERGY CONSERVING II” or higher.
U5ND60.book Page 2 Friday, May 10, 2002 12:10 PM
