2004 YAMAHA KODIAK 450 brake fluid

OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-15
Engine oil ............................................ 8-31
Final gear oil ....................................... 8-41
Differential gear oil.............................. 8-47
Cooling system ................................... 8-53
Changing the coolant.......................... 8-57
Axle boots ........................................... 8-63
Spark plug inspection ......................... 8-65
Air filter element cleaning ................... 8-71
Carburetor adjustment ........................ 8-81
Idle speed adjustment ........................ 8-83
Valve clearance adjustment ............... 8-85
Throttle lever adjustment .................... 8-87
Front brake pad inspection ................. 8-89
Rear brake pad inspection.................. 8-89
Inspecting the brake fluid level ........... 8-91
Brake fluid replacement ...................... 8-95
Front brake adjustment....................... 8-97
Rear brake lever adjustment .............. 8-99
Adjusting the rear brake light
switch ............................................. 8-103
Cable inspection and lubrication....... 8-105
8
U5ND60.book Page 2 Friday, May 10, 2002 12:10 PM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Rear brake fluid reservoir
5. Radiator cap
6. Front spring preload
adjusting ring
7. V-belt case
8. Brake pedal
9. Front spring preload
adjusting ring
10. Fuel cock
11. Air filter case
12. Fuses
13. Tail/brake light14. V-belt cooling duct check
hose
15. Coolant reservoir
16. Oil filter cartridge
17. Engine oil dipstick
18. Rear brake lever
19. Left handlebar switches
20. Starter (choke)
21. Horn switch
22. Drive select lever
23. Speedometer unit
24. Main switch
25. Fuel tank cap
26. Auxiliary DC jack
27. Right handlebar switch
28. Throttle lever
29. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-89–8-103
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13–5-15,
8-31–8-41
CoolantCheck coolant level in reservoir.
Fill with coolant if necessary.8-53–8-63
Final gear oil and
differential gear oilCheck for leakage. 5-17–5-19, 8-41–8-51
ThrottleCheck for proper throttle cable operation. 5-19, 8-87
Wheels and tiresCheck tire pressure, wear and damage.5-23–5-29,
8-109–8-111
Fittings and fastenersCheck all fittings and fasteners. 5-19
LightsCheck for proper operation. 5-21, 8-123–8-127
Axle bootsCheck for damage. 8-63
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

5-5
EBU01167
Front and rear brakes
Brake lever and brake pedal

Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
inspect the brake system.


Check for correct brake pedal height. (See
pages 8-99–8-101.) If the pedal height is incor-
rect, have a Yamaha dealer adjust it.


Check the operation of the brake lever and
brake pedal. They should move smoothly and
there should be a firm feeling when the brakes
are applied. If not, have a Yamaha dealer in-
spect the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See pages 8-91–8-95.)
Recommended brake fluid: DOT 4
U5ND60.book Page 5 Friday, May 10, 2002 12:10 PM

5-7
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, have a Yamaha dealer inspect the brake sys-
tem.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, in-
spect the brake pads for wear. (See page 8-89.)
WARNING
_ Always check the brakes at the start of every
ride. Do not ride the ATV if you find any prob-
lem with the brakes or you could lose braking
ability, which could lead to an accident. If a
problem cannot be corrected by the adjust-
ment procedures provided in this manual,
have a Yamaha dealer check for the cause. _
U5ND60.book Page 7 Friday, May 10, 2002 12:10 PM

8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
km 320 1,200 2,400 2,400 4,800
hours 20 75 150 150 300
Valves*•Check valve clearance.
•Adjust if necessary.
Cooling system•Check coolant leakage.
•Repair if necessary.
•Replace coolant every 24 months.Spark plug•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter element•Clean.
•Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*•Check and adjust idle speed/starter operation.
•Adjust if necessary.Crankcase breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Retighten if necessary.
•Replace gasket(s) if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil
•Replace. (Warm engine before draining.)Engine oil filter cartridge
•Replace.Engine oil strainer*
•Clean.Final gear oil
•Check oil level/oil leakage.
•Replace every 12 month.Differential gear oil
Front brake*•Check operation/fluid leakage. (See NOTE page 8-8.)
•Correct if necessary.Rear brake*•Check operation/fluid leakage.(See NOTE page 8-8.)
•Correct if necessary.U5ND60.book Page 7 Friday, May 10, 2002 12:10 PM

8-8
* It is recommended that these items be serviced by a Yamaha dealer.
** Lithium-soap-based greaseNOTE:Recommended brake fluid: DOT 4
Brake fluid replacement:
1. When disassembling the master cylinder or caliper cylinder, replace the brake fluid. Normally check
the brake fluid level and add fluid as required.
2. On the inner parts of the master cylinder and caliper cylinder, replace the oil seals every two years.
3. Replace the brake hoses every four years, or if cracked or damaged.V-belt*•Check operation.
•Check for cracks or damage.Wheels*•Check balance/damage/runout.
•Repair if necessary.Wheel bearing*•Check bearing assemblies for looseness/damage.
•Replace if damaged.Front and rear
suspension*•Check operation.
•Correct if necessary.Steering system*•Check operation./Replace if damaged.
•Check toe-in./Adjust if necessary.Drive shaft universal
joint*•Lubricate.**Engine mount*
•Check for cracks or damage.Front axle boots*•Check operation.
•Replace if damaged.Fittings and Fasteners*•Check all chassis fittings and fasteners.
•Correct if necessary.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
km 320 1,200 2,400 2,400 4,800
hours 20 75 150 150 300
U5ND60.book Page 8 Friday, May 10, 2002 12:10 PM

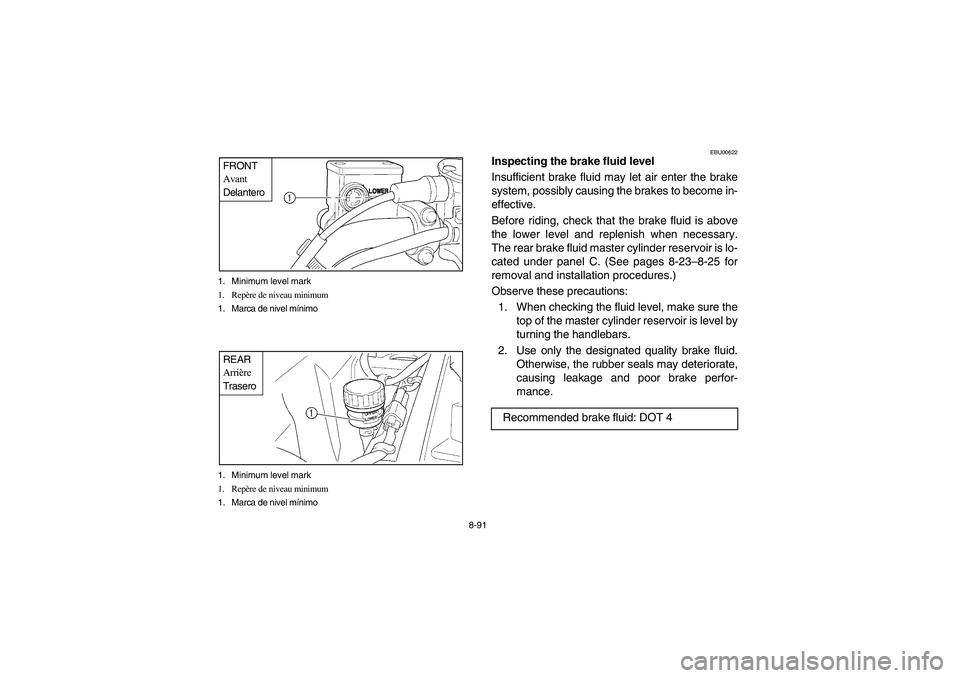

8-91 1. Minimum level mark
1. Repère de niveau minimum
1. Marca de nivel mínimo
FRONT
Avant
Delantero1. Minimum level mark
1. Repère de niveau minimum
1. Marca de nivel mínimoREAR
Arrière
Trasero
EBU00622
Inspecting the brake fluid level
Insufficient brake fluid may let air enter the brake
system, possibly causing the brakes to become in-
effective.
Before riding, check that the brake fluid is above
the lower level and replenish when necessary.
The rear brake fluid master cylinder reservoir is lo-
cated under panel C. (See pages 8-23–8-25 for
removal and installation procedures.)
Observe these precautions:
1. When checking the fluid level, make sure the
top of the master cylinder reservoir is level by
turning the handlebars.
2. Use only the designated quality brake fluid.
Otherwise, the rubber seals may deteriorate,
causing leakage and poor brake perfor-
mance.
Recommended brake fluid: DOT 4
U5ND60.book Page 91 Friday, May 10, 2002 12:10 PM
