2004 VOLVO S80 Owners Manual

Repeat steps 3 and 4 to program the other two transceiver buttons.
If, after several attempts, you are unable to successfully train the HomeLink® Universal Transceiver to learn your
hand -held transmitter's signal, contact HomeLink® toll-free 1-800-355-3515 (Internet: www.HomeLink.com
).
pg. 154 HomeLink® Universal Transceiver (option)
WARNING!
If you use HomeLink® to open a garage door or gate, be sure no one is near the gate or door while it is in motion.
Do not use the HomeLink® Universal Transceiver with any garage door opener that lacks safety "stop" and
"reverse" features as required by federal safety standards. (This includes any garage door opener model
manufactured before April 1, 1982) A garage door opener that cannot "detect" an object, signalling the door to
"stop" and "reverse" does not meet current federal safety standards. Using a garage door opener without these
features increases the risk of serious injury or death. For more information on this matter, call toll-free 1-800-355-
3515 (Internet: www.HomeLink.com
).
NOTE - Canadian residents:
During programming, your hand -held transmitter may automatically stop transmitting. To successfully train
HomeLink®, continue to hold the HomeLink® button. At the same time, repeatedly press and hold your hand -held
transmitter's button at two -second intervals until HomeLink® has learned your transmitter's code. The HomeLink®
indicator light will flash first slowly, and then rapidly to indicate that the button has been successfully programmed.
Determining if your garage door uses a rolling code
Determine, in one of the following ways, if your garage door uses a rolling code system and is manufactured after
1996:
Refer to the garage door opener owner's manual for verification.
If your hand -held transmitter appears to program the HomeLink® Universal Transceiver but the programmed button
does not activate the garage door, your garage door opener may have a rolling code.
Press the programmed HomeLink® button. If the garage door opener has the rolling code feature, the HomeLink®
indicator light flashes rapidly and then glows steadily after approximately 2 seconds.
To train a rolling code garage door opener , follow these instructions after programming the desired transceiver
button according to "Programming the transceiver." The help of a second person may make training easier.
1. Locate the training button on the garage door opener motor head unit . The location and color of the training button
may vary. If you encounter difficulty, refer to the garage door opener owner's manual or call toll-free 1-800-355-3515
(Internet: www.HomeLink.com
).
2. Press the "training" button on the garage door opener motor head unit until the "training" light comes on.
3. Press and release the programmed HomeLink® button. Press and release the programmed HomeLink® button a
second time to complete the training process.
Some garage door openers may require you to do this procedure a third time to complete the training.
The programmed button on your HomeLink® Universal Transceiver should now operate your garage door opener. The
original hand -held transmitter can also be used, as desired, to operate the garage door.
The remaining two HomeLink® buttons can be programmed in the same way. In the event of any problems in
ProCarManuals.com

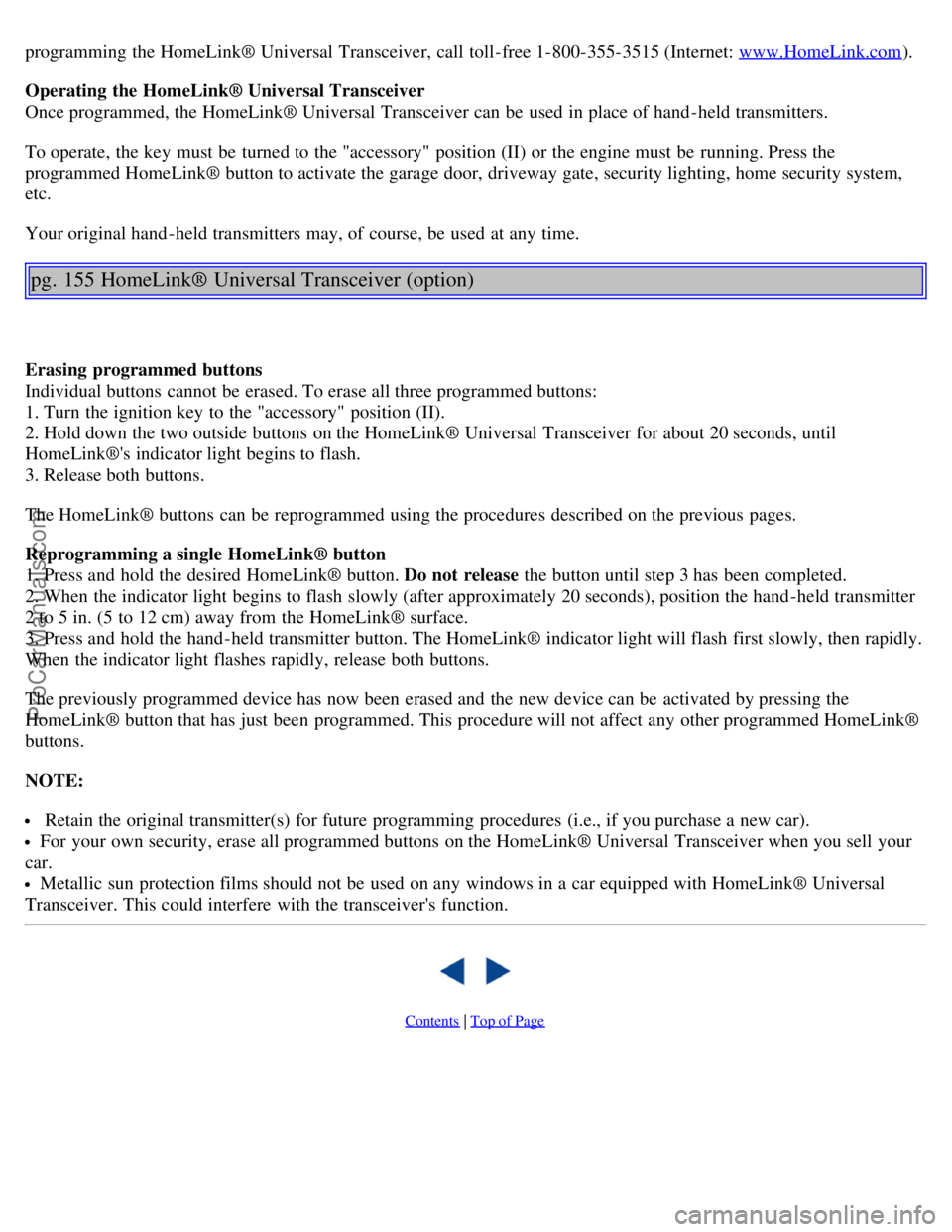

programming the HomeLink® Universal Transceiver, call toll-free 1-800-355-3515 (Internet: www.HomeLink.com).
Operating the HomeLink® Universal Transceiver
Once programmed, the HomeLink® Universal Transceiver can be used in place of hand -held transmitters.
To operate, the key must be turned to the "accessory" position (II) or the engine must be running. Press the
programmed HomeLink® button to activate the garage door, driveway gate, security lighting, home security system,
etc.
Your original hand -held transmitters may, of course, be used at any time.
pg. 155 HomeLink® Universal Transceiver (option)
Erasing programmed buttons
Individual buttons cannot be erased. To erase all three programmed buttons:
1. Turn the ignition key to the "accessory" position (II).
2. Hold down the two outside buttons on the HomeLink® Universal Transceiver for about 20 seconds, until
HomeLink®'s indicator light begins to flash.
3. Release both buttons.
The HomeLink® buttons can be reprogrammed using the procedures described on the previous pages.
Reprogramming a single HomeLink® button
1. Press and hold the desired HomeLink® button. Do not release the button until step 3 has been completed.
2. When the indicator light begins to flash slowly (after approximately 20 seconds), position the hand -held transmitter
2 to 5 in. (5 to 12 cm) away from the HomeLink® surface.
3. Press and hold the hand -held transmitter button. The HomeLink® indicator light will flash first slowly, then rapidly.
When the indicator light flashes rapidly, release both buttons.
The previously programmed device has now been erased and the new device can be activated by pressing the
HomeLink® button that has just been programmed. This procedure will not affect any other programmed HomeLink®
buttons.
NOTE:
Retain the original transmitter(s) for future programming procedures (i.e., if you purchase a new car).
For your own security, erase all programmed buttons on the HomeLink® Universal Transceiver when you sell your
car.
Metallic sun protection films should not be used on any windows in a car equipped with HomeLink® Universal
Transceiver. This could interfere with the transceiver's function.

Contents | Top of Page
ProCarManuals.com

2 0 0 4
VOLVO S80
Index
pg. 157 Index
A
ABS..........17
ABS - warning light..........27
Accessory lights..........29
Active chassis system (Four-C)..........78
Adjusting the steering wheel..........36
Advanced User Mode (AUM) - radio..........145
Air conditioning..........45- 49
Air filter - engine..........119
Air vents..........44
Airbag (SIPS)..........8
Airbag (SRS)..........4
Alarm..........65, 66
Alarm - "panic" function..........65
ALR/ELR..........14
Anti-lock Brake System (ABS)..........17
Anti-lock Brake System - warning light..........27
Antifreeze..........89, 118
Approach lighting..........60
Ashtrays..........38
Audio systems..........137
cassette deck..........148
CD player..........146
HU -611 - overview..........138
HU -801 - overview..........139
radio..........142
specifications..........151
AUM (Advanced User Mode) - radio..........145
Automatic car washing..........115
Automatic Locking Retractor (ALR)..........14
Automatic transmission
ProCarManuals.com

Geartronic..........76, 77
Kickdown..........76
Automatic transmission - cold starts..........75
Auxiliary socket..........29, 38
B
Backrests, rear seat - folding..........58
Battery..........89, 135
Battery maintenance..........125 -126
Replacing the battery..........126
Ventilation hose..........126
Blinds - rear/side rear windows..........42
Booster cushion..........13, 15
Booster cushion - integrated..........13
Brake failure warning light ..........26
Brake fluid..........124, 133
Brake system..........16
Bulbs (list)..........135
Bulbs - replacing..........106-112
C
Capacities (oils and fluids)..........129
, 133
Cargo net in trunk..........57
Catalytic converters - three-way..........91
Center console - switches..........29
Center head restraint - rear seat..........3
Central locking buttons..........63
Chains - winter driving..........95
Changing wheels..........98, 99
Chassis setting (R-models)..........69 78
Child booster cushion ......... 13, 15
Child Restraint Anchorages ........ 12
Child safety..........12 -15
Child safety locks - rear doors..........67
Climate controls..........45 - 49
Climate system - general information..........48
Clock..........25
Coat hanger..........53
Cold weather driving..........89
Combination filter..........45, 49
Coolant..........118, 133
Cooling system..........80, 133
Courtesy light..........54
Courtesy lights (front) - replacing..........112
Courtesy lights - exterior..........60
Cruise control..........31
ProCarManuals.com

Cup holder - opening..........56
D
Dimensions..........131
Direction indicator bulbs (front)..........107
Direction indicators..........35
Distributor ignition system..........134
Door step courtesy lights - replacing..........110
Doors and locks..........60
Drive belt..........118
Driver's seat and remote keyless entry system..........53
Driving economy..........80
Driving mode indicator..........25
Driving mode W..........75, 77, 89
Driving with trunk open..........81
E
Economical driving..........80
Electrical system..........135
Electrical system - general information..........81
Electrically operated front seats..........52
Electrically operated moonroof..........41
Electrically operated sideview mirrors..........40
Electrically operated windows..........39
Electronic Brake Force Distribution..........17
Electronic Climate Control(ECC)..........45 - 49
Emergency Locking Retractor (ELR)..........14
Emergency towing..........83, 84
Emergency warning flashers..........37
Emissions systems..........117
Engine - specifications..........132
Engine - starting..........73
Engine air filter..........119
Engine compartment..........121
Engine oil..........89, 122, 123, 133
Exterior courtesy lights..........60
Exterior features - overview..........23
F
Fog light - rear..........27
, 32
Fog lights - front..........32
Folding head restraints..........29
Folding passenger's seat backrest..........53
Folding rear seat backrests ........58
Four-C (active chassis system).........29, 78
Front airbags - SRS..........4-7
Front airbags - SRS - warning light..........26
ProCarManuals.com

Front courtesy lights - replacing..........112
Front fog lights..........32
Front fog lights - replacing ........109
Front reading lights..........54
Front seats - adjusting..........52
Front seats - heated..........37
Front suspension..........134
Fuel..........70, 133
Fuel filler cap..........72
Fuel filler door..........72
Fuel filler door - unlocking manually..........33
Fuel filter ..........119
Fuel gauge..........25
Fuel requirements..........70
Fuel system..........117, 119, 134
Fuel/emissions systems..........117
Fuses..........102 - 105
G
Gas cap..........72
Gasoline..........70
Gear indicator..........25
Geartronic (automatic transmission)..........76 - 77
Generator..........135
Generator warning light..........26
H
Hand brake..........38
Handling..........81
Hazard warning flashers..........37
Head restraint - center rear..........3
Head restraints, rear - folding..........29
Headlight bulbs - replacing..........106
Headlight wiper blades - replacing..........127
Headlights..........32
Heated front seats..........37
Heated rear window..........37
Heated sideview mirrors..........37
Heating..........45 - 49
Hoisting the car..........120
Home Safe System..........60
HomeLink® ........153-155
Hood - opening..........121
I
Ignition switch..........36
Immobilizer (start inhibitor)..........60,73
ProCarManuals.com

Indicator lights..........26, 27
Inflatable curtain (IC)..........9
Instrument illumination..........32
Instrument panel..........25
Instruments..........24
Integrated booster cushion ........ 13
Interior Air Quality system .........49
Interior features - overview..........22
Interior lighting..........54
J
Jack..........57
, 98, 99
Jump starting..........88
K
Key - removing from ignition switch..........73
Keyless entry system..........61, 62
Keyless entry system - replacing batteries..........62
Keylock..........73
Keys..........60
Kickdown..........76
L
Label information..........130
License plate lights - replacing..........110
Lifting the car..........120
Lights - accessory..........297
Load carriers..........82
Locking and unlocking the car..........60
Locking steering wheel..........36
Long distance trip..........90
Long loads..........53, 58
M
Maintenance service..........116
Malfunction indicator lamp..........27
Manually unlocking the fuel filler door..........33
Memory function - front seats..........52
Mirrors..........40
Mirrors, sideview - memory function..........40
Moonroof..........41
O
Occupant safety..........11
Octane rating..........70
Odometer..........25
Oil - engine..........89, 122, 123, 133
Oil pressure warning light ........ 26
Opening the hood..........121
ProCarManuals.com

Opening the trunk from the inside..........63
P
Paint touch-up..........113
Panic function (alarm)..........65
Parking Assistance, rear..........79
Parking brake..........38
Parking brake reminder light..........26
Parking lights..........32
Passenger's seat backrest - folding..........53
PCV system..........119
Polishing..........115
Power moonroof..........41
Power seats..........52
Power steering - speed-sensitive..........81
Power steering fluid ........ 124, 133
Power windows..........39
PROPOSITION 65 WARNING..........125
R
Rain sensor - windshield wipers..........35
Reading lights - front/rear ........ 54
Rear door step lights - replacing..........110
Rear fog light..........27, 32
Rear Parking Assistance..........79
Rear reading lights..........54
Rear seat backrests - folding..........58
Rear suspension..........134
Rear window - heated..........37
Rearview mirror..........40
Refrigerant..........48, 133
Refueling..........72
Remote control - keyless entry system..........61
Remote control - keyless entry system and sideview mirrors..........40
Remote keyless entry system..........61
Remote keyless entry system - replacing batteries..........62
Remote keyless entry system and driver's seat..........53
Replacing bulbs..........106-112
Replacing fuses..........102
Replacing wiper blades..........127
Reporting safety defects..........11
Road assistance..........136
Roadholding..........81
Roof load - maximum..........131
Roof racks..........82
S
ProCarManuals.com
