± INTAKETURBOCHARGER ASSEMBLY (1CD±FTV)
13±7
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

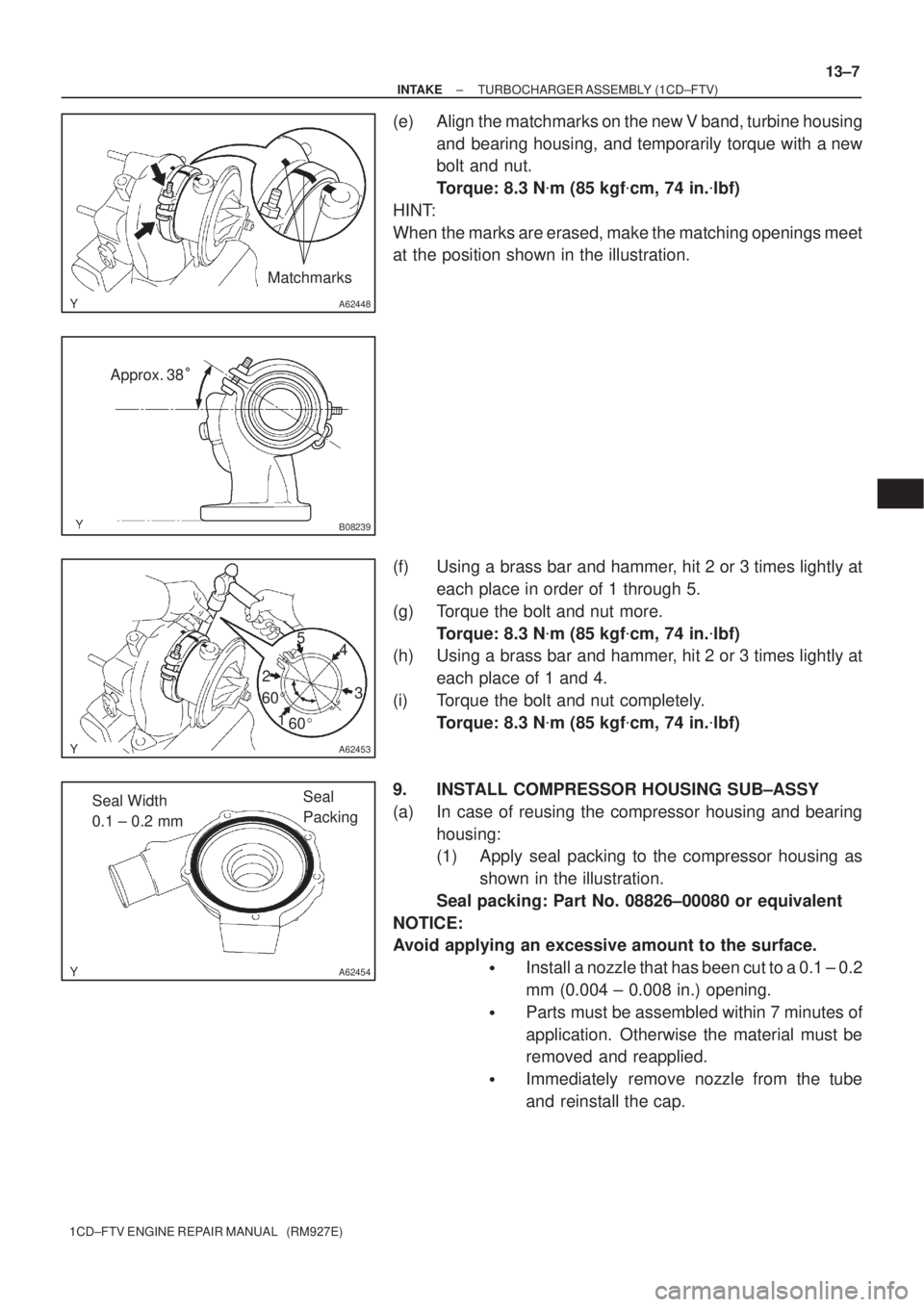

(e) Align the matchmarks on the new V band, turbine housing
and bearing housing, and temporarily torque with a new
bolt and nut.
Torque: 8.3 N
m (85 kgf
cm, 74 in.
lbf)
HINT:
When the marks are erased, make the matching openings meet
at the position shown in the illustration.
(f) Using a brass bar and hammer, hit 2 or 3 times lightly at
each place in order of 1 through 5.
(g) Torque the bolt and nut more.
Torque: 8.3 N
m (85 kgf
cm, 74 in.
lbf)
(h) Using a brass bar and hammer, hit 2 or 3 times lightly at
each place of 1 and 4.
(i) Torque the bolt and nut completely.
Torque: 8.3 N
m (85 kgf
cm, 74 in.
lbf)
9. INSTALL COMPRESSOR HOUSING SUB±ASSY
(a) In case of reusing the compressor housing and bearing
housing:
(1) Apply seal packing to the compressor housing as
shown in the illustration.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:
Avoid applying an excessive amount to the surface.

Install a nozzle that has been cut to a 0.1 ± 0.2
mm (0.004 ± 0.008 in.) opening.

Parts must be assembled within 7 minutes of
application. Otherwise the material must be
removed and reapplied.

Immediately remove nozzle from the tube
and reinstall the cap.

A09519
Hexagon
Wrench
(8mm)
A09476
Seal Width
2 ± 3 mm
A56701
Seal Width
2 ± 4 mm
Seal
PackingNew Gasket
14±10
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)
31. INSTALL OIL CHECK VALVE SUB±ASSY
(a) Using hexagon wrench (8mm), install a new gasket and
the pressure valve.
Torque: 30 N
m (310 kgf
cm, 22 ft
lbf)
32. INSTALL ENGINE REAR OIL SEAL RETAINER
(a) Apply seal packing to the oil seal retainer as shown in the
illustration.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:

Install a nozzle that has been cut to a 2 ± 3 mm (0.08
± 0.12 in.) opening.

Parts must be assembled within 15 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.

Immediately remove nozzle from the tube and rein-
stall the cap.
(b) Install the oil seal retainer with 6 bolts. Uniformly tighten
the bolt in several passes.
Torque: 7.4 N
m (75 kgf
cm, 65 in.
lbf)
33. INSTALL OIL PUMP ASSY
(a) Apply seal packing to the oil pump as shown in the illustra-
tion.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:

Avoid applying an excessive amount to the surface.

Install a nozzle that has been cut to a 2 ± 4 mm (0.08
± 0.16 in.) opening

Parts must be assembled within 15 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.

Immediately remove nozzle from the tube and rein-
stall the cap.
(b) Install a new gasket to the oil pump.

B08024
A57099
A56702
A56703
Seal Width
4 ± 7 mm AB
B A
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±11
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

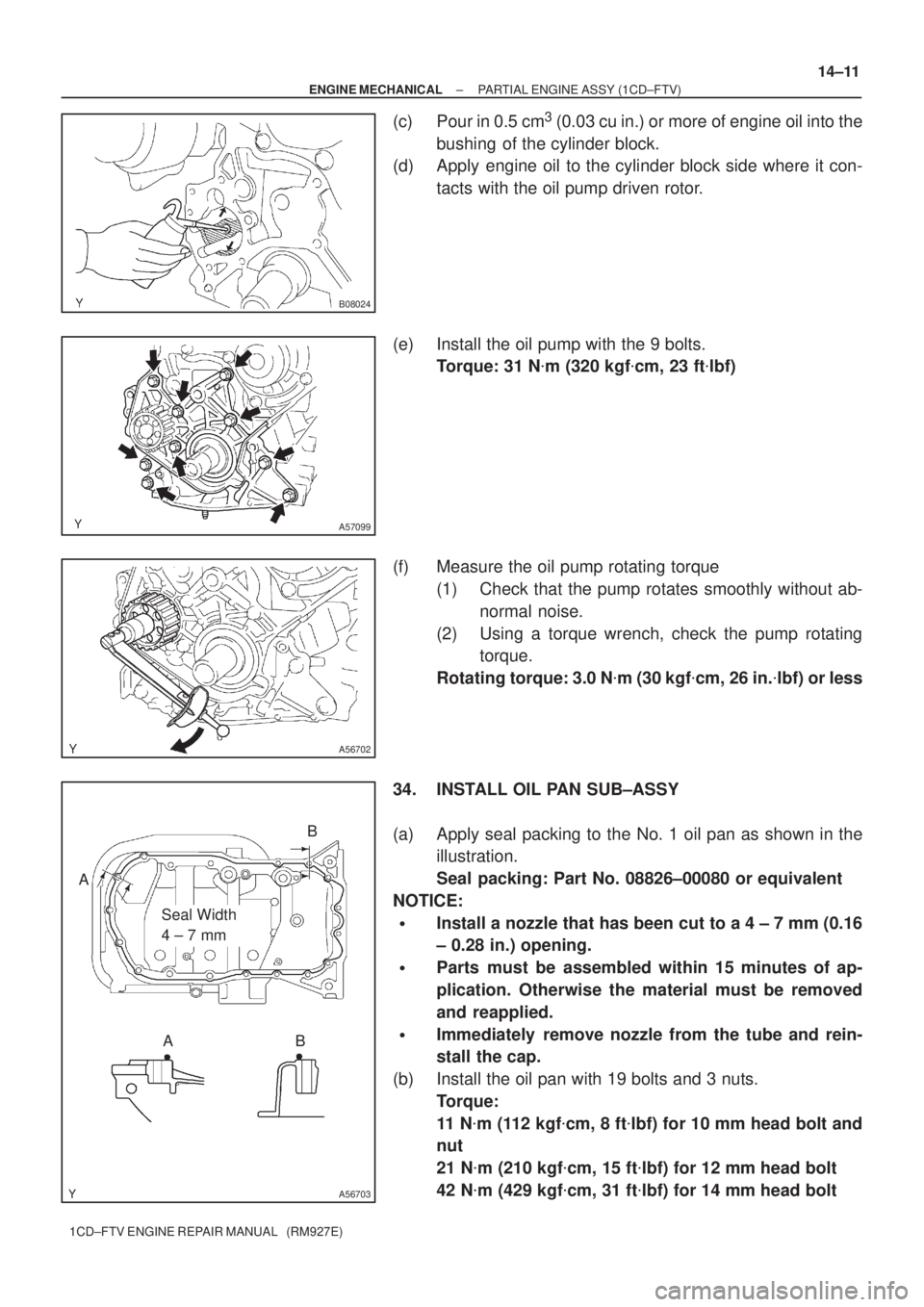

(c) Pour in 0.5 cm3 (0.03 cu in.) or more of engine oil into the
bushing of the cylinder block.
(d) Apply engine oil to the cylinder block side where it con-
tacts with the oil pump driven rotor.
(e) Install the oil pump with the 9 bolts.
Torque: 31 N
m (320 kgf
cm, 23 ft
lbf)
(f) Measure the oil pump rotating torque
(1) Check that the pump rotates smoothly without ab-
normal noise.
(2) Using a torque wrench, check the pump rotating
torque.
Rotating torque: 3.0 N
m (30 kgf
cm, 26 in.
lbf) or less
34. INSTALL OIL PAN SUB±ASSY
(a) Apply seal packing to the No. 1 oil pan as shown in the
illustration.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:

Install a nozzle that has been cut to a 4 ± 7 mm (0.16
± 0.28 in.) opening.

Parts must be assembled within 15 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.

Immediately remove nozzle from the tube and rein-
stall the cap.
(b) Install the oil pan with 19 bolts and 3 nuts.
Torque:
11 N
m (112 kgf
cm, 8 ft
lbf) for 10 mm head bolt and
nut
21 N
m (210 kgf
cm, 15 ft
lbf) for 12 mm head bolt
42 N
m (429 kgf
cm, 31 ft
lbf) for 14 mm head bolt

A56696
A56704
Seal Width
4 ± 7 mmBA
A
B
A56706
Front
Measuring Point
A57100
Measuring Tip
Protrusion 14±12
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)

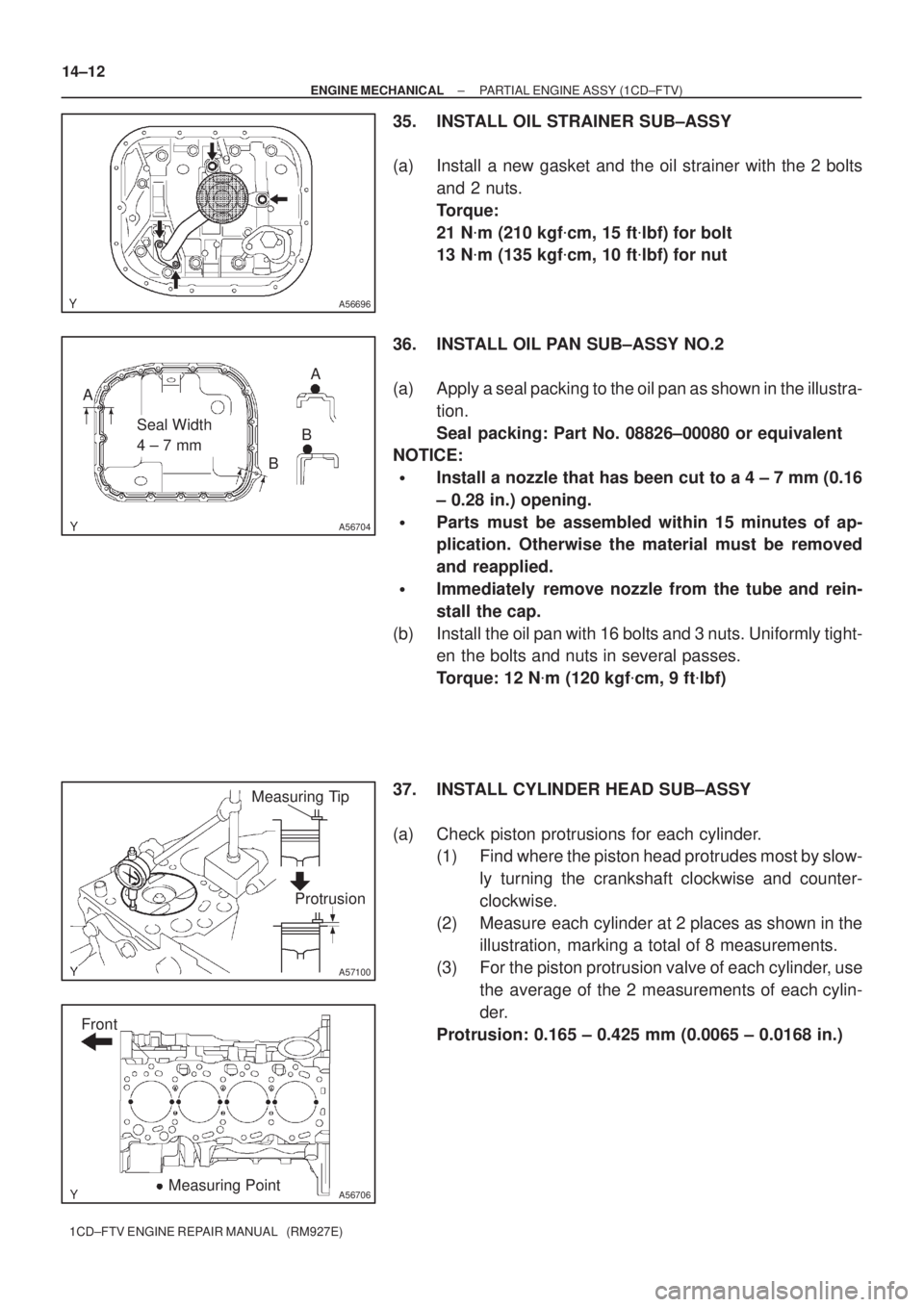

35. INSTALL OIL STRAINER SUB±ASSY
(a) Install a new gasket and the oil strainer with the 2 bolts
and 2 nuts.
Torque:
21 N
m (210 kgf
cm, 15 ft
lbf) for bolt
13 N
m (135 kgf
cm, 10 ft
lbf) for nut
36. INSTALL OIL PAN SUB±ASSY NO.2
(a) Apply a seal packing to the oil pan as shown in the illustra-
tion.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:

Install a nozzle that has been cut to a 4 ± 7 mm (0.16
± 0.28 in.) opening.

Parts must be assembled within 15 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.

Immediately remove nozzle from the tube and rein-
stall the cap.
(b) Install the oil pan with 16 bolts and 3 nuts. Uniformly tight-
en the bolts and nuts in several passes.
Torque: 12 N
m (120 kgf
cm, 9 ft
lbf)
37. INSTALL CYLINDER HEAD SUB±ASSY
(a) Check piston protrusions for each cylinder.
(1) Find where the piston head protrudes most by slow-
ly turning the crankshaft clockwise and counter-
clockwise.
(2) Measure each cylinder at 2 places as shown in the
illustration, marking a total of 8 measurements.
(3) For the piston protrusion valve of each cylinder, use
the average of the 2 measurements of each cylin-
der.
Protrusion: 0.165 ± 0.425 mm (0.0065 ± 0.0168 in.)

A57098
A09600
Seal Width
2 ± 4 mm
Seal Packing
SST
A57101
Inward
Angle Sensor
A57102
Turn
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±17
1CD±FTV ENGINE REPAIR MANUAL (RM927E)
42. INSTALL WATER PUMP ASSY
(a) Install a new gasket and the water pump with the 7bolts.
Torque: 31 N
m (320 kgf
cm, 23 ft
lbf)
43. INSTALL CAMSHAFT OIL SEAL RETAINER
(a) Apply seal packing to the oil seal retainer as shown in the
illustration.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:

Install a nozzle that has been cut to a 2 ± 4 mm (0.08
± 0.16 in.) opening.

Parts must be assembled within 15 minutes of ap-
plication. Otherwise the material must be removed
and reapplied.

Immediately remove nozzle from the tube and rein-
stall the cap.
(b) Install the oil seal retainer with 4 bolts. Uniformly tighten
the 4 bolts in several passes.
Torque: 8.8 N
m (90 kgf
cm, 78 in.
lbf)
44. INSTALL CRANKSHAFT TIMING PULLEY
(a) Align the pulley set key with the key groove of the timing
pulley.
(b) Using SST and a hammer, tap in the timing pulley, facing
the angle sensor inward.
SST 09223±46011
45. INSTALL TIMING BELT IDLER SUB±ASSY NO.2
(a) Install the idler pulley with the bolt.
Torque: 47 N
m (475 kgf
cm, 34 ft
lbf)
(b) Check that the idler pulley moves smoothly.

A56053
Width
45
25

Z03988
45

70

A57105Contacting Width
A09537
14±30
± ENGINE MECHANICALCYLINDER HEAD ASSY (1CD±FTV)
1CD±FTV ENGINE REPAIR MANUAL (RM927E)
(c) Check the valve face and seat according to the following
procedure.
(1) If blue appears 360
around the face, the valve is
concentric. If not, replace the valve.
(2) If blue appears 360
around the valve seat, the
guide and face are concentric. If not, resurface the
seat.
(3) Check that the seat contact is in the middle of the
valve face with the following width.
Intake1.2 ± 1.6 mm (0.047 ± 0.063 in.)
Exhaust1.6 ± 2.0 mm (0.063 ± 0.079 in.)
19. REPAIR INTAKE VALVE SEATS
NOTICE:
Take off a cutter gradually to make smooth valve seats.
(a) If the seating is too high on the valve face, use 25
and
45
cutters to correct the seat.
(b) If the seating is too low on the valve face, use 70
and
45
cutters to correct the seat.
(c) Hand±lap the valve and valve seat with an abrasive com-
pound.
(d) Check the valve seating position.
SST 99999±60014
