0214S±01
02±2
± PREPARATIONENGINE MECHANICAL
1CD±FTV ENGINE REPAIR MANUAL (RM927E)
ENGINE MECHANICAL

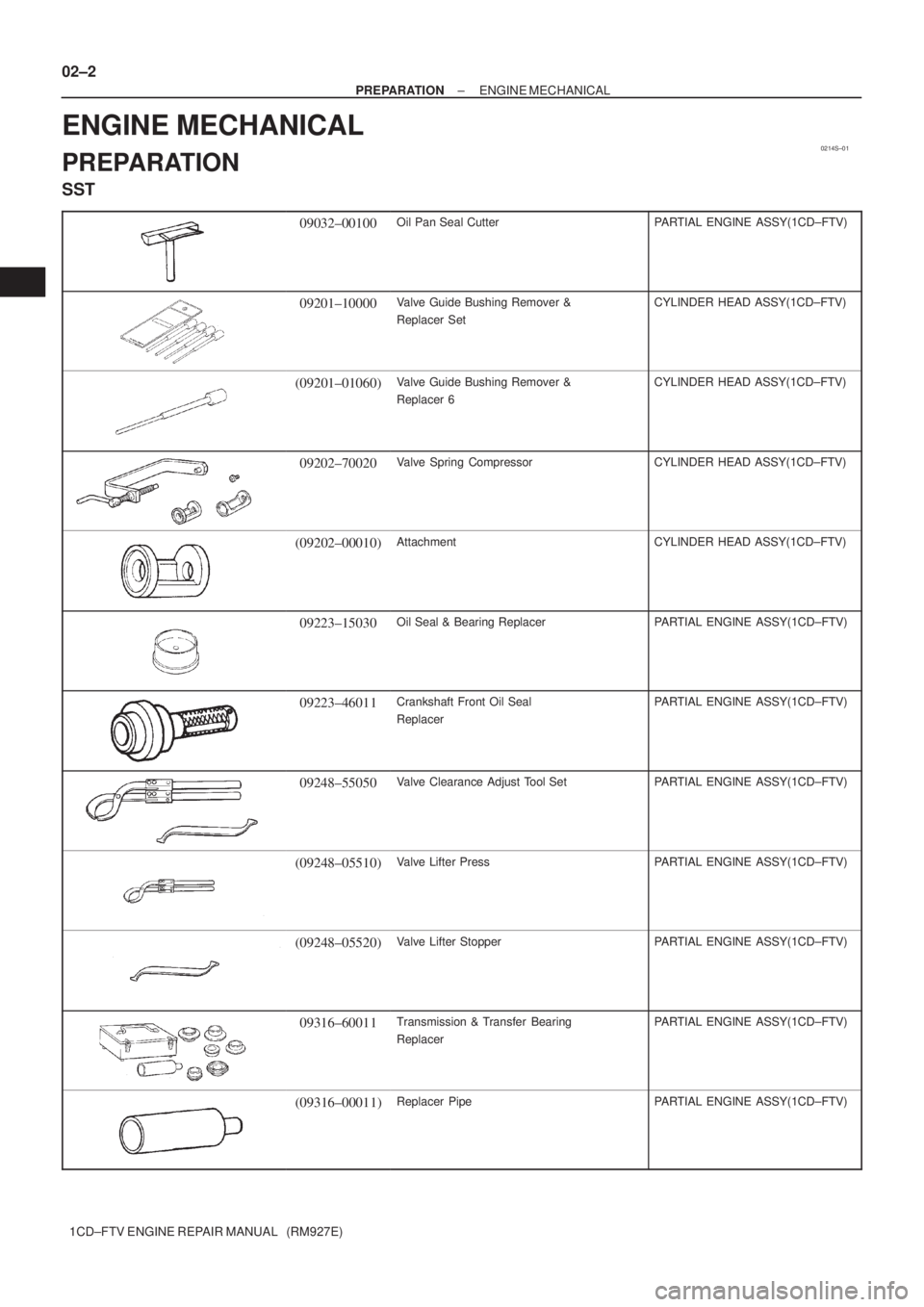

PREPARATION
SST
09032±00100Oil Pan Seal CutterPARTIAL ENGINE ASSY(1CD±FTV)
09201±10000Valve Guide Bushing Remover &
Replacer SetCYLINDER HEAD ASSY(1CD±FTV)
(09201±01060)Valve Guide Bushing Remover &
Replacer 6CYLINDER HEAD ASSY(1CD±FTV)
09202±70020Valve Spring CompressorCYLINDER HEAD ASSY(1CD±FTV)
(09202±00010)AttachmentCYLINDER HEAD ASSY(1CD±FTV)
09223±15030Oil Seal & Bearing ReplacerPARTIAL ENGINE ASSY(1CD±FTV)
09223±46011Crankshaft Front Oil Seal
ReplacerPARTIAL ENGINE ASSY(1CD±FTV)
09248±55050Valve Clearance Adjust Tool SetPARTIAL ENGINE ASSY(1CD±FTV)
(09248±05510)Valve Lifter PressPARTIAL ENGINE ASSY(1CD±FTV)
(09248±05520)Valve Lifter StopperPARTIAL ENGINE ASSY(1CD±FTV)
09316±60011Transmission & Transfer Bearing
ReplacerPARTIAL ENGINE ASSY(1CD±FTV)
(09316±00011)Replacer PipePARTIAL ENGINE ASSY(1CD±FTV)
