2004 SUBARU IMPREZA WRX Owners Manual

2-18
Keys and doors
chirp is emitted. !
Passive arming
When passive arming mode has been programmed by
the dealer, arming of the system is automatically ac-
complished without using the remote transmitter. Note
that in this mode, DOORS MUST BE MANUALLY LOCKED. ! To enter the passive mode
0
1. Remove the side sill cover on the driver’s side.
1) Open the driver’s door.
2) Remove the two clips fastening the front portion
of the cover with a screwdriver. 3) Remove the side sill cover by pulling it up.
1) Connector for SRS airbag system (yellow)
2) White (1P)
2. Connect the white (1 pole) connector.
3. Turn the ignition switch from the “LOCK” to the “ON” position.
4. Install the side sill cover.
To place the system in active arming mode (remote re-
quired for activation), disconnect the white connector.
Do not disconnect or tamper with any yellow
HS2022BA
1
2
HS2023BB

2-19
Keys and doors
– CONTINUED –
connector and/or any harness covered with yel-
low insulation and/or tape.
Doing so could result in accidental inflation of
the SRS airbag or could make the SRS airbag
system inoperative, which may result in serious
injury.
! Arming the system
1. Turn the ignition switch to the “ON” position.
1) ON
2) LOCK
2. Turn the ignition switch from “ON” to “LOCK” posi- tion and remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Before closing the doors, lock all doors with the in-
side door lock levers.
5. Close the doors. The system will automatically arm
after one minute.
In the passive mode, the system can also be armed
with the remote transmitter or with the power door
locking switches. If the remote transmitter or power
door lock switch is used to lock the vehicle, arming will
take place immediately regardless of whether or not
the passive mode has been selected.
1
2
1
2
HS2024BB
HS2013FB
4
5
3

2-20
Keys and doors
In passive mode, the system will automatically
activate the alarm but WILL NOT automatically
lock the doors. In order to lock the doors you
must either lock them as indicated in step 4
above or with the key once they have been
closed. Failure to lock the doors manually will
result in a higher security risk.
! Disarming the system
To disarm the system, briefly press the “UNLOCK/
DISARM” button on the transmitter. " Tripped sensor identification
If an electronic chirp sounds four times and the turn
signal lights flash four times when you disarm the sys-
tem, this indicates that the alarm was triggered. The
number of times the indicator light flashes indicates
what sensor caused the alarm condition.
To enter identification mode:
1. Open the driver’s door and leave it open.
2. Turn the ignition switch to the “ON” position twotimes. (“LOCK” → “ON” → “LOCK” → “ON” →
“LOCK”)
3. The indicator light will start flashing. The indicator light provides the following indications.
Flashing one time:
Any door, the rear gate or the
trunk lid has been opened.
Flashing three times: The impact sensor in the sys-
tem’s unit has been activated. This may indicate that
your vehicle has been shocked or tampered with by
some outside force and/or unauthorized person.
Flashing four times: The ignition switch has been
turned on or the battery has been disconnected.
NOTE
The battery must be reconnected before the indi-
cator light will flash.
To exit this mode, close the door and turn the ignition
switch to the “ON” position.

2-21
Keys and doors
– CONTINUED –
Child safety locks
1) Lock
2) Unlock
Each rear door has a child safety lock that prevents
the doors from being opened even if the inside door
handle is pulled.
When the child safety lock lever is in the lock position,
the door cannot be opened from inside regardless of
the position of the inner door handle lock lever. The
door can only be opened from the outside.
Always use the child safety lock whenever a
child rides in the rear seat. Serious injury could
result if a child accidentally opened the door
and fell out.
1 2
UG2503BB

2-22
Keys and doors
Windows !
Power windows
To avoid serious personal injury caused by en-
trapment, you must do the followings. "When operating the power windows, be ex-
tremely careful to prevent anyone’s fingers,
arms, neck or head from being caught in the
window." Always lock the passengers’ windows using
the lock switch when children are riding in the
vehicle." Before leaving the vehicle, always remove
the key from the ignition switch for safety and
never allow an unattended child to remain in
the vehicle. Failure to follow this procedure
could result in injury to a child operating the
power window.
The power windows operate only when the ignition
switch is in the “ON” position. !
Driver’s side switches
1) Lock switch
2) For driver’s window (with one-touch auto down fea- ture)
3) For front passenger’s window
4) For rear left window
5) For rear right window
All door windows can be controlled by the power win-
dow switch cluster at the driver side door.
2 3
4 1
5
UG2504BB

2-23
Keys and doors
– CONTINUED –

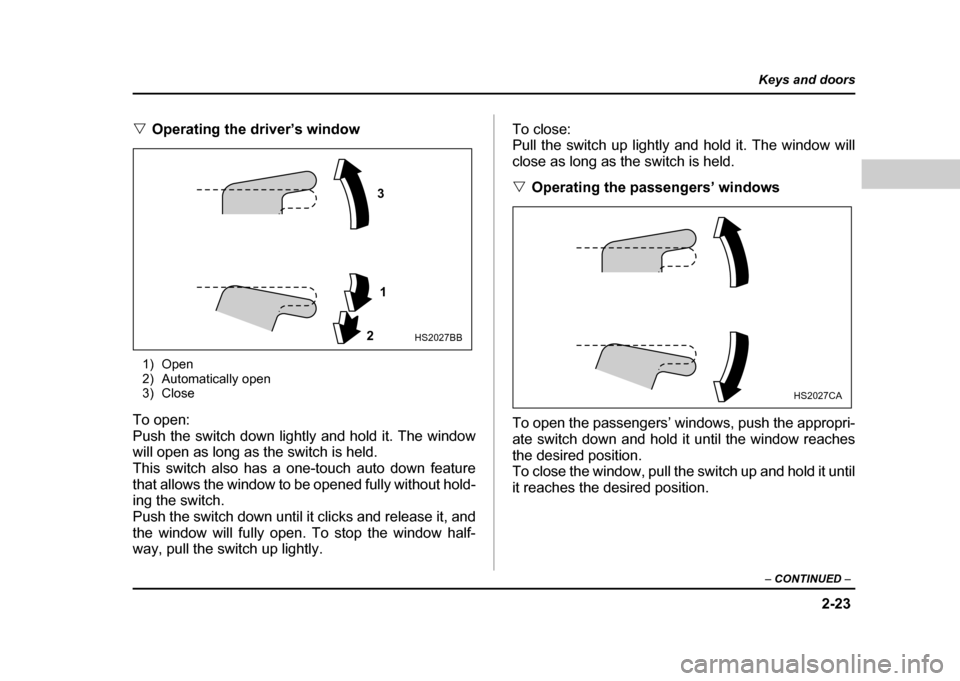

"Operating the driver’s window
1) Open
2) Automatically open
3) Close
To open:
Push the switch down lightly and hold it. The window
will open as long as the switch is held.
This switch also has a one-touch auto down feature
that allows the window to be opened fully without hold-
ing the switch.
Push the switch down until it clicks and release it, and
the window will fully open. To stop the window half-
way, pull the switch up lightly. To close:
Pull the switch up lightly and hold it. The window will
close as long as the switch is held. "
Operating the passengers’ windows
To open the passengers’ windows, push the appropri-
ate switch down and hold it until the window reaches
the desired position.
To close the window, pull the switch up and hold it until
it reaches the desired position.
3 1
2
HS2027BB
HS2027CA

2-24
Keys and doors
"

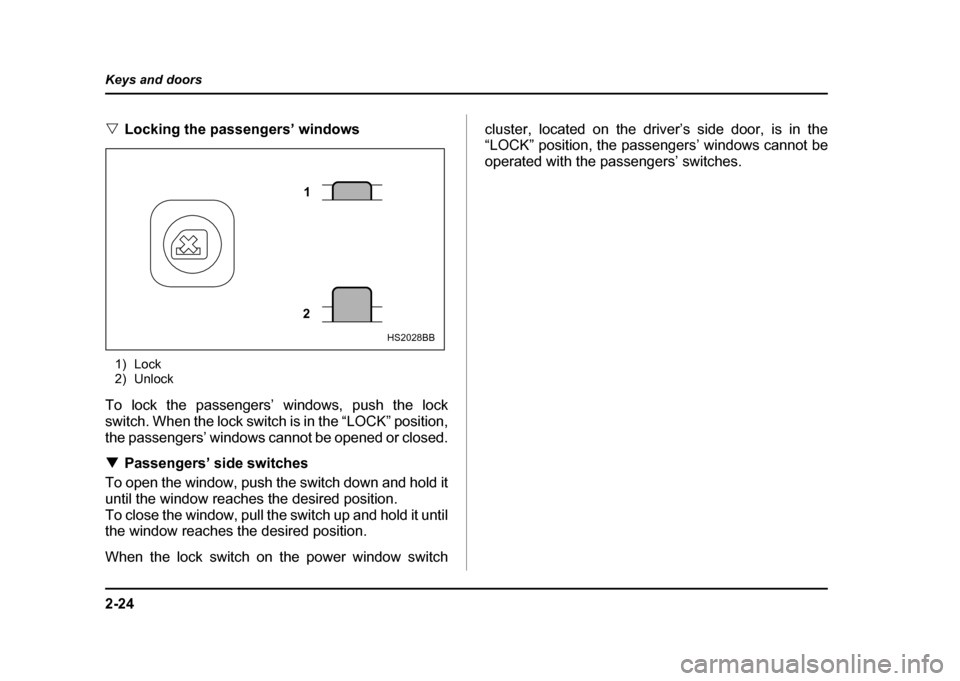

Locking the passengers’ windows
1) Lock
2) Unlock
To lock the passengers’ windows, push the lock
switch. When the lock switch is in the “LOCK” position,
the passengers’ windows cannot be opened or closed. ! Passengers’ side switches
To open the window, push the switch down and hold it
until the window reaches the desired position.
To close the window, pull the switch up and hold it until
the window reaches the desired position.
When the lock switch on the power window switch cluster, located on the driver’s side door, is in the
“LOCK” position, the passengers’ windows cannot be
operated with the passengers’ switches.
1
2
HS2028BB

2-25
Keys and doors
– CONTINUED –
Trunk lid (Sedan)
"To prevent dangerous exhaust gas from en-
tering the vehicle, always keep the trunk lid
closed while driving." Help prevent young children from locking
themselves in the trunk. When leaving the vehi-
cle, either close all windows and lock all doors
or cancel the inside trunk lid release. Also make
certain that the trunk is closed.
On hot or sunny days, the temperature in the
trunk could quickly become high enough to
cause death or serious heat-related injuries in-
cluding brain damage, particularly for small
children. !
To open and close the trunk lid from
outside
To open the trunk lid from outside, insert the key and
turn it clockwise.
To close the trunk lid, lightly press the trunk lid down
until the latch engages.
UG2505BA
