2004 SUBARU IMPREZA engine

12-1
12
Specifications
Specifications ................................................ 12-2 Dimensions ....................................................... 12-2
Engine ................................................................ 12-3
Electrical system .............................................. 12-3
Capacities .......................................................... 12-4
Tires ................................................................... 12-5
Wheel alignment ............................................... 12-5
Fuses and circuits ........................................ 12-6 Fuse panel located behind the coin tray ....... 12-6
Fuse panel located in the engine compartment 12-8
Bulb chart ...................................................... 12-9
Vehicle identification .................................... 12-10

12-3
Specifications
– CONTINUED –
!Engine
! Electrical system
AT: Automatic transmission
MT: Manual transmission
Engine modelEJ251(2.5-liter, SOHC, non-turbo)EJ205 (2.0-liter, DOHC, turbo)EJ257 (2.5-liter, DOHC, turbo)
Engine typeHorizontally opposed, liquid cooled 4 cylinder, 4-stroke gasoline engine
Displacement cu in. (cc)150 (2,457)122 (1,994)150 (2,457)
Bore × Stroke in. (mm)3.9 × 3.1 (99.5 × 79.0)3.6 × 2.9 (92.0 × 75.0)3.9 × 3.1 (99.5 × 79.0)
Compression ratio10.0 : 18.0 : 18.2 : 1
Firing order1 – 3 – 2 – 4
Battery type and
capacity (5HR)MT12V-48AH (55D23L)
ATWith 2.5-liter engine12V-52AH (75D23L)
With 2.0-liter turbo engine12V-52AH (65D23L)
Alternator2.5-liter and 2.0-liter turbo engine12V – 75A
2.5-liter turbo engine12V – 90A
Spark plugs2.5-liter engineRC10YC4 (Champion)
BKR6E-11 (NGK)
BKR5E-11 (NGK)
2.0-liter turbo enginePFR6G (NGK)
2.5-liter turbo engineIFLR6B (NGK)

12-4
Specifications !
Capacities
AT: Automatic transmission
MT: Manual transmission
Fuel tank15.9 US gal (60 liters, 13.2 Imp gal)
Engine oil2.5-liter engine model4.2 US qt (4.0 liters, 3.5 Imp qt)
2.0-liter turbo engine model4.8 US qt (4.5 liters, 4.0 Imp qt)
2.5-liter turbo engine model
Transmission oil (MT)5 speed3.7 US qt (3.5 liters, 3.1 Imp qt)
6 speed4.3 US qt (4.1 liters, 3.6 Imp qt)
Transmission oil (AT)10.0 US qt (9.5 liters, 8.4 Imp qt)
Power steering gear fluid0.7 US qt (0.7 liter, 0.6 Imp qt)
Engine coolant2.5-liter engine modelMT7.4 US qt (7.0 liters, 6.2 Imp qt)
AT7.3 US qt (6.9 liters, 6.1 Imp qt)
2.0-liter turbo engine modelMT8.1 US qt (7.7 liters, 6.8 Imp qt)
AT8.0 US qt (7.6 liters, 6.7 Imp qt)
2.5-liter turbo engine modelMT8.1 US qt (7.7 liters, 6.8 Imp qt)

12-6
Specifications
Fuses and circuits !
Fuse panel located behind the coin tray
1
23456
78 9101112
13 14 15
16 17 18 19
20 21 22 23
HSC001BB
Fuse panelFuse ratingCircuit
115A"Heater fan
215A"Heater fan
315A"Power door lock
" Remote keyless entry
420A"Cigarette lighter
" Remote controlled rear
view mirrors
510A"Tail light
" Parking light
615A"SRS airbag
715A"Fog light
820A"ABS solenoid
915A"Radio
10Empty
1115A"Engine ignition system
" SRS airbag
" AT control system

12-8
Specifications
!

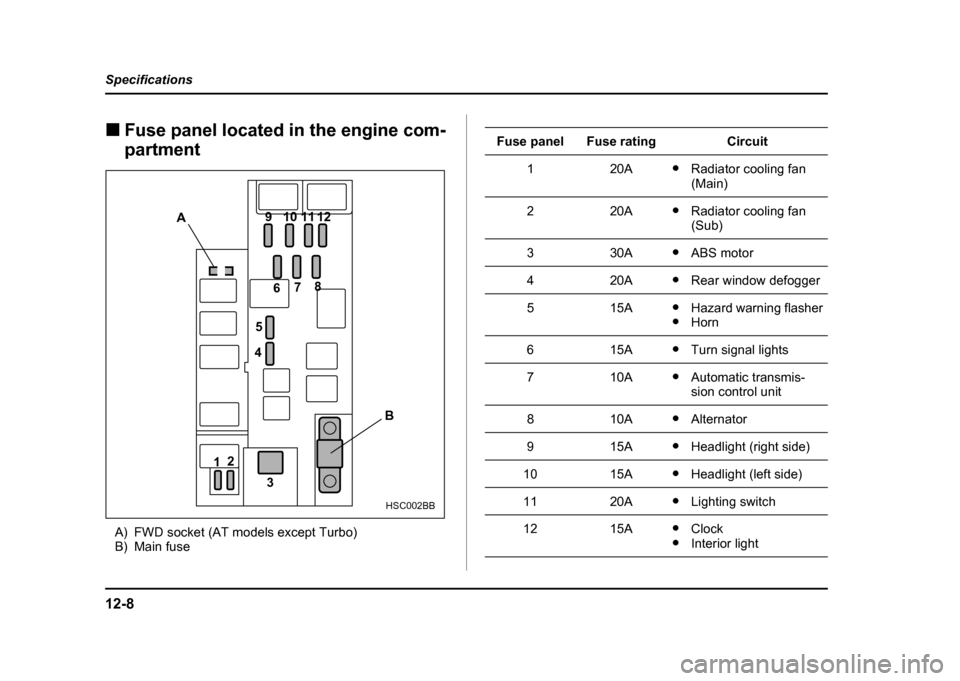

Fuse panel located in the engine com-
partment
A) FWD socket (AT models except Turbo)
B) Main fuse
A 12
3 B
4
5 6
78
91011
12
HSC002BB
Fuse panelFuse ratingCircuit
120A"
Radiator cooling fan
(Main)
220A"Radiator cooling fan
(Sub)
330A"ABS motor
420A"Rear window defogger
515A"Hazard warning flasher
" Horn
615A"Turn signal lights
710A"Automatic transmis- sion control unit
810A"Alternator
915A"Headlight (right side)
1015A"Headlight (left side)
1120A"Lighting switch
1215A"Clock
" Interior light
