2004 SKODA SUPERB Owner's Manual

Fuses and light bulbs
256
Changing the bulb for interior light of vehicles without an
electric sliding/tilting roof
– Insert a small screwdriver into the slot next to the light ⇒page 255, fig. 192.
– Carefully press out the light and remove it from the headliner.
– Take the faulty bulb out of and insert a new one.
– First of all place the lights in the mounts at the rear and press them into the headliner, until they lock into place.
Changing the bulb for interior light of vehicles with an
electric sliding/tilting roof
– Position a small screwdriver carefully against the rear edge of the cover of the power roof drive - arrows 1- ⇒page 255,
fig. 193.
– Lever off the cover down carefully.
– Insert a small screwdriver into the slot next to the light - arrow 2-.
– Carefully press out the light and remove it from the headliner.
– Take the faulty bulb out of and insert a new one.
– First of all place the lights in the side plastic mounts and press them upwards, until they lock into place.
– Press on the cover again by first of all inserting the plastic lugs and then pushing the cover up.
Interior lights at the rear
Changing the bulb for lights without interior monitoring
sensors
– Insert a small screwdriver into the slot next to the light cover ⇒fig. 194 and carefully lever the cover off.
– Take the faulty bulb out of and insert a new one.
– Insert the cover and press it in fully until it locks in place.
Changing the bulb for lights with interior monitoring
sensors
– We recommend having these bulbs replaced by a Škoda dealer.
Fig. 194 The interior
light at the rear without
interior monitoring
sensors

Fuses and light bulbs257
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

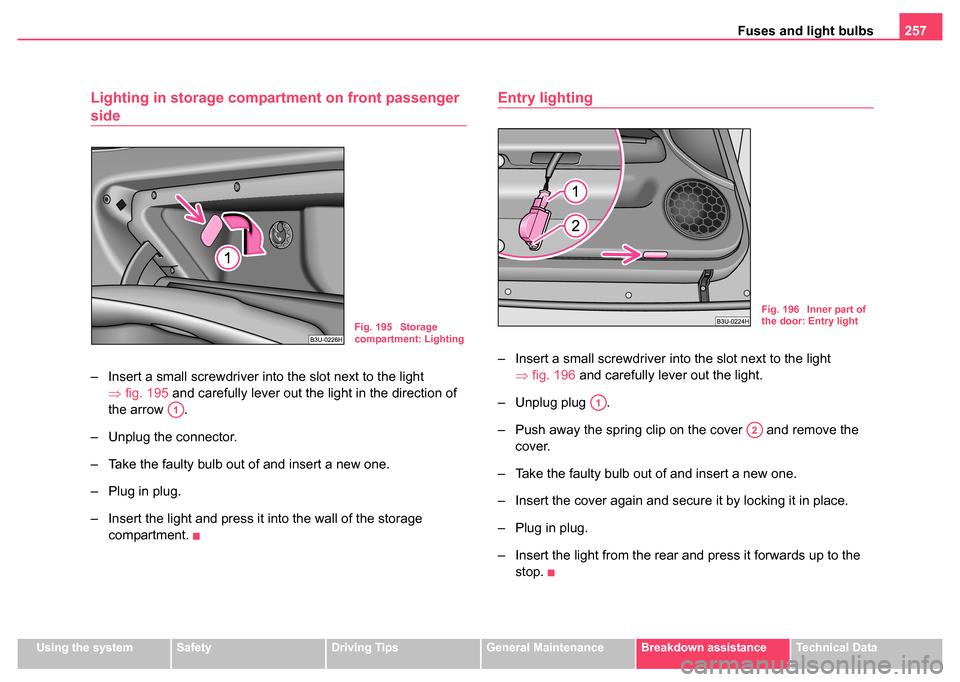

Lighting in storage compartment on front passenger
side
– Insert a small screwdriver into the slot next to the light
⇒fig. 195 and carefully lever out the light in the direction of
the arrow .
– Unplug the connector.
– Take the faulty bulb out of and insert a new one.
– Plug in plug.
– Insert the light and press it into the wall of the storage compartment.
Entry lighting
– Insert a small screwdriver into the slot next to the light ⇒fig. 196 and carefully lever out the light.
– Unplug plug .
– Push away the spring clip on the cover and remove the cover.
– Take the faulty bulb out of and insert a new one.
– Insert the cover again and secure it by locking it in place.
– Plug in plug.
– Insert the light from the rear and press it forwards up to the stop.
Fig. 195 Storage
compartment: Lighting
A1
Fig. 196 Inner part of
the door: Entry light
A1
A2

Fuses and light bulbs
258

General259
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Technical Data
General
Identification data
Vehicle data sticker
The vehicle data sticker ⇒fig. 197 is located on the floor of the luggage
compartment and is also stated in the Service Schedule.
The vehicle data sticker contains the following vehicle data:
Vehicle identification number
Vehicle type
Gearbox code, paint number, interior equipment number, engine
output, engine code
Optional equipment Vehicle identification number
The vehicle identification number is stamped in the rear cross panel of the
engine compartment and is also indicated below the windscreen on the
left in the driver area.
Engine number
The engine number is stamped into the engine block.
Ty p e p l a t e
The type plate is affixed to the rear cross panel in the engine compartment
on the right looking in the direction of travel.
Vehicles for certain export countries do not have a type plate.
Stickers on inside of fuel filler flap
The stickers are affixed to the inside of the fuel filler flap and contain the
following data:•The prescribed types of fuel
•Tyre size
•Tyre pressure
Note
•You will find the technical data of your vehicle in the separate brochure
"Technical Data".
•Please note that the information stated in the official vehicle regis-
tration documents always takes priority.
Fig. 197 Vehicle data
sticker
A1
A2
A3
A4

General
260

Index261
Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 233
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . 141 Adjusting front seats manually . . . . . . . . . 70
electrically . . . . . . . . . . . . . . . . . . . . . . . . 71
Adjusting the steering wheel . . . . . . . . . . . . 116
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . 108
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152 Deactivating . . . . . . . . . . . . . . . . . . . . . . 161
Deployment . . . . . . . . . . . . . . . . . . . . . . 153
Front airbags . . . . . . . . . . . . . . . . . . . . . 154
Head airbags . . . . . . . . . . . . . . . . . . . . . 159
Side airbags . . . . . . . . . . . . . . . . . . . . . . 157
Warning light . . . . . . . . . . . . . . . . . . . . . . 30
Airbag system . . . . . . . . . . . . . . . . . . . . . . . 152 Warning light . . . . . . . . . . . . . . . . . . . . . . 30
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
An overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Antilock Brake System . . . . . . . . . . . . . . . . 179
Antilock brake system - ABS Warning light . . . . . . . . . . . . . . . . . . . . . . 34 Anti-theft alarm system . . . . . . . . . . . . . . . . . 48
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Auto Check Control . . . . . . . . . . . . . . . . . . . . 24
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . 18
Automatic gearbox . . . . . . . . . . . . . . . . . . . . 126
Emergency programme . . . . . . . . . . . . . 131
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . 129
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . 130
Automatic seat adjustment . . . . . . . . . . . . . . 72
Automatic vehicle wash systems . . . . . . . . . 196
Avoiding damage to your vehicle . . . . . . . . . 184
B
Before setting off . . . . . . . . . . . . . . . . . . . . . 140
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 150
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . 121
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . 180
Brake booster . . . . . . . . . . . . . . . . . . . . . . . 179
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . 32 Brake system
Warning light . . . . . . . . . . . . . . . . . . . . . . . 35
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252 Warning light . . . . . . . . . . . . . . . . . . . . . . . 33
Button on the driver's door Central locking system . . . . . . . . . . . . . . . 44
C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
CargoFlex . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
CargoFlex folding box . . . . . . . . . . . . . . . . . . 87
Catalytic converter . . . . . . . . . . . . . . . . . . . . 183
Central locking system . . . . . . . . . . . . . . . . . . 41Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing a wheel . . . . . . . . . . . . . . . . . . . . 238
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . 252
Changing oil . . . . . . . . . . . . . . . . . . . . . . . . . 213
Changing wheels around . . . . . . . . . . . . . . . 228
Charging the battery . . . . . . . . . . . . . . . . . . 221 Warning light . . . . . . . . . . . . . . . . . . . . . . . 36
Chassis number . . . . . . . . . . . . . . . . . . . . . . 259
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . 164 Side airbags . . . . . . . . . . . . . . . . . . . . . . 167
Child safety locks . . . . . . . . . . . . . . . . . . . . . . 41

Index
262
Child safety seats
ISOFIX system . . . . . . . . . . . . . . . . . . . 173
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . 168 attach . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Child seat protection . . . . . . . . . . . . . . . 171
Classification into groups . . . . . . . . . . . 168
on the front passenger seat . . . . . . . . . 166
Safety instructions . . . . . . . . . . . . . . . . . 164
Use of child seats . . . . . . . . . . . . . . . . . 168
Children and safety . . . . . . . . . . . . . . . . . . . 164
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . 198
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . 95
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Climatronic Air outlet vents . . . . . . . . . . . . . . . . . . . 114
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Defrosting windows . . . . . . . . . . . . . . . . 110
economic use . . . . . . . . . . . . . . . . . . . . 110
Keeping windows demisted . . . . . . . . . . 111
Operational problems . . . . . . . . . . . . . . 110
Recirculated air mode . . . . . . . . . . . . . . 112
Setting temperature . . . . . . . . . . . . . . . . 113
Climatronic (automatic air conditioning) . . . 109
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . 103
Cockpit An overview . . . . . . . . . . . . . . . . . . . . . . . 11
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . 60
Compartments . . . . . . . . . . . . . . . . . . . . . . . 97
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Convenience operation . . . . . . . . . . . . . . . . . 52 Converting/masking over headlights . . . . . . 184
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
replenishing . . . . . . . . . . . . . . . . . . . . . . 216
Warning light . . . . . . . . . . . . . . . . . . . . . . 31
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . 31
Coolant temperature gauge . . . . . . . . . . . . . 14
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . 31
Cooling Climatronic . . . . . . . . . . . . . . . . . . . . . . . 109
The air conditioning system . . . . . . . . . . 104
Correct seated position . . . . . . . . . . . . . . . . 141
Counter for distance driven . . . . . . . . . . . . . . 16
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 123
Cruise control system . . . . . . . . . . . . . . . . . 123
D
Deactivating an airbag . . . . . . . . . . . . . . . . 161
Defrosting rear window . . . . . . . . . . . . . . . . . 62
Defrosting windows The air conditioning system . . . . . . . . . . 106
De-icing windows . . . . . . . . . . . . . . . . . . . . 198
Detachable towing device . . . . . . . . . . . . . . 192
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Diesel engines Starting engine . . . . . . . . . . . . . . . . . . . 119
Differential Lock (EDL) . . . . . . . . . . . . . . . . 177 Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Direction indicators . . . . . . . . . . . . . . . . . . . . 59
Warning light . . . . . . . . . . . . . . . . . . . . . . 29
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Distance driven . . . . . . . . . . . . . . . . . . . . . . . 21
distance driven . . . . . . . . . . . . . . . . . . . . . . . 16
Door Child safety locks . . . . . . . . . . . . . . . . . . . 41
Warning light . . . . . . . . . . . . . . . . . . . . . . 33
Drinks can holder at the front . . . . . . . . . . . . . . . . . . . . . . . . 92
at the rear . . . . . . . . . . . . . . . . . . . . . . . . . 92
Driving economically . . . . . . . . . . . . . . . . . . 185
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Dynamo Warning light . . . . . . . . . . . . . . . . . . . . . . 36
E
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Electric sliding/tilting roof . . . . . . . . . . . . . . . . 53
Electrically adjustable rear mirror . . . . . . . . . 67
Electrically adjustable seats . . . . . . . . . . . . . 71
Electronic Differential LockWarning light . . . . . . . . . . . . . . . . . . . . . . 34
Electronic Differential Lock (EDL) . . . . . . . . 177
Electronic immobiliser Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Electronic stability programme (ESP) . . . . . 175 Warning light . . . . . . . . . . . . . . . . . . . . . . 34

Index263
Emergency operation
Fuel filler flap . . . . . . . . . . . . . . . . . . . . . 207
Engine Starting . . . . . . . . . . . . . . . . . . . . . . . . . . 118
switch off . . . . . . . . . . . . . . . . . . . . . . . . 119
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . 209
Engine electronics EPC warning light . . . . . . . . . . . . . . . . . . 31
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 changing . . . . . . . . . . . . . . . . . . . . . . . . 213
check . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
replenishing . . . . . . . . . . . . . . . . . . . . . . 213
Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Engine revolutions counter . . . . . . . . . . . . . . 14
Environment . . . . . . . . . . . . . . . . . . . . . . . . 185
Environmental compatibility . . . . . . . . . 185, 189
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Exhaust gases Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . 67
F
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . 235
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Warning light . . . . . . . . . . . . . . . . . . . . . . 31
Folding box . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Folding down rear seats . . . . . . . . . . . . . . . . 82
For the first 1 500 kilometres . . . . . . . . . . . . 182
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 154
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . 102
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Fuel consumption . . . . . . . . . . . . . . . . . 20, 185 Saving energy . . . . . . . . . . . . . . . . . . . . 185
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . 239
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 Assignment . . . . . . . . . . . . . . . . . . . . . . 251
G
GearboxAutomatic . . . . . . . . . . . . . . . . . . . . . . . . 126
mechanical . . . . . . . . . . . . . . . . . . . . . . . 120
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Glow plug system . . . . . . . . . . . . . . . . . . . . 119 Warning light . . . . . . . . . . . . . . . . . . . . . . 31
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Hazard warning light system . . . . . . . . . . . . . 58
Warning light . . . . . . . . . . . . . . . . . . . . . . . 29
Hazard warning lights system . . . . . . . . . . . . 58
Head airbags . . . . . . . . . . . . . . . . . . . . . . . . 159
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . 74
Headlight cleaning system . . . . . . . . . . . . . . . 65
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . 59
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . 57
Headlight cleaning system . . . . . . . . . . . . 65
Heated windscreen washer nozzles . . . . . . . . 64
Heating Climatronic . . . . . . . . . . . . . . . . . . . . . . . 109
The air conditioning system . . . . . . . . . . 104
Heating of the external mirror . . . . . . . . . . . . 67
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 117
Information display . . . . . . . . . . . . . . . . . . . . . 22
Inspecting the engine oil level . . . . . . . . . . . 212
Instrument cluster . . . . . . . . . . . . . . . . . . . . . 13
Instrument lighting . . . . . . . . . . . . . . . . . . . . . 57
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Interior lighting at the front . . . . . . . . . . . . . . . . . . . . . . . . 60
at the rear . . . . . . . . . . . . . . . . . . . . . . . . . 61
Luggage compartment . . . . . . . . . . . . . . . 62
