2004 SATURN VUE Owners Manual

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-7
Windshield Wiper Lever...................................3-9
Cruise Control (2.2L L4 Engine)......................3-11
Cruise Control (3.5L V6 Engine).....................3-14
Exterior Lamps.............................................3-17
Interior Lamps..............................................3-19
Accessory Power Outlets...............................3-20
Climate Controls............................................3-21
Climate Control System.................................3-21
Passenger Compartment Air Filter...................3-23
Warning Lights, Gages, and Indicators............3-25
Instrument Panel Cluster................................3-26
Speedometer and Odometer...........................3-27
Tachometer.................................................3-27
Safety Belt Reminder Light.............................3-28
Airbag Readiness Light..................................3-28
Battery Warning Light....................................3-29Up-Shift Light...............................................3-30
Brake System Warning Light..........................3-30
Anti-Lock Brake System Warning Light.............3-31
Traction Control System (TCS)
Warning Light...........................................3-32
Low Traction Light........................................3-33
Engine Coolant Temperature
Warning Light...........................................3-33
Engine Coolant Temperature Gage..................3-34
Low Coolant Warning Light............................3-34
Malfunction Indicator Lamp.............................3-35
Oil Pressure Light.........................................3-38
Change Engine Oil Light................................3-39
Security Light...............................................3-39
Reduced Engine Power Light.........................3-39
Daytime Running Lamps (DRL)
Indicator Light...........................................3-40
Gate Ajar Light.............................................3-40
Service Vehicle Soon Light............................3-40
Fuel Gage...................................................3-41
Low Fuel Warning Light.................................3-42
Section 3 Instrument Panel
3-1
ProCarManuals.com

Audio System(s).............................................3-42
Setting the Time for Radios without
Radio Data Systems (RDS)........................3-43
Setting the Time for Radios with
Radio Data Systems (RDS)........................3-43
AM-FM Radio...............................................3-43
Radio with CD (Base Level)...........................3-45
Radio with CD (MP3)....................................3-49Rear Seat Entertainment System....................3-62
Theft-Deterrent Feature..................................3-72
Radio Reception...........................................3-74
Care of Your CDs and DVDs.........................3-75
Care of Your CD and DVD Player...................3-75
Fixed Mast Antenna......................................3-75
XM™ Satellite Radio Antenna System.............3-75
Section 3 Instrument Panel
3-2
ProCarManuals.com

✍NOTES
3-3
ProCarManuals.com

Instrument Panel Overview
3-4
ProCarManuals.com

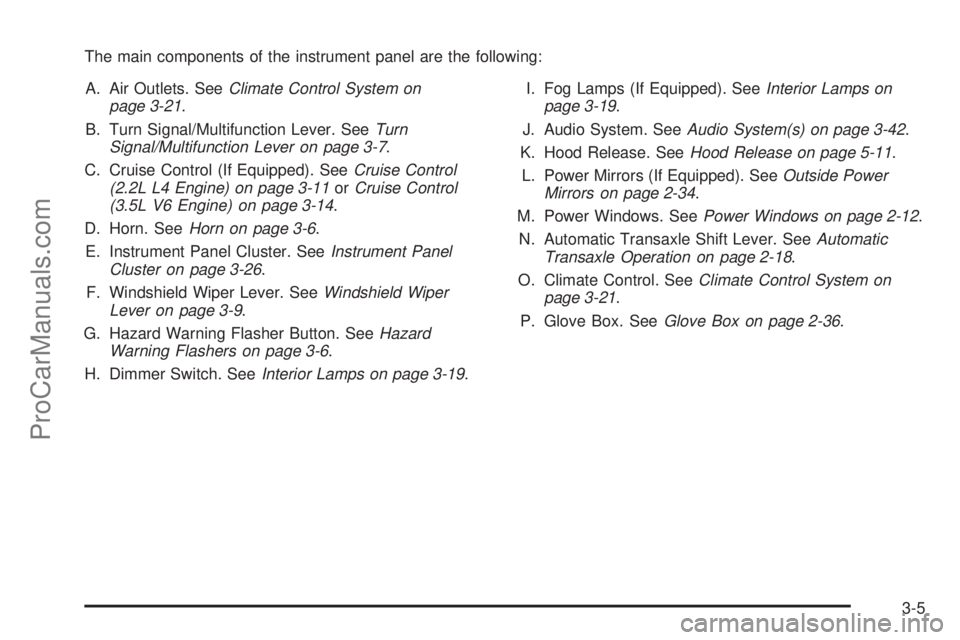

The main components of the instrument panel are the following:
A. Air Outlets. SeeClimate Control System on
page 3-21.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7.
C. Cruise Control (If Equipped). SeeCruise Control
(2.2L L4 Engine) on page 3-11orCruise Control
(3.5L V6 Engine) on page 3-14.
D. Horn. SeeHorn on page 3-6.
E. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-26.
F. Windshield Wiper Lever. SeeWindshield Wiper
Lever on page 3-9.
G. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.
H. Dimmer Switch. SeeInterior Lamps on page 3-19.I. Fog Lamps (If Equipped). SeeInterior Lamps on
page 3-19.
J. Audio System. SeeAudio System(s) on page 3-42.
K. Hood Release. SeeHood Release on page 5-11.
L. Power Mirrors (If Equipped). SeeOutside Power
Mirrors on page 2-34.
M. Power Windows. SeePower Windows on page 2-12.
N. Automatic Transaxle Shift Lever. SeeAutomatic
Transaxle Operation on page 2-18.
O. Climate Control. SeeClimate Control System on
page 3-21.
P. Glove Box. SeeGlove Box on page 2-36.
3-5
ProCarManuals.com

Hazard Warning Flashers
Your hazard warning ashers let you warn others. They
also let police know you have a problem. Your front
and rear turn signal lamps will ash on and off.The hazard warning
asher button is located
near the center of the
instrument panel.
Your hazard warning ashers work no matter what
position your key is in, and even if the key isn’t in.
Press the button to make the front and rear turn signal
lamps ash on and off. Press the button again to
turn the ashers off.
When the hazard warning ashers are on, your turn
signals won’t work. Make sure the hazard warning
asher switch is all the way to the left for normal turn
signal operation.
Horn
You can sound the horn by pressing the horn symbols
on your steering wheel.
3-6
ProCarManuals.com

Tilt Wheel
Your vehicle has a tilt wheel which allows you to adjust
the steering wheel before you drive. You can raise it
to the highest level to give your legs more room when
you exit and enter the vehicle.
The lever that allows you
to tilt the steering wheel is
located on the left side
of the steering column.
To tilt the wheel, hold the wheel and push the lever
down. Then, move the wheel to a comfortable position
and pull the lever up rmly to lock the column in
place.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
Turn and Lane-Change Signals
Headlamps
Headlamp High/Low-Beam Changer
Flash-to-Pass Feature
For additional information on the exterior lamps,
seeExterior Lamps on page 3-17.
3-7
ProCarManuals.com

Turn and Lane-Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is nished, the lever will return
automatically.
An arrow on the instrument
panel cluster will ash in
the direction of the
turn or lane change.
To signal a lane change, raise or lower the lever until
the arrow starts to ash. Hold it there until you complete
the lane change. The lever will return by itself when
you release it.
As you signal a turn or a lane change, if the arrows
ash rapidly, a signal bulb may be burned out and other
drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when you
signal a turn, check the fuse, seeFuses and Circuit
Breakers on page 5-98and for burned-out bulbs.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high or
high beam to low, pull the turn signal lever all the way
towards you. Then release it.
When the high beams
are on, this light on the
instrument panel cluster
will also be on.
Flash-to-Pass
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass.
To use it, pull the turn signal/multifunction lever toward
you until the high-beam headlamps come on, then
release the lever to turn them off.
Headlamps
The exterior lamp control is located on the turn
signal/multifunction lever.
O(Exterior Lamp Control):Turn the control with this
symbol on it to operate the exterior lamps.
