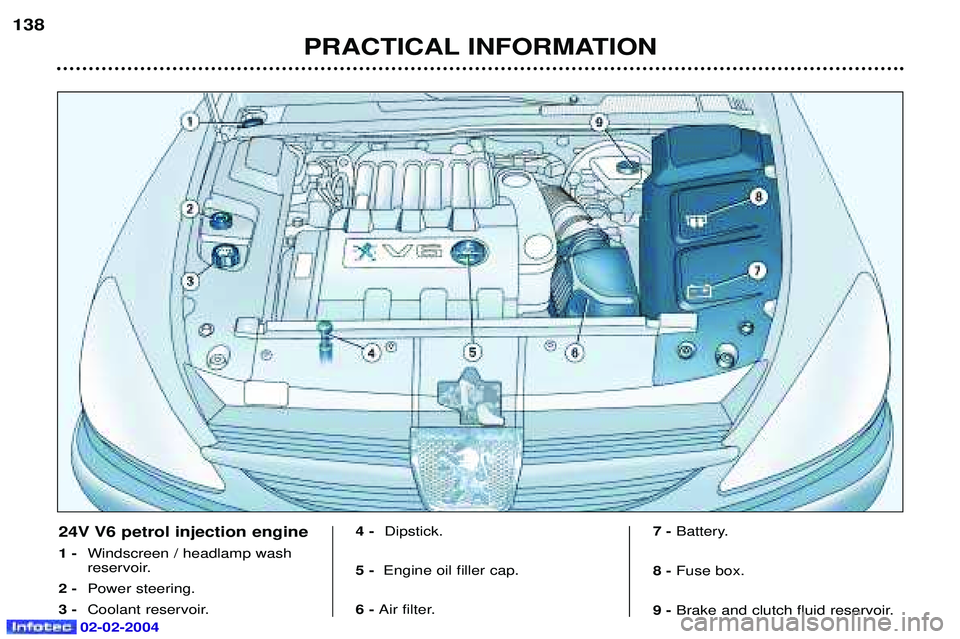

24V V6 petrol injection engine 1 -
Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.

02-02-2004
PRACTICAL INFORMATION139

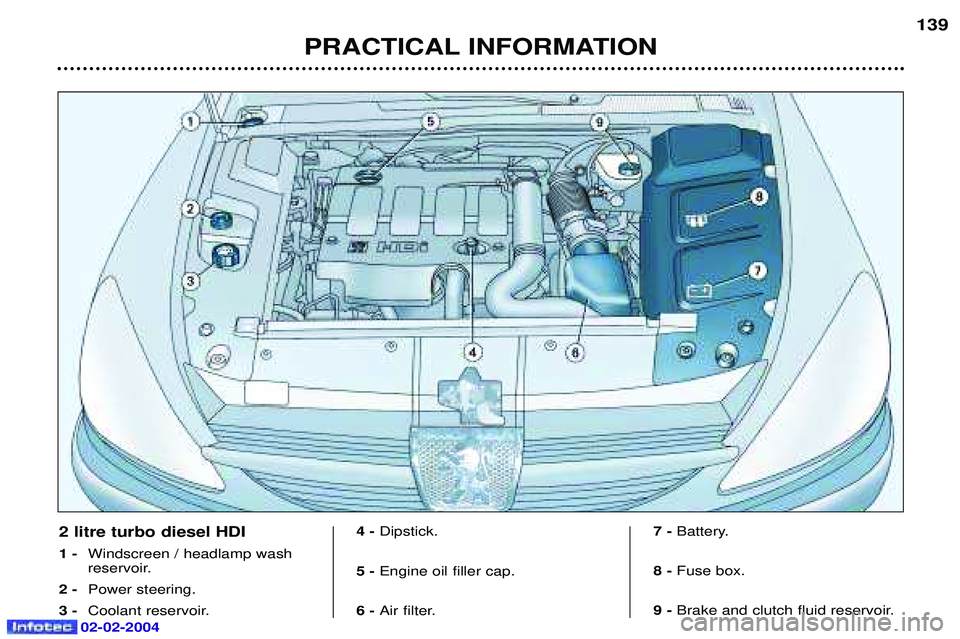

2 litre turbo diesel HDI 1 -
Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.

02-02-2004
PRACTICAL INFORMATION
140

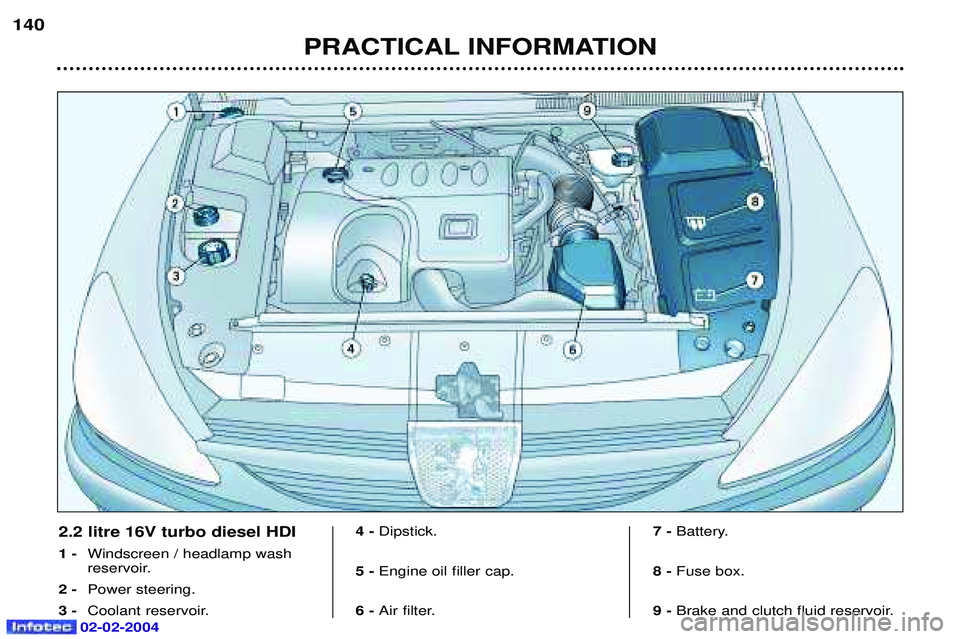

2.2 litre 16V turbo diesel HDI 1 -
Windscreen / headlamp wash
reservoir.
2 - Power steering.
3 - Coolant reservoir. 4 -
Dipstick.
5 - Engine oil filler cap.
6 - Air filter. 7 -
Battery.
8 - Fuse box.
9 - Brake and clutch fluid reservoir.

02-02-2004
CHECKING THE LEVELS Oil level Check the level regularly and top up between changes. Maximumconsumption is 0.5 l per 600 miles(1000 km). Carry out this check with the vehicle level, engine cold, usingthe oil level gauge on the instru-ment panel or the dipstick.
Dipstick There are two markson the dipstick : A= maximum
Never fill past this mark. B = minimum
To maintain the reliabi- lity of engines andemission control sys-tems, the use of addi-tives in engine oil isprohibited.
Oil change According to the information given
in the 'PEUGEOT SERVICINGGUIDE'.
PRACTICAL INFORMATION 141
Viscosity selection In all cases, the oil selected must meet the manufacturer'srequirements. Brake and clutch fluid level:
- The level must always be between
the DANGER and MAXIMUM marks
in the reservoir.
- If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change:
- must be carried out according to the manufacturer's servicing sche- dule,
- use fluids recommended by the manufacturer, which fulfil DOT4standards.
WARNING: brake and clutch fluid is
harmful to health and very corrosive. Used oil Prevent used oil from coming into pro- longed contact with the skin. Do not dispose of used oil, brake and clutch fluid or coolant into drains oronto the ground. Power steering reservoir
 Open the reservoir, with the engi-ne cold at ambient temperature.The level should always be abovethe MINI mark and close to theMAXI mark.
Windscreen and headlamp wash level For best quality cleaning and for your
safety, we advise that you use pro-ducts recommended by PEUGEOT(reservoir capacity 4 litres or 6.5 litres with headlamp wash).
