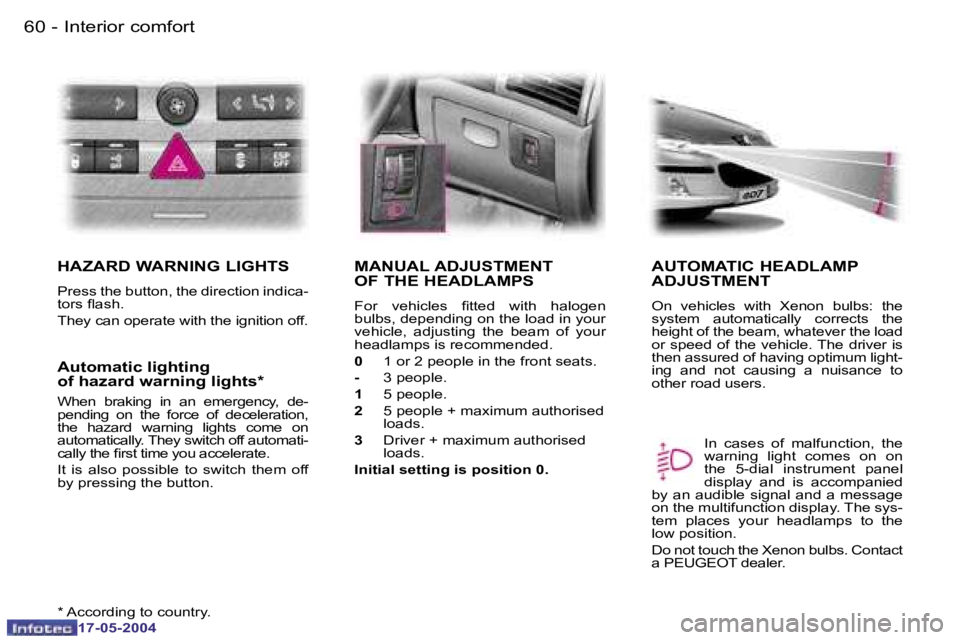

HAZARD WARNING LIGHTS
Press the button, the direction indica-
tors lash.
They can operate with the ignition off.
MANUAL ADJUSTMENT
OF THE HEADLAMPS
For vehicles itted with halogen
bulbs, depending on the load in your
vehicle, adjusting the beam of your
headlamps is recommended.
0
1 or 2 people in the front seats.
- 3 people.
1 5 people.
2 5 people + maximum authorised
loads.
3 Driver + maximum authorised
loads.
Initial setting is position 0.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with Xenon bulbs: the
system automatically corrects the
height of the beam, whatever the load
or speed of the vehicle. The driver is
then assured of having optimum light-
ing and not causing a nuisance to
other road users.
Automatic lighting
of hazard warning lights*
When braking in an emergency, de-
pending on the force of deceleration,
the hazard warning lights come on
automatically. They switch off automati-
cally the irst time you accelerate.
It is also possible to switch them off
by pressing the button.
* According to country. In cases of malfunction, the
warning light comes on on
the 5-dial instrument panel
display and is accompanied
by an audible signal and a message
on the multifunction display. The sys-
tem places your headlamps to the
low position.
Do not touch the Xenon bulbs. Contact
a PEUGEOT dealer.
Interior comfort

60 -
17-05-2004
61
-
17-05-2004
INSTRUMENT PANEL
LIGHTING RHEOSTAT
With the lights on, press the button to
vary the intensity of the lighting of the
instruments and controls. When the
lighting reaches the minimum (or maxi-
mum) setting, release the button then
press it again to increase (or reduce)
the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.

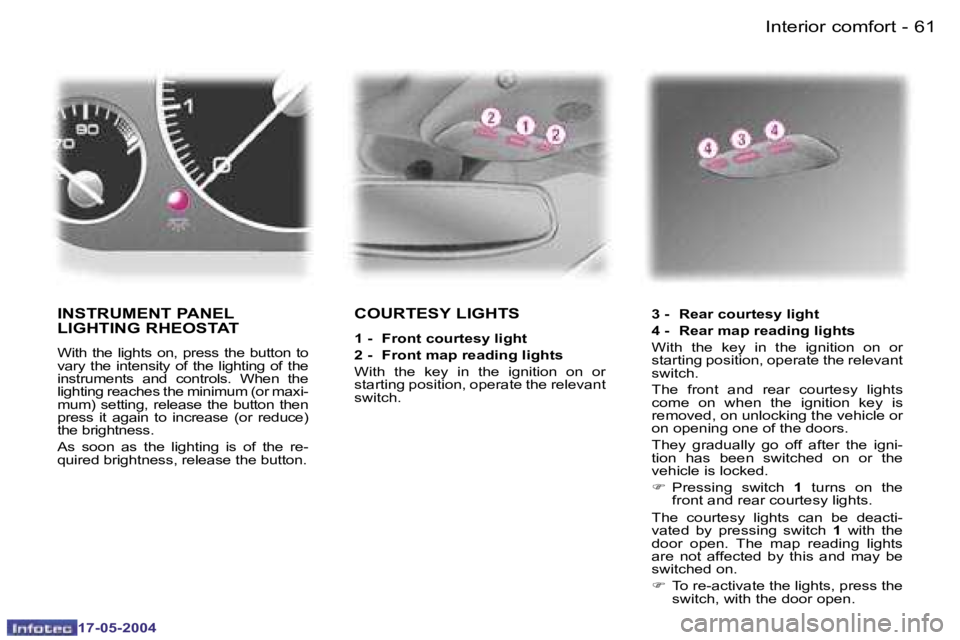

COURTESY LIGHTS
1 - Front courtesy light
2 - Front map reading lights
With the key in the ignition on or
starting position, operate the relevant
switch. 3 - Rear courtesy light
4 - Rear map reading lights
With the key in the ignition on or
starting position, operate the relevant
switch.
The front and rear courtesy lights
come on when the ignition key is
removed, on unlocking the vehicle or
on opening one of the doors.
They gradually go off after the igni-
tion has been switched on or the
vehicle is locked.
F
Pressing switch 1 turns on the
front and rear courtesy lights.
The courtesy lights can be deacti-
vated by pressing switch 1 with the
door open. The map reading lights
are not affected by this and may be
switched on.
F To re-activate the lights, press the
switch, with the door open.
Interior comfort

62 -
17-05-2004
63
-
17-05-2004
CHANGING A BULB
Handle the bulbs with a dry cloth.
Front lights
In the engine compartment, remove
the cover secured by one or two but-
terly screws, a plastic retainer clip
and two quarter turn screws.
1 -
Dipped beam headlamps:
H1-55 W or D2S-35 W Xenon bulb.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer. 2 - Main beam headlamps:
H7-55 W.
F Remove the protective cover
corresponding to the faulty bulb.
F Disconnect the connector.
F Press the end of the securing
clips to free the bulb. Change the
bulb.
F When itting the new bulb, en-
sure that the direction notches
are positioned correctly and the
securing clips are ixed properly.
F Reconnect the connector.
F Reit the protective cover.
3 - Side lights: W 5 W.
F Remove the protective cover,
disconnect the connector and
then remove the bulb and
change it.
F Put the connector back in place.
F Reconnect the connector.
F Reit the protective cover. 4 - Direction indicators:
PY 21 W (amber).
F Turn the bulb holder a quarter
turn and remove it.
F Change the bulb.
Amber coloured bulbs (direction in-
dicators and side repeaters) must
be replaced with bulbs of identical
speciication and colour.
5 - Front fog lamps: H11-55 W.
Turn the wheels to full lock.
Access to the bulb is via the lap in
the front mud lap.
Contact a PEUGEOT dealer.
The headlamps are itted with poly-
carbonate glass with a protective
coating. Do not clean them with a dry
or abrasive cloth, nor with a deter-
gent or solvent product.
Ensure that the liquid used to ill the
wash-wipe and headlamp wash res-
ervoir is of good quality.
In certain climatic conditions (low
temperature, humidity), condensa-
tion on the inside surface of the
headlamp glass is normal; it disap-
pears a few minutes after the lights
are switched on.
Interior comfort

62 -
17-05-2004
63
-
17-05-2004

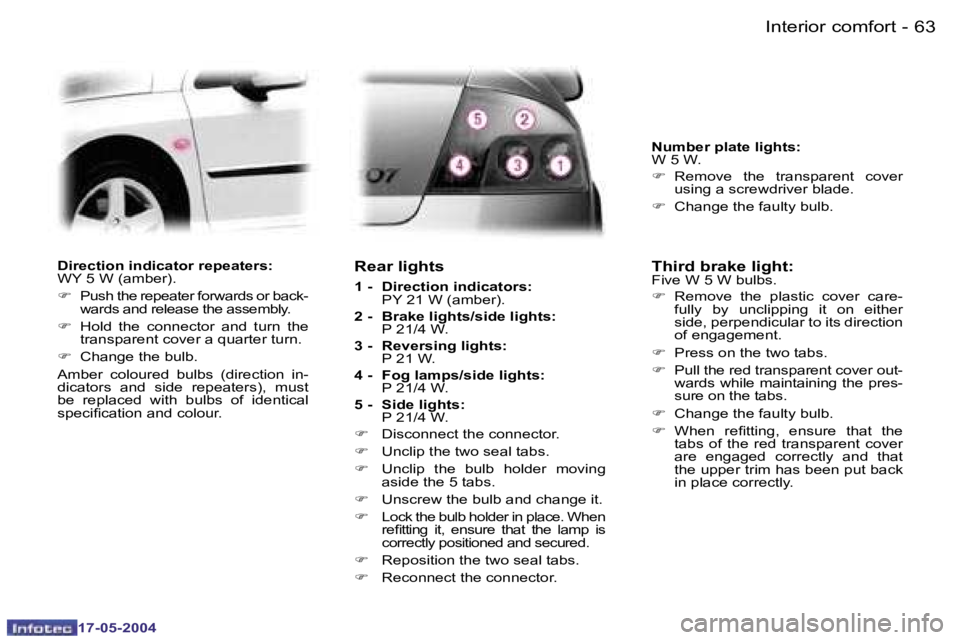

Direction indicator repeaters:
WY 5 W (amber).
F
Push the repeater forwards or back-
wards and release the assembly.
F Hold the connector and turn the
transparent cover a quarter turn.
F Change the bulb.
Amber coloured bulbs (direction in-
dicators and side repeaters), must
be replaced with bulbs of identical
speciication and colour.Rear lights
1 - Direction indicators: PY 21 W (amber).
2 - Brake lights/side lights: P 21/4 W.
3 - Reversing lights: P 21 W.
4 - Fog lamps/side lights: P 21/4 W.
5 - Side lights: P 21/4 W.
F Disconnect the connector.
F Unclip the two seal tabs.
F Unclip the bulb holder moving
aside the 5 tabs.
F Unscrew the bulb and change it.
F
Lock the bulb holder in place. When
reitting it, ensure that the lamp is
correctly positioned and secured.

F Reposition the two seal tabs.
F Reconnect the connector.
Third brake light: Five W 5 W bulbs.
F Remove the plastic cover care-
fully by unclipping it on either
side, perpendicular to its direction
of engagement.
F Press on the two tabs.
F Pull the red transparent cover out-
wards while maintaining the pres-
sure on the tabs.
F Change the faulty bulb.
F When reitting, ensure that the
tabs of the red transparent cover
are engaged correctly and that
the upper trim has been put back
in place correctly.
Number plate lights:
W 5 W.
F
Remove the transparent cover
using a screwdriver blade.
F Change the faulty bulb.
Interior comfort

62 -
17-05-2004
63
-
17-05-2004
Direction indicator repeaters:
WY 5 W (amber).
F
Push the repeater forwards or back-
wards and release the assembly.
F Hold the connector and turn the
transparent cover a quarter turn.
F Change the bulb.
Amber coloured bulbs (direction in-
dicators and side repeaters), must
be replaced with bulbs of identical
speciication and colour.Rear lights
1 - Direction indicators: PY 21 W (amber).
2 - Brake lights/side lights: P 21/4 W.
3 - Reversing lights: P 21 W.
4 - Fog lamps/side lights: P 21/4 W.
5 - Side lights: P 21/4 W.
F Disconnect the connector.
F Unclip the two seal tabs.
F Unclip the bulb holder moving
aside the 5 tabs.
F Unscrew the bulb and change it.
F
Lock the bulb holder in place. When
reitting it, ensure that the lamp is
correctly positioned and secured.

F Reposition the two seal tabs.
F Reconnect the connector.
Third brake light: Five W 5 W bulbs.
F Remove the plastic cover care-
fully by unclipping it on either
side, perpendicular to its direction
of engagement.
F Press on the two tabs.
F Pull the red transparent cover out-
wards while maintaining the pres-
sure on the tabs.
F Change the faulty bulb.
F When reitting, ensure that the
tabs of the red transparent cover
are engaged correctly and that
the upper trim has been put back
in place correctly.
Number plate lights:
W 5 W.
F
Remove the transparent cover
using a screwdriver blade.
F Change the faulty bulb.
Interior comfort

64 -
17-05-2004
65
-
17-05-2004
SERVICE INDICATOR
This is a visual reminder of when the
next service is due. This service is to
be carried out according to the man-
ufacturer's servicing schedule.
Operation
As soon as the ignition is switched
on and for 5 seconds, the spanner
symbolising ''service operation'' is lit.
The trip recorder display shows the
distance remaining (in round igures)
before the next service.
Example:
when switching on the
ignition and for 5 seconds, the display
shows that 900 miles/km remain
before the next service is due. Service indicator zero re-set
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
F
Switch off the ignition,
F Press and hold the trip recorder
re-set button,
F Switch on the ignition.
The display begins a countdown.
When the display shows "= 0", re-
lease the button; the service symbol
disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least ive
minutes, otherwise the zero re-set
will not be registered.
Once an engine oil level indication
has been displayed, the display indi-
cates the total and trip distances. If the service is overdue
, each time
the ignition is switched on and for
5 seconds, the symbol lashes.
Example: when the ignition is switched
on and for 5 seconds, the display indi-
cates that the service is overdue by
300 miles/km. The service should be
carried out very shortly.
Once the servicing and oil level infor-
mation has been displayed, the total
distance recorder resumes normal
operation and the symbol remains lit.
The point at which a service is due is
calculated using two parameters:
- the total distance travelled,
- the time elapsed since the last service.
The distance remaining may be
weighted by the time factor, depend-
ing on the user's driving habits.
Interior comfort

64 -
17-05-2004
65
-
17-05-2004

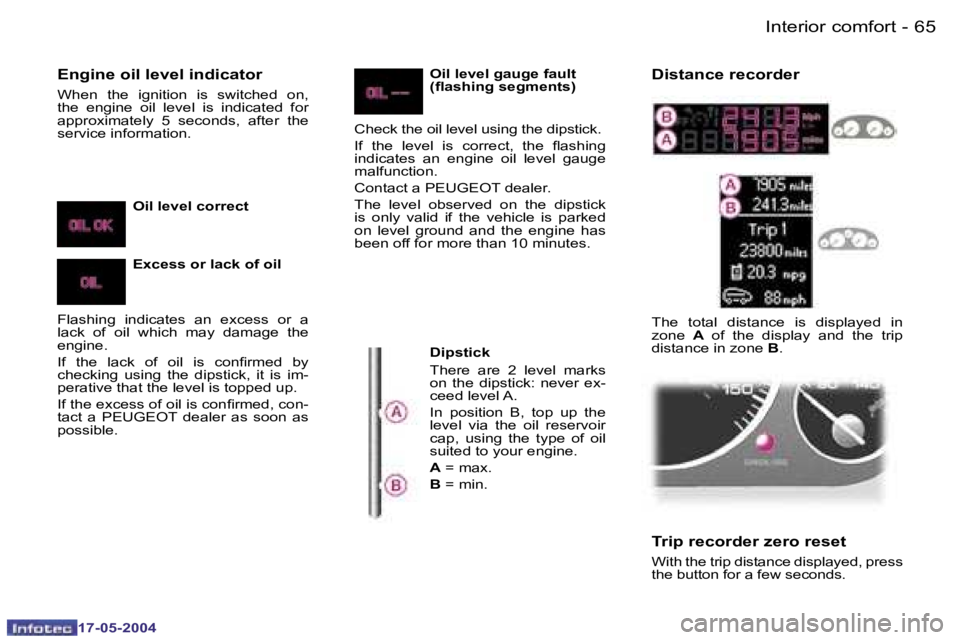

Engine oil level indicator
When the ignition is switched on,
the engine oil level is indicated for
approximately 5 seconds, after the
service information.
Dipstick
There are 2 level marks
on the dipstick: never ex-
ceed level A.
In position B, top up the
level via the oil reservoir
cap, using the type of oil
suited to your engine.
A = max.
B = min.
Trip recorder zero reset
With the trip distance displayed, press
the button for a few seconds.
Oil level correct
Excess or lack of oil
Flashing indicates an excess or a
lack of oil which may damage the
engine.
If the lack of oil is conirmed by
checking using the dipstick, it is im-
perative that the level is topped up.
If the excess of oil is conirmed, con-
tact a PEUGEOT dealer as soon as
possible. Oil level gauge fault
(lashing segments)
Check the oil level using the dipstick.
If the level is correct, the lashing
indicates an engine oil level gauge
malfunction.
Contact a PEUGEOT dealer.
The level observed on the dipstick
is only valid if the vehicle is parked
on level ground and the engine has
been off for more than 10 minutes.
The total distance is displayed in
zone A of the display and the trip
distance in zone B.
Distance recorder Interior comfort

66 -
17-05-2004
67
-
17-05-2004

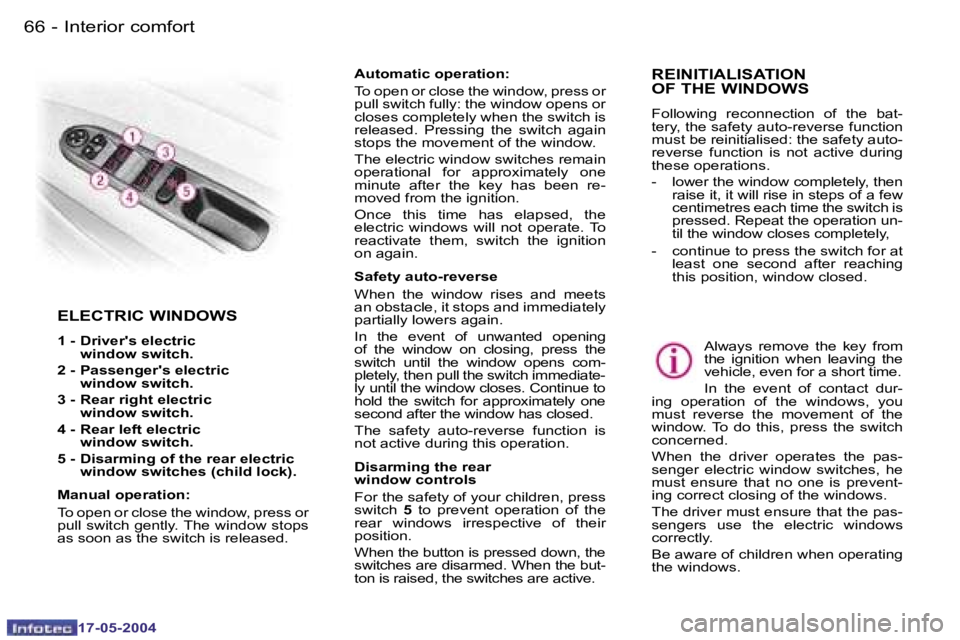

ELECTRIC WINDOWS
1 - Driver's electric
window switch.
2 - Passenger's electric
window switch.
3 - Rear right electric window switch.
4 - Rear left electric
window switch.
5 - Disarming of the rear electric window switches (child lock).
Manual operation:
To open or close the window, press or
pull switch gently. The window stops
as soon as the switch is released. Automatic operation:
To open or close the window, press or
pull switch fully: the window opens or
closes completely when the switch is
released. Pressing the switch again
stops the movement of the window.
The electric window switches remain
operational for approximately one
minute after the key has been re-
moved from the ignition.
Once this time has elapsed, the
electric windows will not operate. To
reactivate them, switch the ignition
on again.
Safety auto-reverse
When the window rises and meets
an obstacle, it stops and immediately
partially lowers again.
In the event of unwanted opening
of the window on closing, press the
switch until the window opens com-
pletely, then pull the switch immediate-
ly until the window closes. Continue to
hold the switch for approximately one
second after the window has closed.
The safety auto-reverse function is
not active during this operation.
Disarming the rear
window controls
For the safety of your children, press
switch
5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, the
switches are disarmed. When the but-
ton is raised, the switches are active. Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
In the event of contact dur-
ing operation of the windows, you
must reverse the movement of the
window. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
REINITIALISATION
OF THE WINDOWS
Following reconnection of the bat-
tery, the safety auto-reverse function
must be reinitialised: the safety auto-
reverse function is not active during
these operations.
- lower the window completely, then raise it, it will rise in steps of a few
centimetres each time the switch is
pressed. Repeat the operation un-
til the window closes completely,
- continue to press the switch for at least one second after reaching
this position, window closed.
Interior comfort
