2004 Peugeot 407 Owner's Manual

96 -
17-05-2004
97
-
17-05-2004
Interior comfort
Text messages (SMS)
Accessing text messages
When the buzzer sounds (if the SMS
text messages buzzer option is ac-
tive) and a superimposed screen
announces "Do you wish to read the
new text message (SMS)?", you can
choose to read the text message
received by selecting and validating
"YES" or postpone reading it by se-
lecting and validating "NO", by press-
ing the "ESC" button or by waiting
until the announcement disappears.
Note: the old text messages stored
and the new text messages, the read-
ing of which you wish to postpone,
can be consulted. Press the "MENU"
button then validate the telematic
icon, select "Text messages (SMS)"
and validate the function "Reading of
text messages received" by pressing
the navigator. Then scroll through the
list by turning the knob and press the
knob to select the text message to
be read (if the voice synthesiser is
active). Sending a text message
Before typing your irst text mes-
sage, check that your text messages
(SMS) centre number is stored cor-
rectly in the sub-menu "Server cen-
tre N°". If it is not, any text messages
typed before this number is entered
will not be sent.
In the menu "Text messages (SMS)"
validate the function "Typing of a text
message". Type your text message
using the alphanumeric keypad and
validate it using the "OK" button to
store it or validate the "Send" button
to send it. Validation of the "Send"
button enables you to enter the
number of your recipient or select it
from the directory or from the list of
calls and send the message.
"Duration of calls" menu
Select the "Duration of calls" function
from the "Telephone functions" menu
to consult the duration counters for
the calls made. The part counter to-
tals the duration of the calls since the
last zero reset carried out using the
"Zero reset" button.
"Telephone options" menu
Select the "Telephone options" func-
tion from the "Telephone functions"
menu to access the functions: • "Conigure the calls" which per-
mits activation and deactivation
of the "show my number" and "au-
tomatic answering after X rings"
functions,
• "Ringing options" which permits
adjustment of the ringing volume
for voice calls, activation of the
text messages (SMS) receipt
buzzer and selection of a ring
tone from the ive offered,
• "Diversion number/voice mail"
which permits recording of the call
diversion number chosen by the
customer, otherwise the call will
be transferred to the voice mail.

96 -
17-05-2004
97
-
17-05-2004
Interior comfort
* If option and service available.
"PEUGEOT Assistance"/
Emergency call
A green diode lashes on the RT3
GPS audio/telephone panel, when the
emergency call procedure or a call to
"PEUGEOT Assistance" begins, then
lights continuously when the call is
taken by the services concerned.
Services*
Press the button to
display the "Services"
menu and select one of
the following services:
• "Customer Contact Centre" con-
tacts the PEUGEOT Customer
Contact Centre directly and per-
mits access to the services offered
(this call is suspended if an emer-
gency or assistance call has been
made).
• "PEUGEOT Assistance" enables
you to contact the call centre
which controls the PEUGEOT as-
sistance service directly, make an
assistance request and receive
rapid assistance (you have 6 sec-
onds within which to cancel the
call when it is made). During the
assistance call phase it is not pos-
sible to make any other calls with
the exception of emergency calls.
Signing the speciic PEUGEOT
contract means that you will be
located.
• "Operator services" gives access
to the list of services speciic to
your operator (e.g.: customer
service, consumption monitor-
ing, news, stock market, weather,
travel, games, etc) if access is
available.
* If option and service available.
Emergency call*
In an emergency, press
and hold the "SOS" but-
ton until a signal is heard
and a call validation/de-
letion screen is displayed
(delay of 6 seconds) or
enter 112 directly.
Make an emergency call when you
are involved in a situation which
leads you to fear serious conse-
quences (injuries, ...) for those ex-
posed to them (if you witness or are
involved in an accident resulting in
injuries, an attack, ...).
Before making a call of this kind, the
audio/telephone must detect a cel-
lular network.
If you have not signed the speciic
PEUGEOT contract, the parameters
of the "SOS" button are set so that a
call is made to 112 - unique number
made available by the worldwide
GSM network, reserved for emer-
gency calls.
No security mode is required and,
depending on the network, you do
not need to insert your SIM card or
enter your PIN.
If you have signed the speciic
PEUGEOT contract, your call will be
located and you will be put in contact
with a PEUGEOT emergency repre-
sentative.
For further details, refer to the ge-
neral conditions of your contract.

98 -
17-05-2004
99
-
17-05-2004
Interior comfort
Main menu
From the general menu, select the
"Directory"
application to access its
main menu and select one of the fol-
lowing functions:
• "Call", to call a number stored in a ile,
• "Activate guidance to", to initiate guidance to a location stored in a
ile,
• "Management of directory iles", to add, delete, modify and consult
directory iles or exchange them
with the SIM card,
• "Directory coniguration", to select the working directory and deine
the directory when the system is
switched on. Creation/Modiication of a ile
To create a ile, from the "Directory"
menu, select the "Management of di-
rectory iles" function, then "Add".
In the ile, select the section to be
illed in, conirm and then enter the
information.
To modify an existing ile, select it by
means of the "Consult or modify the
ile" function of the "Management of
directory iles" menu, then make the
modiications.
When entering the address, the navi-
gation CD ROM must be present to
obtain guidance to this destination.
Description of a directory ile
When a description is associated
with a directory ile, you can record
the description vocally to use it later
for direct access by means of voice
commands (e.g.: "Call" "[Name of
voice description]" or "Guide to"
"[Name of voice description]").
Select "Consult or modify the ile"
from the "Management of directory
iles" menu to access the description
entering and recording screen.
Validate the record button and follow
the instructions.
The "Directory" application
gives access to 400 iles
divided into 4 independent
sub-directories ("User1",
"User2", "User3" and
"User4"). It enables you to
manage these iles, make calls using
the SIM card and activate guidance.
The directory
General

98 -
17-05-2004
99
-
17-05-2004
Interior comfort
SATELLITE NAVIGATION
SYSTEM
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions, to your chosen
destination.
The heart of the system lies in the
use of a map data base and of the
GPS system. With this system you
can ix the position of your vehicle by
means of a satellite network.
The system uses the following elements:
- the CD-Rom drive,
- the coniguration CD-Rom,
- the navigation CD-Rom,
- the last voice message recall
control,
- the control keypad,
- the monochrome screen or the colour screen.
Certain functions or services de-
scribed may vary depending on the
version of CD-Rom or the country
where the vehicle is sold.
1. Ejection button on CD-Rom.
2. CD-Rom housing.
The navigation CD ROM contains all
the map data.
It must be inserted in the drive, printed
face upwards.
Use only CD-Roms approved by
PEUGEOT. Pressing for more than two seconds on
the button at the end of the lights stalk
repeats the last voice information.
For safety reasons, the in-
putting of navigation infor-
mation by the driver must be
carried out when the vehicle
is stationary.
The CD-Rom drive
This is part of the RT3 GPS audio/
telephone.
The last voice message recall
control.
The control panel
This lets you navigate, select, choose
and validate the functions, from the
parameters displayed.

100 -
17-05-2004
101
-
17-05-2004

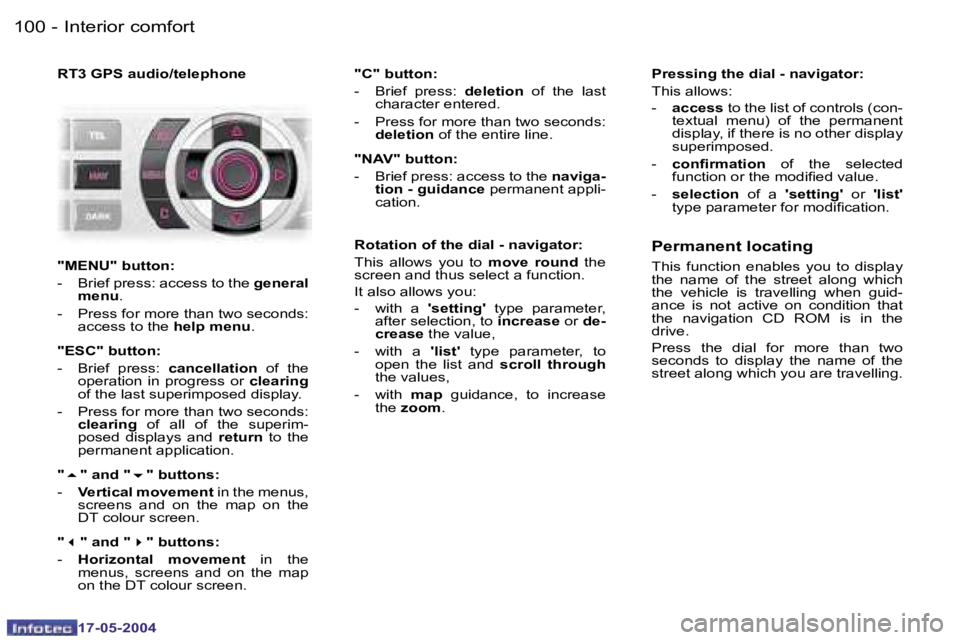

Pressing the dial - navigator:
This allows: -
access
to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected
function or the modiied value.
- selection of a 'setting' or 'list'
type parameter for modiication.
Permanent locating
This function enables you to display
the name of the street along which
the vehicle is travelling when guid-
ance is not active on condition that
the navigation CD ROM is in the
drive.
Press the dial for more than two
seconds to display the name of the
street along which you are travelling.
"C" button:
- Brief press:
deletion of the last
character entered.
- Press for more than two seconds: deletion of the entire line.
"NAV" button:
- Brief press: access to the naviga-
tion - guidance permanent appli-
cation.
Rotation of the dial - navigator:
This allows you to move round the
screen and thus select a function.
It also allows you:
- with a 'setting' type parameter,
after selection, to increase or de-
crease the value,
- with a 'list' type parameter, to
open the list and scroll through
the values,
- with map guidance, to increase
the zoom .
"MENU" button:
- Brief press: access to the
general
menu .
- Press for more than two seconds: access to the help menu.
"ESC" button:
- Brief press: cancellation of the
operation in progress or clearing
of the last superimposed display.
- Press for more than two seconds: clearing of all of the superim-
posed displays and return to the
permanent application.
" 5 " and " 6" buttons:
- Vertical movement in the menus,
screens and on the map on the
DT colour screen.
" 3 " and " 4" buttons:
- Horizontal movement in the
menus, screens and on the map
on the DT colour screen.
Interior comfort
RT3 GPS audio/telephone

100 -
17-05-2004
101
-
17-05-2004
General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD-Rom.
Press the "MENU" button to access
the general menu.
1.
Current manoeuvre or com-
pass or course (if calculation in
progress or zone not mapped).
2. Next manoeuvre to be carried
out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at desti-
nation.
6. Distance to inal destination.
7. Distance to next manoeuvre.
Notes:
- depending on the situation of the vehicle and on the reception of
GPS information, this information
may disappear from the screen
temporarily,
- during guidance, the navigation CD ROM must remain in the RT3
GPS audio/telephone drive.The satellite navigation
system with the CT
monochrome screen
or the DT colour screen
General notes on the display
Interior comfort
CT monochrome screen - graphic
screen
DT colour screen - map screen
During guidance, if the navigation
CD-Rom is present, the screen dis-
plays different information depend-
ing on the manoeuvres to be carried
out. Select the Navigation/
Guidance icon using the
navigator, then validate
by pressing the naviga-
tor to access the main
"Navigation - Guidance"
menu.

102 -
17-05-2004
103
-
17-05-2004
Interior comfort
The main "Navigation - Guidance" menu offers various options for acti-
vation or management of guidance:
- choice of the type of destination
address (entering of address,
service, GPS co-ordinates, stored
address),
- modiication to the initial route (entering of a diversion),
- displaying of the chosen destination,
- setting of the guidance optionparameters,
- stop or resume guidance (dis- playing of the message which
changes depending on the previ-
ous status).
Navigation - Guidance
The "Select a destination" menu of-
fers various options for reaching a
destination: • entering a postal address,
• selecting a service available in
a town (town hall, hotel, cinema,
airport...),
• entering GPS details,
• selecting a destination stored in
the directory,
• selecting one of the previous
destinations.
Selecting a destination
The last guidance address is dis-
played.
Select and validate in succession the
entry zones "Town", "Road" then "N°"
to ill them in.
The "OK" function permits validation
of the address and access to the
guidance activation function.
The "Store" function permits record-
ing of the address in a directory ile.
The "Curr. loc." function permits dis-
play of the current address.
Entering an address

102 -
17-05-2004
103
-
17-05-2004
Interior comfort

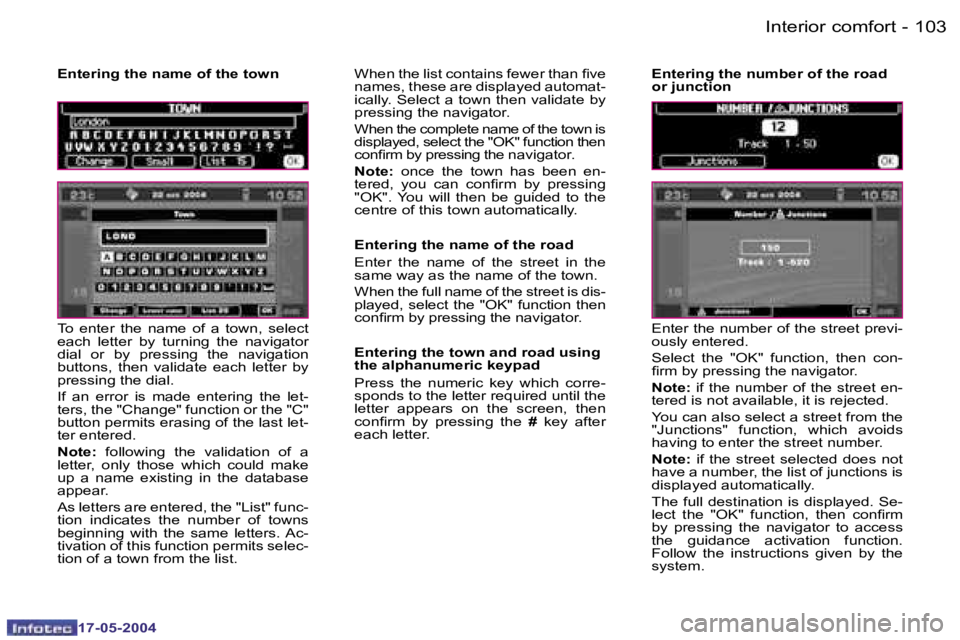

To enter the name of a town, select
each letter by turning the navigator
dial or by pressing the navigation
buttons, then validate each letter by
pressing the dial.
If an error is made entering the let-
ters, the "Change" function or the "C"
button permits erasing of the last let-
ter entered.
Note:
following the validation of a
letter, only those which could make
up a name existing in the database
appear.
As letters are entered, the "List" func-
tion indicates the number of towns
beginning with the same letters. Ac-
tivation of this function permits selec-
tion of a town from the list.
Entering the name of the town
Enter the number of the street previ-
ously entered.
Select the "OK" function, then con-
irm by pressing the navigator.
Note: if the number of the street en-
tered is not available, it is rejected.
You can also select a street from the
"Junctions" function, which avoids
having to enter the street number.
Note: if the street selected does not
have a number, the list of junctions is
displayed automatically.
The full destination is displayed. Se-
lect the "OK" function, then conirm
by pressing the navigator to access
the guidance activation function.
Follow the instructions given by the
system.
Entering the number of the road
or junction
When the list contains fewer than ive
names, these are displayed automat-
ically. Select a town then validate by
pressing the navigator.
When the complete name of the town is
displayed, select the "OK" function then
conirm by pressing the navigator.
Note:
once the town has been en-
tered, you can conirm by pressing
"OK". You will then be guided to the
centre of this town automatically.
Entering the name of the road
Enter the name of the street in the
same way as the name of the town.
When the full name of the street is dis-
played, select the "OK" function then
conirm by pressing the navigator.
Entering the town and road using
the alphanumeric keypad
Press the numeric key which corre-
sponds to the letter required until the
letter appears on the screen, then
conirm by pressing the # key after
each letter.
