YOUR 307 SW IN DETAIL
GENERAL FUNCTIONS Anti-theft system
The RT3 GPS audio/telephone is
coded in such a way that it can op-
erate only on your vehicle. If itting
it to another vehicle, consult your
PEUGEOT dealer for coniguration
of the system.
The anti-theft system is automatic
and requires no action on your
part.
On/off
With the ignition
switch in the acces-
sories position or with
the ignition on, press
button
A to switch
the audio function of
the RT3 GPS audio/
telephone on or off.
Note:
in the absence of an ignition
key, press button A to switch the
telematics system on or off.
The RT3 GPS audio/telephone can
operate for 30 minutes without
switching the vehicle ignition on.
Notes:
- the SIM card must be removed only after the audio/telephone has
been switched off,
- following automatic switching off of the audio/telephone after
30 minutes it is possible to make a
telephone call by pressing button
D,
- after the ignition has been switched off, the audio/telephone can be
switched on again by pressing but-
tons D, E , V or by inserting a CD in
the player.
AUDIO SETTINGS
ADJUSTING THE VOLUME
Turn button A clockwise to increase
the volume of the audio/telephone or
anti-clockwise to decrease it.
Note: the volume setting is speciic
to each source. It is possible to have
different settings for radio, CD or CD
changer.
Press button U to access
the Sound Ambience,
Bass, Treble, Loud-
ness, Fader (front/rear
balance), Balance (left/
right balance) and Au-
tomatic volume adjust-
ment setting windows.
Exit from audio mode is automatic af-
ter a few seconds without any action,
or by pressing the "ESC" button.
Note: bass, treble and loudness set-
tings are speciic to each source. It is
possible to have different settings for
radio, CD or CD changer.

46
15-03-2004
47
15-03-2004
YOUR 307 SW IN DETAIL
Treble setting
When 'Treble' is displayed, turn but-
ton G to vary the setting.
- '-9' for minimum treble setting
- '0' for normal setting
- '+9' for maximum treble setting
Sound ambience
This function per-
mits the selection of
a "None", "Rock",
"Classical", "Jazz",
"Vocal" or "Techno"
sound ambience.
Turn button
G to se-
lect the sound ambi-
ence.
Selecting "None" permits access
to all of the settings deined below.
Selecting another ambience sets the
bass and treble automatically.
Bass setting
When 'Bass' is displayed, turn but-
ton G to vary the setting.
- '-9' for minimum bass setting
- '0' for normal setting
- '+9' for maximum bass setting Setting the right/left sound
distribution (Balance)
When
"Balance" is displayed:
- Turn button G clockwise to in-
crease the volume on the right.
- Turn button G anti-clockwise to in-
crease the volume on the left.
Automatic volume adjustment
This function allows the volume to
be adjusted automatically depending
on the level of noise produced by the
speed of the vehicle.
Press button G to switch the function
on or off.
Adjusting the loudness
This function automatically empha-
sises bass and treble tones when the
volume is low.
Rotate button
G to switch the func-
tion on or off.
Setting the front/rear sound
distribution (Fader)
When 'Fader' is displayed:
- Turn button G clockwise to in-
crease the volume in the front.
- Turn button G anti-clockwise to in-
crease the volume in the rear.

48
15-03-2004
49
15-03-2004
YOUR 307 SW IN DETAIL
Selecting the radio Automatic station searchRADIO
Notes on radio reception
Car radio/telephone receivers are
subject to phenomena which do not
affect domestic radio sets. Both MW/
LW and FM are subject to various
forms of interference. This is not a
relection on the quality of the equip-
ment, but is due to the nature of the
signals and the way in which they are
transmitted.
On MW/LW interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the result
of the increasing distance from the
transmitter, delection of the signals
by obstacles (mountains, hills, build-
ings etc.) or of being in an area which
is not covered by a transmitter.Selecting a waveband
Briely press button
M or N to search
for the station immediately above or
below.
The search stops at the irst station
found.
If the TA trafic program is selected,
only the most powerful stations
broadcasting this type of program
are selected.
Searching for a station occurs irst in
'LO' sensitivity (selection of the most
powerful transmitters) for scanning of
the waveband, then in 'DX' sensitiv-
ity (selection of the weaker and more
distant transmitters).
To make a direct search in 'DX' sen-
sitivity, briely press button M or N
twice.
Press
"SOURCE" several times.
Briely pressing button
'BAND/AST' to select
the FM1, FM2, FMast
and AM wavebands.

48
15-03-2004
49
15-03-2004
Briely press button H or I
to increase or decrease the
frequency displayed.
By continuing to press
the button in the direction
selected, you will obtain
continuous scrolling of the
frequency.
Scrolling stops at the irst
station found as soon as the
button is released.
Manual station search
Manual station storing
Select the station required.
Press one of the buttons
"1" to "6"
for more than two seconds.
Cutting off of the sound conirms that
the station has been stored in the
memory.
YOUR 307 SW IN DETAIL
Automatic storing of FM stations
in the memory (autostore)
Your audio/telephone automatically
stores the 6 stations with the strong-
est signal in FM. These stations are
stored in the FMast waveband.
If it is not possible to ind 6 stations,
the remaining memories are empty.
Press the ''BAND/AST''
button for more than two
seconds.
Recalling stations stored in the
memory
For each waveband, briely press
the buttons "1" to "6" to recall the
corresponding stored station.

50
15-03-2004
51
15-03-2004
YOUR 307 SW IN DETAIL
Regional following mode (REG)
When they are part of a network,
certain stations broadcast regional
programs in the various areas they
serve. With regional following mode
you can keep listening to the same
program.
To do this, press the "RDS" button
for more than two seconds to switch
the function on or off.
The multi-function screen will show: - REG if the function is active,
- REG crossed out or greyed out
if the function is active but not
available.RDS
Using the RDS (Radio Data
System) function on FM
Radio Data System allows you to
continue listening to the same sta-
tion, whatever frequency it is using
for the region you are going through. Trafic information program
Briely press the "RDS"
button to switch the
function on or off.
The multi-function screen
will show:
- RDS if the function is active
- RDS crossed out or greyed out
if the function is active but not
available. Press the
''TA/PTY''
button to switch the
function on or off.
The multi-function screen
will show:
- TA if the function is selected
- TA crossed out or greyed out
if the function is selected but not
available.
Any trafic information lash will be
given priority, whatever source you
are listening to (radio, CD or CD
changer).
If you wish to interrupt the broadcast-
ing of a message, press the ''TA/
PTY'' button.
Note: the volume of the trafic
information is independent of the
volume of normal radio/telephone
listening.
You can adjust it by using the volume
button. The setting will be stored and
will be used when the next messages
are broadcast.
RDS station following
This display indicates the name
of the station selected. The audio/
telephone continuously searches for
the transmitter which transmits the
same program with the best recep-
tion. This search may cause slight
interference with the transmission.

50
15-03-2004
51
15-03-2004
YOUR 307 SW IN DETAIL
PTY function
This allows you to listen to stations
broadcasting a speciic type of pro-
gram (news, culture, sport, rock etc.)
When FM is selected, press button
"TA/PTY" for more than two seconds
to switch the function on or off.
To ind a PTY program:
Audi
o functions menu
Select the "Audio functions" menu
from the general menu to:
- "Activate/Deactivate RDS frequen- cy following",
- "Activate/Deactivate REG regional mode",
- "Trafic information TMC". Contextual menu- select the
PTY button,
- turn button G to scroll down the dif-
ferent types of programs offered,
then conirm your choice,
- when the program of your choice is displayed press button M or N
to carry out an automatic search
(after an automatic search the PTY
function is switched off if no station
has been found).
In PTY mode
, the different types
of program can be stored in the
memory. To do this, press the prese-
lection buttons "1" to "6'' for more
than two seconds. To recall the type
of program stored in the memory,
briely press the corrresponding
button. EON system
This system connects stations which
are part of the same network. It ena-
bles the broadcast of trafic informa-
tion or a
PTY program, by a station
that is part of the same network as
the station to which you are listen-
ing.
The service is available when you
have selected the TA trafic informa-
tion program or the PTY function.
By pressing knob G, the contextual
menu allows you to access the fol-
lowing functions:
- 'Enter a frequency'
- 'List of stations' to access directly the 30 stations picked up locally,
- 'Refresh list' to update this list,
- "Display Radio Text" to display information connected with the
station being listened to, if "RT" is
displayed permanently.

52
15-03-2004
53
15-03-2004
YOUR 307 SW IN DETAIL
Ejecting a discSelecting a track

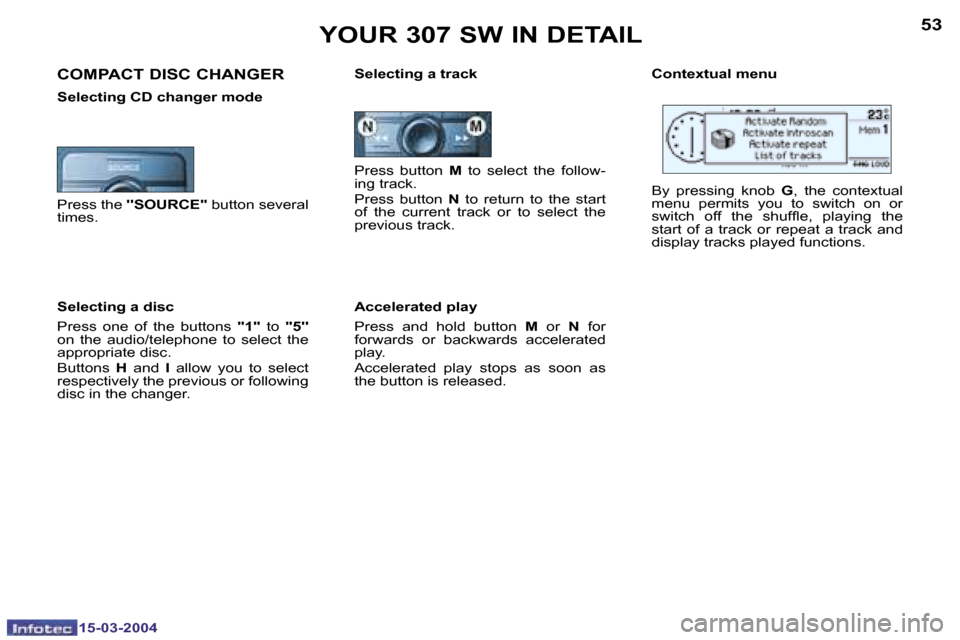

By pressing knob
G, the contextual
menu permits you to switch on or
switch off the shufle, play the start
of a track, track program and display
tracks played functions.
After inserting a disc, printed face
upwards, the CD drive starts auto-
matically.
If a disc has already been inserted,
press the
''SOURCE'' button to
select CD mode.
COMPACT DISC
Selecting CD mode
Press button M to select the follow-
ing track.
Press button N to return to the start
of the current track or to select the
previous track.
Do not use copied CDs as
these could damage your
player.
Insert circular compact
discs only.
Press button
B to
eject the disc from the
drive. Accelerated play
Press and hold button
M or N for
forwards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released. Contextual menu

52
15-03-2004
53
15-03-2004
YOUR 307 SW IN DETAIL
Press button M to select the follow-
ing track.
Press button N to return to the start
of the current track or to select the
previous track. By pressing knob
G, the contextual
menu permits you to switch on or
switch off the shufle, playing the
start of a track or repeat a track and
display tracks played functions.
COMPACT DISC CHANGER
Selecting CD changer mode
Selecting a disc
Press one of the buttons ''1'' to ''5''
on the audio/telephone to select the
appropriate disc.
Buttons H and I allow you to select
respectively the previous or following
disc in the changer. Selecting a track Contextual menu
Accelerated play
Press and hold button
M or N for
forwards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released.
Press the
''SOURCE'' button several
times.
