2004 Peugeot 307 SW Dag Owner's Manual

144
15-03-2004
145
15-03-2004
PRACTICAL INFORMATION

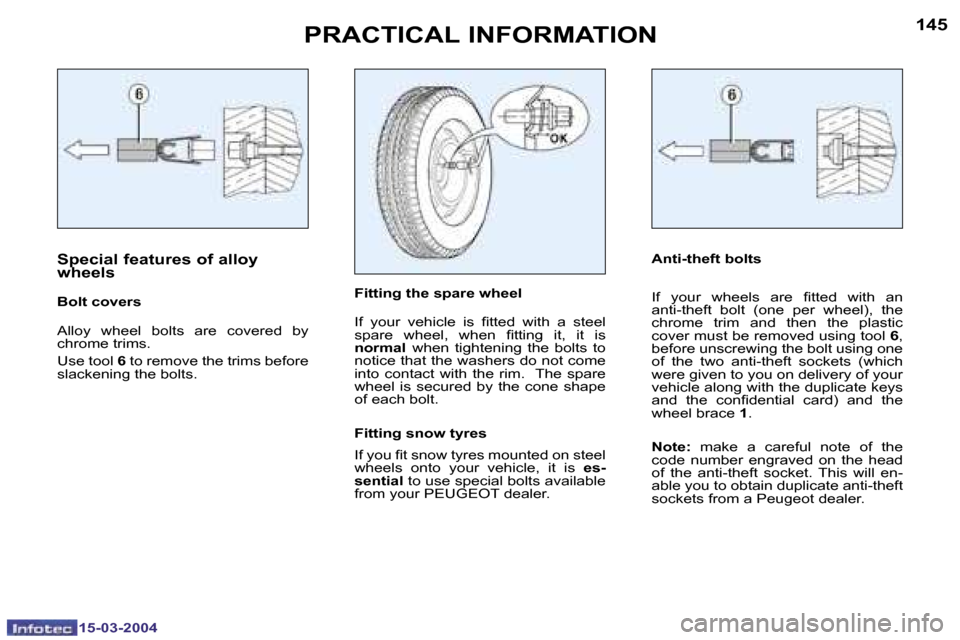

Special features of alloy
wheels
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use tool 6 to remove the trims before
slackening the bolts. Fitting the spare wheel
If your vehicle is itted with a steel
spare wheel, when itting it, it is
normal
when tightening the bolts to
notice that the washers do not come
into contact with the rim. The spare
wheel is secured by the cone shape
of each bolt.
Fitting snow tyres
If you it snow tyres mounted on steel
wheels onto your vehicle, it is es-
sential to use special bolts available
from your PEUGEOT dealer. Anti-theft bolts
If your wheels are itted with an
anti-theft bolt (one per wheel), the
chrome trim and then the plastic
cover must be removed using tool
6,
before unscrewing the bolt using one
of the two anti-theft sockets (which
were given to you on delivery of your
vehicle along with the duplicate keys
and the conidential card) and the
wheel brace 1.
Note: make a careful note of the
code number engraved on the head
of the anti-theft socket. This will en-
able you to obtain duplicate anti-theft
sockets from a Peugeot dealer.

146
15-03-2004
147
15-03-2004
PRACTICAL INFORMATION
F Turn the protective cover corre-
sponding to the faulty bulb a quar-
ter of a turn and remove it.
F Disconnect the connector.
F Press the end of the securing clip
to free it. Change the bulb.
When itting the new bulb, ensure that the direction notches are po-
sitioned correctly and the securing
clip is ixed properly.
F Reconnect the connector.
F Reit the protective cover, posi-
tioning it with the arrow upwards,
then turn it a quarter of a turn to
the right.
The headlamps are itted with poly-
carbonate glass with a protective
coating. Do not clean them with a
dry or abrasive cloth, nor with a
detergent or solvent product. Use
a sponge and soapy water. 4
- Side lights (W 5 W).
F Pull the socket rearwards, remove
the bulb and change it.
5 - Direction indicators (PY 21 W amber).
F Turn the bulb holder a quarter of a
turn and remove it.
F Change the bulb.
Note: In certain climatic conditions
(low temperature, humidity), con-
densation inside the headlamp
glass is normal ; it disappears a few
minutes after the lights are switched
on.

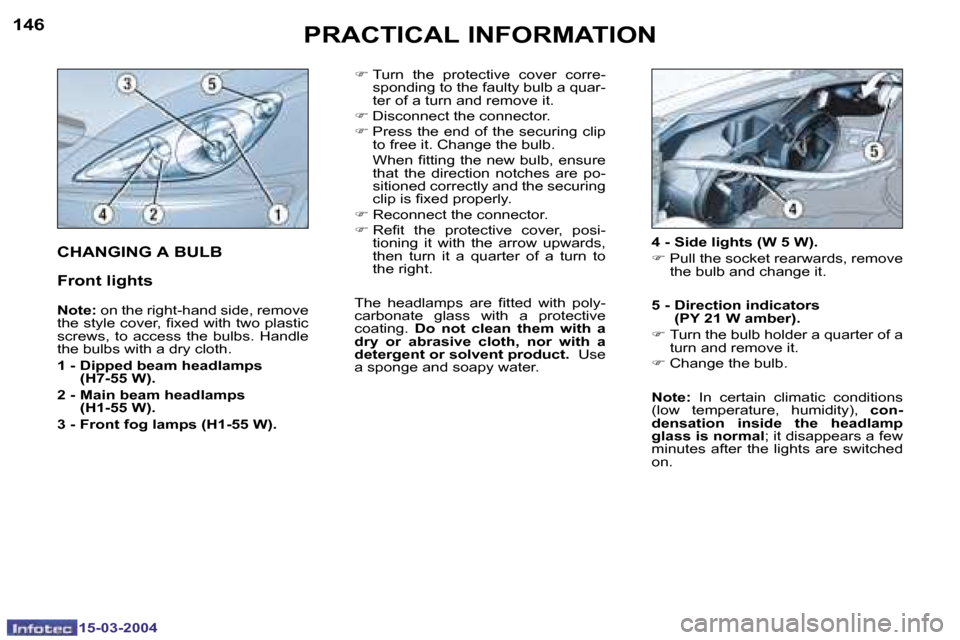

CHANGING A BULB
Front lights
Note: on the right-hand side, remove
the style cover, ixed with two plastic
screws, to access the bulbs. Handle
the bulbs with a dry cloth.
1 - Dipped beam headlamps (H7-55 W).
2 - Main beam headlamps (H1-55 W).
3 - Front fog lamps (H1-55 W).

146
15-03-2004
147
15-03-2004

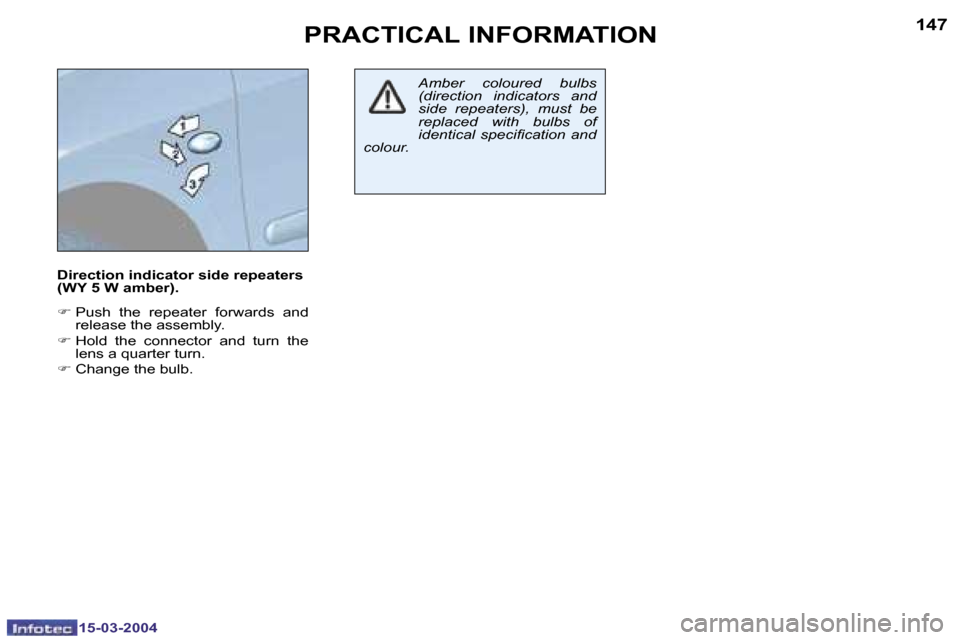

Direction indicator side repeaters
(WY 5 W amber).
F Push the repeater forwards and
release the assembly.
F Hold the connector and turn the
lens a quarter turn.
F Change the bulb.
PRACTICAL INFORMATION
Amber coloured bulbs
(direction indicators and
side repeaters), must be
replaced with bulbs of
identical speciication and
colour.

148
15-03-2004
149
15-03-2004
PRACTICAL INFORMATIONThird brake light:
4
W 5 W bulbs.
F Remove the tailgate upper trim
carefully by unclipping it on either
side, perpendicular to its direction
of engagement.
F Insert a screwdriver into the two
outer holes B to press on the two
tabs C.
F Push the light unit outwards while
maintaining the pressure on the
tabs.
F Pull the light unit outwards while
tilting it.
F Change the faulty bulb.
F When reitting, ensure that the
light unit tabs are engaged cor-
rectly and that the tailgate upper
trim has been put back in place
correctly.
Rear lights
1 - Brake lights (P 21 W).
2 - Side lights (R 5 W).
3 - Direction indicators (P 21 W).
4 - Reversing light (P 21 W), right
side.
Fog lamp (P 21 W), left side.
These 5 bulbs are changed by re-
moving the light:
F Remove the corresponding boot
side trim to access the light,
F Remove the light ixing nut inside
the boot,
F Remove the light ixing nut outside
the boot,
F Remove the light,
F Unclip the harness, F
Remove the bulb holder pressing
on the tabs A,
F Change the faulty bulb.
Note: if necessary, use the wheel-
brace to remove the nuts.
When reitting, take care to position
the bulb holder and the light cor-
rectly.
Number plate lights (W 5 W)
F Insert a thin screwdriver into one
of the external holes of the lens.
F Push it outwards to unclip it.
F Remove the lens.
F Change the faulty bulb.

150
15-03-2004
151
15-03-2004

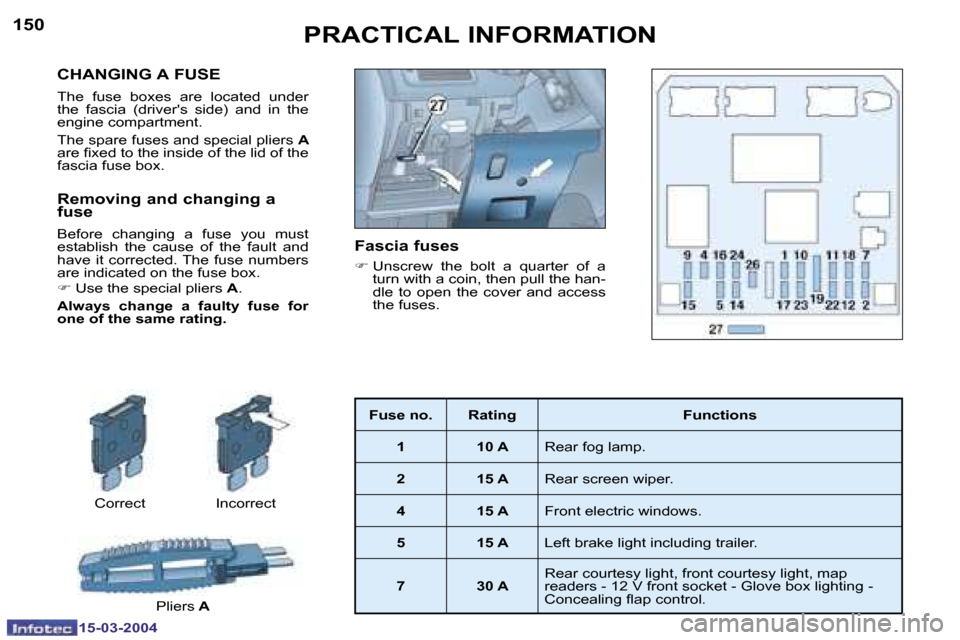

CHANGING A FUSE
The fuse boxes are located under
the fascia (driver's side) and in the
engine compartment.
The spare fuses and special pliers A
are ixed to the inside of the lid of the
fascia fuse box.
Removing and changing a
fuse
Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
F Use the special pliers A.
Always change a faulty fuse for
one of the same rating.
Correct Incorrect Pliers AFascia fuses
F Unscrew the bolt a quarter of a
turn with a coin, then pull the han-
dle to open the cover and access
the fuses.
PRACTICAL INFORMATION
Fuse no. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 30 A Rear courtesy light, front courtesy light, map
readers - 12 V front socket - Glove box lighting -
Concealing lap control
.

152
15-03-2004
153
15-03-2004

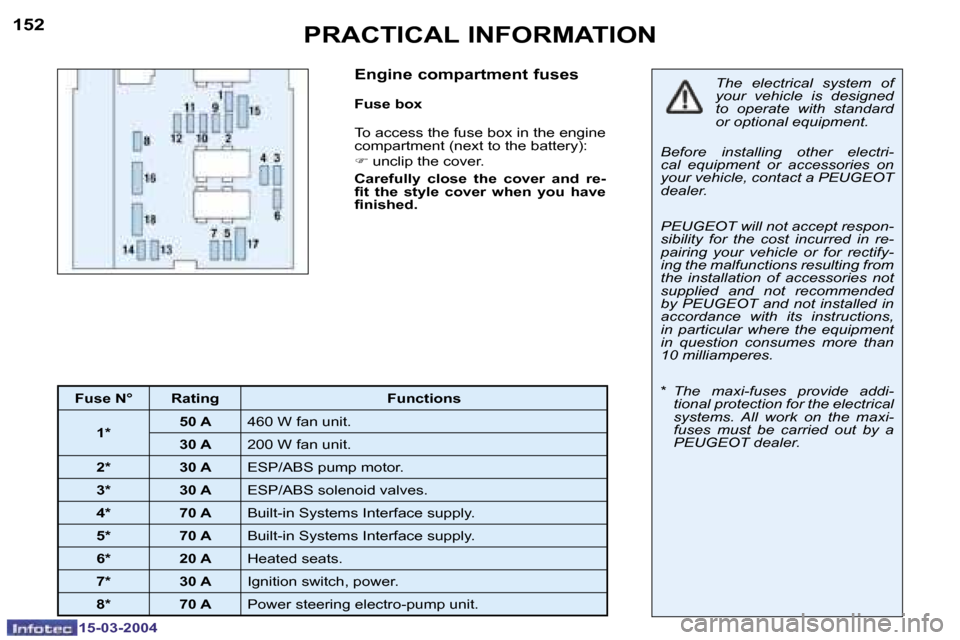

PRACTICAL INFORMATIONEngine compartment fuses
Fuse box
To access the fuse box in the engine
compartment (next to the battery):
F unclip the cover.
Carefully close the cover and re-
it the style cover when you have
inished.
Fuse N° Rating Functions
1* 50 A
460 W fan unit.
30 A 200 W fan unit.
2* 30 A ESP/ABS pump motor.
3* 30 A ESP/ABS solenoid valves.
4* 70 A Built-in Systems Interface supply.
5* 70 A Built-in Systems Interface supply.
6* 20 A Heated seats.
7* 30 A Ignition switch, power.
8* 70 A Power steering electro-pump unit. The electrical system of
your vehicle is designed
to operate with standard
or optional equipment.
Before installing other electri-
cal equipment or accessories on
your vehicle, contact a PEUGEOT
dealer.
PEUGEOT will not accept respon-
sibility for the cost incurred in re-
pairing your vehicle or for rectify-
ing the malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular where the equipment
in question consumes more than
10 milliamperes.
* The maxi-fuses provide addi-
tional protection for the electrical
systems. All work on the maxi-
fuses must be carried out by a
PEUGEOT dealer.

152
15-03-2004
153
15-03-2004
PRACTICAL INFORMATION

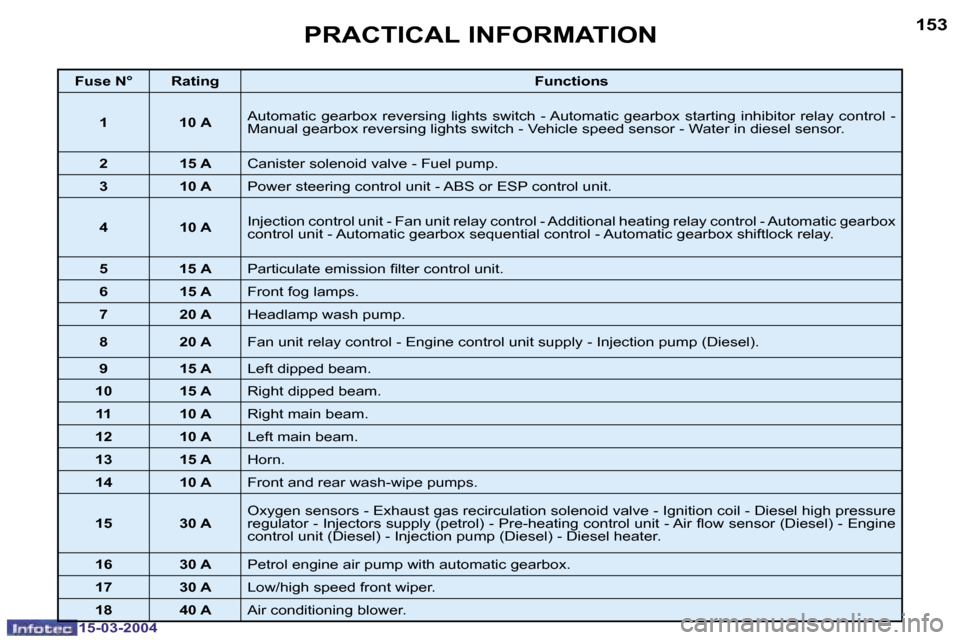

Fuse N° RatingFunctions
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting
inhibitor relay control -
Manual gearbox reversing lights switch - Vehicle speed sensor - Wate r in diesel sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional
heating relay control - Automatic gearbox
control unit - Automatic gearbox sequential control - Automatic ge arbox shiftlock relay.
5 15 A Particulate emission ilter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Fan unit relay control - Engine control unit supply - Injection pump (Diesel).
9 15 A Left dipped beam.
10 15 A Right dipped beam.
11 10 A Right main beam.
12 10 A Left main beam.
13 15 A Horn.
14 10 A Front and rear wash-wipe pumps.
15 30 A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition co
il - Diesel high pressure
regulator - Injectors supply (petrol) - Pre-heating control unit - Air low sensor (Diesel) - Engine
control unit (Diesel) - Injection pump (Diesel) - Diesel heater.
16 30 A Petrol engine air pump with automatic gearbox.
17 30 A Low/high speed front wiper.
18 40 A Air conditioning blower.

150
15-03-2004
151
15-03-2004
CHANGING A FUSE
The fuse boxes are located under
the fascia (driver's side) and in the
engine compartment.
The spare fuses and special pliers A
are ixed to the inside of the lid of the
fascia fuse box.
Removing and changing a
fuse
Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
F Use the special pliers A.
Always change a faulty fuse for
one of the same rating.
Correct Incorrect Pliers AFascia fuses
F Unscrew the bolt a quarter of a
turn with a coin, then pull the han-
dle to open the cover and access
the fuses.
PRACTICAL INFORMATION
Fuse no. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 30 A Rear courtesy light, front courtesy light, map
readers - 12 V front socket - Glove box lighting -
Concealing lap control
.
