YOUR 307 IN DETAIL
TELEPHONE
This function is a GSM dual-band
telephone (900 and 1 800 MHz)
incorporated in the RT3 GPS audio/
telephone system.
It is a "hands free" telephone. This
function is provided by a microphone
located next to the front courtesy light,
the speakers, a steering column con-
trol and voice commands which allow
access to most of the functions (the
audio/telephone control panel buttons
allow access to all the functions).
Display of the principal "mobile"
type functions, as well as consulta-
tion of the directories, is provided by
the multi-function display.
This function is active , whatever
position the ignition key is in even af-
ter thirty minutes, when the message
"Economy mode active" appears
on the multi-function display. Using the menus
Press the
"MENU" button to dis-
play the general menu . Select the
telematics application, validate "Tele-
phone functions" to access the prin-
cipal telephone functions, then the
various menus, in order to reach the
one required.
This menu allows you to access the
following functions: Within each menu:
- Network: allows you to select the
network search mode and to see
the networks available.
- Duration of calls: allows you to
consult the duration recorder of
calls made and zero re-set.
- Security: allows you to use or
modify the PIN code and to erase
the list of calls and text messages
(SMS).
- Telephone options: allows you to
conigure the calls with entering of
my number, automatic answering
after X rings, speciication of ring
options and allows you to conigure
the call diversion number. Move around and se-
lect a function by turn-
ing the
G button then
validate by pressing
the button.
Cancel an operation us-
ing the "ESC" button.
Using the alphanumeric keypad
For a given button, to input a charac-
ter in the second or subsequent rows
press until you obtain the character
required.
Buttons Associated characters
[1] 1 or space
[2] 2 or A B C 2 or a b c 2
[3] 3 or D E F 3 or d e f 3
[4] 4 or G H I 4 or g h i 4
[5] 5 or J K L 5 or j k l 5
[6] 6 or M N O 6 or m n o 6
[7] 7 or P Q R S 7 or p q r s 7
[8] 8 or T U V 8 or t u v 8
[9] 9 or W X Y Z 9 or w x y z 9
[0] 0 or + (long press)
[#] # or validation
[*] * or erasing of last charac-
ter input (long press)

54
30-08-2004
55
30-08-2004
YOUR 307 IN DETAIL
Open lap L by pressing the
point of a pencil on the circu-
lar opening above the lap.
Insert your Micro-SIM card,
available from a mobile
telephone operator, as indicated in
the graphics, then close the lap.
Note: removal or insertion of the SIM
card must only be carried out after
the RT3 audio/telephone has been
switched off.
Installing the SIM card Inputting the PIN code
Input your PIN code using the al-
phanumeric keypad and validate by
pressing button G or button # to ac-
cess the network. Connection to the
network is validated by the appear-
ance of a symbol on the screen.
Warning: if you make three errors in
succession when inputting your PIN
code, your SIM card will be blocked.
To unblock it, you will need to input
the PUK code. The PUK code will be
supplied to you by the person sell-
ing your SIM card (input of the PUK
code allows for 10 errors in succes-
sion; after this the SIM card becomes
permanently unusable).
Note: the PIN code is required each
time the ignition is switched on, un-
less the PIN code has been stored
in the memory or protection by PIN
code is not activated on the SIM
card. Cancelling of PIN code request
In the menu
"Telephone functions"
select "Security" , then "Process
the PIN code" , then validate the
"Cancel" function.
Warning: in this case, do not lose
your SIM card. Losing it would mean
anyone who inds it would be able to
make unlimited calls.

56
30-08-2004
57
30-08-2004

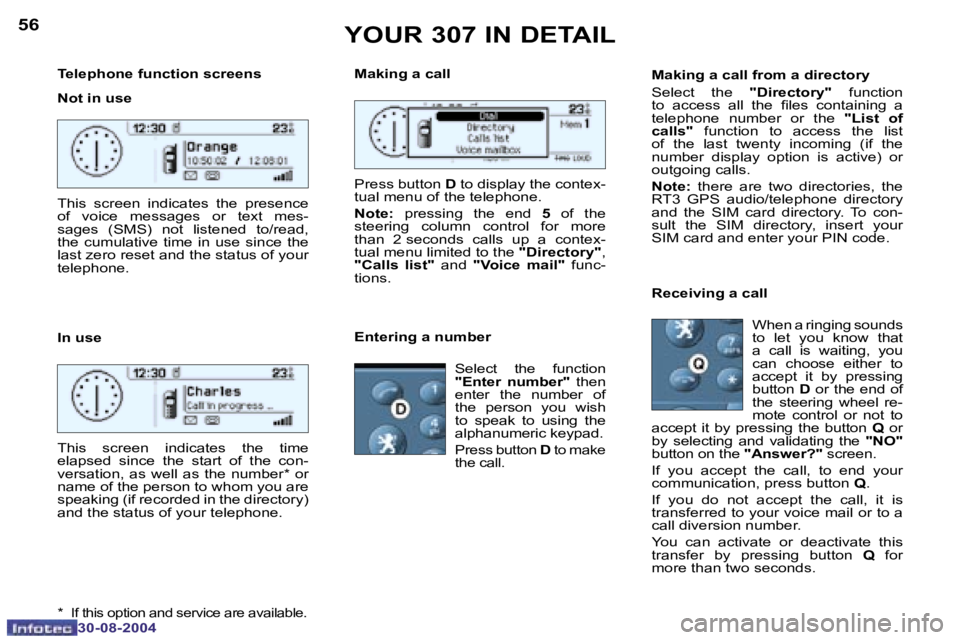

Telephone function screens
Not in use
In use
YOUR 307 IN DETAIL
This screen indicates the presence
of voice messages or text mes-
sages (SMS) not listened to/read,
the cumulative time in use since the
last zero reset and the status of your
telephone.
This screen indicates the time
elapsed since the start of the con-
versation, as well as the number* or
name of the person to whom you are
speaking (if recorded in the directory)
and the status of your telephone.
*
If this option and service are available.
Making a call
Press button D to display the contex-
tual menu of the telephone.
Note: pressing the end 5 of the
steering column control for more
than 2 seconds calls up a contex-
tual menu limited to the "Directory",
"Calls list" and "Voice mail" func-
tions.
Entering a number
Select the function
"Enter number" then
enter the number of
the person you wish
to speak to using the
alphanumeric keypad.
Press button D to make
the call.
Making a call from a directory
Select the "Directory" function
to access all the iles containing a
telephone number or the "List of
calls" function to access the list
of the last twenty incoming (if the
number display option is active) or
outgoing calls.
Note: there are two directories, the
RT3 GPS audio/telephone directory
and the SIM card directory. To con-
sult the SIM directory, insert your
SIM card and enter your PIN code.
Receiving a call
When a ringing sounds
to let you know that
a call is waiting, you
can choose either to
accept it by pressing
button D or the end of
the steering wheel re-
mote control or not to
accept it by pressing the button Q or
by selecting and validating the "NO"
button on the "Answer?" screen.
If you accept the call, to end your
communication, press button Q.
If you do not accept the call, it is
transferred to your voice mail or to a
call diversion number.
You can activate or deactivate this
transfer by pressing button Q for
more than two seconds.

56
30-08-2004
57
30-08-2004

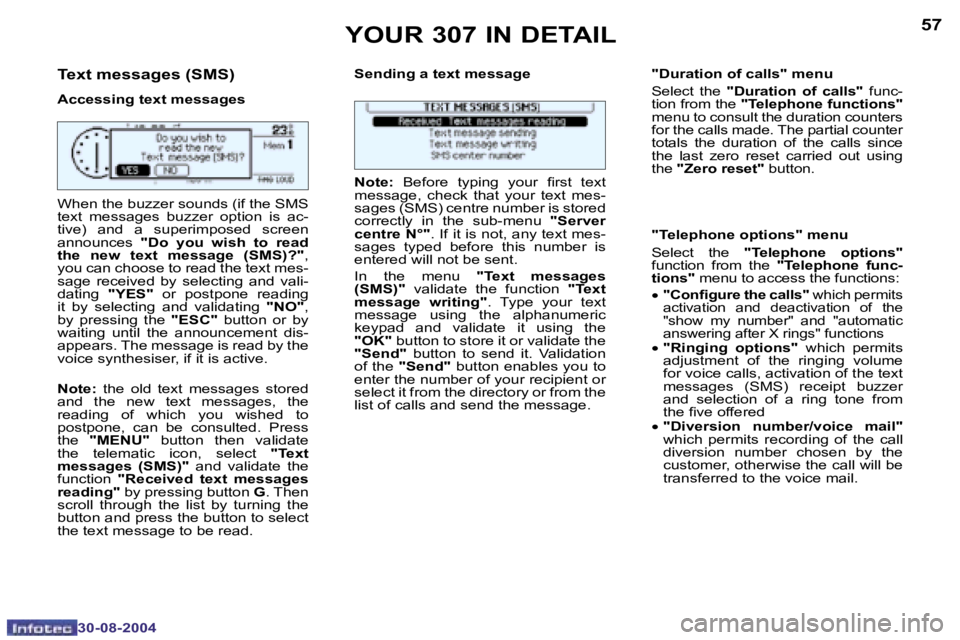

Text messages (SMS)
Accessing text messagesSending a text message "Duration of calls" menu
Select the "Duration of calls" func-
tion from the "Telephone functions" menu to consult the duration counters
for the calls made. The partial counter
totals the duration of the calls since
the last zero reset carried out using
the "Zero reset" button.
YOUR 307 IN DETAIL
When the buzzer sounds (if the SMS
text messages buzzer option is ac-
tive) and a superimposed screen
announces "Do you wish to read
the new text message (SMS)?" ,
you can choose to read the text mes-
sage received by selecting and vali-
dating "YES" or postpone reading
it by selecting and validating "NO",
by pressing the "ESC" button or by
waiting until the announcement dis-
appears. The message is read by the
voice synthesiser, if it is active.
Note: the old text messages stored
and the new text messages, the
reading of which you wished to
postpone, can be consulted. Press
the "MENU" button then validate
the telematic icon, select "Text
messages (SMS)" and validate the
function "Received text messages
reading" by pressing button G. Then
scroll through the list by turning the
button and press the button to select
the text message to be read. Note:
Before typing your irst text
message, check that your text mes-
sages (SMS) centre number is stored
correctly in the sub-menu "Server
centre N°" . If it is not, any text mes-
sages typed before this number is
entered will not be sent.
In the menu "Text messages
(SMS)" validate the function "Text
message writing" . Type your text
message using the alphanumeric
keypad and validate it using the
"OK" button to store it or validate the
"Send" button to send it. Validation
of the "Send" button enables you to
enter the number of your recipient or
select it from the directory or from the
list of calls and send the message. "Telephone options" menu
Select the
"Telephone options"
function from the "Telephone func-
tions" menu to access the functions:
•
"Conigure the calls" which permits
activation and deactivation of the
"show my number" and "automatic
answering after X rings" functions
฀•฀฀ "Ringing options" which permits
adjustment of the ringing volume
for voice calls, activation of the text
messages (SMS) receipt buzzer
and selection of a ring tone from
the ive offered
฀•฀฀ "Diversion number/voice mail"
which permits recording of the call
diversion number chosen by the
customer, otherwise the call will be
transferred to the voice mail.

58
30-08-2004
59
30-08-2004
Services* Emergency call*"PEUGEOT Assistance"/
Emergency call
During a connection to "PEUGEOT
Assistance" or an emergency call,
it is not possible to send or receive
calls or SMS messages; these will
be transferred to your voice mail.
In this case, a green diode lashes
on the RT3 GPS audio/telephone
panel, when the emergency call or
"PEUGEOT Assistance" call pro-
cedure begins, then lights continu-
ously when the call is taken by the
services concerned.
If your call to "PEUGEOT Assist-
ance" is located, a star "«" will ap-
pear in the text on the screen.
YOUR 307 IN DETAIL
Press button E to dis-
play the "Services"
menu and select one of
the following services:
฀•฀฀ "Customer Contact Centre"
which enables you to contact the
PEUGEOT Customer Contact
Centre directly and access the
services offered (this type of call
is suspended if an emergency or
breakdown call is made).
฀•฀฀ "PEUGEOT Assistance" which
enables you to contact the call cen-
tre which controls the PEUGEOT
breakdown service directly and
receive rapid assistance (you have
6 seconds within which to cancel
the call when it is made). During
the breakdown call phase it is not
possible to make any other calls
with the exception of emergency
calls. If you have signed the speciic
PEUGEOT contract, your call will be
located.
฀•฀฀ "Operator services" which gives
access to the list of services speciic
to your operator (e.g.: customer
service, consumption monitoring,
news, stock market, weather, travel,
games, etc) if they are available. In an emergency
, press but-
ton V until a signal is heard
and a call validation/deletion
screen is displayed (delay
of 6 seconds) or enter 112
directly.
Make an emergency call if you are
involved in an situation which leads
you to fear serious consequences
(injuries, ...) for those who are ex-
posed to it (if you witness or are
involved in an accident resulting in
injuries, an attack, ...).
Before making a call of this kind, the
audio/telephone must detect a cel-
lular network.
If you have not signed the speciic
PEUGEOT contract, the parameters
of the SOS button are set so that a
call is made to 112 - unique number
made available by the worldwide
GSM network, reserved for emer-
gency calls.
No security mode is required and,
depending on the network, you do
not need to insert your SIM card or
enter your PIN.
If you have signed the speciic
PEUGEOT contract, your call will
be located and you will be put in
contact with a PEUGEOT assistance
team.
For further details, refer to the
general conditions of your contract.
* If option and service available.

58
30-08-2004
59
30-08-2004
The Directory
General
The "Directory" application gives
access to 400 iles divided into 4 in-
dependent sub-directories ("User1",
"User2", "User3" and "User4"). It
enables you to manage these iles,
make calls using the SIM card and
activate guidance.
Main menu
YOUR 307 IN DETAIL
From the general menu , select the
"Directory" application to access its
main menu and select one of the fol-
lowing functions:
• "Call", to call a number stored in a ile,
• "Activate guidance to", to initiate guidance to a location stored in a
ile,
• "Managing directory records", to add, delete, modify and consult di-
rectory iles or exchange them with
the SIM card,
• "Directory coniguration", to select the working directory and deine
the directory when the system is
switched on. Creation/Modiication of a ile
To create a ile, from the
"Directory"
menu, select the function "Managing
directory records" then "Add".
On the ile select the section to be
illed in, validate then enter the in-
formation.
To modify an existing ile, select it
using the "Consult or modify the
record" function of the "Managing
directory records" menu then make
the modiications.
Note: when the address is entered,
the navigation CD-Rom must be
present in order to obtain guidance
to this destination. Description of a directory ile
When a description is linked to a
directory ile, you can record the
description vocally so that it can be
used subsequently for direct access
by voice commands (e.g.:
"Call"
"[Name of the voice description]"
or "Guide to" "[Name of the voice
description]" ).
Select "Consult or modify the
record" from the "Managing directory
records" menu to access the screen
which permits entering and recording
of the description.
Press the record button and follow
the instructions.
TMC (Trafic Message Channel)
RDS Trafic Information
You can access information regard-
ing the trafic conditions from the
"Audio functions" or "Telematics"
menu, then from the "Trafic Infor-
mation TMC" function (see section
"Satellite navigation system").

60
30-08-2004
61
30-08-2004
VOICE COMMANDS
The voice commands make it pos-
sible to use pre-recorded words or
phrases to control a certain number
of functions of the RT3 GPS audio/
telephone.
They are organized in three levels
(levels 1, 2 and 3).
When you say a level 1 command,
the system makes the level 2 com-
mands available; when you say a
level 2 command, the system makes
the level 3 commands available.
Notes:
- between two key words, a screen indicates the time remaining and
the key word recognised,
- in the absence of any voice commands, this function will be
switched off after approximately
ive seconds,
- if a command is not understood, the system transmits "Pardon" and
displays "Word not recognised"
on the screen.
Saying the phrase "Help" or "What
can I say" displays all of the com-
mands available on the screen.
Saying the phrase "Cancel" cancels
all of the voice commands.
Miscellaneous phrases: STOP/DELETE/
YES/NO/PREVIOUS/NEXT
YOUR 307 IN DETAIL
Level 1 Level 2 Level 3
RADIO PREVIOUS
NEXT
MEMORY 1 ... 6
AUTOSTORE
LIST
CD PLAYER PREVIOUS
TRACK
NEXT TRACK
TRACK
NUMBER
1 ... 20
RANDOM
SCAN
REPEAT
LIST
CHANGER PREVIOUS
TRACK
NEXT TRACK
TRACK
NUMBER
1 ... 20
PREVIOUS
DISC
NEXT DISC
DISC NUMBER 1 ... 6
RANDOM
SCAN
REPEAT
LIST
Activation of the voice commands
Press the button on the end of the
lights stalk to activate or deactivate
this function.
Example: to recall the radio station
stored on button 3, the key words
are: "Radio" "Memory" "3" .
To use these key words, you must
say the word "Radio", wait for the
audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action requested.
The list of voice commands avail-
able is presented in this table:

60
30-08-2004
61
30-08-2004
YOUR 307 IN DETAIL

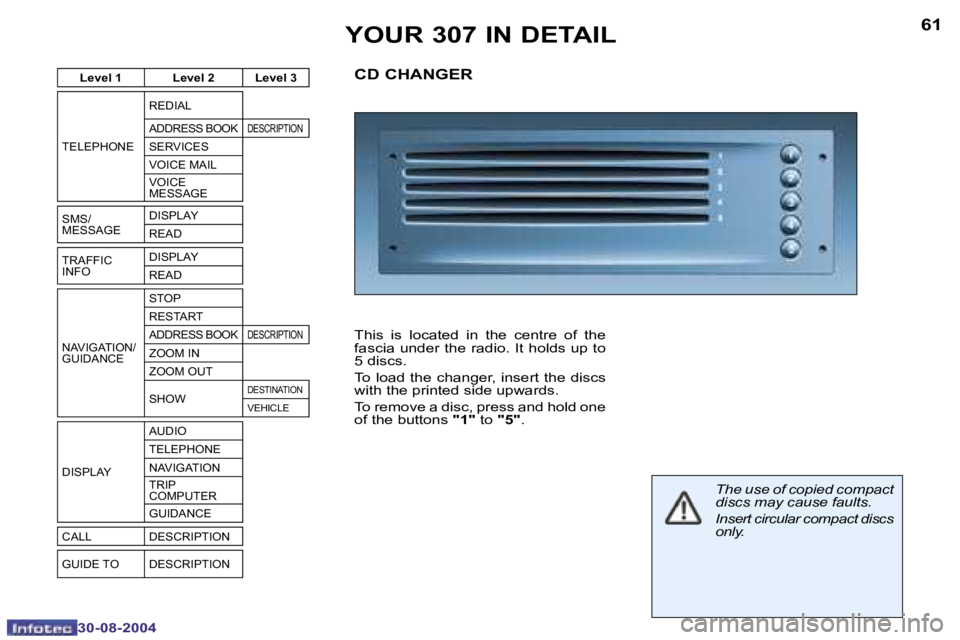

CD CHANGER
This is located in the centre of the
fascia under the radio. It holds up to
5 discs.
To load the changer, insert the discs
with the printed side upwards.
To remove a disc, press and hold one
of the buttons "1" to "5" .
The use of copied compact
discs may cause faults.
Insert circular compact discs
only.
Level 1 Level 2Level 3
TELEPHONE REDIAL
ADDRESS BOOKDESCRIPTION
SERVICES
VOICE MAIL
VOICE
MESSAGE
SMS/
MESSAGE DISPLAY
READ
TRAFFIC
INFO DISPLAY
READ
NAVIGATION/
GUIDANCE
STOP
RESTART
ADDRESS BOOKDESCRIPTION
ZOOM IN
ZOOM OUT
SHOW
DESTINATION
VEHICLE
DISPLAYAUDIO
TELEPHONE
NAVIGATION
TRIP
COMPUTER
GUIDANCE
CALL DESCRIPTION
GUIDE TO DESCRIPTION
