2004 PEUGEOT 307 BREAK DAG Owners Manual

132
30-08-2004
YOUR 307 IN DETAIL
For the front, side* and
curtain* air bags to be ful-
ly effective, observe the
following safety rules:
• Wear a correctly adjusted seat belt.
• Sit in a normal upright position.
• Do not leave anything between the occupants of the front seats
and the air bags (a child, pet,
object).
This could hamper the opera- tion of the air bags or injure the
occupants.
• All work on the air bag system is strictly forbidden unless it is
carried out by qualiied personnel
of the PEUGEOT network.
• After an accident or if the vehi- cle has been stolen or broken
into, have the air bag systems
checked. Front air bags
• Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
• Passengers must not place their feet on the fascia.
• Smoke as little as possible; de- ployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
• Never remove or pierce the steering wheel or hit it violently. Curtain air bags*
• Do not ix or glue anything to
the pillars or the roof. This could
cause injury to the head when the
curtain air bag inlates.
• Do not remove the bolts from the grab handles installed on the
roof, they play a part in securing
the curtain air bags.
* According to destination.
Side air bags*
• Only put approved covers on the
seats. Contact your PEUGEOT
dealer.
• Do not ix or glue anything to the seat backs. This could cause injury
to the chest or arms when the side
air bag inlates.
• Do not sit with the upper part of the body any nearer to the door than
necessary.

130
30-08-2004
131
30-08-2004
YOUR 307 IN DETAIL
In the "OFF" position, the passenger
air bag will not be triggered in the
event of an impact.
As soon as the child seat is removed,
turn the air bag slot to the "ON"
position to re-activate the air bag
and thus ensure the safety of your
passenger in the event of an impact.SIDE AIR BAGS* AND
CURTAIN AIR BAGS*
The side air bags are incorporated into
the front seat backs on the door side.
The curtain air bags are incorporated
into the door pillars and the upper
part of the passenger compartment.
They are deployed independently of
each other depending on which side
the collision occurs.
In the event of perma-
nent lighting of the two
air bag warning lights, do
not install a rear facing
child seat. Contact a PEUGEOT
dealer. With the ignition on (2nd
notch), illumination of this
warning light accompanied
by the message
"Passenger
air bag deactivated" on the
multifunction display, indicates that
the passenger air bag is disarmed
(switch in the "OFF" position). If this indicator light comes
on, accompanied by an audi-
ble signal and the message
"Air bag fault"
on the multi-
function display, contact a
PEUGEOT dealer to have the sys-
tem checked.
* According to destination.
Operating check
This is confirmed by an indicator
light, accompanied by an audible
signal and a message on the multi-
function display.
Disarming check
This is confirmed by an indicator light
accompanied by a message on the
multifunction display.

132
30-08-2004
YOUR 307 IN DETAIL

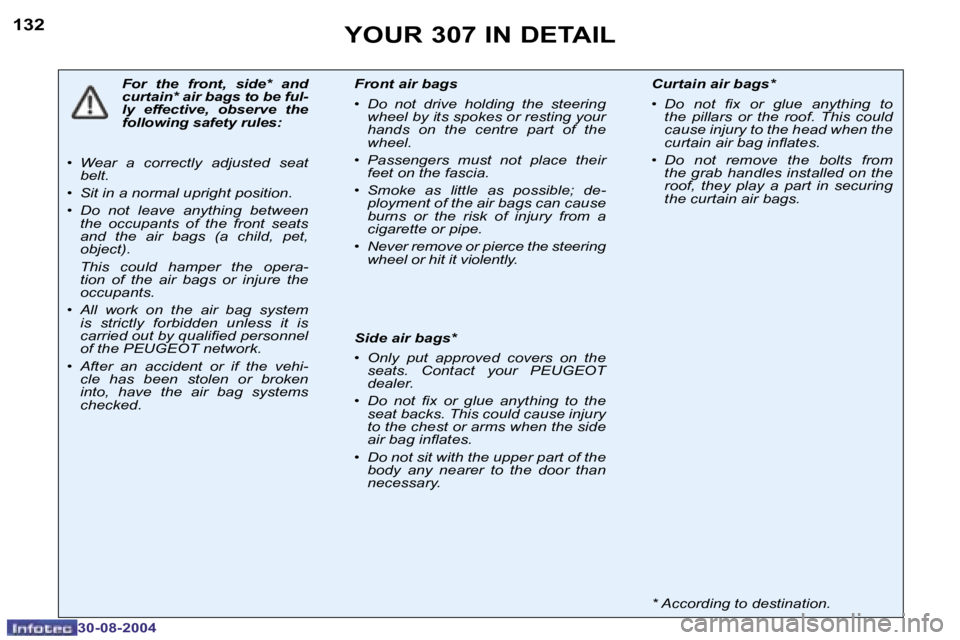

For the front, side* and
curtain* air bags to be ful-
ly effective, observe the
following safety rules:
• Wear a correctly adjusted seat belt.
• Sit in a normal upright position.
• Do not leave anything between the occupants of the front seats
and the air bags (a child, pet,
object).
This could hamper the opera- tion of the air bags or injure the
occupants.
• All work on the air bag system is strictly forbidden unless it is
carried out by qualiied personnel
of the PEUGEOT network.
• After an accident or if the vehi- cle has been stolen or broken
into, have the air bag systems
checked. Front air bags
• Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
• Passengers must not place their feet on the fascia.
• Smoke as little as possible; de- ployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
• Never remove or pierce the steering wheel or hit it violently. Curtain air bags*
• Do not ix or glue anything to
the pillars or the roof. This could
cause injury to the head when the
curtain air bag inlates.
• Do not remove the bolts from the grab handles installed on the
roof, they play a part in securing
the curtain air bags.
* According to destination.
Side air bags*
• Only put approved covers on the
seats. Contact your PEUGEOT
dealer.
• Do not ix or glue anything to the seat backs. This could cause injury
to the chest or arms when the side
air bag inlates.
• Do not sit with the upper part of the body any nearer to the door than
necessary.

133
30-08-2004
PRACTICAL INFORMATION
1 - Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake luid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air ilter.
8 - Dipstick.
9 - Engine oil reservoir.
1.4 LITRE PETROL ENGINE
* According to destination.

134
30-08-2004
135
30-08-2004
PRACTICAL INFORMATION
1 - Power steering reservoir.
2 - Windscreen and headlamp*
wash reservoir.
3 - Coolant reservoir. 4 -
Brake luid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air ilter.
8 - Dipstick.
9 - Engine oil reservoir.

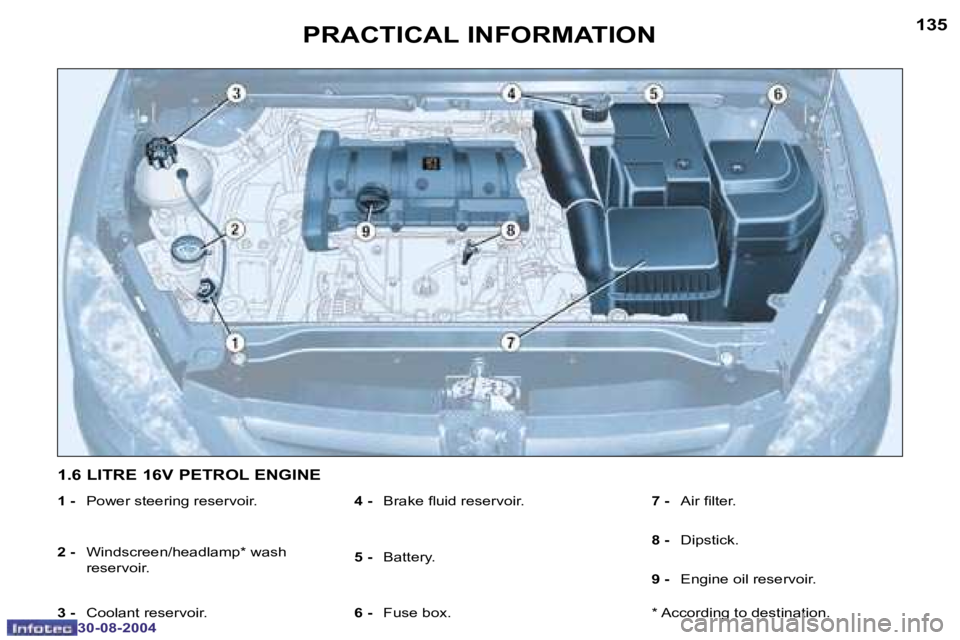

1.4 LITRE 16V PETROL ENGINE
* According to destination.

134
30-08-2004
135
30-08-2004
PRACTICAL INFORMATION
1 - Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake luid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air ilter.
8 - Dipstick.
9 - Engine oil reservoir.

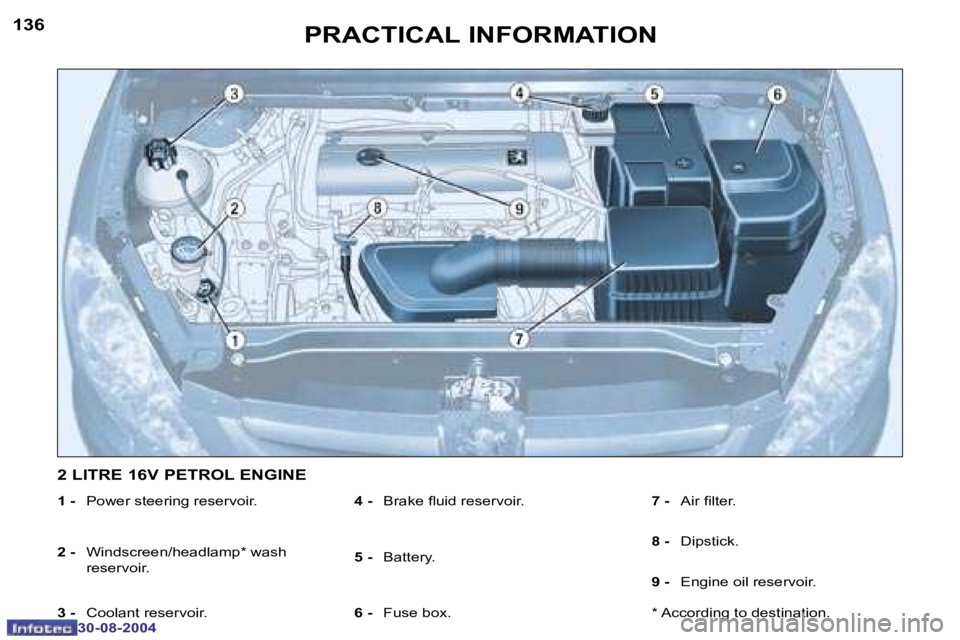

1.6 LITRE 16V PETROL ENGINE
* According to destination.

136
30-08-2004
137
30-08-2004
PRACTICAL INFORMATION
1 - Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake luid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air ilter.
8 - Dipstick.
9 - Engine oil reservoir.

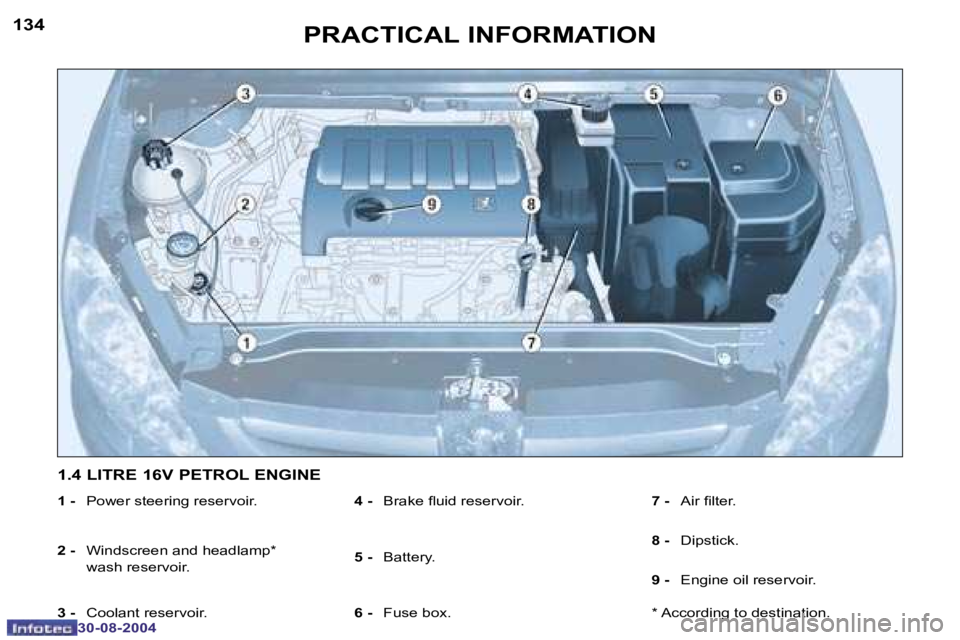

2 LITRE 16V PETROL ENGINE
* According to destination.

136
30-08-2004
137
30-08-2004
PRACTICAL INFORMATION
1 - Power steering reservoir.
2 - Windscreen/headlamp* wash
reservoir.
3 - Coolant reservoir. 4 -
Brake luid reservoir.
5 - Battery.
6 - Fuse box.
7 - Air ilter. 8 -
Dipstick.
9 - Engine oil reservoir.
10 - Priming pump.

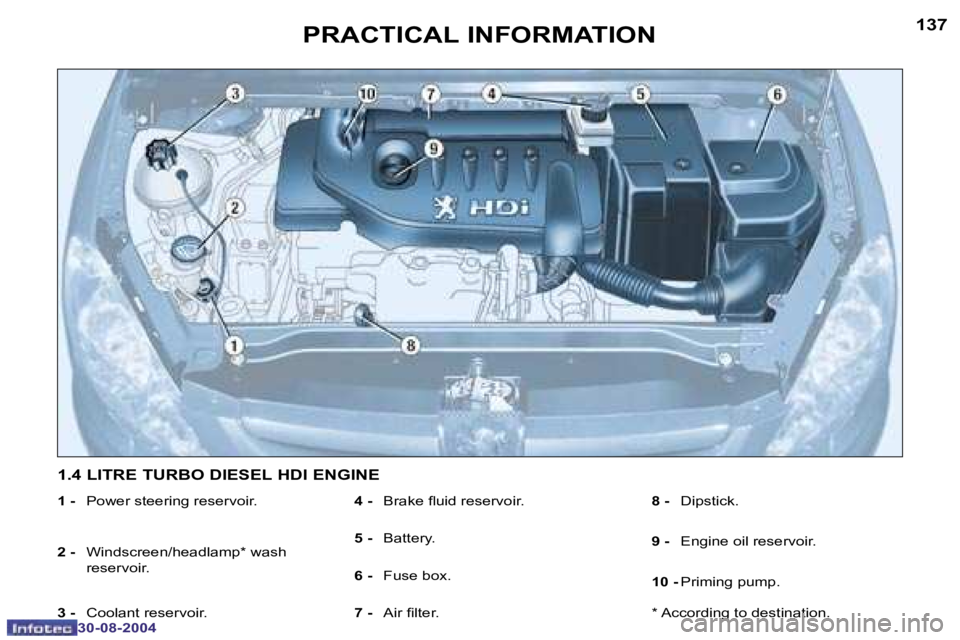

1.4 LITRE TURBO DIESEL HDI ENGINE
* According to destination.
