2004 MITSUBISHI ENDEAVOR Ac compressor

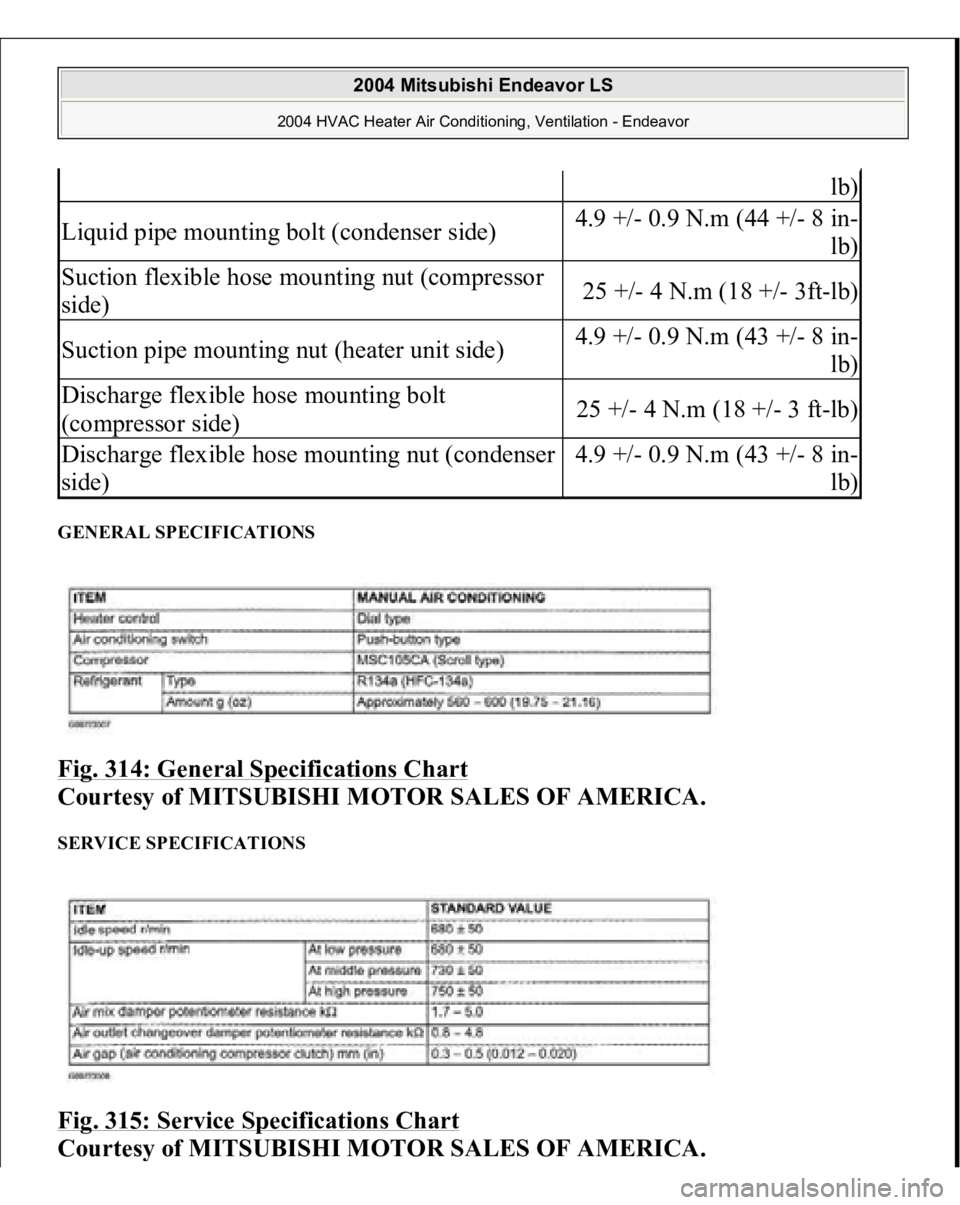

GENERAL SPECIFICATIONS Fig. 314: General Specifications Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SERVICE SPECIFICATIONS Fig. 315: Service Specifications Chart

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
lb)
Liquid pipe mounting bolt (condenser side)
4.9 +/- 0.9 N.m (44 +/- 8 in-
lb)
Suction flexible hose mounting nut (compressor
side)
25 +/- 4 N.m (18 +/- 3ft-lb)
Suction pipe mounting nut (heater unit side)
4.9 +/- 0.9 N.m (43 +/- 8 in-
lb)
Discharge flexible hose mounting bolt
(compressor side)
25 +/- 4 N.m (18 +/- 3 ft-lb)
Discharge flexible hose mounting nut (condenser
side)
4.9 +/- 0.9 N.m (43 +/- 8 in-
lb)

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

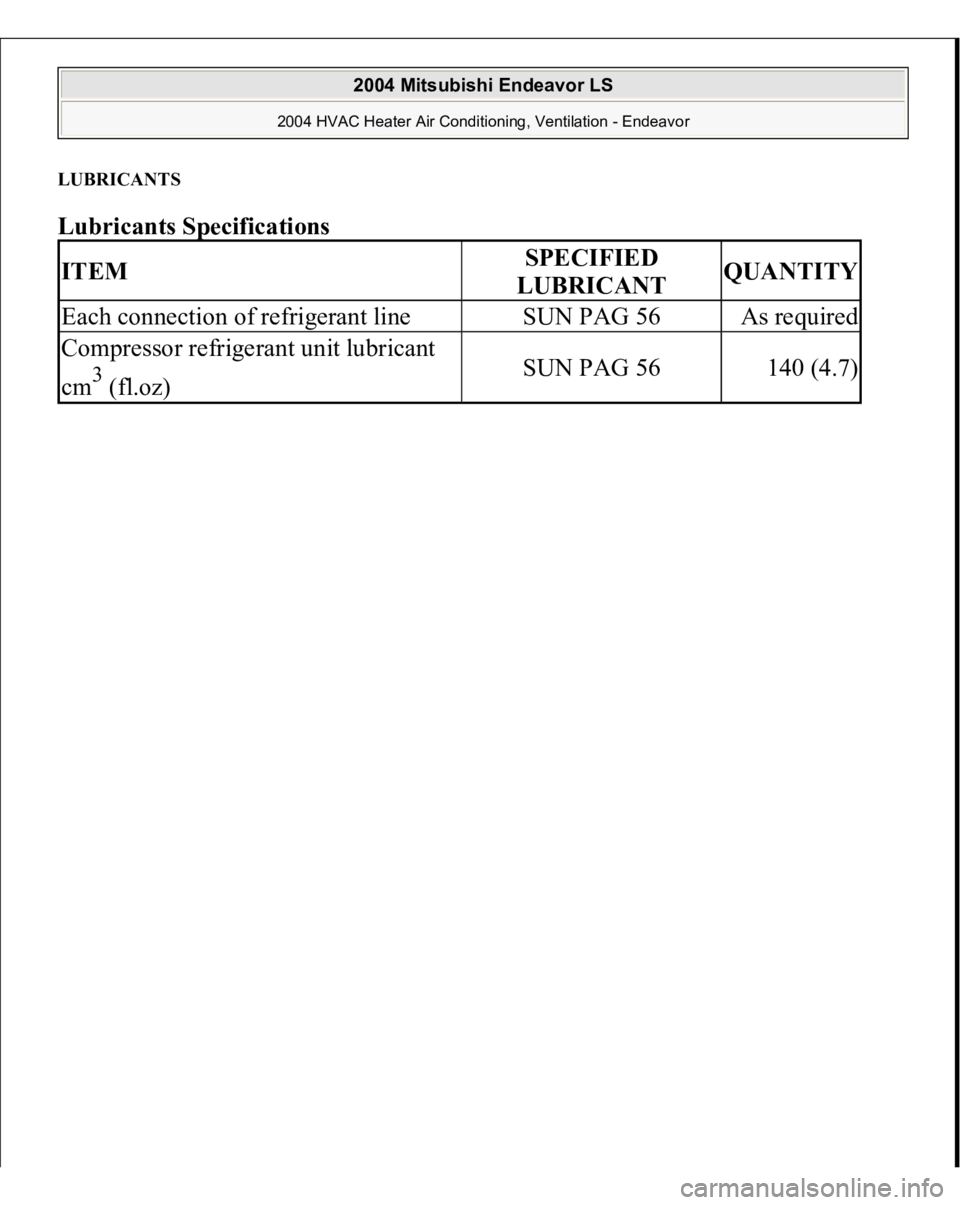

LUBRICANTS Lubricants Specifications

ITEM
SPECIFIED
LUBRICANT
QUANTITY
Each connection of refrigerant line
SUN PAG 56
As required
Compressor refrigerant unit lubricant
cm
3 (fl.oz)
SUN PAG 56
140 (4.7)

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

2004 HVAC
Automatic Air Conditioning - Endeavor
GENERAL DESCRIPTION For the heater and air conditioning system, the heater and cooling units are
combined in a single unit, which, with the a mode film damper and flow rate control
valve in the heater unit, reduces ventilation resistance, increases fan power, and
decreases noise. AUTOMATIC AIR CONDITIONING GENERAL DESCRIPTION

SAFETY PRECAUTIONS Because R-134a refrigerant is a hydro fluorocarbon (HFC) which contains
hydrogen atoms in place of chlorine atoms, it will not cause damage to the ozone
layer.
Ozone filters out harmful radiation from the sun. To assist in protecting the ozone
layer, Mitsubishi Motors Corporation recommends an R-134a refrigerant recycling
device.
Refrigerant R-134a is transparent and colorless in both the liquid and vapor state.
Since it has a boiling point of -29.8°C (-21.64°F) at atmospheric pressure, it will be
a vapor at all normal temperatures and pressures. The vapor is heavier than air, non-
flammable, and no
n-ex
plosive. The followin
g precautions must be observed when
ITEM
SPECIFICATION
Heater control assembly
dial type
Compressor
MSC105CA
Compressor Model
Scroll type
Refrigerant and quantity g
(oz)
R-134a (HFC-134a), Approximately 560 - 600
(19.75 - 21.16)
WARNING:Wear safety goggles and gloves when servicing the
refrigeration system to prevent severe damage to
eyes and hands.

2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor


2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor

When metering R-134a into the refrigeration system, keep the supply tank or cans
in an upright position. If the refrigerant container is on its side or upside down,
liquid refrigerant will enter the system and damage the compressor.
Refrigerant will tarnish bright metal and chrome surfaces, and in combination with
moisture can severely corrode all metal surfaces. OPERATION CONDENSER FAN AND RADIATOR FAN CONTROL
For the operation of each fan, refer to
SYMPTOM PROCEDURES
.
COMPRESSOR CONTROL WHEN OPERATING THE AIR CONDITIONING SWITCH
The air thermo sensor, which senses the temperature of the air flowing out of
the evaporator, deactivates the compressor at 3°C (37.4°F) or below. The dual pressure switch turns OFF when the refrigerant pressure becomes
excessively high or low, thus protecting the compressor circuit. When the air thermo sensor is activated, and the ignition switch, blower switch,
and air conditioning switch are ON, the A/C compressor clutch relay is
energized.
WHEN OPERATING THE MODE SELECTION DIAL
The air conditioning will work when the mode selection dial is set to the
"Defroster" or "Defroster/foot" position or the temperature control dial is set to
the "MAX A/C" position. In other dial positions, when the air conditioning
switch is turned on, the air conditioning will work.
A/C COMPRESSOR CLUTCH RELAY ON CONDITION
or it will be stained.

2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor

Fig. 1: Identifying A/C Compressor Clutch Relay ON Condition

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

AUTO A/C DIAGNOSIS INTRODUCTION After air is taken in through the damper, it is fed to the evaporator by the blower fan
and motor and cooled. The air cooled by the air mix damper is mixed appropriately
with the warmed air to achieve a comfortable temperature. If the A/C does not
operate or the cooled air is not discharged, the system components or relay may be
faulty. AUTOMATIC AIR CONDITIONING TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you
will be sure that you have exhausted most of the possible ways to find a heater, air
conditioning and ventilation fault.
1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following
SYMPTOM CHART
.
4. Verify malfunction is eliminated.
DIAGNOSTIC FUNCTION HOW TO CONNECT THE SCAN TOOL (MUT-III)
2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor

SPECIFICATIONS SERVICE SPECIFICATION Fig. 78: Identifying Specifications Tables

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
LUBRICANTS LUBRICANT SPECIFICATIONS ITEM
SPECIFIED
LUBRICANT
QUANTITY
Each refrigerant line connection
SUN PAG 56
As required
Compressor refrigerant unit lubricant
cm
3 (fl. oz.)
SUN PAG 56
140 (4.7)

2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor

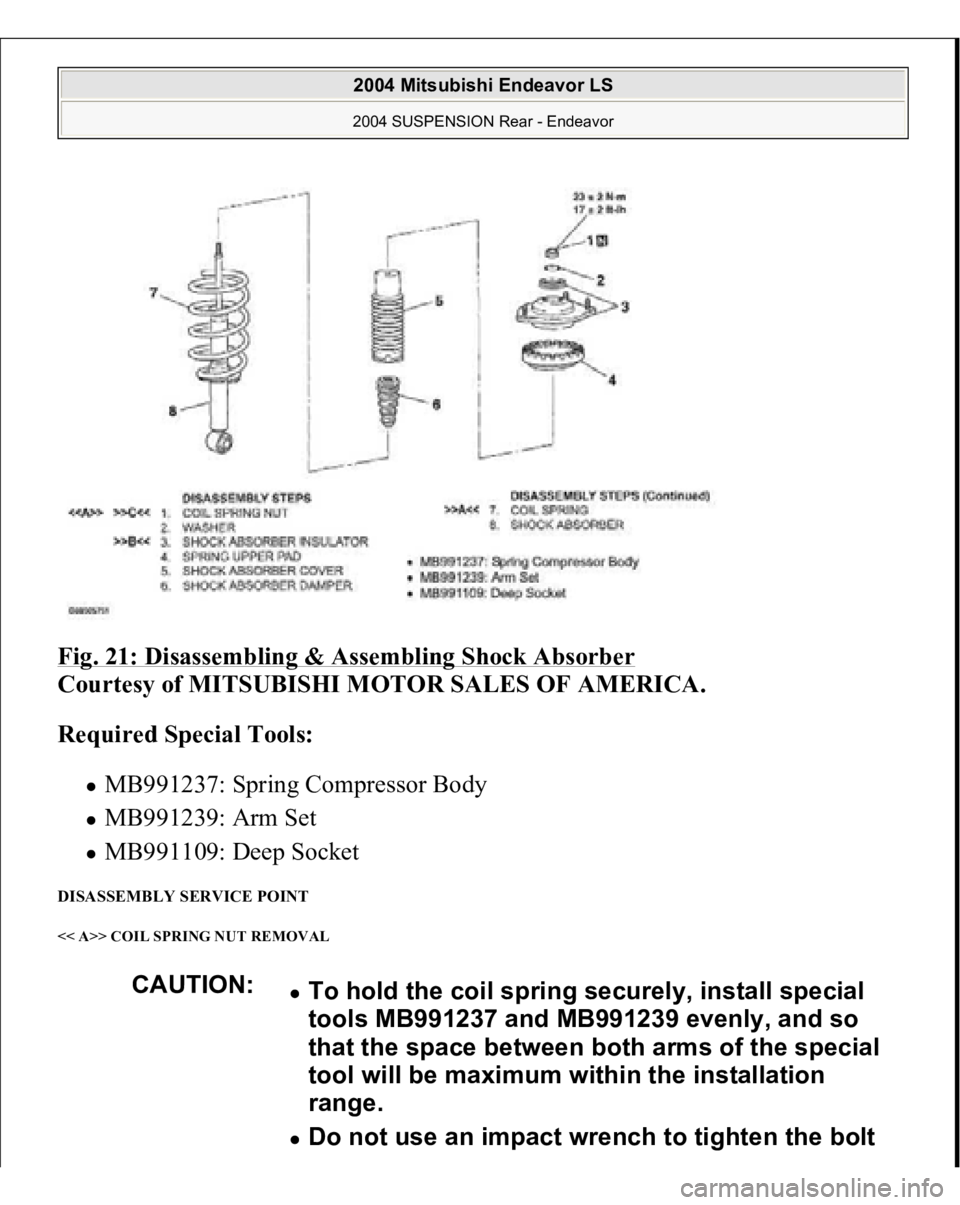

Fig. 21: Disassembling & Assembling Shock Absorber

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB991237: Spring Compressor Body MB991239: Arm Set MB991109: Deep Socket
DISASSEMBLY SERVICE POINT << A>> COIL SPRING NUT REMOVAL
CAUTION:
To hold the coil spring securely, install special
tools MB991237 and MB991239 evenly, and so
that the space between both arms of the special
tool will be maximum within the installation
range. Do not use an impact wrench to tighten the bolt

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear - Endeavor
