3. Turn the ignition switch to the "ON" position.
4. Select "Interactive Diagnosis".
5. Select "Special function".
6. Select "Steering angle sensor".
7. Select "Calibration".
8. Turn the ignition switch to the "LOCK" (OFF) position.
9. Disconnect scan tool MB991958.
HYDRAULIC UNIT REMOVAL AND INSTALLATION NOTE: The TCL/ASC-ECU is integrated in the hydraulic unit.
CAUTION: Alwa
ys calibrate the steerin
g wheel sensor and the G
and yaw rate sensor if the hydraulic unit (integrated
in the TCL/ASC-ECU) is replaced. (Refer to IN THE
EVENT OF A DISCHARGED BATTERY
and STEERING
WHEEL SENSOR CALIBRATION
)

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2004 STARTING & CHARGING SYSTEMS
Starters - Endeavor
DESCRIPTION & OPERATION If the ignition switch is turned to START position, current flows in the coil
provided inside magnetic switch, attracting the plunger. When plunger is attracted,
the lever connected to plunger is actuated to engage starter clutch. On the other
hand, attracting plunger will turn on magnetic switch, allowing "B" terminal and
"M" terminal to conduct. Thus, current flows to engage starter motor. When
ignition switch is returned to ON position after starting engine, starter clutch is
disengaged from ring gear.
An overrunning clutch is provided between pinion and armature shaft to prevent
damage to starter.
When the ignition switch is switched to the START position while the selector leve
r
is at the "P" or "N" range, the contact (magnetic switch) of the starter is switched
ON and the starter motor is activated.
ADJUSTMENT PINION GAP 1. Disconnect the field coil wire from the "M" terminal of magnetic switch.
2. Connect a 12V battery between "S" terminal and "M" terminal. See Fig. 1
.
3. Set switch to ON and pinion will move out.
4. Check the pinion to stopper clearance (pinion gap) with a feeler gauge. See
Fig. 2
.
5. If the pinion gap is out of specification, adjust by adding or removing gasket(s)
between the ma
gnetic switch and front bracket. CAUTION: To prevent coil from burning, DO NOT apply voltage
to starter assembly for more than 10 seconds.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Starters - Endeavor


2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Starters - Endeavor

STARTER MOTOR DOES NOT STOPCheck the magnetic switch. ON-VEHICLE TESTING STARTER MOTOR DOES NOT OPERATE 1. Is the battery in good condition? If Yes, go to the next step. If No, then charge
or replace battery.
2. Disconnect the starter motor "S" (solenoid) terminal connector. Using a jumper
wire, apply battery positive voltage to starter motor "S" (solenoid) terminal.
Does starter motor operate normally? If Yes, then check ignition switch,
transmission range switch and the line between the battery and starter motor
"S" (solenoid) terminal. If No, then go to the next step.
3. Check if the cable between starter "B" (battery) terminal and battery positive
terminal for connection and continuity. Is the starter cable in good condition? I
f
Yes, then go to the next step. If No, then repair or replace the cable.
4. Check the connection and continuity of the cable between starter motor body
and the negative battery terminal. Is the ground line in good condition? If Yes,
then go to the next step. If No, then repair or replace cable.
5. Is the starter motor in good condition? If Yes, problem is excessive rotational
resistance of the engine. If No, then replace the starter motor.
BENCH TESTING MAGNETIC SWITCH PULL-IN TEST 1. Disconnect field coil wire from "M" terminal of the magnetic switch. See Fig.
3 . WARNING:Battery posts, terminals and related accessories
contain lead and lead compounds. Wash hands after
handling.
CAUTION: To prevent coil from burning, DO NOT apply voltage
to starter assembly for more than 10 seconds.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Starters - Endeavor

1. Fully close the roof lid glass.
2. Adjust the water pressure so that water comes out of the hose to a height of
approximately 50 cm (19.7 inches) when the hose is held vertically facing
upwards.
3. Hold the end of the hose approximately 30 cm (11.8 inches) above the roof and
let the water run onto the weatherstrip for 5 minutes or more.
Fig. 2: Performing Water Test

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Check if any water leaks can be found in the room while watering. Even
though there are any water leaks around the roof lid glass, it can be acceptable
as long as water is caught in the drip area.
SUNROOF TIMER FUNCTION CHECK Keep the door closed, turn OFF the ignition switch and check to see if the sunroof
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

3.Installation of sunroof lid glass
4.Sunroof switch and sunroof motor

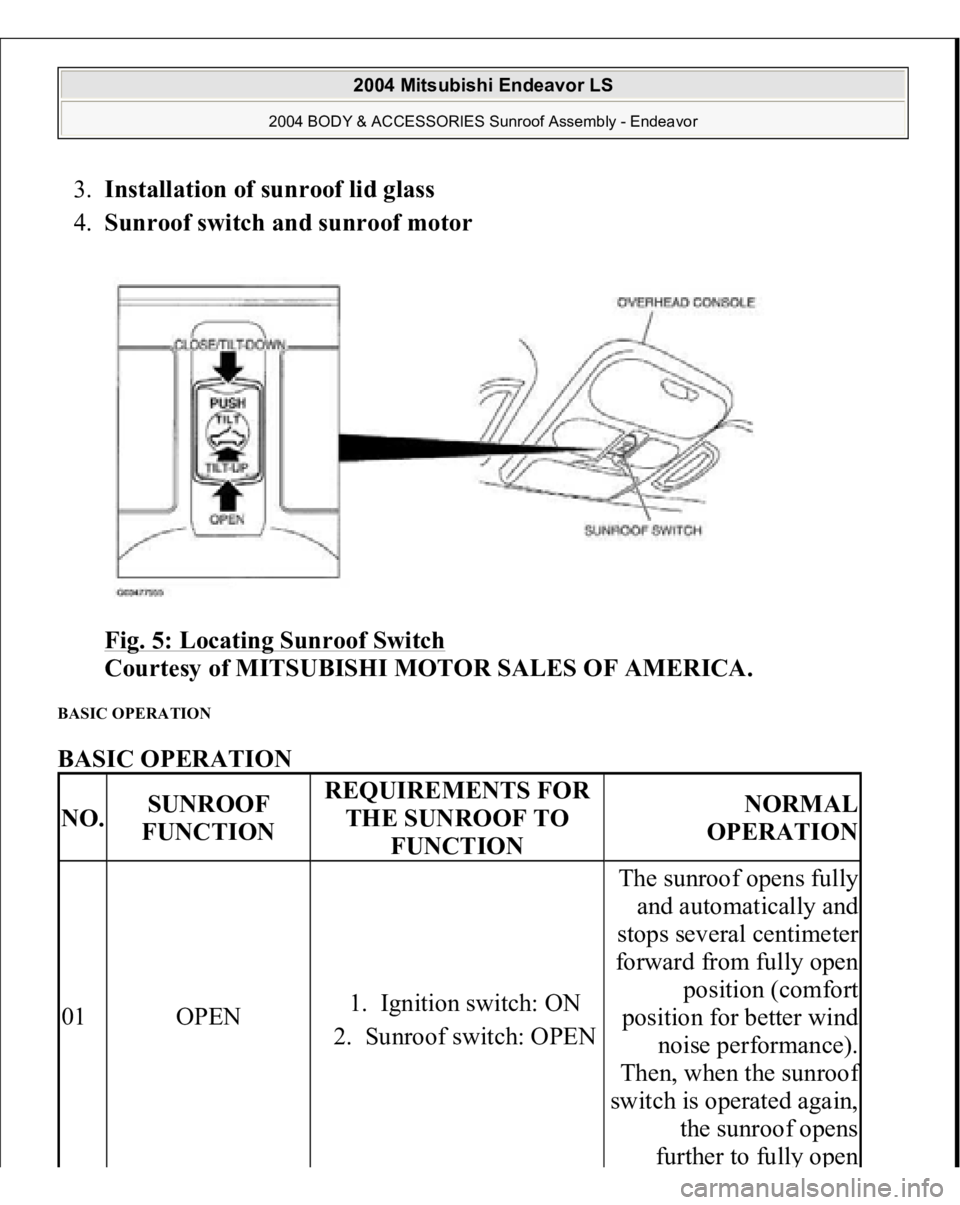

Fig. 5: Locating Sunroof Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
BASIC OPERATION BASIC OPERATION NO.
SUNROOF
FUNCTION
REQUIREMENTS FOR
THE SUNROOF TO
FUNCTION
NORMAL
OPERATION
01
OPEN
1. Ignition switch: ON
2. Sunroof switch: OPEN
The sunroof opens fully
and automatically and
stops several centimeter
forward from fully open
position (comfort
position for better wind
noise performance).
Then, when the sunroo
f
switch is operated again,
the sunroof opens
further to full
y open

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

position.

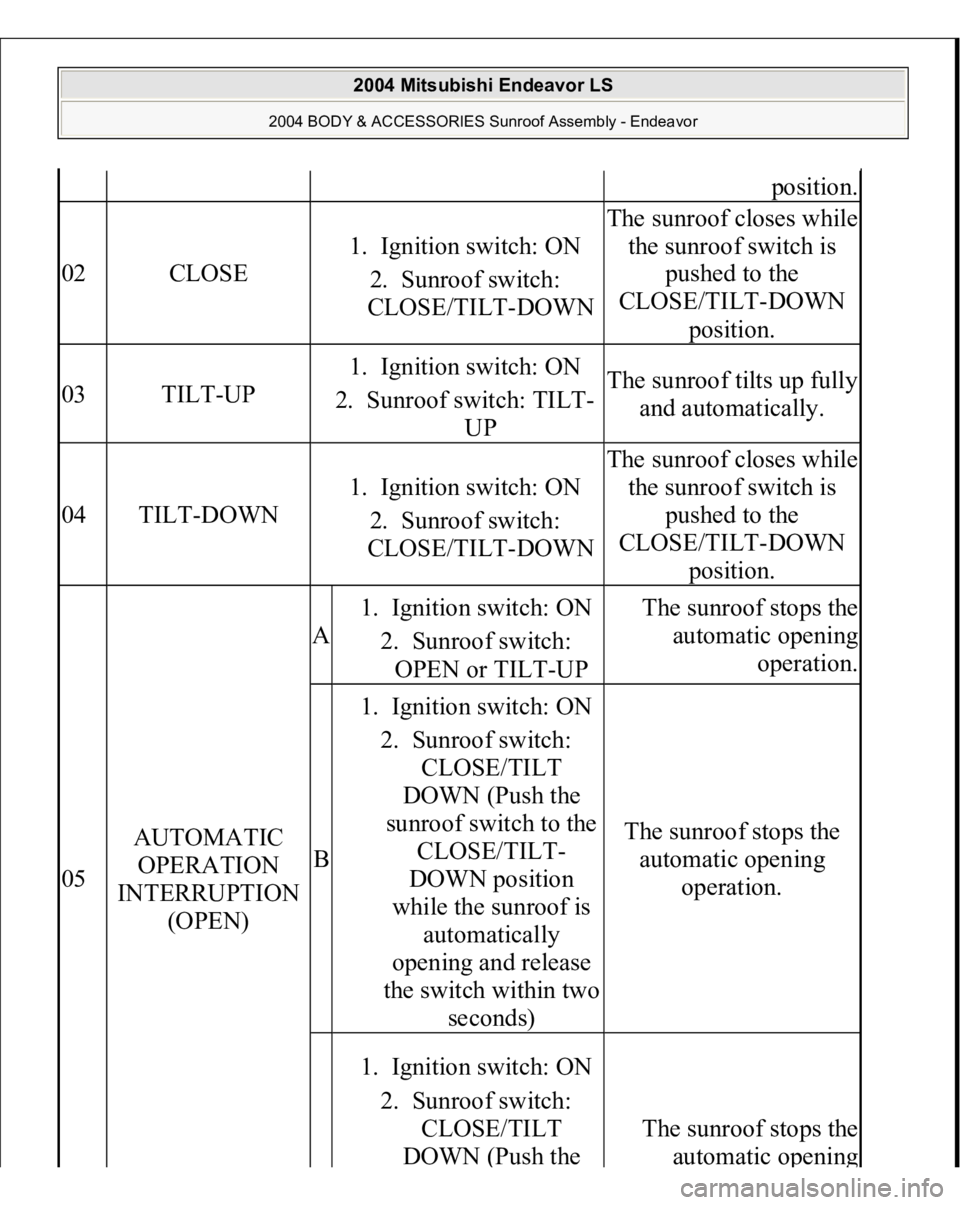

02
CLOSE
1. Ignition switch: ON
2. Sunroof switch:
CLOSE/TILT-DOWN
The sunroof closes while
the sunroof switch is
pushed to the
CLOSE/TILT-DOWN
position.
03
TILT-UP
1. Ignition switch: ON
2. Sunroof switch: TILT-
UP
The sunroof tilts up fully
and automatically.
04
TILT-DOWN
1. Ignition switch: ON
2. Sunroof switch:
CLOSE/TILT-DOWN
The sunroof closes while
the sunroof switch is
pushed to the
CLOSE/TILT-DOWN
position.
05
AUTOMATIC
OPERATION
INTERRUPTION
(OPEN)
A
1. Ignition switch: ON
2. Sunroof switch:
OPEN or TILT-UP
The sunroof stops the
automatic opening
operation.
B
1. Ignition switch: ON
2. Sunroof switch:
CLOSE/TILT
DOWN (Push the
sunroof switch to the
CLOSE/TILT-
DOWN position
while the sunroof is
automatically
opening and release
the switch within two
seconds)
The sunroof stops the
automatic opening
operation.
1. Ignition switch: ON
2. Sunroof switch:
CLOSE/TILT
DOWN
(Push the
The sunroof stops the
automatic o
penin
g

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

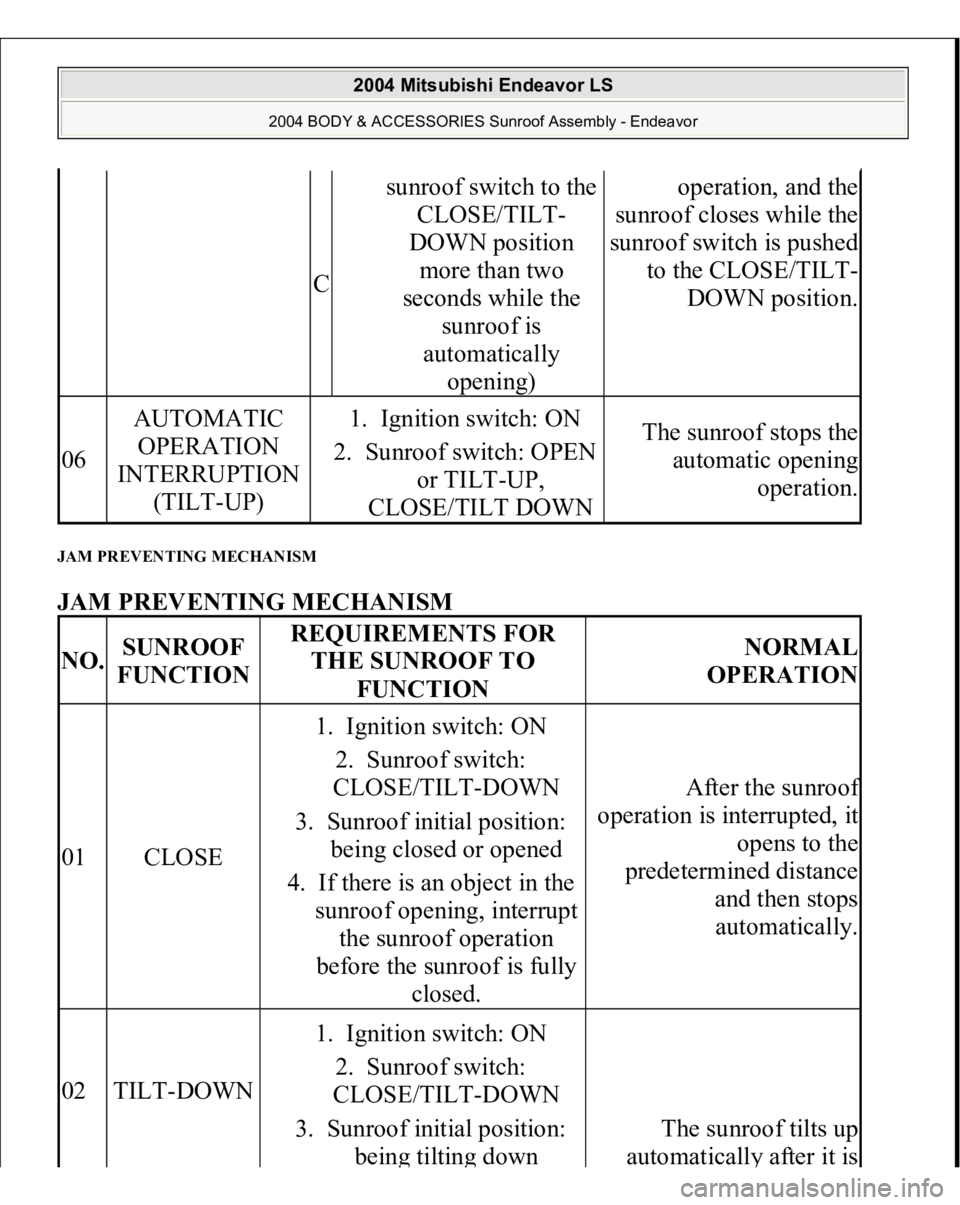

JAM PREVENTING MECHANISM JAM PREVENTING MECHANISM
C
sunroof switch to the
CLOSE/TILT-
DOWN position
more than two
seconds while the
sunroof is
automatically
opening)
operation, and the
sunroof closes while the
sunroof switch is pushed
to the CLOSE/TILT-
DOWN position.
06
AUTOMATIC
OPERATION
INTERRUPTION
(TILT-UP)
1. Ignition switch: ON
2. Sunroof switch: OPEN
or TILT-UP,
CLOSE/TILT DOWN
The sunroof stops the
automatic opening
operation.
NO.
SUNROOF
FUNCTION
REQUIREMENTS FOR
THE SUNROOF TO
FUNCTION
NORMAL
OPERATION
01
CLOSE
1. Ignition switch: ON
2. Sunroof switch:
CLOSE/TILT-DOWN
3. Sunroof initial position:
being closed or opened
4. If there is an object in the
sunroof opening, interrupt
the sunroof operation
before the sunroof is fully
closed.
After the sunroo
f
operation is interrupted, it
opens to the
predetermined distance
and then stops
automatically.
02
TILT-DOWN
1. Ignition switch: ON
2. Sunroof switch:
CLOSE/TILT-DOWN
3. Sunroof initial position:
bein
g tiltin
g down
The sunroof tilts up
automaticall
y after it is

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Sunroof Assembly - Endeavor

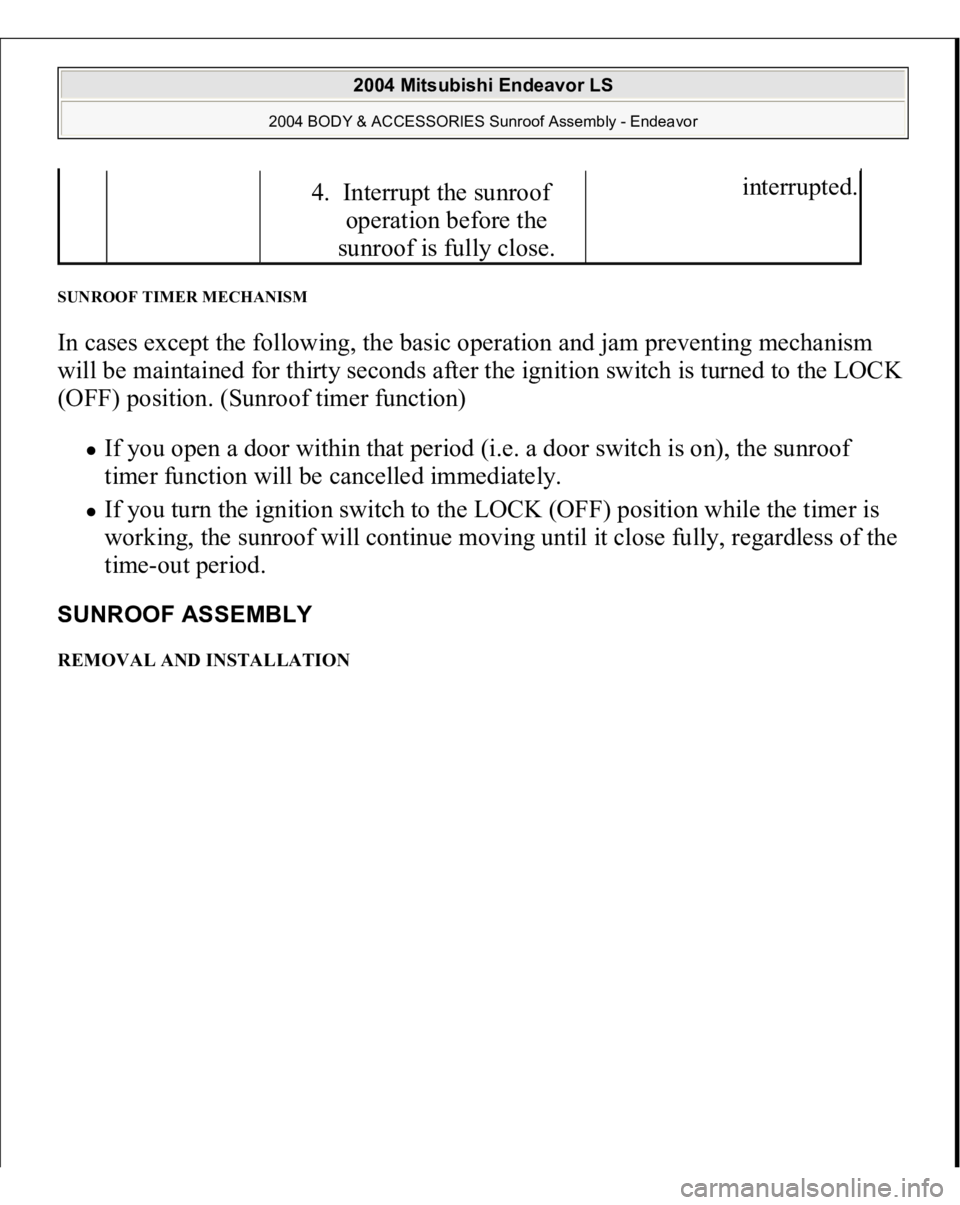

SUNROOF TIMER MECHANISM In cases except the following, the basic operation and jam preventing mechanism
will be maintained for thirty seconds after the ignition switch is turned to the LOCK
(OFF) position. (Sunroof timer function)
If you open a door within that period (i.e. a door switch is on), the sunroof
timer function will be cancelled immediately. If you turn the ignition switch to the LOCK (OFF) position while the timer is
working, the sunroof will continue moving until it close fully, regardless of the
time-out period.
SUNROOF ASSEMBLY REMOVAL AND INSTALLATION
4. Interrupt the sunroof
operation before the
sunroof is fully close.
interrupted.
