MITSUBISHI ENDEAVOR 2004  Service Repair Manual MB991952: ABS Check Harness

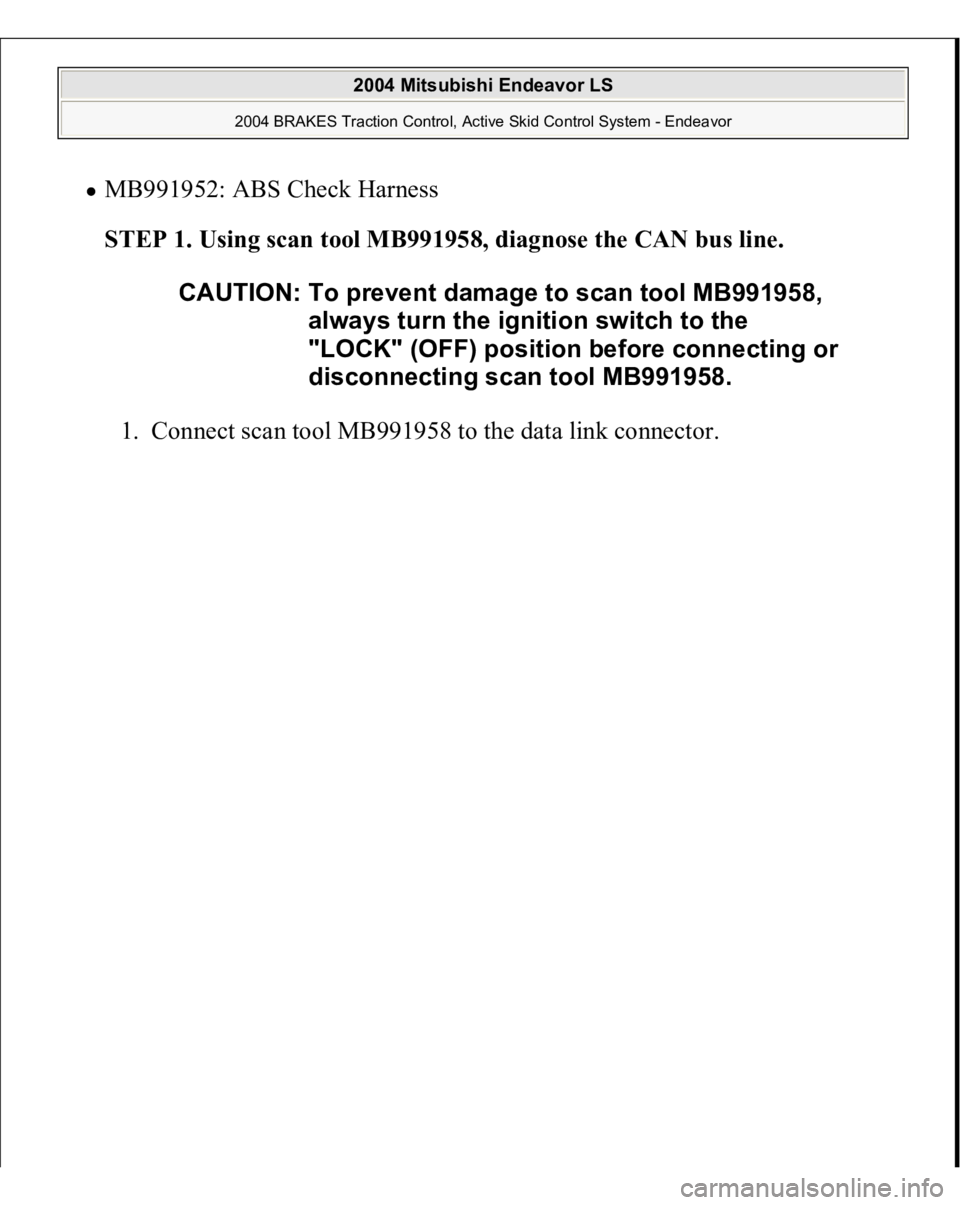

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connec
tor.
CAUTION: To prevent damage to scan tool MB991958

Page 3159 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be norma

Page 3195 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 69: Identifying Connector D
-10, D
-15
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
A toothed ABS rotor generates a voltage pulse as it moves across the pickup
field of ea

Page 3197 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness

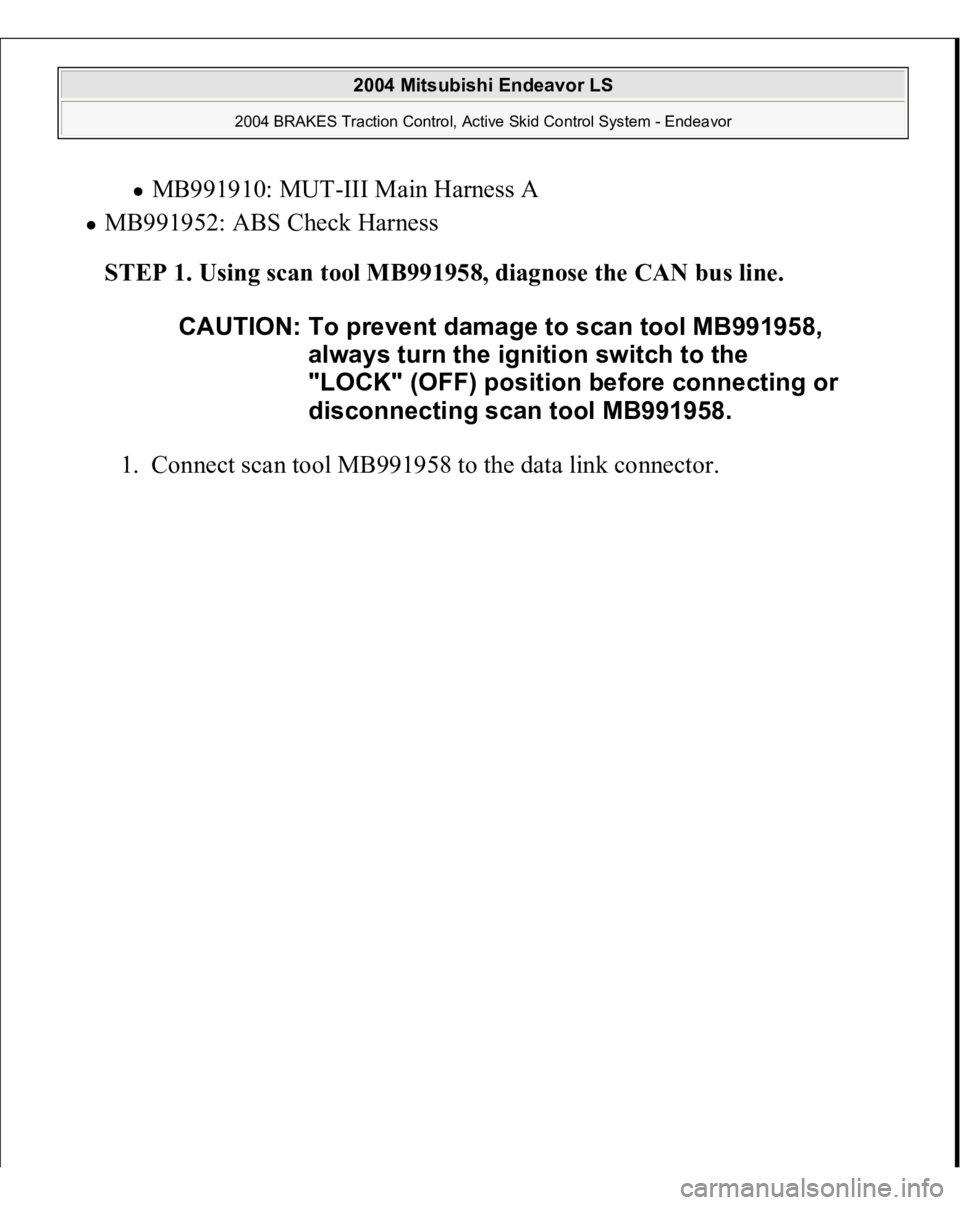

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connec
tor.
CAUTION: To p

Page 3199 of 3870

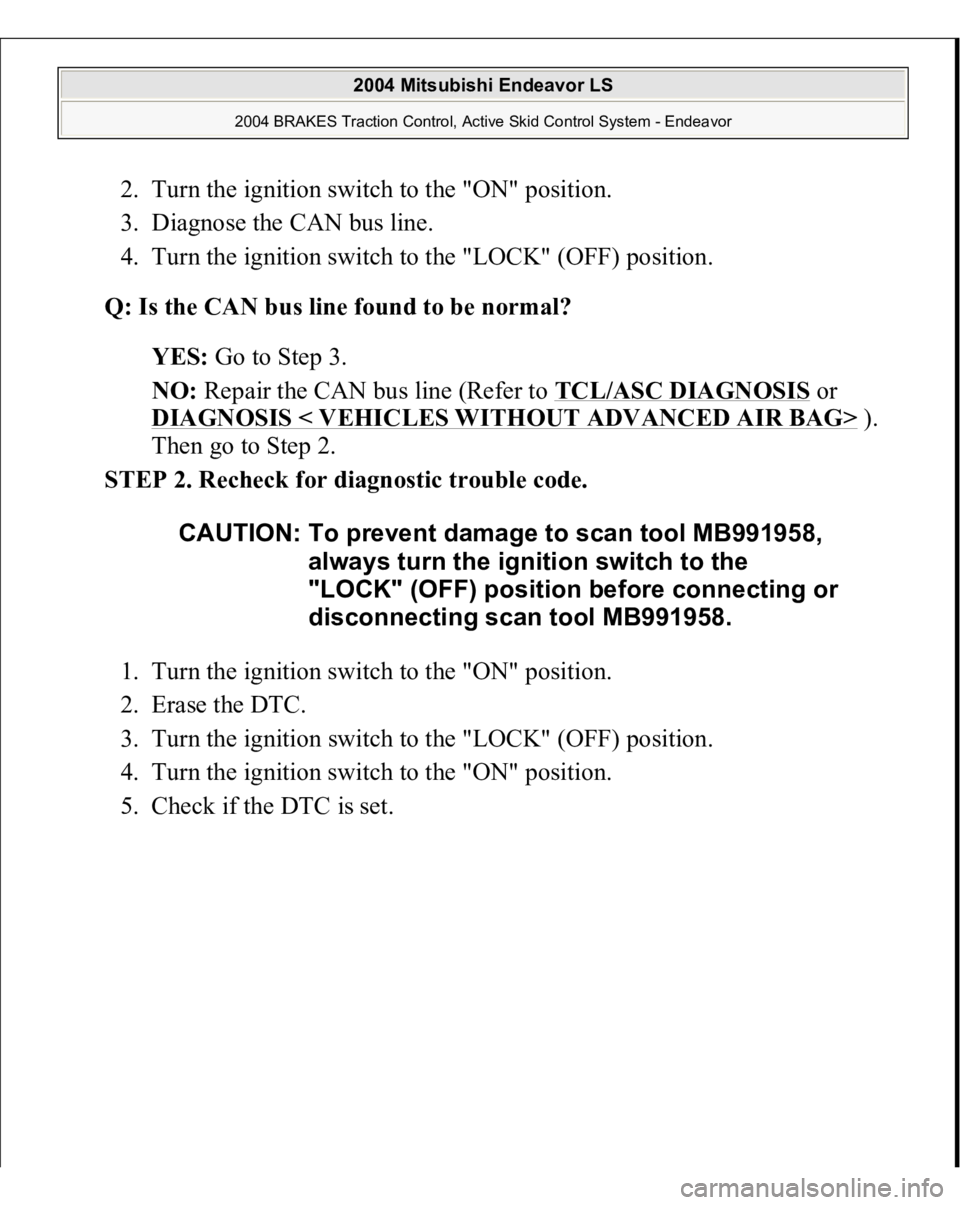

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be norma

Page 3227 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 88: G And Yaw Rate Sensor Circuit Diagra
m
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 89: Identifying Connectors: A
-32, C
-24, C
-04, C
-31, C101, B
-18, C
-36, C
-
214, C
-215

Cour

Page 3228 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual The TCL/ASC-ECU gathers information regarding lateral and longitudinal
accelerations and yaw rate, through the CAN bus line from the G and yaw rate
sensor. TCL/ASC DTC SET CONDITIONS The TCL/ASC-ECU

Page 3231 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) pos
