2004 MITSUBISHI ENDEAVOR cruise control

Fig. 100: Data List Reference Table (1 Of 2)
Driving tests always need two persons: one
driver and one observer.
NOTE: *:Disconnect the throttle position sensor connector, and
then delete the diagnostic trouble code that was recorded
during the inspection with the use of scan tool MB991958
after the inspection has been completed.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

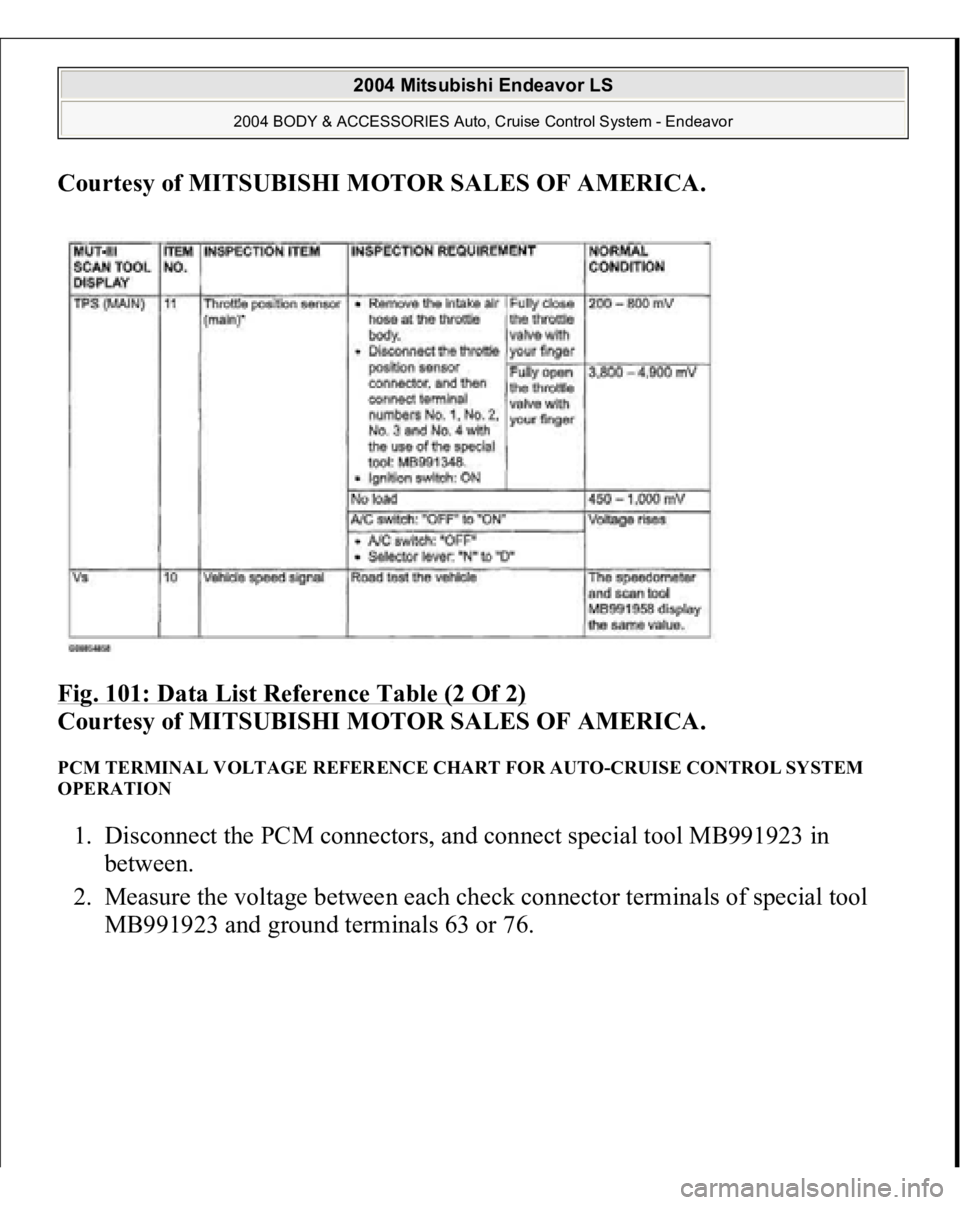

Fig. 101: Data List Reference Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
PCM TERMINAL VOLTAGE REFERENCE CHART FOR AUTO-CRUISE CONTROL SYSTEM
OPERATION 1. Disconnect the PCM connectors, and connect special tool MB991923 in
between.
2. Measure the voltage between each check connector terminals of special tool
MB991923 and
ground terminals 63 or 76.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

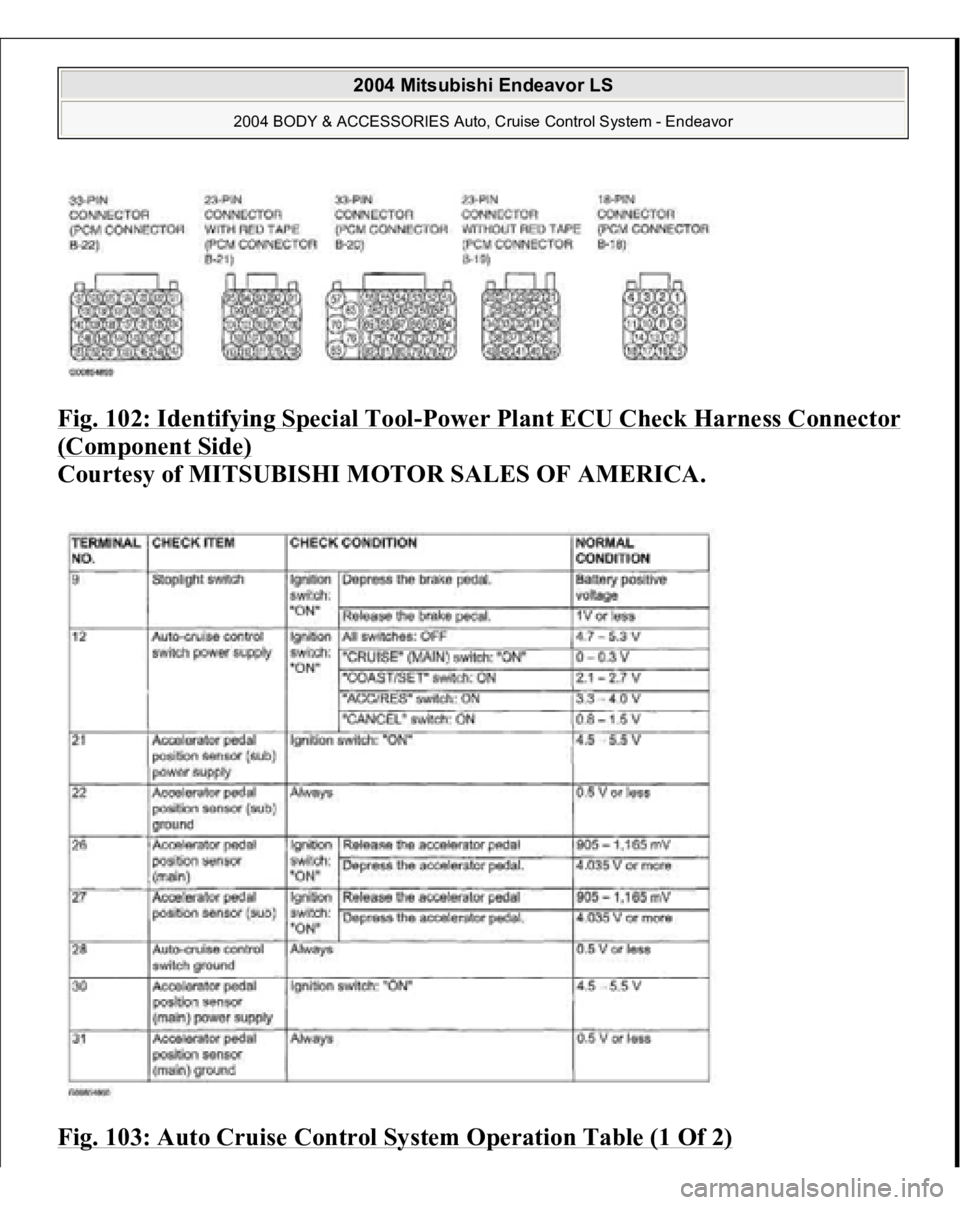

Fig. 102: Identifying Special Tool
-Power Plant ECU Check Harness Connector
(Component Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 103: Auto Cruise Control System Operation Table (1 Of 2)

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

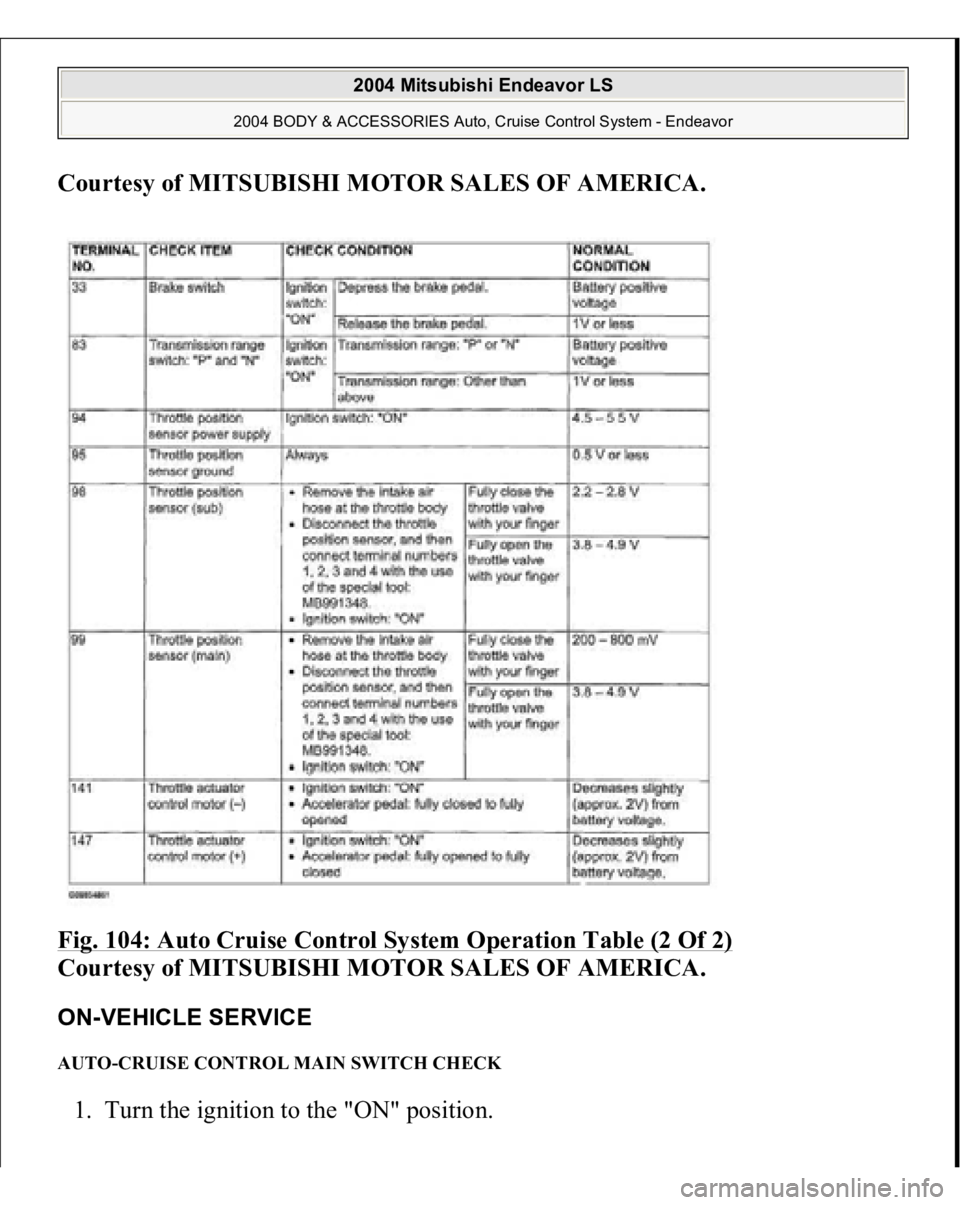

Fig. 104: Auto Cruise Control System Operation Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE AUTO-CRUISE CONTROL MAIN SWITCH CHECK 1. Turn the i
gnition to the "ON"
position.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

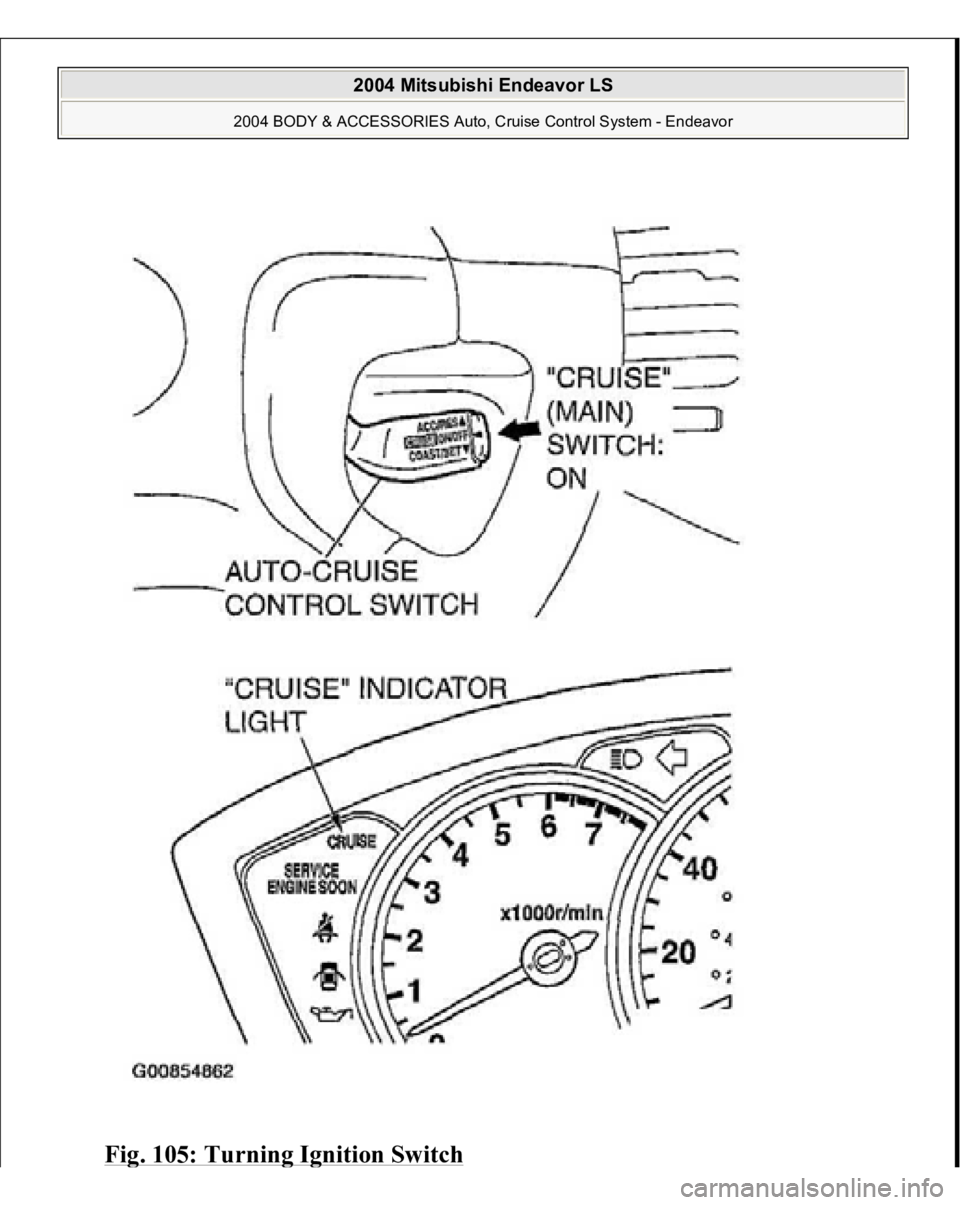

Fig. 105: Turnin
g Ignition Switc
h

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Check that the "CRUISE" indicator light within the combination meter
illuminates when the "CRUISE" (MAIN) switch is switched "ON"
AUTO-CRUISE CONTROL SETTING 1. Switch "ON" the "CRUISE" (MAIN) switch.
Fig. 106: Switching ON The CRUISE Main Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Drive at the desired speed, above approximately 40 km/h (25 mph).
3. Push the auto-cruise control switch in the direction of arrow.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

4. Check to be sure that when the switch is released the speed is the desired
constant speed. SPEED-INCREASE SETTING 1. Set to the desired speed.
2. Push the auto-cruise control switch in the direction of arrow.
Fig. 107: Increasing Speed

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
NOTE: If the vehicles speed decreases to approximately 15
km/h (9 mph) below the set speed because of climbing
a hill for example, the auto-cruise control will be
cancelled.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

3. Check to be sure that acceleration continues while the switch is held, and that
after it is released the constant speed at the time when it was released becomes
the driving speed. SPEED-REDUCTION SETTING 1. Set to the desired speed.
2. Push the auto-cruise control switch in the direction of arrow.
NOTE: Acceleration can be continued even if the vehicle speed
has passed the high-speed limit [approximately 170
km/h (106 mph)]. But the speed when the auto-cruise
control switch is released will be recorded as the high-
speed limit.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
