2004 MITSUBISHI ENDEAVOR COMMUNICATION ERROR

Check if a DTC, which relates to CAN communication-linked systems below,
is set.
ETACS-ECU
DTC indicating a time-out error of middle-grade multi-center display unit
1. Turn the ignition switch to the "ON" position.
2. Check for a DTC related to the relevant system.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result satisfactory?

YES:
Go to Step 4.
NO:
Go to Step 5 .
STEP 4. Recheck for diagnostic trouble code.

Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Check if the DTC is set.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result satisfactory?

YES:
A poor connection, open circuit or other intermittent malfunction is
present in the CAN bus lines between the middle-grade multi-center
display unit and the A/C-ECU (Refer to
HOW TO USE
TROUBLESHOOTING/ INSPECTION SERVICE POINTS
).
NO:
Replace the A/C-ECU. On completion, check that the DTC is not
reset.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

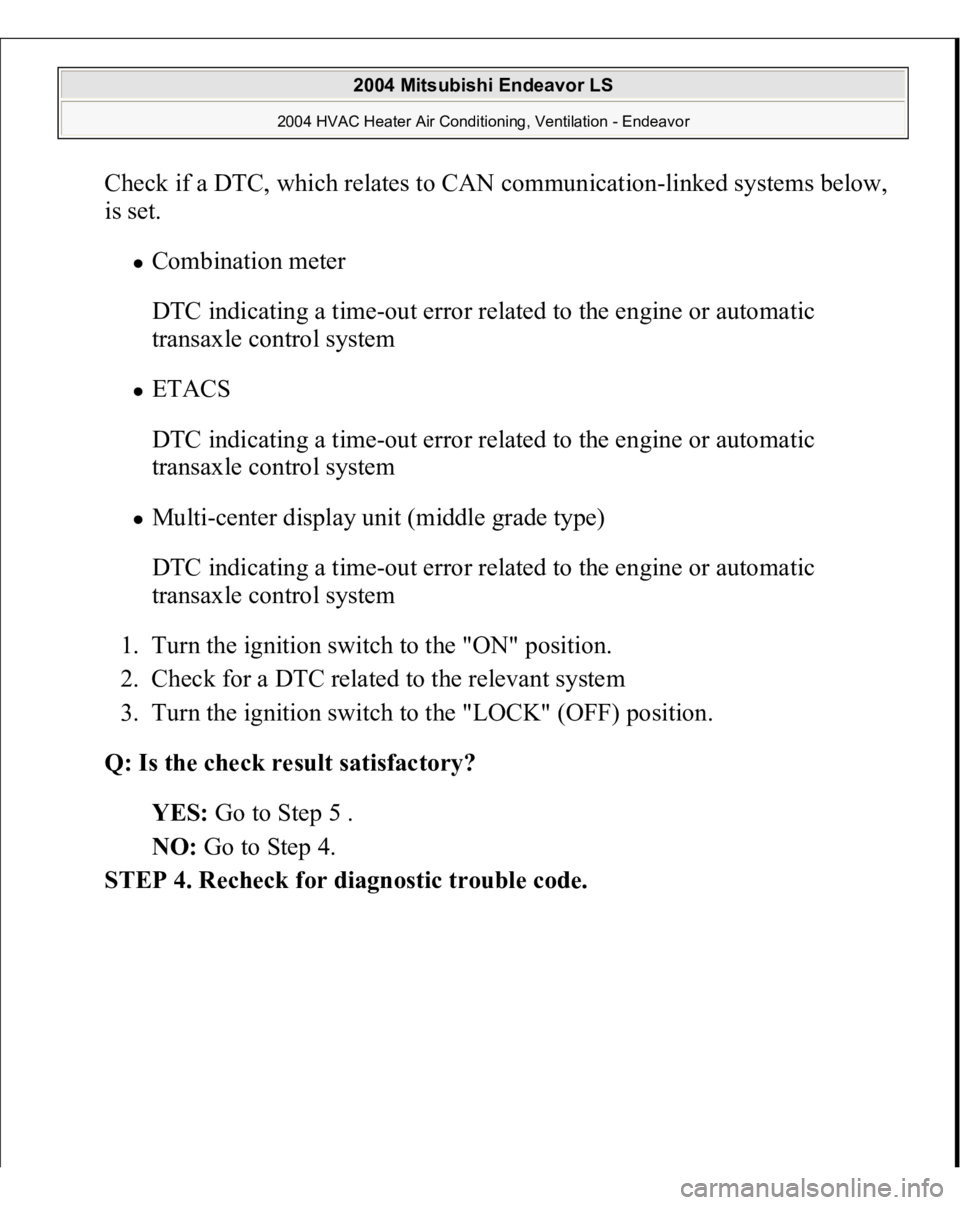

Check if a DTC, which relates to CAN communication-linked systems below,
is set.
Combination meter
DTC indicating a time-out error related to the engine or automatic
transaxle control system ETACS
DTC indicating a time-out error related to the engine or automatic
transaxle control system Multi-center display unit (middle grade type)
DTC indicating a time-out error related to the engine or automatic
transaxle control system
1. Turn the ignition switch to the "ON" position.
2. Check for a DTC related to the relevant system
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result satisfactory?

YES:
Go to Step 5 .
NO:
Go to Step 4.
STEP 4. Recheck for diagnostic trouble code.


2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1395 set?
YES: Perform air-bleeding (Refer to HYDRAULIC UNIT
).
NO: The procedure is complete.
DTC C1505: STEERING ANGLE SENSOR, DTC C1506: STEERING ANGLE SENSOR ERROR Fig. 163: Steerin
g Wheel Sensor Communication Circuit Dia
gram

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

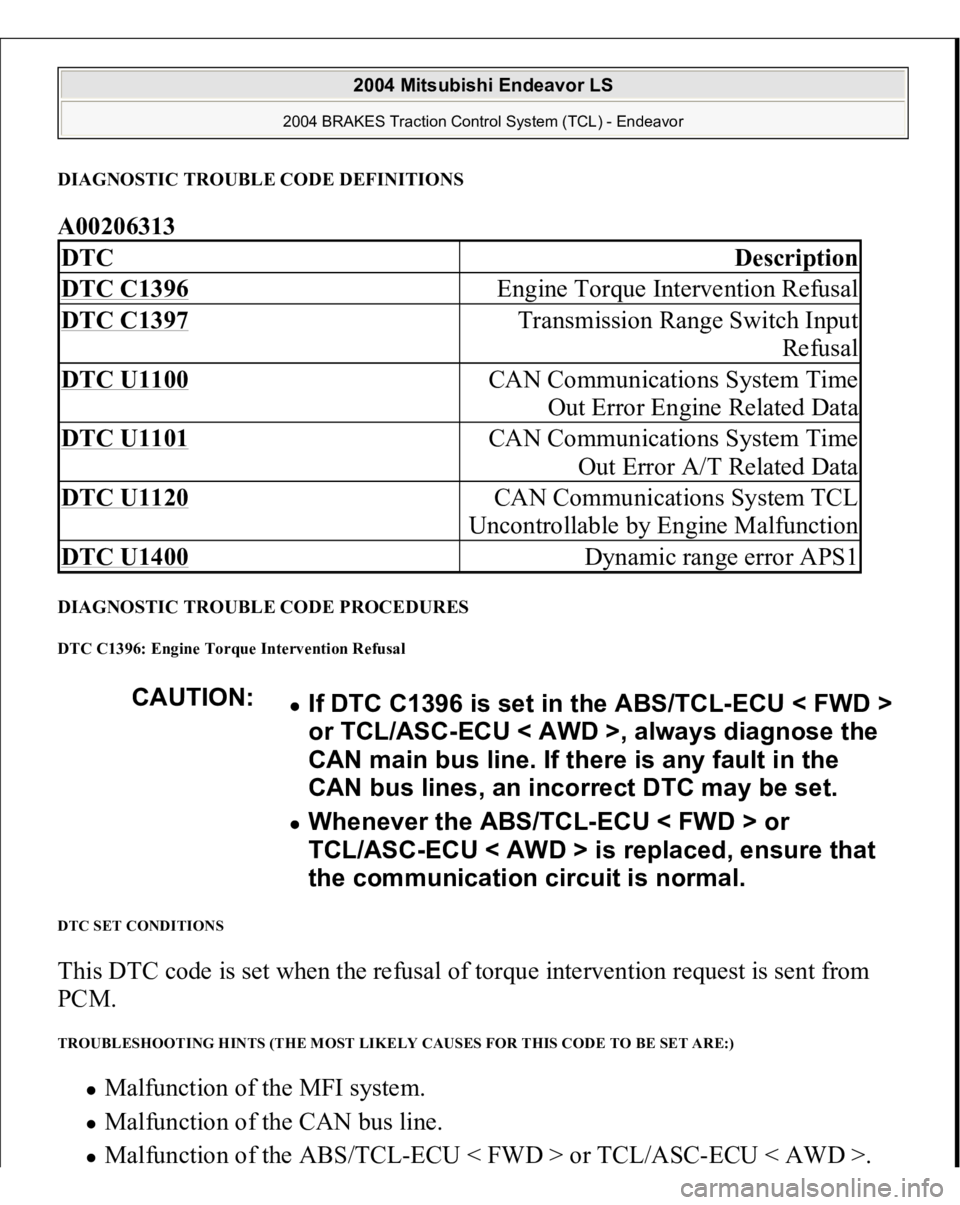

DIAGNOSTIC TROUBLE CODE DEFINITIONSA00206313 DIAGNOSTIC TROUBLE CODE PROCEDURES DTC C1396: Engine Torque Intervention Refusal DTC SET CONDITIONS This DTC code is set when the refusal of torque intervention request is sent from
PCM. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CODE TO BE SET ARE:)
Malfunction of the MFI system. Malfunction of the CAN bus line. Malfunction of the ABS/TC
L-ECU < FWD > or TCL/ASC-ECU < AWD >.
DTC
Description
DTC C1396

Engine Torque Intervention Refusal
DTC C1397

Transmission Range Switch Input
Refusal
DTC U1100

CAN Communications System Time
Out Error Engine Related Data
DTC U1101

CAN Communications System Time
Out Error A/T Related Data
DTC U1120

CAN Communications System TCL
Uncontrollable by Engine Malfunction
DTC U1400

Dynamic range error APS1
CAUTION:
If DTC C1396 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

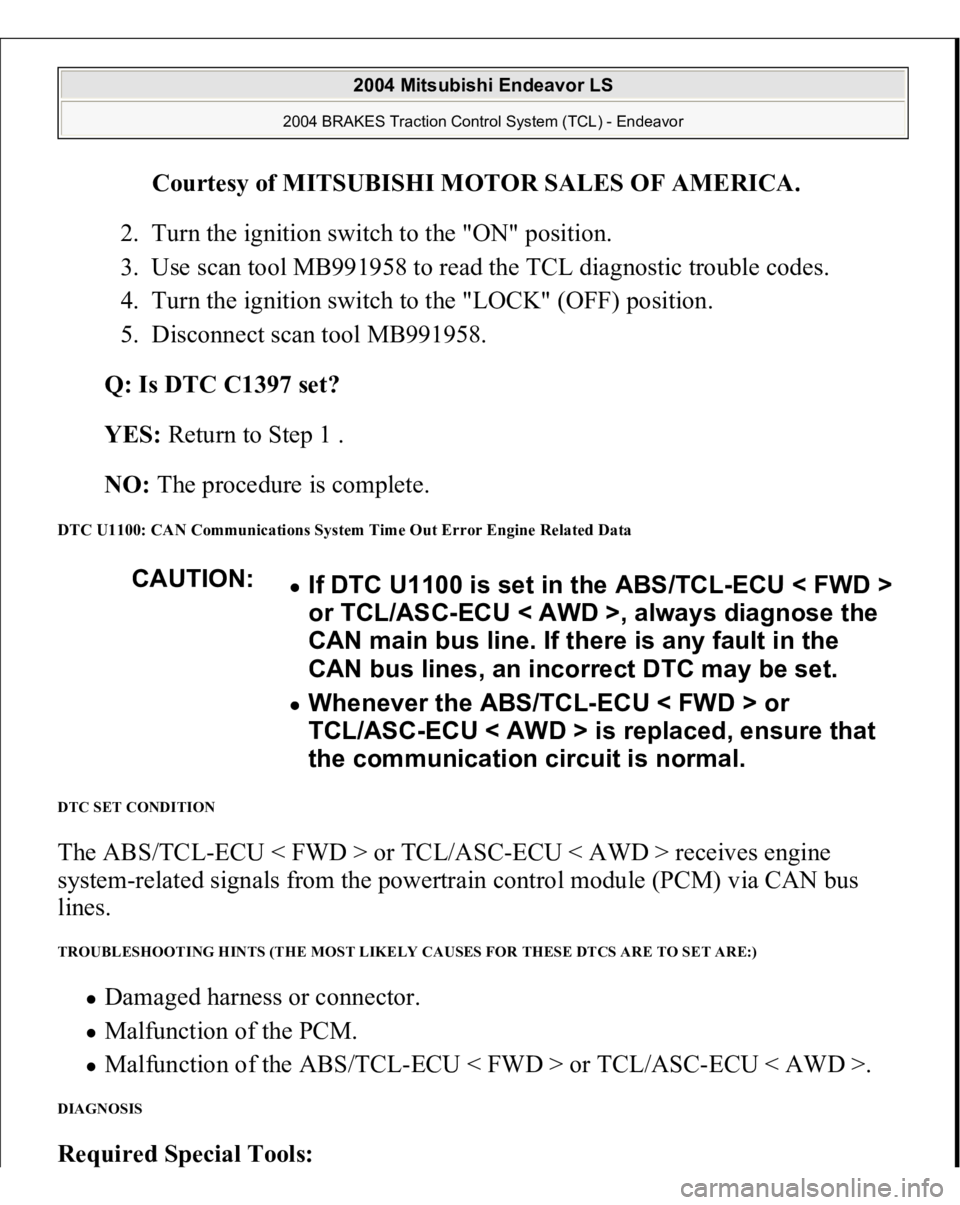

2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991958 to read the TCL diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.
Q: Is DTC C1397 set?
YES: Return to Step 1 .
NO: The procedure is complete.
DTC U1100: CAN Communications System Time Out Error Engine Related Data DTC SET CONDITION The ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > receives engine
system-related signals from the powertrain control module (PCM) via CAN bus
lines. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THESE DTCS ARE TO SET ARE:)
Damaged harness or connector. Malfunction of the PCM. Malfunction of the ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD >.
DIAGNOSIS Required Special Tools: CAUTION:
If DTC U1100 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

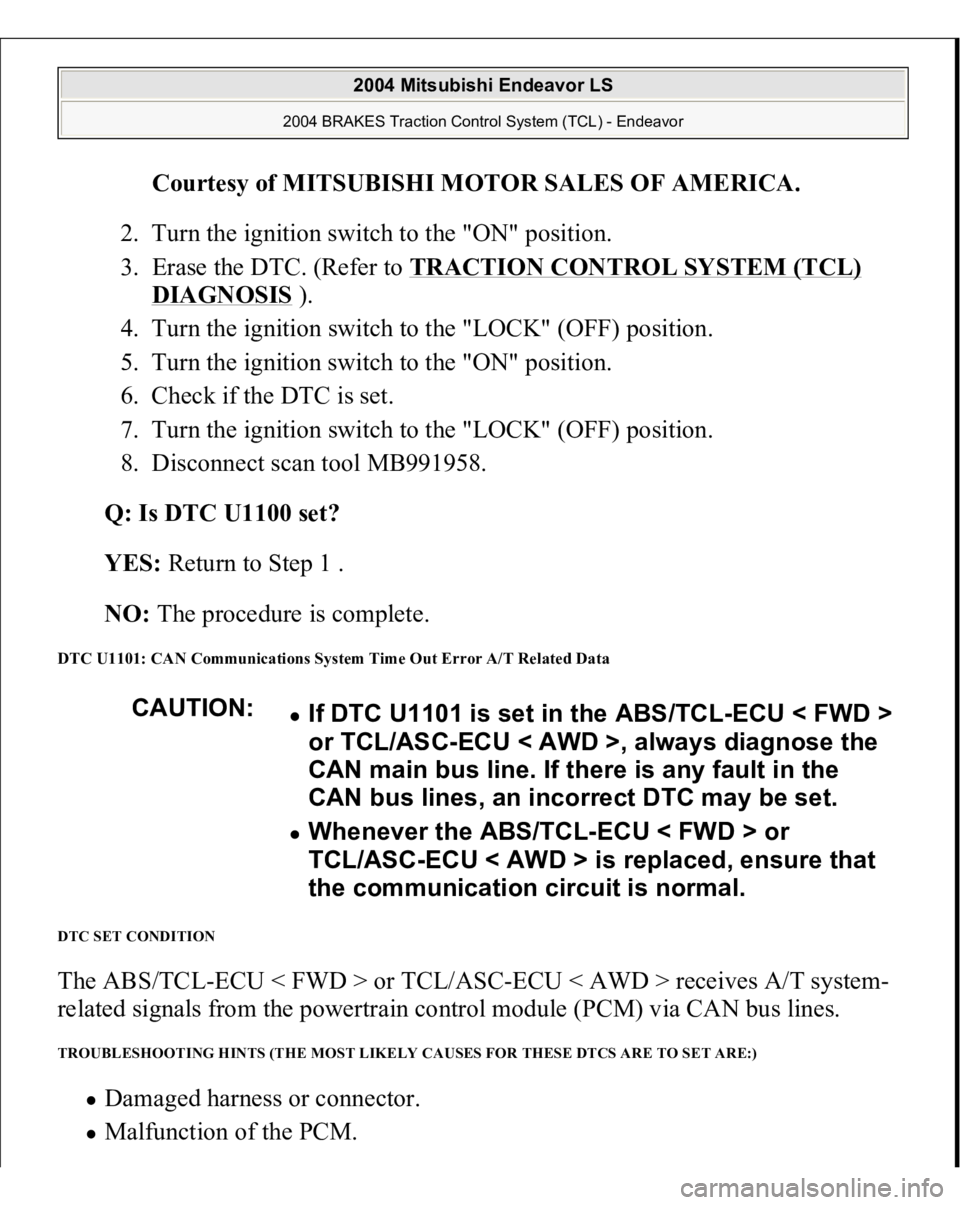

2. Turn the ignition switch to the "ON" position.
3. Erase the DTC. (Refer to TRACTION CONTROL SYSTEM (TCL)
DIAGNOSIS
).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Turn the ignition switch to the "ON" position.
6. Check if the DTC is set.
7. Turn the ignition switch to the "LOCK" (OFF) position.
8. Disconnect scan tool MB991958.
Q: Is DTC U1100 set?
YES: Return to Step 1 .
NO: The procedure is complete.
DTC U1101: CAN Communications System Time Out Error A/T Related Data DTC SET CONDITION The ABS/TCL-ECU < FWD > or TCL/ASC-ECU < AWD > receives A/T system-
related signals from the powertrain control module (PCM) via CAN bus lines. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THESE DTCS ARE TO SET ARE:)
Damaged harness or connector. Malfunction of the PCM. CAUTION:
If DTC U1101 is set in the ABS/TCL-ECU < FWD >
or TCL/ASC-ECU < AWD >, always diagnose the
CAN main bus line. If there is any fault in the
CAN bus lines, an incorrect DTC may be set. Whenever the ABS/TCL-ECU < FWD > or
TCL/ASC-ECU < AWD > is replaced, ensure that
the communication circuit is normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
