2004 MERCEDES-BENZ C240 4MATIC WAGON Owner's Manual

49 Getting started
Driving
Rear window wiper/washer
The switch is located on the center
console.
1Intermittent wipe
2Indicator lamp
3Rear window washer system

Make sure the ignition is switched on.Activating intermittent wipe

Press upper switch position1.
Indicator lamp2 comes on.
Deactivating intermittent wipe

Press upper switch position1 again.
Indicator lamp2 goes out.
Wiping with window washer fluid

Press and hold lower switch
position3.
The wiper operates with washer fluid.
More information on windshield wipers can
be found in the “Controls in detail” section
(
page 145).
iThe rear window wiper will also auto-
matically engage if

the windshield wiper is engaged


the gear selector lever is placed
inR “Reverse”

50 Getting startedDrivingProblems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is over 248°F
(120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 257).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount

Start the engine in the usual manner.

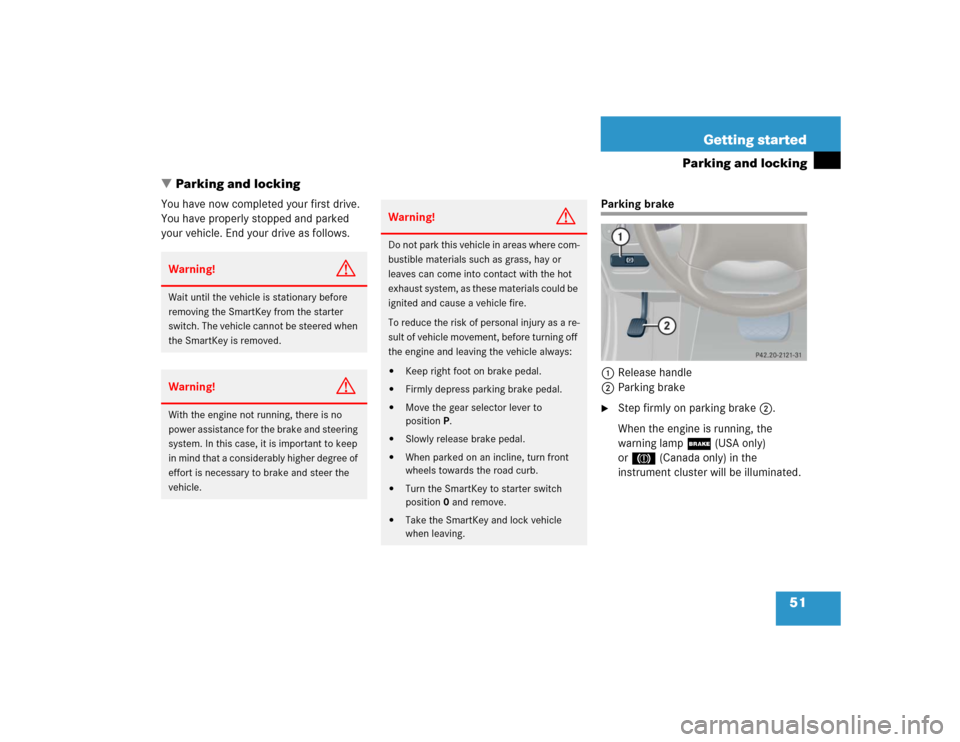

51 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Release handle
2Parking brake
Step firmly on parking brake2.
When the engine is running, the
warning lamp; (USA only)
or3(Canada only) in the
instrument cluster will be illuminated.
Warning!
G
Wait until the vehicle is stationary before
removing the SmartKey from the starter
switch. The vehicle cannot be steered when
the SmartKey is removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey to starter switch
position0 and remove.


Take the SmartKey and lock vehicle
when leaving.

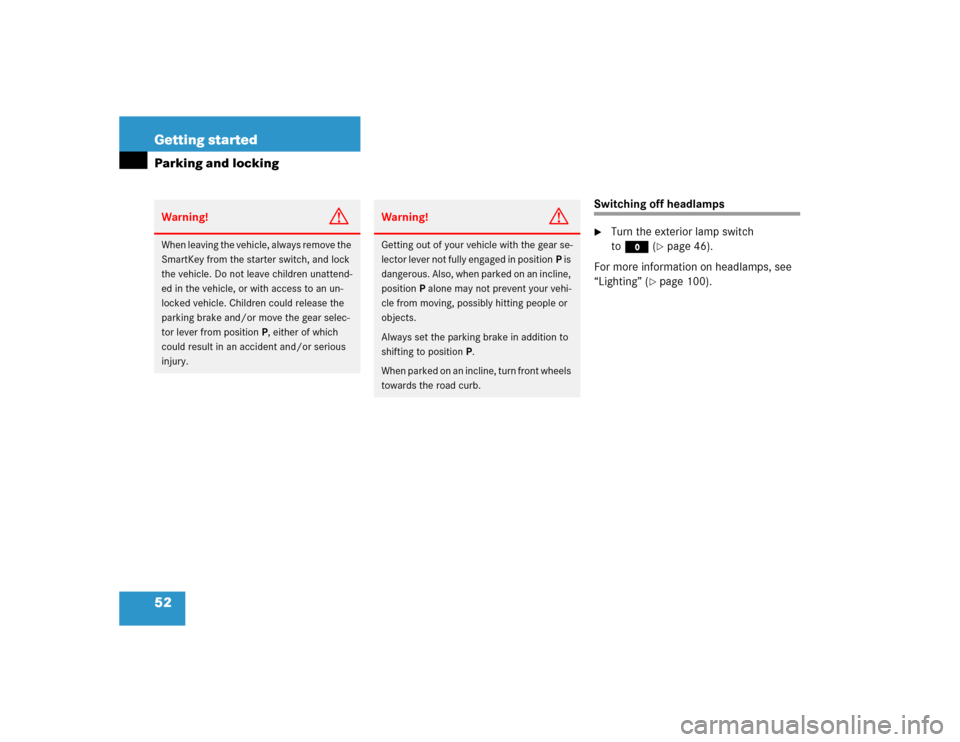

52 Getting startedParking and locking
Switching off headlamps
Turn the exterior lamp switch
toM(
page 46).
For more information on headlamps, see
“Lighting” (
page 100).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Children could release the
parking brake and/or move the gear selec-
tor lever from positionP, either of which
could result in an accident and/or serious
injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.

53 Getting started
Parking and locking
Turning off engine
Place the gear selector lever in
positionP.

Turn the SmartKey in the starter switch
to position0 and remove it.
The immobilizer is activated.

Press the seat belt release button
(page 41).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 30).
All turn signal lamps flash three times.
The locking knobs in the doors move
down.
For more information, see “Locking and
unlocking” (
page 84).
iAlways set the parking brake in
addition to shifting to positionP.
On steep slopes, turn the front wheels
towards the road curb. iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!With the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
your vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.

54

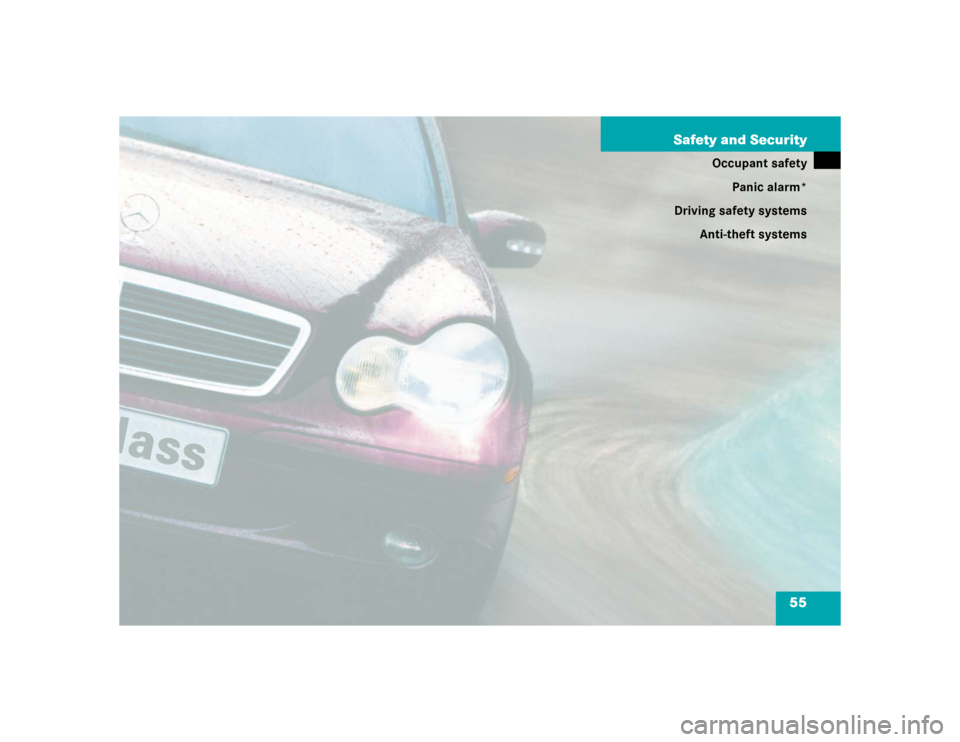

55 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems

56 Safety and SecurityOccupant safety
Occupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts


Emergency tensioning device


Airbags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems, their protective
effects work in conjunction with each
other.The1 indicator lamp in the instrument
cluster (
page 22) comes on:


for about four seconds when you turn
the SmartKey in the starter switch to
position1.


for about four seconds when you start
the engine by turning the SmartKey.The1 indicator lamp goes out shortly
after you start the engine. This shows that
the restraint systems are operational.
A malfunction in the system has been
detected if the1 indicator lamp:


fails to extinguish after approximately
four seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
For more information, see “Practical
hints”(
page 278).
iFor information on infants and children
traveling with you in the vehicle and
restraint systems for infants and
children, see “Children in the vehicle”
(page 65).
iThe1 indicator lamp remains lit if
the SmartKey is turned to position2
and left there. The indicator lamp will
go out when you start the engine.
