2004 MERCEDES-BENZ C240 4MATIC WAGON Owner's Manual

337 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.

338 Technical dataIdentification labels
Identification labels1Certification label2Vehicle Identification Number (VIN)3Information label, California version
Vacuum line routing for emission
control system
4Engine number (engraved on engine)
5VIN, visible (lower edge of windshield)
6Emission control label
When ordering spare parts, please specify
vehicle identification and engine numbers.

339 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
C 240/C 320 (all models)
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

340 Technical dataEngine
EngineModel
C 240 (203.261)
1
C 240 4MATIC (203.281)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
C 320 (203.264)
1
C 320 4MATIC (203.284)
1
Engine
112
112
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
6
Bore
3.54 in (89.90 mm)
3.54 in (89.90 mm)
Stroke
2.68 in (68.20 mm)
3.31 in (84.00 mm)
Total piston displacement
158.5 cu in (2 597 cm
3)
195.2 cu in (3 199 cm
3)
Compression ratio
10.5:1
10:1
Output acc. to SAE J 1349
168 hp/5 500 rpm
(125 kW/5 500 rpm)
215 hp/5 700 rpm
(160 kW/5 700 rpm)
Maximum torque acc. to SAE J 1349
177 lb-ft/4 500 rpm
(240 Nm/4 500 rpm)
229 lb-ft/3 000 - 4 600 rpm
(310 Nm/3 000 - 4 600 rpm)
Maximum engine speed
6200 rpm
6000 rpm
Firing order
1-4-3-6-2-5
1-4-3-6-2-5
Poly-V-belt
2380 mm
2380 mm

341 Technical data
Rims and Tires
Rims and Tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and
different tire deformation characteris-
tics that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the
vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel
filler cap of the vehicle. The tire pres-
sure should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

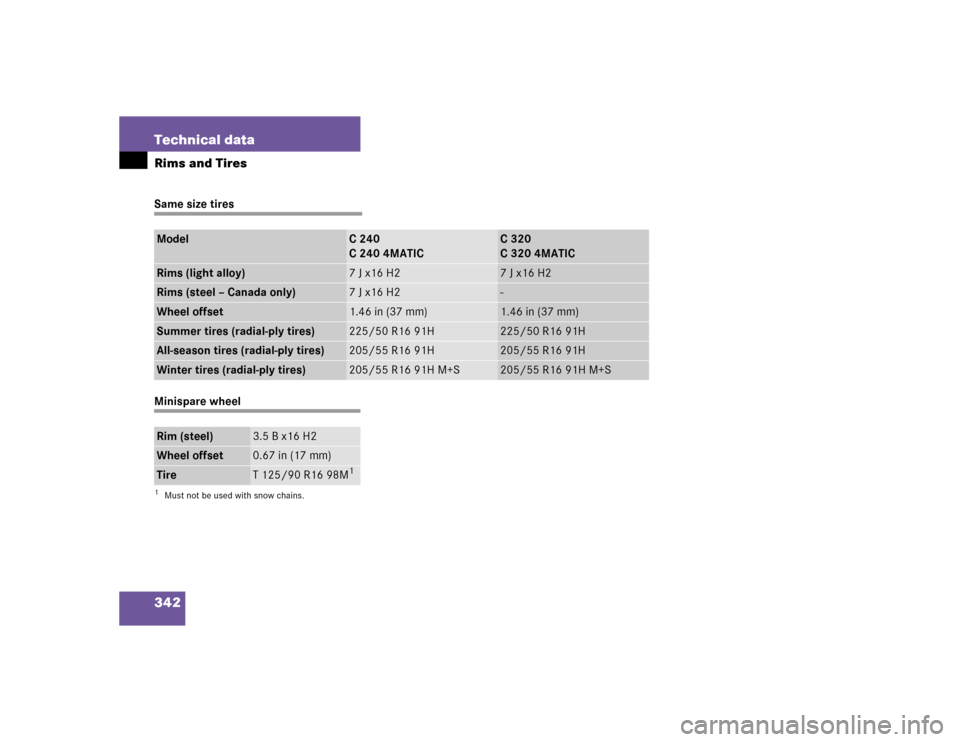

342 Technical dataRims and TiresSame size tiresMinispare wheelModel
C240
C2404MATIC
C320
C3204MATIC
Rims (light alloy)
7 J x16 H2
7 J x16 H2
Rims (steel – Canada only)
7 J x16 H2
-
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
Summer tires (radial-ply tires)
225/50 R16 91H
225/50 R16 91H
All-season tires (radial-ply tires)
205/55 R16 91H
205/55 R16 91H
Winter tires (radial-ply tires)
205/55 R16 91H M+S
205/55 R16 91H M+S
Rim (steel)
3.5 B x16 H2
Wheel offset
0.67 in (17 mm)
Tire
T 125/90 R16 98M
1
1Must not be used with snow chains.

343 Technical data
Electrical system
Electrical system
Model
C240
C 240 4MATIC
C320
C 320 4MATIC
Generator (alternator)
14 V/120 A
14 V/120 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch F 8 DPP 332
NGK PFR 5 R-11
Bosch F 8 DPP 332
NGK PFR 5 R-11
Electrode gap
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
15–22lb-ft (20–30Nm)
15 – 22 lb-ft (20 – 30 Nm)

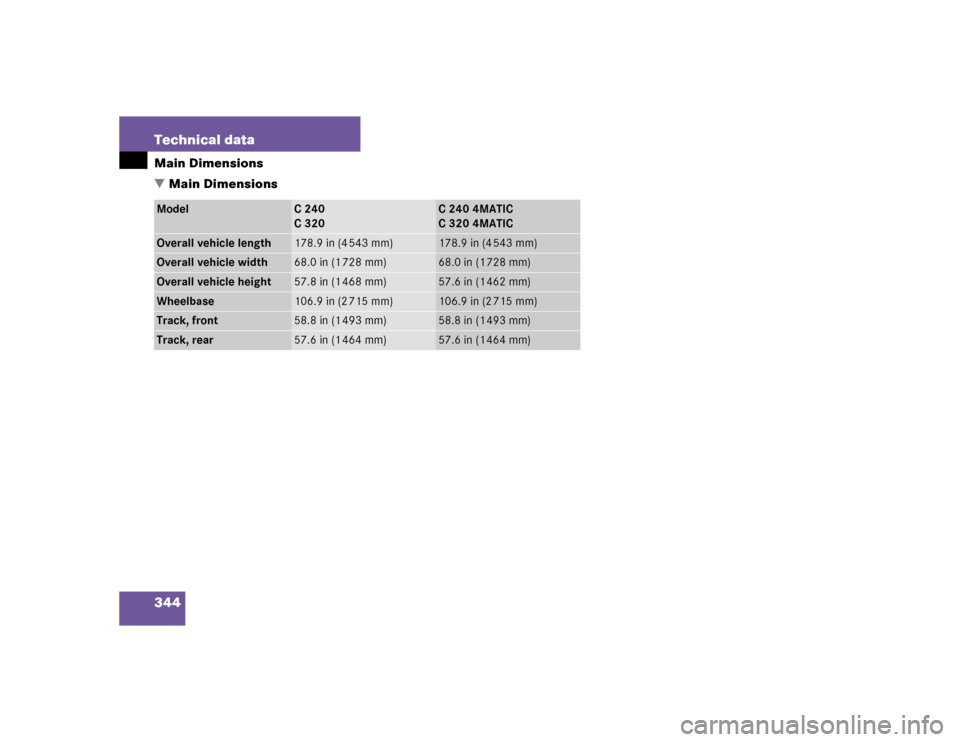

344 Technical dataMain Dimensions
Main DimensionsModel
C240
C320
C 240 4MATIC
C 320 4MATIC
Overall vehicle length
178.9 in (4 543 mm)
178.9 in (4 543 mm)
Overall vehicle width
68.0 in (1 728 mm)
68.0 in (1 728 mm)
Overall vehicle height
57.8 in (1 468 mm)
57.6 in (1 462 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.8 in (1 493 mm)
Track, rear
57.6 in (1 464 mm)
57.6 in (1 464 mm)
