2004 ISUZU TF SERIES power steering

6E–268 ENGINE DRIVEABILITY AND EMISSIONS
KNOCK SENSOR
Location
Right-hand side of the cylinder block.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the knock sensor connector.
3. Loosen a bolt and remove knock sensor from the
cylinder block.
Installation Procedure
1. Tighten the knock sensor by a bolt with specified
tightening torque.
Tightening Torque
Bolt: 20N·m (2.0kgf·m)
2. Connect a knock sensor connector to the knock
sensor.
3. Connect the negative battery cable.
NOTE: Verify any DTCs (diagnosis Trouble Code) are
not stored after replacement.
POWER STEERING PRESSURE (PSP)
SWITCH
Location
Installed on the power steering pump assembly.
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the power steering pressure switch
connector.
3. Loosen and remove the power steering pressure
switch from the power steering pump.
Installation Procedure
1. Install the power steering pressure switch to the
power steering pump.
2. Tighten the power steering pressure switch.
3. Connect a connector to the power steering pressure
switch.
4. Connect the negative battery cable.
NOTE: Verify any DTCs (diagnosis Trouble Code) are
not stored after replacement.
Verify no power steering fluid leaking from the sensor
threads after replacement.

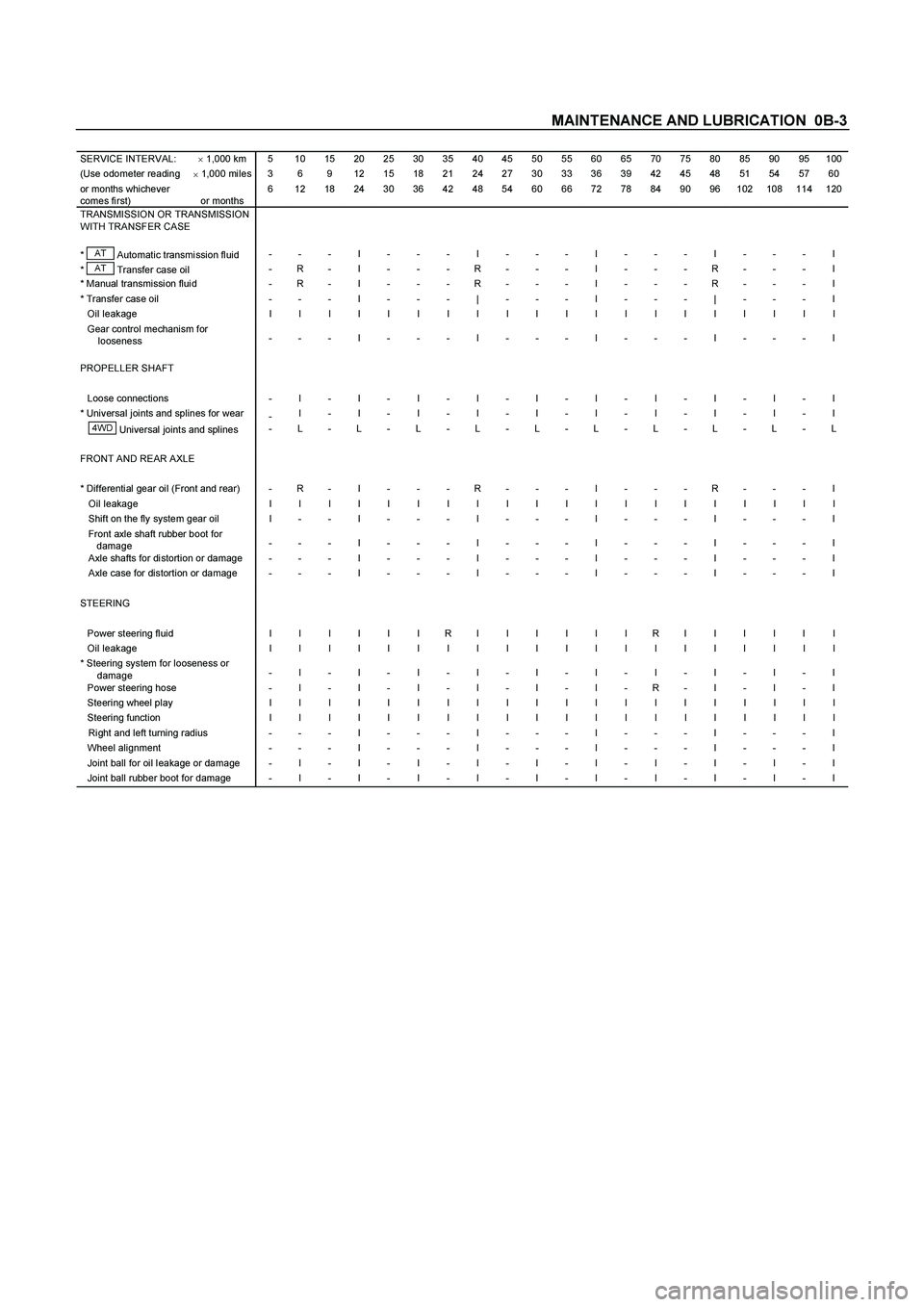

MAINTENANCE AND LUBRICATION 0B-3
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading

1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60or months whichever
comes fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
TRANSMISSION OR TRANSMISSION
WITH TRANSFER CASE


* AT Automatic transmission fluid - - - I - - - I - - - I - - - I - - - I * AT Transfer case oil - R - I - - - R - - - I - - - R - - - I * Manual transmission fluid - R - I - - - R - - - I - - - R - - - I * Transfer case oil - - - I - - - | - - - I - - - | - - - I Oil leakage I I I I I I I I I I I I I I I I I I I I Gear control mechani sm for
looseness - - - I - - - I - - - I - - - I - - - I
PROPELLER SHAFT Loose connections - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear
- I - I - I - I - I - I - I - I - I - I
4WD Universal joints and splines - L - L - L - L - L - L - L - L - L - L FRONT AND REAR AXLE * Differential gear oil (Front and rear) - R - I - - - R - - - I - - - R - - - I Oi l l eakage I I I I I I I I I I I I I I I I I I I I Shift on the fly system gear oil I - - I - - - I - - - I - - - I - - - I Front axle shaft rubber boot for
damage - - - I - - - I - - - I - - - I - - - I
Axle shafts for distortion or damage - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage - - - I - - - I - - - I - - - I - - - I STEERING Power steering fl ui d I I I I I I R I I I I I I R I I I I I I Oil leakage I I I I I I I I I I I I I I I I I I I I * Steering system for looseness or
damage - I - I - I - I - I - I - I - I - I - I
Power steering hose - I - I - I - I - I - I - R - I - I - I Steering wheel play I I I I I I I I I I I I I I I I I I I I Steeri ng function I I I I I I I I I I I I I I I I I I I I Right and left turning radius - - - I - - - I - - - I - - - I - - - I Wheel alignment - - - I - - - I - - - I - - - I - - - I Joint ball for oil leakage or damage - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage - I - I - I - I - I - I - I - I - I - I

0B-6 MAINTENANCE AND LUBRICATION




I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or
1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
PROPELLER SHAFT Loose connections (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Loose connections (4JA1-TC) - - I - - I - - I - - I - - I - - I - - * Universal joints and splines for wear (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear (4JA1-TC) - - I - - I - - I - - I - - I - - I - - 4WD Universal joints and sliding
sleeve (4JH1-TC) - L - L - L - L - L - L - L - L - L - L FRONT AND REAR AXLE * Differential gear oil (Front and rear) (4JH1-TC) - R - I - - - R - - - I - - - R - - - I * Differential gear oil (Front and rear) (4JA1-TC) - - R - - I - - R - - I - - R - - I - - Oil leakage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Oil leakage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Shift on the fly system Gear oil (4JH1-TC) I - - I - - - I - - - I - - - I - - - I Gear oil (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Front axle shaft rubber boot for
damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Front axle shaft rubber boot for
damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Axle case for distortion or damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Axle shafts for distortion or damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Axle shafts for distortion or damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - STEERING Power steering fluid (4JH1-TC) I I I I I I R I I I I I I R I I I I I I Power steering fluid (4JA1-TC) - - - - - - - - - - - I - - - - - - - - Oil leakage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Oil leakage (4JA1-TC) - - I - - R - - I - - R - - I - - R - - * Steering system for looseness or
damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Steering system for looseness or
damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Power steering hose (4JH1-TC) - I - I - I - I - I - I - R - I - I - I Power steering hose (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Steering wheel play (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Steering wheel play (4JA1-TC) - - I - - I - - I - - R - - I - - I - - Steering function (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Steering function (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Right and left turning radius (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Right and left turning radius (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Wheel alignment (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Wheel alignment (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Joint ball for oil leakage or damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball for oil leakage or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Joint ball rubber boot for damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - -

MAINTENANCE AND LUBRICATION 0B-9


Diesel Engine model (Engine oil that meet or exceeds ACEA B3 specification)
I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate


SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or
1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
DIESEL ENGINE * Engine oil - - - R - - - R - - - R - - - R - - - R* Engine oil filter - - - R - - - R - - - R - - - R - - - ROil leakage and contamination - - - I - - - I - - - I - - - I - - - I Idling speed and acceleration - - - I - - - I - - - I - - - I - - - I Fan belt tension and damage - - - I - - - I - - - I - - - I - - - I Exhaust system - - - I - - - I - - - I - - - I - - - I All hoses and pipes in engine
compartment for clog of damage
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
I
Valve clearance - - - A - - - A - - - A - - - A - - - A * Air cleaner element - - - I - - - I - - - R - - - I - - - I Fuel filter - - - - - - - - - - - R - - - - - - - - Engine coolant concentration - - - I - - - I - - - I - - - I - - - I Cooling system for water leakage - - - I - - - I - - - I - - - I - - - I CLUTCH Clutch fluid - - - I - - - I - - - I - - - I - - - I Clutch pedal travel and play - - - I - - - I - - - I - - - I - - - I TRANSMISSION OR TRANSMISSION
WITH TRANSFER CASE
* Manual transmission with fluid - - - R - - - I - - - R - - - I - - - I * Transfer case oil - - - R - - - I - - - R - - - I - - - I Oil leakage - - - I - - - I - - - I - - - I - - - I Gear control mechanism for
looseness - - - - - - - - - - - I - - - - - - - -
* AT Automatic transmissi on fl ui d - - - - - - - - - - - I - - - - - - - - * AT Transfer case oil - - - R - - - I - - - R - - - I - - - R PROPELLER SHAFT Loose connections - - - I - - - I - - - I - - - I - - - I * Universal joints and splines for wear - - - I - - - I - - - I - - - I - - - I 4WD Universal joints and sliding
sleeve - - - L - - - L - - - L - - - L - - - L
FRONT AND REAR AXLE * Differential gear oil (Front and rear) - - - R - - - I - - - R - - - I - - - ROil leakage - - - I - - - I - - - I - - - I - - - I Shift on the fly system Gear oi l - - - - - - - - - - - I - - - - - - - - Front axle shaft rubber boot for
damage - - - - - - - - - - - I - - - - - - - I
Axle case for distortion or damage - - - - - - - - - - - I - - - - - - - I Axle shafts for distortion or damage - - - - - - - - - - - I - - - - - - - I STEERING Power steering fluid - - - I - - - R - - - I - - - R - - - I Oil leakage - - - I - - - I - - - I - - - I - - - I * Steering system for looseness or
damage - - - I - - - I - - - I - - - I - - - I
Power steering hose - - - I - - - I - - - I - - - R - - - I Steering wheel play - - - I - - - I - - - I - - - I - - - I Steeri ng function - - - I - - - I - - - I - - - I - - - I Right and left turning radius - - - - - - - - - - - I - - - - - - - - Wheel al i gnment - - - - - - - - - - - I - - - - - - - - Joi nt ball for oil l eakage or damage - - - I - - - I - - - I - - - I - - - I Joi nt ball rubber boot for damage - - - I - - - I - - - I - - - I - - - I

0B-14 MAINTENANCE AND LUBRICATION


GRADE LUBRICATION MAKE BRAND / TYPE
API ACEA
Automatic transmission
Power steering ISUZU GENUINE
EXXON / ESSO
MOBIL
CALTEX
SHELL
ELF
TOTAL
CASTROL
CASTROL BESCO ATF III, ATF II
ESSO ATF D (DEXRON

II-D)
MOBIL ATF (DEXRON
III)
ATF HD (DEXRON
II)
SHELL DONAX TA (DEXRON
II-D)
ELFMATIC G3 (DEXRON
III)
TOTAL FLUID IID (DEXRON
II-D)
TQ-D (DEXRON
II)
TQ DEXRON III (DEXRON
III)
















Grease fitting
(Multi purpose grease) ISUZU GENUINE
EXXON / ESSO
MOBIL
CALTEX / TEXACO
SHELL
TOTAL
CASTROL BESCO L-2 GREASE (No.2), L-3 GREASE (No.3)
RONEX MP (No.2)
MOBILGREASE HP 222 (No.2)
STARPLEX-2 (No.2)
RETINAX A (No.2)
MULTIS EP2, EP3 (No.2, No.3)
LM GREASE (No.2, No.3)












Propeller shaft sliding yoke
Universal joint
Multi purpose grease
containing molybdenum
disulfide ISUZU GENUINE
EXXON / ESSO
EXXON / ESSO
CALTEX
TOTAL ONE LUBER MO GREASE
BEACON Q2 (No.2)
MULTIPURPOSE GREASE (Moly) (No.2)
MOLYTEX GREASE EP2 (No.2)
TOTAL MULTIS MS2 (No.2)








Engine cooling system ISUZU GENUINE
TEXACO


CALTEX

GM GENUINE BESCO LLC SUPER TYPE E
HAVOLINE EXTENDED LIFE ANTIFREEZE
COOLANT
HAVOLIN XLC
EXTENDED LIFE COOLANT 6280
XLC
GOODWRENCH DEX-COOL
(TM) ANTIFREEZE
EXTENDED LIFE COOLANT















FLUID TYPE
Clutch and brake fluid reservoir Besco brake fluid (For light duty)
Hydraulic brake fluid SAE J1703
FMVSS 116 DOT.3 grade


DIESEL FUEL/APPLICABLE STANDARD
JIS (JAPANESE INDUSTRIAL STANDARD) Based on K2204 GAS OIL
DIN (DEUTSCHE INDUSTRIE NORMEN) Based on EN590 : 1997
SAE (SOCIETY OF AUTOMOTIVE ENGINEERS) Based on SAE J-313C
BS (BRITISH STANDARD) Based on BS EN590 : 1997


NOTE:
Use the applicable standard or equivalent for diesel fuels.

MAINTENANCE AND LUBRICATION 0B-15
RECOMMENDED FLUIDS AND LUBRICANTS (For EUROPE)






In order to obtain maximum performance and longest service life from your ISUZU vehicles, it is very important to
select and use correctly best lubricants and diesel fuels.
When lubricating, be sure to use ISUZU genuine lubricants or recommended lubricants listed below, according to
the maintenance schedule for each vehicle model.

LUBRICATION/FLUID GRADE
API ACEA OTHER
Diesel engine crankcase B2/B3
E2/E3
Manual transmission
Transfer case B2/B3
E2/E3
Differential
Shift on the fly system
(GL-5 only)
GL-5 BESCO GEAR OIL SH (80W-90, 90, 140) (ISUZU GENUINE)
BESCO SHIFT ON THE FLY (75W-90) (ISUZU GENUINE)
GEAR OIL GX (85W-90) (EXXON / ESSO)
MOBILUBE HD (80W-90, 85W-140) (MOBIL)
THURBAN GL-5 EP (80W-90, 85W-140) (CALTEX)
SPIRAX HD (90, 140) (SHELL)
TRANSELF TYPE B (80W-90, 85W-140) (ELF)
TRANSMISSION TM (80W-90, 85W-140) (TOTAL)
Differential
(Limited Slip Differential)
GL-5 * Limited
Slip
Differential
Gear
Lubricant
BESCO GEAR OIL LSD (140) (ISUZU GENUINE)
GEAR OIL LSA (90) (EXXON/ESSO)
MOBILUBE HD LS (80W-90) (MOBIL)
GEAR OIL LSD (90) (CALTEX)
TRANSELF TYPE BLS (90) (SHELL)
TRANSMISSION DA (85W-90) (ELF)
HYPOY LS (90) (TOTAL)
Automatic transmission
Power steering
DEXRON II, III
Propeller shaft sliding yoke
Universal joint
(General purpose grease in
Molybdenum) NLGI #2 or #3
multi purpose type grease
containing molybdenum disulfide
Engine cooling system Good quality ethylene glycol antifreeze or GM spec.
6033-M or equivalent
* If GL-5 Limited Slip Differential Lubricant is not available, use GL-5 Lubricant together with Limited Slip Differential Lubricant additive (Parts No. 8-01052-358-0) or
equivalent.



FLUID TYPE

Clutch and brake fluid reservoir Besco brake fluid (For light duty)
Hydraulic brake fluid SAE J1703
FMVSS 116 DOT.3 grade


DIESEL FUEL/APPLICABLE STANDARD
JIS (JAPANESE INDUSTRIAL STANDARD)
DIN (DEUTSCHE INDUSTRIE NORMEN)
SAE (SOCIETY OF AUTOMOTIVE ENGINEERS)
BS (BRITISH STANDARD) Based on K2204 GAS OIL
Based on EN590: 1997L
Based on SAE J-313C
Based on BS EN590: 1997
NOTE:
Use the applicable standard or equivalent for diesel fuels.

POWER-ASSISTED STEERING SYSTEM 3B-1

STEERING
POWER-ASSISTED STEERING SYSTEM
TABLE OF CONTENTS
PAGE
General Description ......................................................................................................... 3B – 4
Power Steering System Test ........................................................................................... 3B – 7
Maintenance ..................................................................................................................... 3B – 8
Fluid Level ........................................................................................................................ 3B – 8
Bleeding The Power Steering System............................................................................ 3B – 8
Bleeding Procedure ......................................................................................................... 3B – 8
Flushing The Power Steering System ............................................................................ 3B – 8
Steering Wheel Free Play Inspection ............................................................................. 3B – 9
Front End Alignment Inspection and Adjustment ......................................................... 3B – 9
Special Tools .................................................................................................................... 3B – 10
Power Steering Unit ......................................................................................................... 3B – 11
Power Steering Unit and Associated Parts ............................................................... 3B – 11
Removal ....................................................................................................................... 3B – 11
Installation ................................................................................................................... 3B – 12
Power Steering Unit Disassembled View .................................................................. 3B – 13
Disassembly ................................................................................................................ 3B – 13
Inspection and Repair ................................................................................................. 3B – 13
Reassembly ................................................................................................................. 3B – 14
Main Data and Specifications ..................................................................................... 3B – 14
Special Tools ............................................................................................................... 3B – 15
Power Steering Pump and Associated Parts (4JH1-TC, 4JA1-TC, 4JA1-L) ............ 3B – 16
Removal ....................................................................................................................... 3B – 16
Installation ................................................................................................................... 3B – 16
Power Steering Pump Disassembled View .............................................................. 3B – 17
Disassembly ................................................................................................................ 3B – 18
Inspection and Repair ................................................................................................. 3B – 18
Reassembly ................................................................................................................. 3B – 19
Main Data and Specifications ..................................................................................... 3B – 19

3B-2 POWER-ASSISTED STEERING SYSTEM


PAGE
Power Steering Pump and Associated Parts (C24SE) ............................................. 3B – 21
Removal ....................................................................................................................... 3B – 21
Installation ................................................................................................................... 3B – 21
Power Steering Pump Disassembled View ............................................................... 3B – 22
Disassembly ................................................................................................................ 3B – 23
Inspection and Repair ................................................................................................. 3B – 23
Reassembly ................................................................................................................. 3B – 24
Main Data and Specifications ..................................................................................... 3B – 25
Power Steering Pump and Associated Parts (6VE1) ................................................ 3B – 26
Removal ....................................................................................................................... 3B – 26
Installation ................................................................................................................... 3B – 26
Power Steering Pump Disassembled View ............................................................... 3B – 27
Disassembly ................................................................................................................ 3B – 27
Inspection and Repair ................................................................................................. 3B – 28
Reassembly ................................................................................................................. 3B – 28
Main Data and Specifications ..................................................................................... 3B – 30
Supplemental Restraint System Steering Wheel & Column......................................... 3B – 31
Service Precaution ...................................................................................................... 3B – 31
SRS Connectors .......................................................................................................... 3B – 31
Inflator Module ................................................................................................................. 3B – 32
Inflator Module and Associated Parts ....................................................................... 3B – 32
Removal ....................................................................................................................... 3B – 33
Inspection and Repair (with SRS air bag) ................................................................. 3B – 35
Installation ................................................................................................................... 3B – 35
Steering Wheel ................................................................................................................. 3B – 37
Steering Wheel and Associated Parts ....................................................................... 3B – 37
Removal ....................................................................................................................... 3B – 37
Installation ................................................................................................................... 3B – 40
The adjustment method in case a mark is not attached............................................... 3B – 42
