2004 ISUZU TF SERIES Camshaft

ENGINE MECHANICAL (C24SE) 6A-79

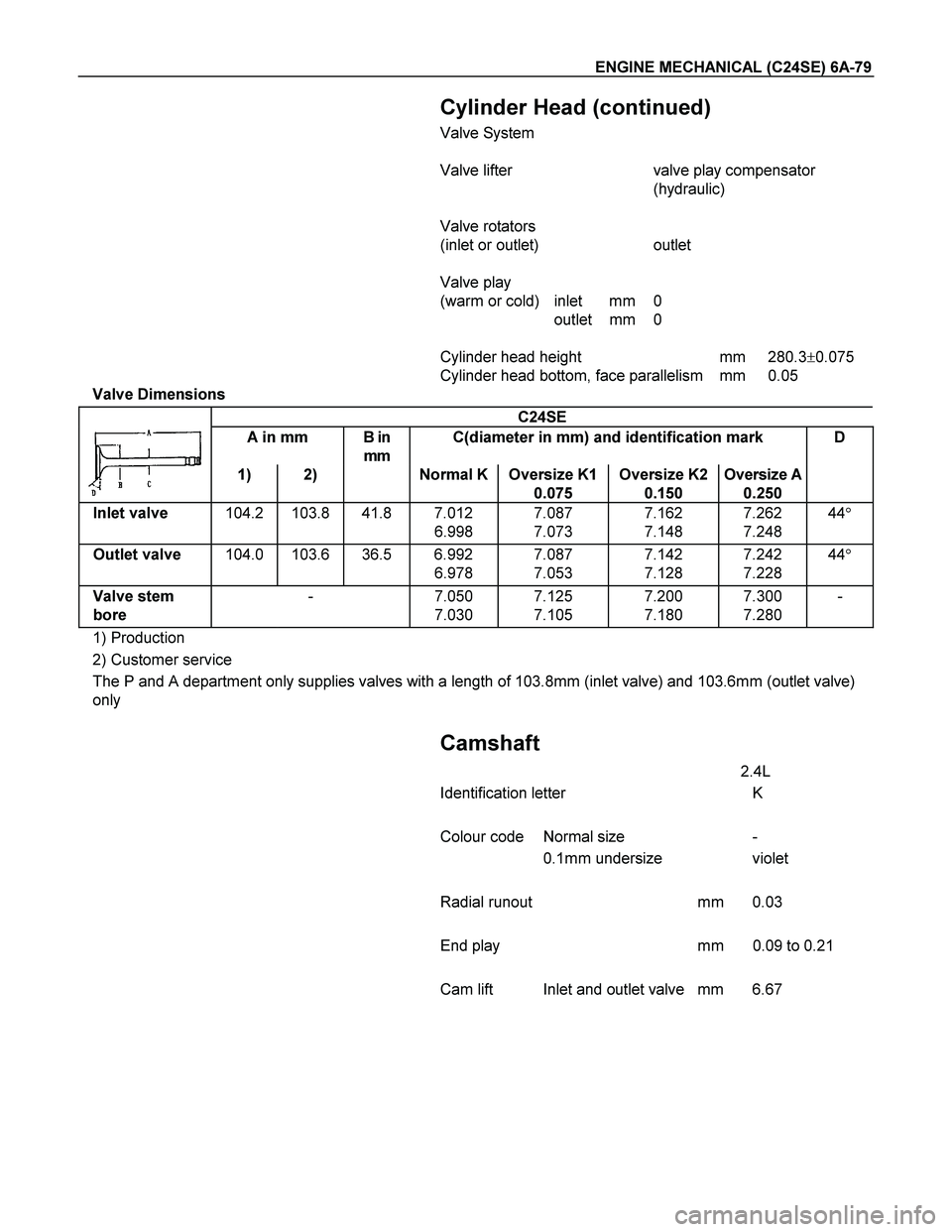

Cylinder Head (continued)
Valve System

Valve lifter valve play compensator
(hydraulic)

Valve rotators
(inlet or outlet) outlet

Valve play
(warm or cold) inlet mm 0
outlet mm 0

Cylinder head height mm 280.30.075
Cylinder head bottom, face parallelism mm 0.05
Valve Dimensions
C24SE
A in mm B in
mm C(diameter in mm) and identification mark D
1) 2) Normal K Oversize K1
0.075 Oversize K2
0.150 Oversize A
0.250
Inlet valve 104.2 103.8 41.8 7.012
6.998 7.087
7.073 7.162
7.148 7.262
7.248 44

Outlet valve 104.0 103.6 36.5 6.992
6.978 7.087
7.053 7.142
7.128 7.242
7.228 44

Valve stem
bore - 7.050
7.030 7.125
7.105 7.200
7.180 7.300
7.280 -
1) Production
2) Customer service
The P and A department only supplies valves with a length of 103.8mm (inlet valve) and 103.6mm (outlet valve)
only



Camshaft
2.4L
Identification letter K

Colour code Normal size -
0.1mm undersize violet

Radial runout mm 0.03

End play mm 0.09 to 0.21

Cam lift Inlet and outlet valve mm 6.67

6A-80 ENGINE MECHANICAL (C24SE)

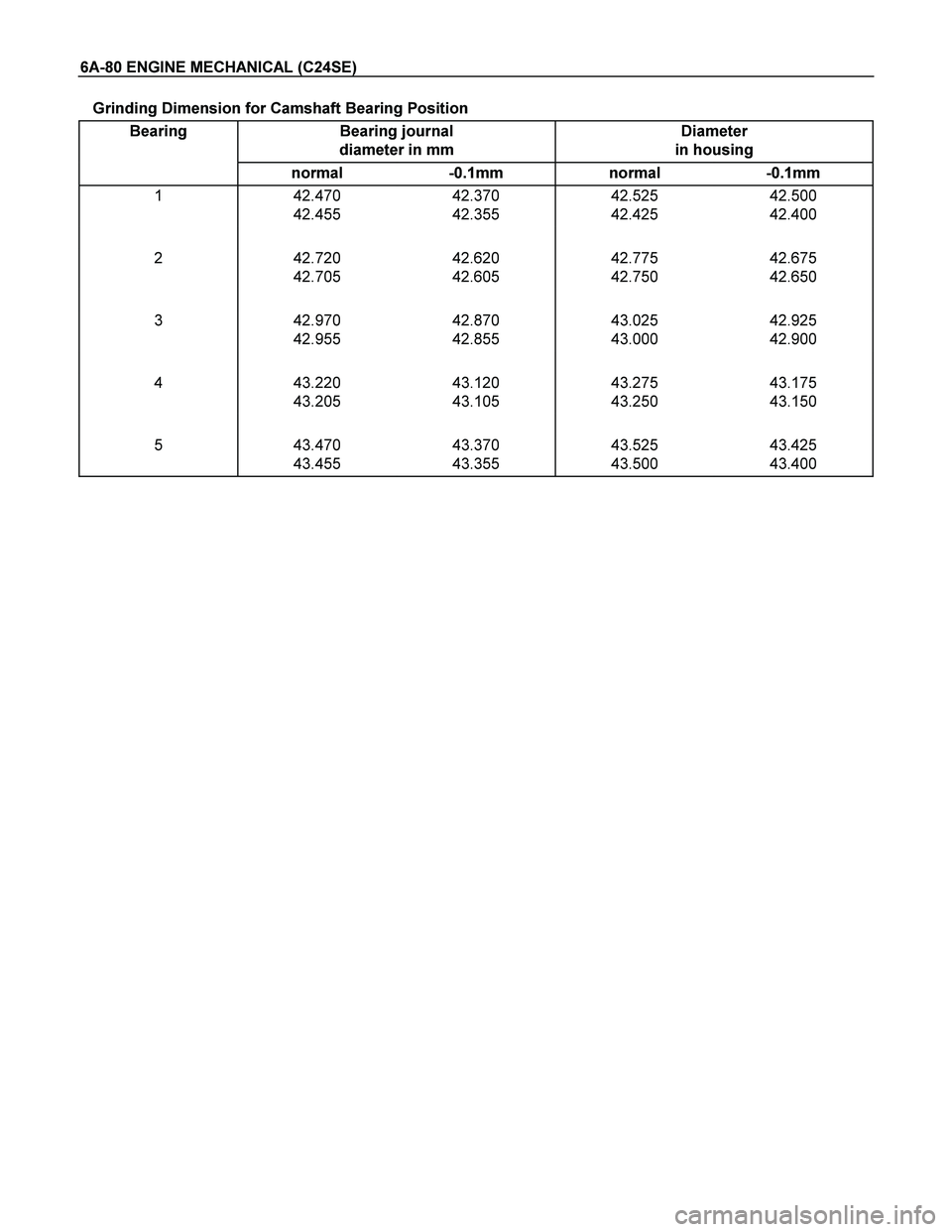

Grinding Dimension for Camshaft Bearing Position
Bearing Bearing journal
diameter in mm Diameter
in housing
normal -0.1mm normal -0.1mm
1 42.470
42.455 42.370
42.355 42.525
42.425 42.500
42.400

2 42.720
42.705 42.620
42.605 42.775
42.750 42.675
42.650

3 42.970
42.955 42.870
42.855 43.025
43.000 42.925
42.900

4 43.220
43.205 43.120
43.105 43.275
43.250 43.175
43.150

5 43.470
43.455 43.370
43.355 43.525
43.500 43.425
43.400

ENGINE MECHANICAL (C24SE) 6A-87
Recommended Torque Values
Nm (kgfm)

Bearing cover to cylinder block ....................................................................................... 60
1) 6.1 +40
to 50

Bracket for alternator to cylinder block ............................................................................ 40 4.1
Bracket for engine damping block to transmission ......................................................... 60
2) 6.1
Bracket for engine damping block to engine block ......................................................... 60 6.1
Bracket for pump/compressor to engine block ............................................................... 35 3.6
Camshaft housing cover to housing ................................................................................ 8 0.8
Camshaft timing gear to camshaft .................................................................................. 50 5.1
Clamping bracket for alternator to intake manifold ......................................................... 25 2.5
Clamping bracket to alternator ........................................................................................ 25 2.5
Con-rod bearing cap to con-rod ...................................................................................... 35
1) 3.5 +45
to 60

Crankshaft pulley bolts .................................................................................................... 20 2.0
Cylinder head to cylinder block ........................................................................................ 25
1)2) 2.5 +90
+90

+90

Engine damping block to engine bracket ........................................................................ 8.5 8.7
Engine damping block to side member ........................................................................... 52
1) 5.3
Exhaust manifold to cylinder head .................................................................................. 22 2.2

1) Use new bolts
2) Use new locking plates


Recommended Torque Values
Nm (kgfm)

Flywheel to crankshaft ..................................................................................................... 65
1) 6.6 +30
to 45

Front exhaust pipe to exhaust manifold .......................................................................... 25 2.5
Guide sleeve for pressure bearing to transmission ......................................................... 22 2.2
Intake manifold to cylinder head ...................................................................................... 22 2.2
Lower alternator bracket ................................................................................................. 25 2.5
Oil drain plug to oil pan .................................................................................................... 45 4.6
Oil intake pipe bracket to cylinder block .......................................................................... 6
2) 0.6
Oil intake pipe to oil pump ............................................................................................... 8 0.8
Oil pan to cylinder block .................................................................................................. 8
2)3) 0.8
Bearing bridge to cylinder block ...................................................................................... 8 2)3) 0.8
Oil pressure switch to oil pump ....................................................................................... 30 3.2
Pump for power steering (ribbed V-belt) to engine block ................................................ 30 3.2
Spark plugs in cylinder head ........................................................................................... 20 2.3
Starter support to cylinder block ...................................................................................... 25 2.5
Starter to cylinder block - engine side ............................................................................. 45 4.6
Starter to cylinder block - transmission side .................................................................... 75 7.6
Thermostat housing to cylinder head .............................................................................. 15 1.5
Toothed belt drive gear to crankshaft .............................................................................. 130
1) 13.3
Toothed belt front cover .................................................................................................. 4 0.4
Toothed belt rear cover ................................................................................................... 6 0.6
Toothed belt tension roller to oil pump ............................................................................ 20 2.3
(M10) ............................................................................ 45 4.6
Transmission to engine block ......................................................................................... 76 7.7
(M12) ............................................................................ 60 6.1
Water pump to cylinder block .......................................................................................... 17 1.7

1) Use new bolts
2) Use Locking Compound
3) Maximum installation time - 10 minutes

ENGINE DRIVEABILITY AND EMISSIONS 6E–235
22 Perform the procedure in Fuel System Pressure Test
(Refer to 6E-108
Fuel System Diagnosis) to
determine if there is a problem with fuel delivery.
Was a problem found?—Verify repair Go to Step 23
23 Refer to 6E-108 page
Fuel System Diagnosis to
determine if there is a problem with fuel delivery.
Was a problem found?—Verify repair Go to Step 24
24 Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression
Leaking cylinder head gaskets
Worn camshaft
Camshaft drive belt slipped or stripped
Was a problem found?—Verify repair Go to Step 25
25 1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
followi ng:
Visual/physical inspection
Te c h 2 d a t a
All electrical connections within a suspected
circuit and/or system
Was a problem found?—Verify repair Go to Step 26
26 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 27
27 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify Repair— Step Action Value(s) Yes No

6E–238 ENGINE DRIVEABILITY AND EMISSIONS
14 Drain sample fuel, visual inspection.
Any suspecion about the fuel, such as discoloration,
particle, contamination, water, unusual smell, then
drain the fuel from fuel tank.
Replace the fuel from know vehicle source.
If any suspicion of alcohol contamination, completely
drain the fuel, replace by fuel from known vehicle
source.—Verify repair Go to Step 15
15 Perform the procedure in Fuel System Pressure Test
(Refer to 6E-108
Fuel System Diagnosis) to
determine if there is a problem with fuel delivery.
Was a problem found?—Verify repair Go to Step 16
16 1. Check the injector connectors.
2. If any of the connectors are connected at an
improper cylinder, connect as necessary.
Was a problem found?—Verify repair Go to Step 17
17 Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression
Leaking cylinder head gaskets
Worn camshaft
Camshaft drive belt slipped or stripped
Was a problem found?—Verify repair Go to Step 18
18 1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
followi ng:
Visual/physical inspection
Te c h 2 d a t a
All electrical connections within a suspected
circuit and/or system
Was a problem found?—Verify repair Go to Step 19
19 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 20
20 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify Repair— Step Action Value(s) Yes No

ENGINE DRIVEABILITY AND EMISSIONS 6E–241
17 Perform the procedure in Fuel System Pressure Test
(Refer to 6E-108
Fuel System Diagnosis) to
determine if there is a problem with fuel delivery.
Was a problem found?—Verify repair Go to Step 18
18 Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression
Leaking cylinder head gaskets
Worn camshaft
Sticking or leaking valves
Valve timing
Broken valve springs
Camshaft drive belt slipped or stripped
Was a problem found?—Verify repair Go to Step 19
19 1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
followi ng:
Visual/physical inspection
Te c h 2 d a t a
All electrical connections within a suspected
circuit and/or system
Was a problem found?—Verify repair Go to Step 20
20 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 21
21 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify Repair— Step Action Value(s) Yes No

6E–250 ENGINE DRIVEABILITY AND EMISSIONS
19 Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression
Leaking cylinder head gaskets
Worn camshaft
Sticking or leaking valves
Valve timing
Broken valve springs
Camshaft drive belt slipped or stripped
Was a problem found?—Verify repair Go to Step 20
20 1. Check for faulty engine mounts.
2. If a problem is found, repair as necessary.
Was a problem found?—Verify repair Go to Step 21
21 1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
followi ng:
Visual/physical inspection
Te c h 2 d a t a
All electrical connections within a suspected
circuit and/or system
Was a problem found?—Verify repair Go to Step 22
22 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 23
23 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify Repair— Step Action Value(s) Yes No

6E–252 ENGINE DRIVEABILITY AND EMISSIONS
12 Monitor “B1S1 (Bank 1 Sensor 1) Status” on the Tech
2.
Is the “B1S1 (Bank 1 Sensor 1) Status” in the rich
condition?—Verify repair Go to Step 13
13 Check items that can cause the engine to run rich.
Refer to DTC P1167 “Fuel Supply System Rich During
Deceleration Fuel Cut Off”.
Was a problem found?—Verify repair Go to Step 14
14 Check items that can cause the engine to run lean.
Refer to DTC P1171 “Fuel Supply System Lean
During Power Enrichment”.
Was a problem found?—Verify repair Go to Step 15
15 Check for proper ignition voltage output with a spark
tester.
Was the problem found?—Verify repair Go to Step 16
16 1. Remove the spark plugs and check for gas or oil
fouling cracks, wear, improper gap, burned
electrodes, heavy deposits, or improper heat
range.
2. If spark plugs are fouled, the cause of fouling must
be determined before replacing the spark plugs.
Was a problem found?—Verify repair Go to Step 17
17 Drain sample fuel, visual inspection.
Any suspecion about the fuel, such as discoloration,
particle, contamination, water, unusual smell, then
drain the fuel from fuel tank.
Replace the fuel from know vehicle source.
If any suspencion of alcohol contamination,
completely drain the fuel, replace by fuel from known
vehicle source.—Verify repair Go to Step 18
18 Check the ex haust system for a possible restriction:
Damaged or collapsed pipes
Internal muffler failure
Was a problem found?—Verify repair Go to Step 19
19 Check for the following engine mechanical problems
(refer to Engine Mechanical):
Low compression
Leaking cylinder head gaskets
Worn camshaft
Loose timing belt
Was a problem found?—Verify repair Go to Step 20
20 1. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
followi ng:
Visual/physical inspection
Te c h 2 d a t a
All electrical connections within a suspected
circuit and/or system
Was a problem found?—Verify repair Go to Step 21 Step Action Value(s) Yes No
