2004 ISUZU TF SERIES coolant temperature

6E-168 3.5L ENGINE DRIVEABILITY AND EMISSIONS

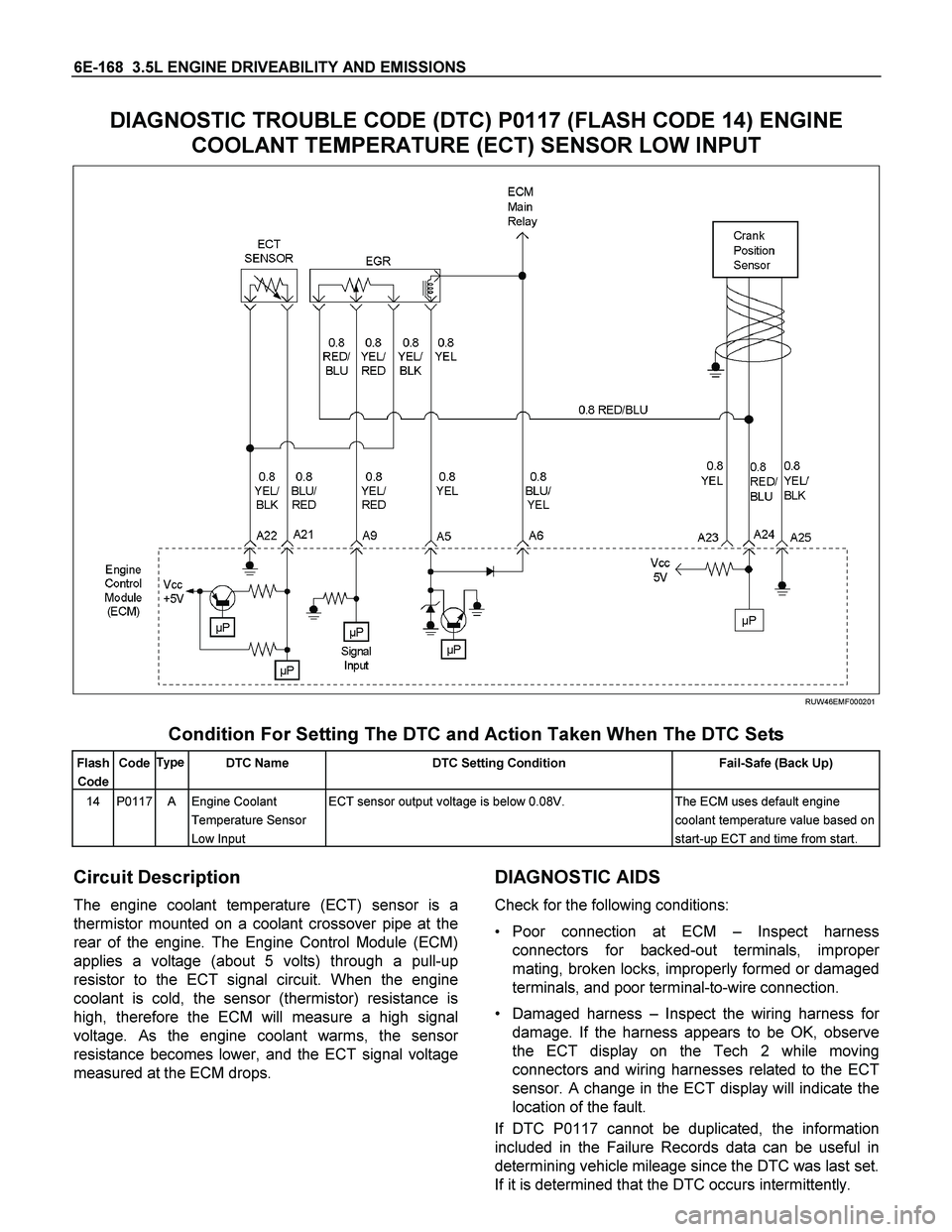

DIAGNOSTIC TROUBLE CODE (DTC) P0117 (FLASH CODE 14) ENGINE
COOLANT TEMPERATURE (ECT) SENSOR LOW INPUT



RUW46EMF000201

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code
Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
14 P0117 A Engine Coolant
Temperature Sensor
Low Input
ECT sensor output voltage is below 0.08V. The ECM uses default engine
coolant temperature value based on
start-up ECT and time from start.

Circuit Description
The engine coolant temperature (ECT) sensor is a
thermistor mounted on a coolant crossover pipe at the
rear of the engine. The Engine Control Module (ECM)
applies a voltage (about 5 volts) through a pull-up
resistor to the ECT signal circuit. When the engine
coolant is cold, the sensor (thermistor) resistance is
high, therefore the ECM will measure a high signal
voltage. As the engine coolant warms, the senso
r
resistance becomes lower, and the ECT signal voltage
measured at the ECM drops.

DIAGNOSTIC AIDS
Check for the following conditions:
 Poor connection at ECM – Inspect harness
connectors for backed-out terminals, imprope
r
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connection.
 Damaged harness –Inspect the wiring harness fo
r
damage. If the harness appears to be OK, observe
the ECT display on the Tech 2 while moving
connectors and wiring harnesses related to the ECT
sensor. A change in the ECT display will indicate the
location of the fault.
If DTC P0117 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.
If it is determined that the DTC occurs intermittently.

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-169
Diagnostic Trouble Code (DTC) P0117 (Flash Code 14) Engine Coolant
Temperature (ECT) Sensor Low Input

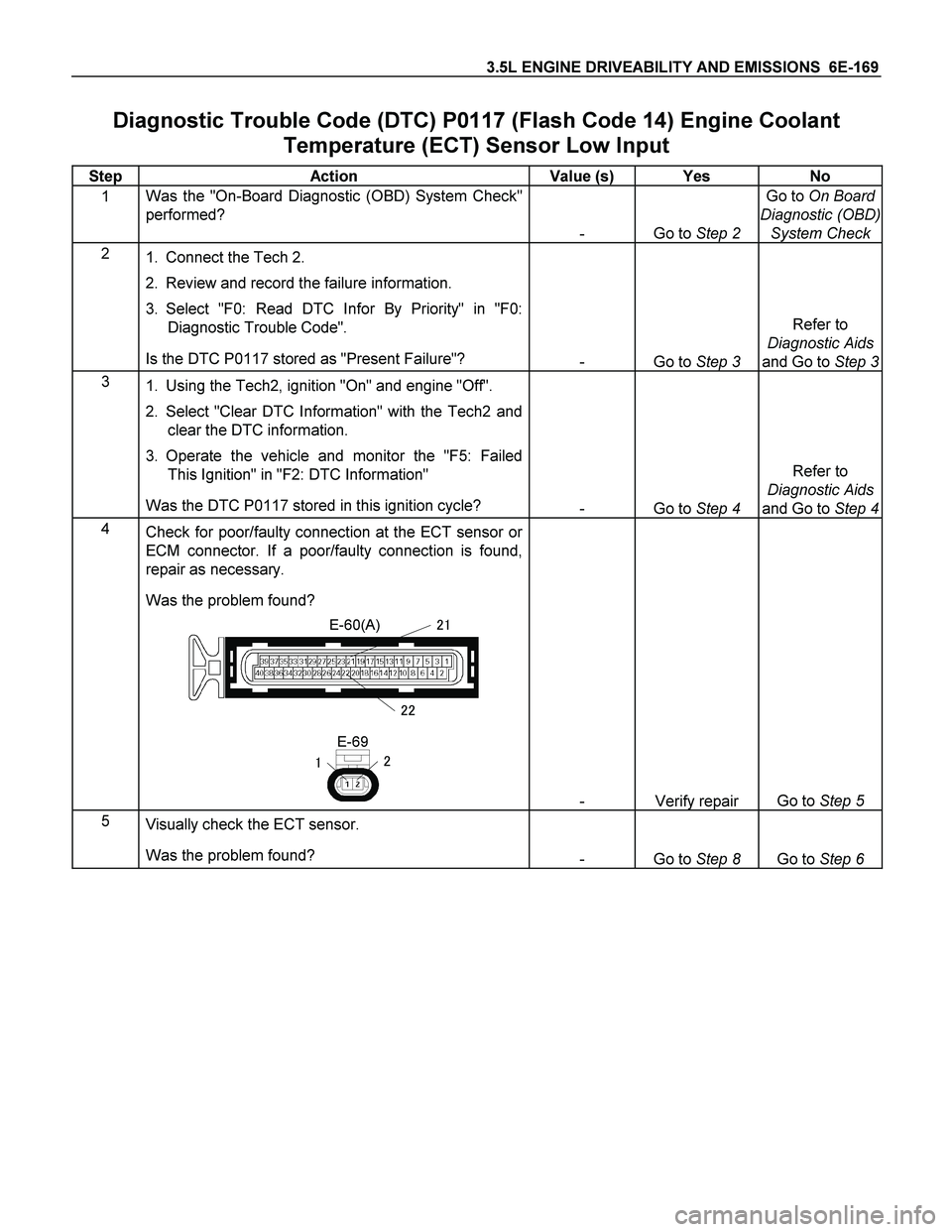

Step Action Value (s) Yes No
1 Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Connect the Tech 2.
2. Review and record the failure information.
3. Select "F0: Read DTC Infor By Priority" in "F0:
Diagnostic Trouble Code".
Is the DTC P0117 stored as "Present Failure"?
- Go to Step 3 Refer to
Diagnostic Aids
and Go to Step 3
3
1. Using the Tech2, ignition "On" and engine "Off".
2. Select "Clear DTC Information" with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the "F5: Failed
This Ignition" in "F2: DTC Information"
Was the DTC P0117 stored in this ignition cycle?
-
Go to Step 4 Refer to
Diagnostic Aids
and Go to Step 4
4
Check for poor/faulty connection at the ECT sensor or
ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?
E-69
E-60(A)







- Verify repair Go to Step 5
5
Visually check the ECT sensor.
Was the problem found?
- Go to Step 8 Go to Step 6

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-173
DIAGNOSTIC TROUBLE CODE (DTC) P0118 (FLASH CODE 14) ENGINE
COOLANT TEMPERATURE (ECT) SENSOR HIGH INPUT



RUW46EMF000201

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
14 P0118 A Engine Coolant
Temperature Sensor
High Input ECT sensor output voltage is more than 4.8V. The ECM uses default engine
coolant temperature value based on
start-up ECT and time from start.

CIRCUIT DESCRIPTION
The engine coolant temperature (ECT) sensor is a
thermistor mounted in on a coolant crossover pipe a
t
the rear of the engine. The Engine Control Module
(ECM) applies a voltage (about 5 volts) through a
pull-up resistor to the ECT signal circuit. When the
engine coolant is cold, the sensor (thermistor)
resistance is high, therefore the ECM will measure a
high signal voltage. As the engine coolant warms, the
sensor resistance becomes less, and the ECT signal
voltage measured at the ECM drops.

DIAGNOSTIC AIDS
Check for the following conditions:
 Poor connection at ECM – Inspect harness
connectors for backed-out terminals, imprope
r
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connection.
 Damaged harness – Inspect the wiring harness fo
r
damage. If the harness appears to be OK, observe
the ECT display on the Tech 2 while moving
connectors and wiring harnesses related to the ECT
sensor. A change in the ECT display will indicate the
location of the fault.
If DTC P0118 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.

6E-174 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0118 (Flash Code 14) Engine Coolant
Temperature (ECT) Sensor High Input
Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Connect the Tech 2.
2. Review and record the failure information.
3. Select "F0: Read DTC Infor By Priority" in "F0:
Diagnostic Trouble Code".
Is the DTC P0118 stored as "Present Failure"?
- Go to Step 3 Refer to
Diagnostic Aids
and Go to Step 3
3
1. Using the Tech2, ignition "On" and engine "Off".
2. Select "Clear DTC Information" with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the "F5: Failed
This Ignition" in "F2: DTC Information"
Was the DTC P0118 stored in this ignition cycle?
- Go to Step 4 Refer to
Diagnostic Aids
and Go to Step 4
4
Check for poor/faulty connection at the ECT sensor or
ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?
E-69
E-60(A)







- Verify repair Go to Step 5
5 Visually check the ECT sensor. Was the problem
found? - Go to Step 12 Go to Step 6

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-179
DIAGNOSTIC TROUBLE CODE (DTC) P0121 (FLASH CODE 21) THROTTLE
POSITION SENSOR (TPS) CIRCUIT RANGE/PERFORMANCE



RUW46EMF000101

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
21
P0121
A
Throttle Position
Sensor
Range/Performance
1. No DTC relating to barometer sensor, ECT sensor, CMP
sensor, CKP sensor, MAF sensor and TPS (low input &
high input).
2. Engine speed is more than 2000rpm.
3. Engine coolant temperature is more than 75
C.
4. TPS output voltage is between 0.24V and 0.26V.
Above conditions are met for 3 seconds.
OR
1. No DTC relating to barometer sensor, ECT sensor, CMP
sensor, CKP sensor, MAF sensor and TPS (low input &
high input).
2. Engine speed is below 3200rpm.
3. Engine coolant temperature is more than 75
C.
4. TPS output voltage is between 4.54V and 4.56V.
Above conditions are met for 3 seconds. No fail-safe function.

6E-194 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0131 A O2 Sensor Circuit Low
Voltage (Bank 1
Sensor 1) 15
P0151 A O2 Sensor Circuit Low
Voltage (Bank 2
Sensor 1) 1. No DTC relating to ECT sensor, CMP sensor, CKP sensor,
VSS, injector control circuit, ignition control circuit and O2
sensor circuit no activity (bank 1 & 2).
2. Engine speed is between 1000rpm and 4000rpm.
3. Engine coolant temperature is between 70
C and 110
C.
4. Vehicle speed is between 0km/h and 120km/h.
5. Engine load is between 80% and 160%.
6. Throttle position fluctuation is below 0.28V.
7. O2 sensor bank 1 or bank 2 output voltage is more than
400mV for 50 seconds. "Open Loop" fuel control.

CIRCUIT DESCRIPTION
The Engine Control Module (ECM) supplies a bias
voltage of about 450 mV between the heated oxygen
sensor (HO2S) signal high and signal low circuits. The
ECM constantly monitors the HO2S signal during
“closed loop" operation and compensates for a rich o
r
lean condition by decreasing or increasing injector pulse
width as necessary. If HO2S voltage remains
excessively low for an extended period of time, DTC
P0131 or P0151 will be set.
DIAGNOSTIC AIDS
Check for the following conditions:
 Heated oxygen sensor wiring – The sensor pigtail
may be routed incorrectly and contacting the exhaus
t
system.
 Poor ECM to engine block grounds.
 Fuel pressure – The system will go lean if pressure is
too low. The ECM can compensate for some
decrease. However, If fuel pressure is too low, a DTC
P0131 or P0151 may be set. Refer to 6E-116 Fue
l
System Diagnosis.

 Lean injector(s) – Perform “Injector Balance Test."
 Exhaust leaks – An exhaust leak may cause outside
air to be pulled into the exhaust gas stream past the
HO2S, causing the system to appear lean. Check fo
r
exhaust leaks that may cause a false lean condition
to be indicated.
 MAF sensor –The system can go lean if the MAF
sensor signal indicates an engine airflo
w
measurement that is not correct. Disconnect the MAF
sensor to see if the lean condition is corrected. If so,
replace the MAF sensor.
 Fuel contamination –Water, even in small amounts,
can be delivered to the fuel injectors. The water can
cause a lean exhaust to be indicated. Excessive
alcohol in the fuel can also cause this condition.
Refer to 6E-116 Fuel System Diagnosisfor the
procedure to check for fuel contamination.
 If none of the above conditions are present, replace
the affected HO2S.

6E-202 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0132 A O2 Sensor Circuit High
Voltage (Bank 1
Sensor 1) 15
P0152 A O2 Sensor Circuit High
Voltage (Bank 2
Sensor 1) 1. No DTC relating to ECT sensor, CMP sensor, CKP sensor,
VSS, injector control circuit, ignition control circuit and O2
sensor circuit no activity (bank 1 & 2).
2. Engine speed is between 1000rpm and 4000rpm.
3. Engine coolant temperature is between 70
and 110
.
4. Vehicle speed is between 0km/h and 120km/h.
5. Engine load is between 80% and 160%.
6. Throttle position fluctuation is below 0.28V.
7. O2 sensor bank 1 or bank 2 output voltage is below
600mV for 50 seconds. "Open Loop" fuel control.

CIRCUIT DESCRIPTION
The Engine Control Module (ECM) supplies a bias
voltage of about 450 mV between the heated oxygen
sensor (HO2S) signal high and signal low circuits. The
ECM constantly monitors the HO2S signal during
“closed loop" operation and compensates for a rich o
r
lean condition by decreasing or increasing injector pulse
width as necessary. If the HO2S voltage remains
excessively high for an extended period of time, DTC
P0132 or P0152 will be set.
DIAGNOSTIC AIDS
Check the following items:
 Fuel pressure – The system will go rich if pressure is
too high. The ECM can compensate for some
increase. However, if fuel pressure is too high, a DTC
P0132 or P0152 may be set. Refer to 6E-116 Fue
l
System Diagnosis.
 Perform “Injector Balance Test" – Refer to 6E-116
Fuel System Diagnosis.
 Check the canister for fuel saturation – If full of fuel,
check canister control and hoses.
 MAF sensor –The system can go rich if MAF senso
r
signal indicates an engine airflow measurement that
is not correct. Disconnect the MAF sensor to see it
the rich condition is corrected. If so, replace the MAF
sensor.

 Check for a leak in the fuel pressure regulato
r
diaphragm by checking the vacuum line to the
regulator for the presence of fuel. There should be no
fuel in the vacuum line.

An intermittent throttle position sensor output will
cause the system to go rich due to a false indication
of the engine accelerating.
 Shorted Heated Oxygen Sensor (HO2S) –If the
HO2S is internally shorted, the HO2S voltage
displayed on the Tech 2 will be over 1 volt. Try
disconnecting the affected HO2S with the key “ON,"
engine “OFF." If the displayed HO2S voltage
changes from over 1000 mV to around 450 mV,
replace the HO2S. Silicon contamination of the
HO2S can also cause a high HO2S voltage to be
indicated. This condition is indicated by a powdery
white deposit on the portion of the HO2S exposed to
the exhaust stream. If contamination is noticed,
replace the affected HO2S.
 Open HO2S Signal Circuit or Faulty HO2S–
A poor
connection or open in the HO2S signal circuit can
cause the DTC to set during deceleration fuel mode.
An HO2S which is faulty and not allowing a full
voltage swing between the rich and lean thresholds
can also cause this condition. Operate the vehicle by
monitoring the HO2S voltage with a Tech 2. If the
HO2S voltage is limited within a range between 300
mV to 600 mV, check the HO2S signal circuit wiring
and associated terminal conditions.
 If none of the above conditions are present, replace
the affected HO2S.

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-207

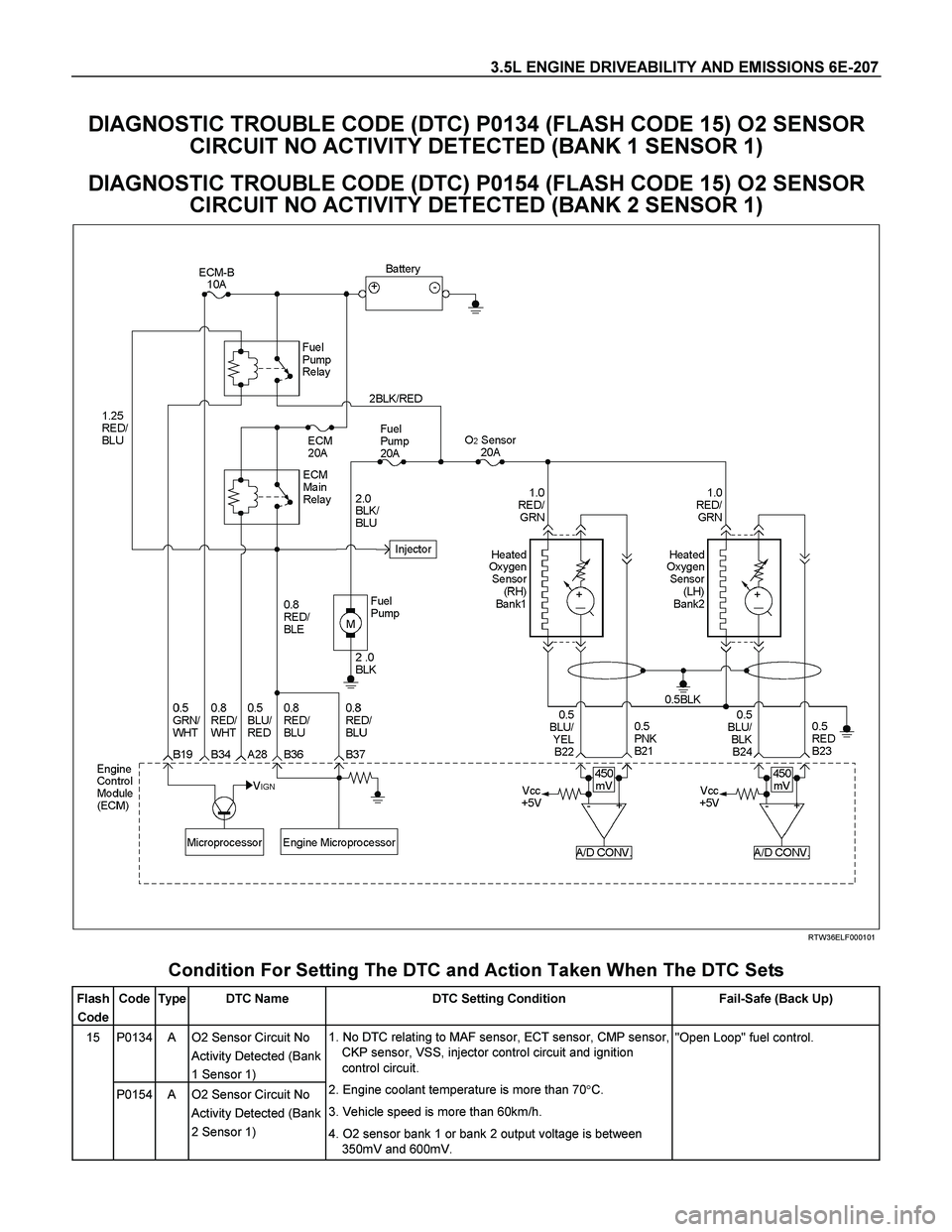

DIAGNOSTIC TROUBLE CODE (DTC) P0134 (FLASH CODE 15) O2 SENSOR
CIRCUIT NO ACTIVITY DETECTED (BANK 1 SENSOR 1)
DIAGNOSTIC TROUBLE CODE (DTC) P0154 (FLASH CODE 15) O2 SENSOR
CIRCUIT NO ACTIVITY DETECTED (BANK 2 SENSOR 1)




RTW36ELF000101

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0134 A O2 Sensor Circuit No
Activity Detected (Bank
1 Sensor 1) 15

P0154 A O2 Sensor Circuit No
Activity Detected (Bank
2 Sensor 1) 1. No DTC relating to MAF sensor, ECT sensor, CMP sensor,
CKP sensor, VSS, injector control circuit and ignition
control circuit.
2. Engine coolant temperature is more than 70
C.
3. Vehicle speed is more than 60km/h.
4. O2 sensor bank 1 or bank 2 output voltage is between
350mV and 600mV. "Open Loop" fuel control.
